Castle Mamba Micro X2, 16.8V, WP Sensored ESC W / 1406-2280KV COMBO
The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC,waterproof* and has SENSORED MOTOR SUPPORT.This ESC and Motor Combo is ideal for the weight conscious builder or where space is limited, it is perfect for 1/10 scale low speed rock crawlers/trail runners on 2S-3S weighing less than 3.6kg. Can also be used in more aggressive setups in lighter 1/10 scale touring cars, stadium trucks or buggies weighing up to 2.2kg.
If you're looking for a more aggressive setup in a heavier rig, like rock racing and extended hill climbing, we recommend you run the Mamba X ESC. Like its predecessor it includes improved features for rock crawling, including active drag brake and drag brake ramp.
Note: Use of an external BEC is required if running a high power or digital servo.
ESC FEATURES:
- Input Voltage range 2S-4S / Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
- Waterproof design
- Sensored Motor capable
- Convenient transmitter programming for six common adjustable settings.
- Additional settings and software updates available via Windows®-based Castle Link software and USB adapter or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately)
- Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
- Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
- Audible Alerts that will notify you of possible issues with calibrations and error conditions.
- Designed and manufactured in Olathe, Kansas, USA

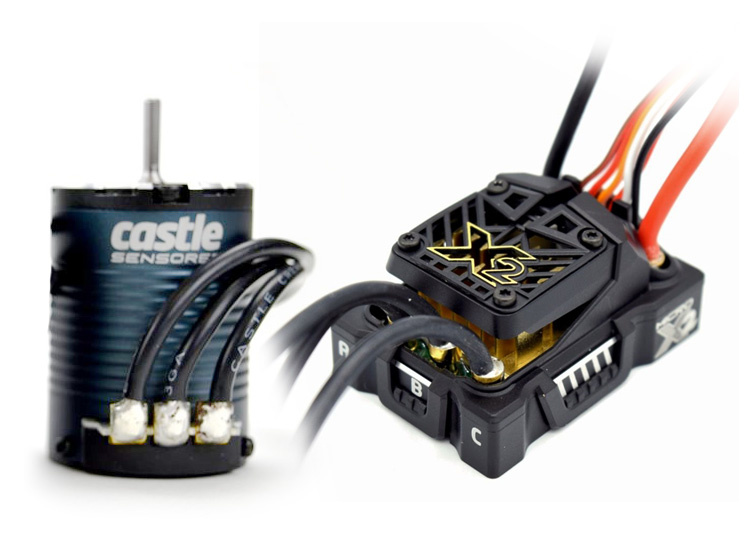

Mamba Micro X2 w/1406-2280Kv Combo Includes:
- Mamba Micro X2 ESC with 4 mm Connectors
- 1406-2280Kv Sensored Motor
- Sensor Harness
- Driver's Ed and Quick Start Guide
- Castle Decals
Application Guidelines:
- Ideal for 1/10 scale low speed rock crawlers/trail runners on 2S-3S weighing less than 3.6kg. Can also be used in more aggressive setups in lighter 1/10 scale touring cars, stadium trucks or buggies weighing up to 2.2kg.
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
