Motor 1515-2200KV Sensor Inrunner 4-pol 4mm BULLETS - CC060-0084-00 | CASTLE | Rynos.se

Din sida
Castle Motor 1515-2200KV Sensor Inrunner 4-pol 4mm BULLETS i gruppen RADIOSTYRD BIL / Tillbehör / Elmotorer / Motorer (el bil) hos Rynosx4 Hobbyshop AB (CC060-0084-00)
CASTLE CREATIONS

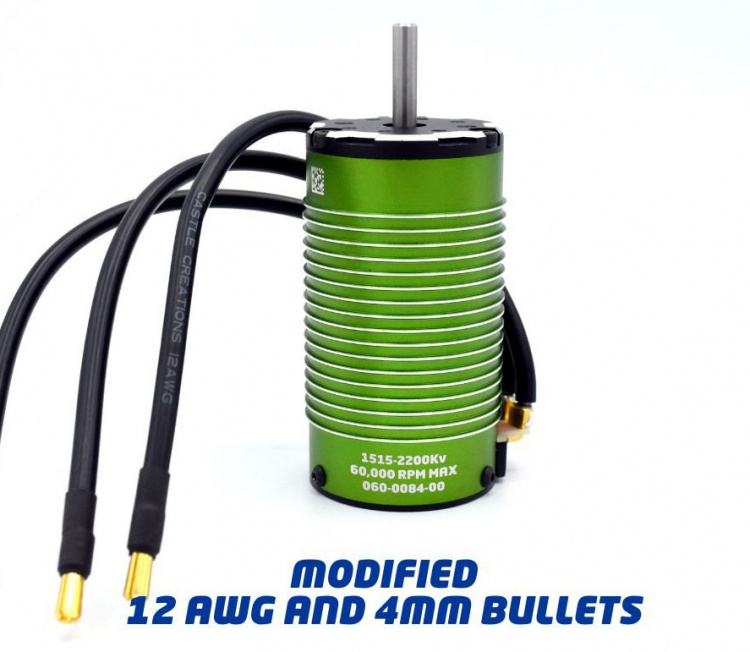

Castle Motor 1515-2200KV Sensor Inrunner 4-pol 4mm BULLETS

Artnr: CC060-0084-00
2795 kr

Köp

Castle 1515 Sensored Motor - 2200Kv (MOD 4mm Bullets / 12AWG Wire)

You might be familiar with the brute 1/8 scale version of the 1515-2200Kv (10AWG wire and 6.5mm bullets) that has overpowered buggies, truggies, on-road vehicles for years. Now we are offering our modified eBuggy version (paired with Mamba X 1/10 scale ESC, click here for details), tailored with pre-soldered 4mm bullet connections and 12AWG wire!

Technical Specs
  • Input Voltage Range: 2S-6S LiPo (4s max when paired with Mamba X ESC)
  • Kv: 2200
  • Max. RPM: 60,000
  • Size: Length: 75.4mm
  • Diameter: 40mm (41.4mm with fins)
  • Weight (w/wires):
  • Shaft Size: Length: 20mm
  • Diameter: 5mm
  • Mounting Hole Specifications: M3 and M4 @ 25mm
  • Cooling Fan: Optional, coming soon!
  • Connectors: 4mm male Castle Bullet Connectors, includes 210mm length sensor wire.
  • Items Needed for Operation: Compatible Electronic Speed Control (ESC)
  • Application Guidelines: Ideal for 1/8 scale Off-Road buggies weighing up to 4kg.
  • Recommended ESC(s): Mamba X
  • Max. Recommended Vehicle Weight: See application guidelines

Tech Notes:
  • Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
  • Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
Visa mer
Visa mindre

Egenskaper

Applikation: Bil
Motortyp: Borstlös
kV-värde: 2200 kV
Motor diameter: 41,4 mm
Motor längd: 75,4 mm
Motoraxel längd: 20 mm
Motoraxel diameter: 5 mm
Max varvtal: 60 000 rpm
Kontakt: 4mm Bullet
Max spänning: 22,2 V
Special: Sensorbaserad
