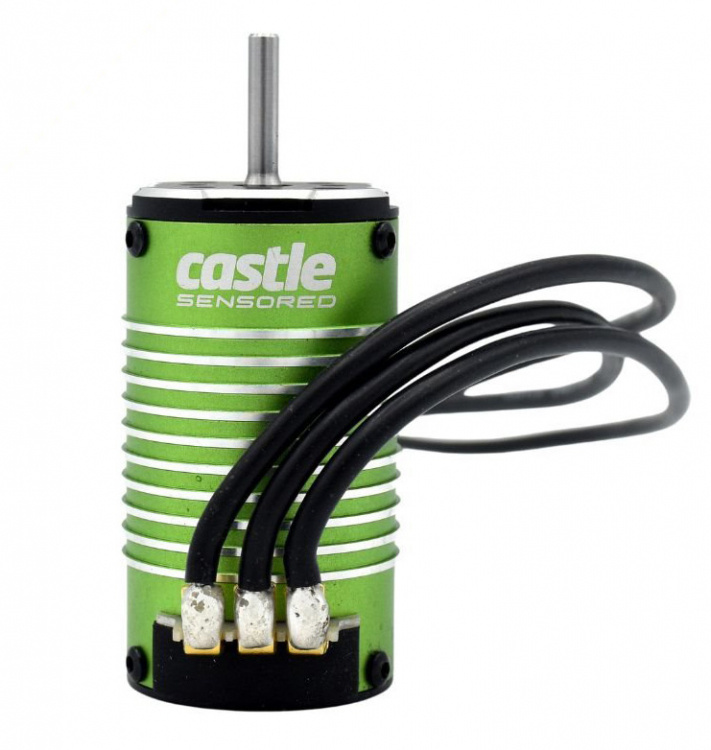

CASTLE 1007 SENSORED MOTOR-8450KV
WHY SENSORED?Drivers in all applications demand clean starts when coming off the line. Crawler fans require high-precision low speed control and torque for climbing, racers need precision and predictability, and dragsters don’t have a millisecond to spare. To achieve all of these performance demands and more, we have integrated rotor position sensor technology with our improved high power and high efficiency motor design. Through the use of our sensors, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup. Users will experience PRECISE throttle control and BUTTERY SMOOTH starts plus the RAW POWER and LONGER RUN TIMES that our highly efficient motors produce.
Technical Specs:
- Input Voltage Range: 2s LiPo
- Kv: 8450
- Max. RPM: 80,000
- Can Size: Length: 50.3 mm
- Diameter: 28 mm
- Weight (w/wires): 114.8g
- Shaft Size: Length: 15 mm
- Diameter: 1/8" (3.175 mm)
- Mounting Hole Specifications: M.5 @ 14mm & 16mm; M3 @ 19 mm
- Connectors: 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes 210mm length sensored wire
- Items Needed for Operation: Compatible Electronic Speed Control (ESC)
- Application Guidelines: Ideal for 1/16th and 1/14th scale vehicles weighing up to 2.75lbs.
- Recommended ESC(s): Mamba Micro X2
- Running Modes: SmartSense™ (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode.
Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
