Castle RECEIVER HARNESS REPLACEMENT, COPPERHEAD 10

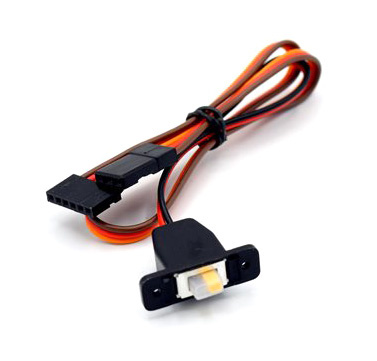

Replacement Receiver Harness for the Copperhead 10 ESC.Features:
- Correct factory-specified connectors
- Waterproof switch
- Factory-specified wire gauge
To Remove the Receiver Harness:
- Place slight outward pressure, with thumb, on the small tab located on outside edge of ESC case.
- Grip the harness close to the connector at the ESC and pull gently, straight up from ESC, to remove the harness from the ESC pin header.
- Note: Do not yank or forcefully pull harness out of ESC. May cause damage to ESC or harness.
To Replace the Receiver Harness:
- Place slight outward pressure, with thumb, on the small tab located on outside edge of ESC case.
- Following the wiring diagram provided on the side of the ESC's case, place the 5 wire connector onto the ESC pin header.
- Note: Misalignment of the harness will prevent the ESC from operating. Be sure that the brown receiver wire is plugged in next to the positive (+) red battery wire.
- Gently press on the connector to fully engage with the ESC pin header.
- Reconnect the ESC to the receiver.
