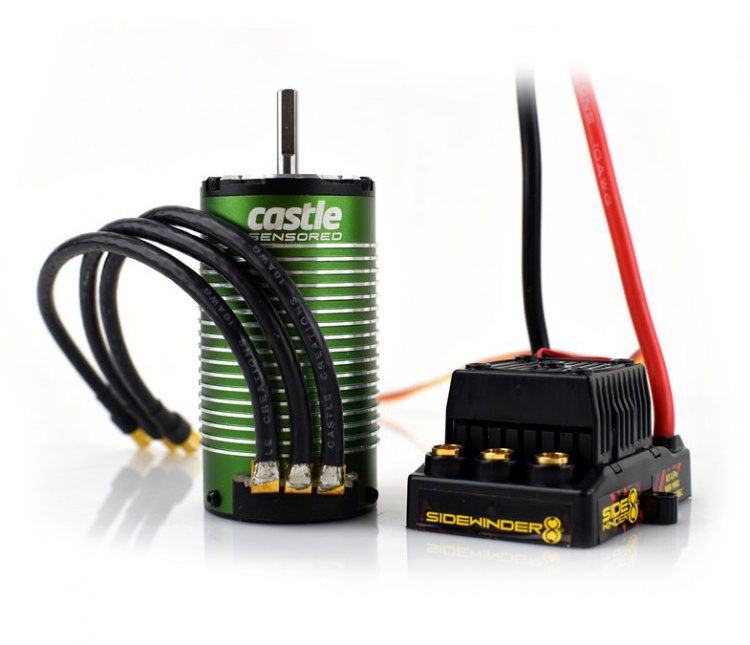

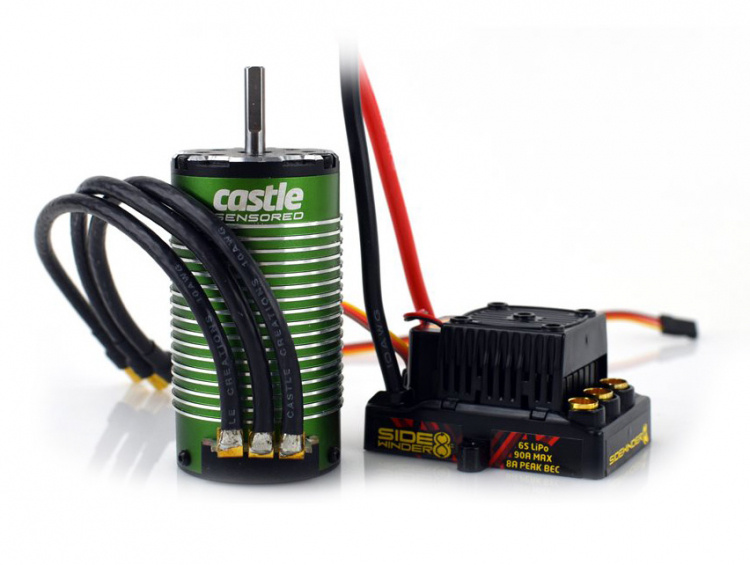

Castle 010-0139-02 - SIDEWINDER 8TH ESC AND 2200 KV MOTOR COMBO V2
Affordable Waterproof Brushless Power System!Sidewinder 8th is our sport 1:8 scale waterproof* combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.
ESC Features:
- 2s - 6s LiPo (25.2V) use in vehicles up 11.lbs with battery, ready-to-run.
- Smooth sensorless motor operation with included 1515-2200kv sensored** brushless motor
- Large 6.5mm female motor bullet connectors (male connectors sold separately)
- Waterproof design ESC and splash resistant 30MM fan*
- Powerful 5.5 volts fixed, 8 amps Peak BEC
- LED error codes for common error conditions
- Convenient transmitter programming for nine common adjustable settings
- Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
- Proudly Designed, Assembled and Supported in Olathe, KS USA
1515-2200Kv V2 Features:
- Input Voltage range: 2s-6s LiPo
- Redesigned stator and rotor resulting in improved magnetic flux.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly. (see note below)
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminum CNC Machines Front/Rear End bell
- Proudly Designed and Supported in Kansas, USA.
Sidewinder 8 Combo includes:
- Sidewinder 8th ESC
- Castle 1515-2200Kv V2 brushless sensored* motor
- Drivers Ed and Quick Start Guide
- Castle decal sheet
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
** Sensored capabilities of the motor cannot be utilized with the Sidewinder 8th ESC, must be run in sensorless mode.
