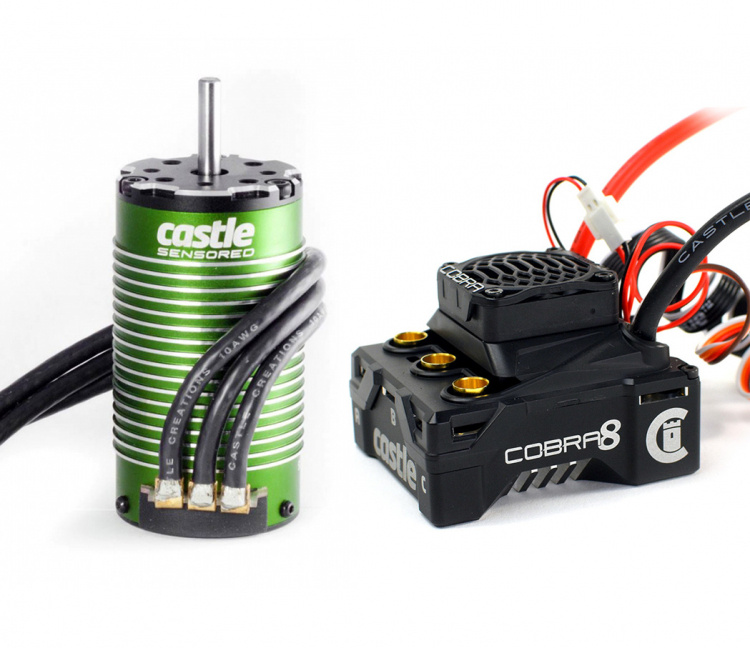

Castle CC010-0172-05 - COBRA 8 Sensored ESC + 1512-2650KV Motor 3-4S Combo
- Waterproof : Yes
- Telemetry Capable : No
- Data Logging : Yes
- Auxiliary Wire : Yes
- Minimum Input Voltage : 3S
- Maximum Input Voltage : 4S
- Sensored Capable : Yes
- Recon G6 Certified ESC : No
- ROAR Certified ESC : No
- CRYO-DRIVE : Yes
We're thrilled to introduce the Cobra 8, our next generation electronic speed controller (ESC) for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology tailored specifically for 1:8th scale vehicles weighing up to 6.8kg.
Note: The Cobra 8 ESC is not intended for drag racing applications.
The Cobra 8 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.
Crafted with a CNC aluminum bottom case, the Cobra 8 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.
One of its defining features is our acclaimed CRYO-DRIVE™ technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 8 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.
We’ve packaged the Cobra 8 with three different Castle 4 -POLE 12-SLOT motor options to overpower a wide range of 1:8th scale vehicles.
NEW FEATURES:
• 32-Bit Processing power for smoother motor control and improved response time.
• Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Ability to download specific sessions.
• Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
• Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
• Mounting holes located in bottom of aluminum case for installation into vehicle.
ESC Specs:
- Input Voltage Range: MIN: 2s LiPo, MAX: 6s LiPo (25.2 V) (3-4S in this combo)
- BEC Specifications: 5.0V - 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V
- Operating Environment: Waterproof* design allows for use in nearly any environment.
- Running Modes: SmartSense Brushless, Sensored Only, Brushed
- Brake: Proportional
- Reversible: Yes, but may be disabled for racing.
- On/Off Switch: Yes, waterproof
- Cooling Fan: Yes, factory equipped (30MM), temperature controlled
- Size: 60 x 52 x 43mm
- Weight (with no battery connector): 165.6gr
- Connectors: 6.5mm female bullets for motor connection, matching 6.5mm male bullets required
- Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
- Product Use Statements: Not intended for drag racing applications, see Ghost RC Cobra 8 ACE for drag racing version.
- Application Guidelines: Intended for 1/8th scale vehicles weighing up to 15lbs and up to 6s LiPo.
- Programmability: Fully programmable Castle feature set using the included FREE Castle Link V4 USB adapter and freely downloadable NEW Castle Link Windows™ software. (Windows 10+ required)
Castle Link Mobile App (B-Link):
- In development
Telemetry Link Capable:
- In development
Motor Specs:
- Input Voltage Range: 3S-4S LiPo
- Kv: 2650
- Max. RPM: 60,000
- Size: Length: 67.7mm
- Diameter: 40mm (41.4mm with fins)
- Weight (w/wires): 383g
- Shaft Length: 20mm
- Shaft Diameter: 5mm
- Mounting Hole Specifications: M3 and M4 @ 25mm
- Cooling Fan: Optional
- Connectors: 6.5mm male connectors on 10-gauge wire
- Application Guidelines: Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 4 kg
- Tech Notes: Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
Water Resistant Design:
The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
COBRA 8 / 1512-2650KV COMES WITH:
- Cobra 8 ESC
- 1512-2650KV Motor
- Castle Link V4 USB Adapter
- 300mm Direct Connect Sensor Wire
- Cobra Decals
- ESC Quick Start Guide
