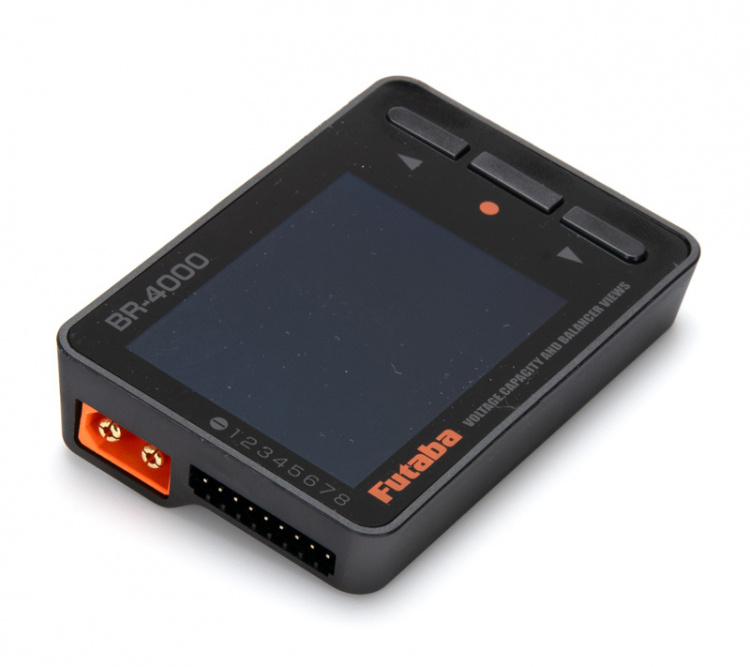

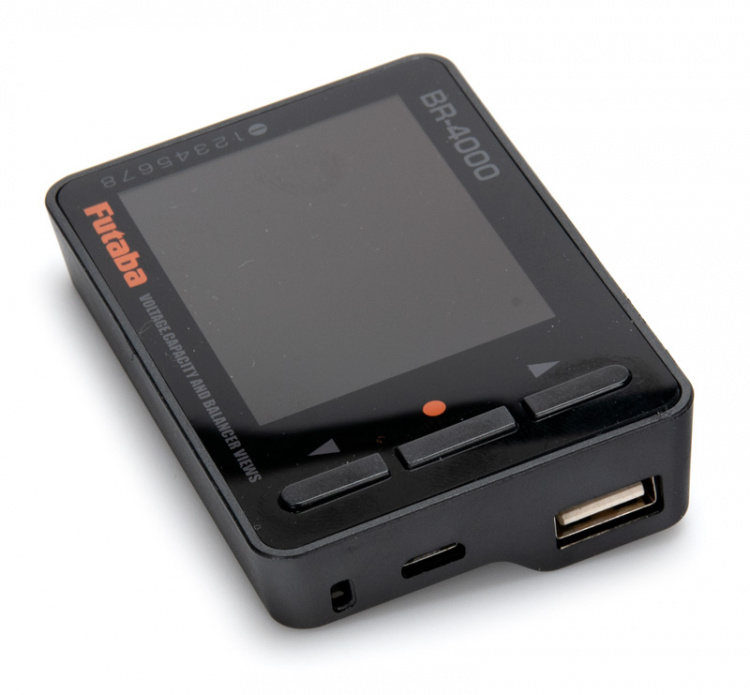

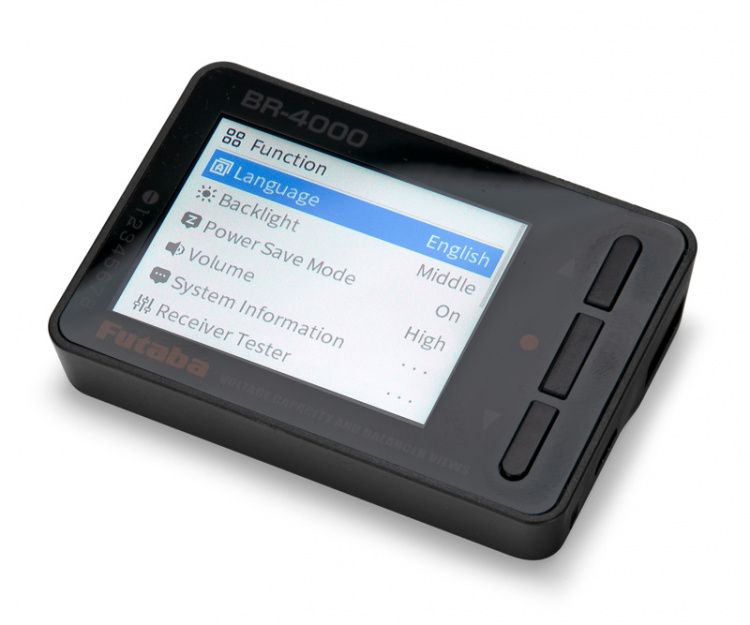

Futaba BR4000 - Battery/Balance Checker/Servo & Receiver Checker
This is a useful multi-battery tester for RC hobby batteries that also doubles as a USB charger!Features:

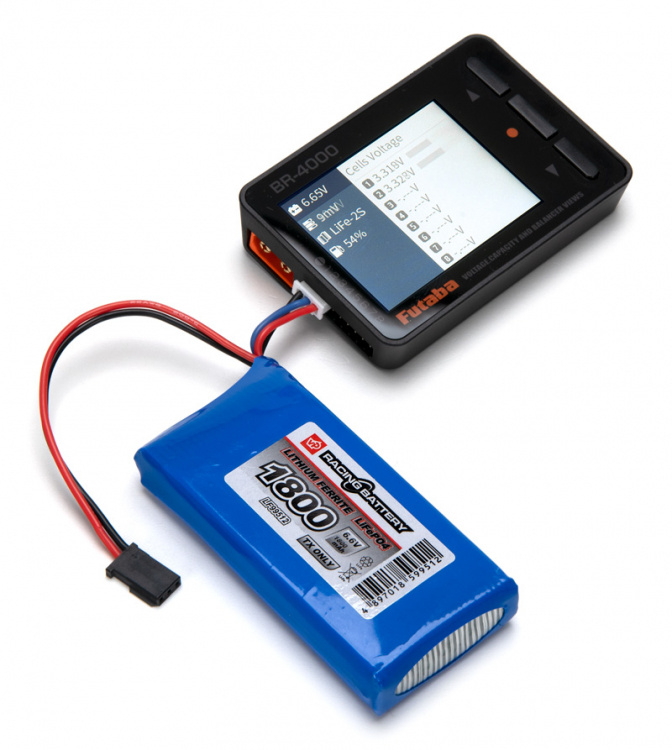

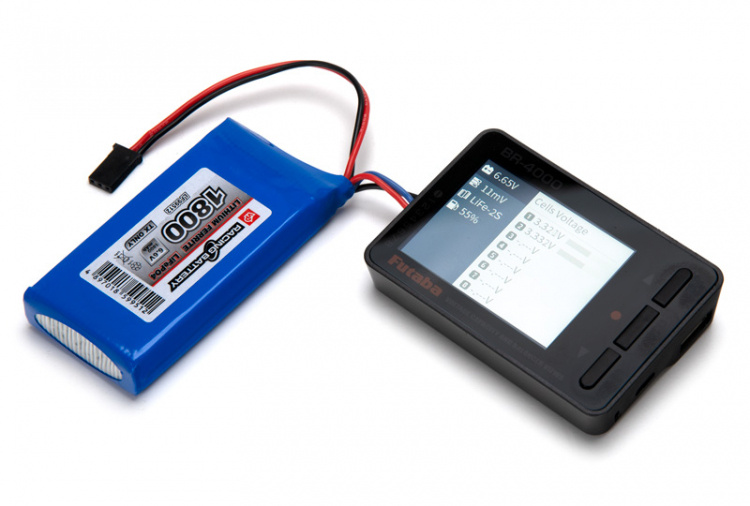

- Lithium cell checker for LiPo, LiHV, LiFe & LiIon (1-8s)
- Lithium cell balancer for LiPo, LiHV, LiFe & LiIon batteries (1-8s)
- USB charger (USB-A port)
- Receiver signal test (PVM/S.BUS)
Specs:
- Input voltage XT60i onnector: 5-15V
- Input voltage XH 2.54 balance port (1s): Max 15V
- Input voltage XH 2.54 balance port (2-8s): Max 4.8V per cell
- Voltage measurement accuracy: ±0.005V @ 4.2V
- Balancing cells accuracy: <0.005V
- Supported USB-A charging: QC 2.0/3.0, BC1.2, max output 12V/2A
- Size: 80x55x19mm
- Weight: 59g
Available ports:
- XT60i: To power the USB-A charging port (5-15V)
- JST-XH 2.54: 1-8S balancing port
- USB Micro B: for firmware updates
Supported batteries:
- LiFe (Lithium Ferrite): 1-8s
- LiPo/LiHV (Lithium Polymer): 1-8s
- LiIon (Lithium Ion): 1-8s
- NiCd (Nickel Cadmium): 3-10 cells
- NiMH (Nickel Metal Hydride): 3-10 cells
