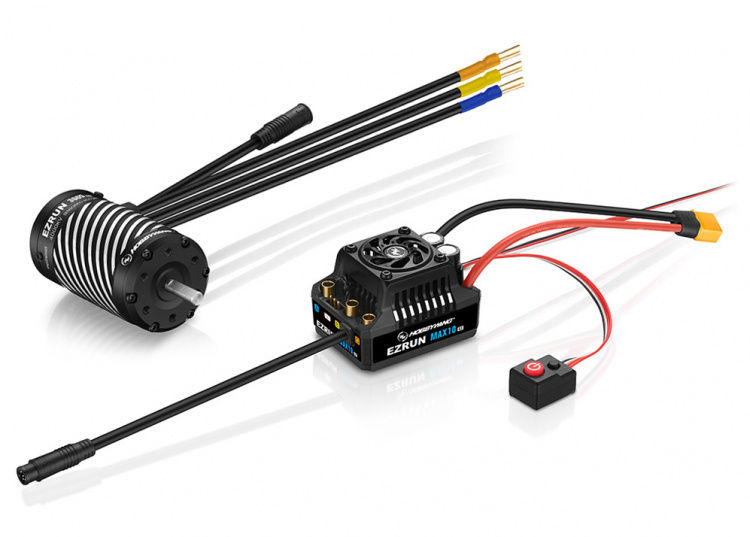

Hobbywing Ez-Run Max10 G2 140A ESC & 3665SD G3 3200KV Motor Combo - 2-3S LiPo
ESC Sensor Upgrade, Great Throttle Response

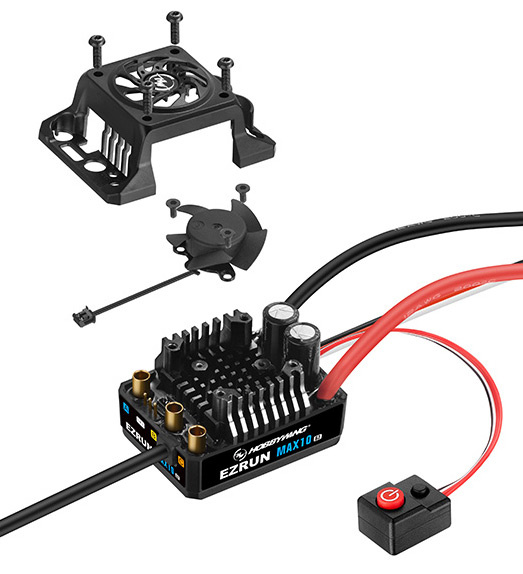

- Smart technology increases heat dissipation effectiveness
- Larger capacitor built-in, double explosion-proof
- Smart freewheeling technology, higher efficiency
- Data logging, convenient
- IP67 protection, all-weather use
Upgraded sensor-mode with great throttle response
The EzRun Max10 G2 ESC features and improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of throttle respons and perfectly matches the EzRun 3652SD/3565SD G3 motors.
Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more.
- Turbo timing adjustments: 32 Degrees
- Speed is significantly increased up to 25%

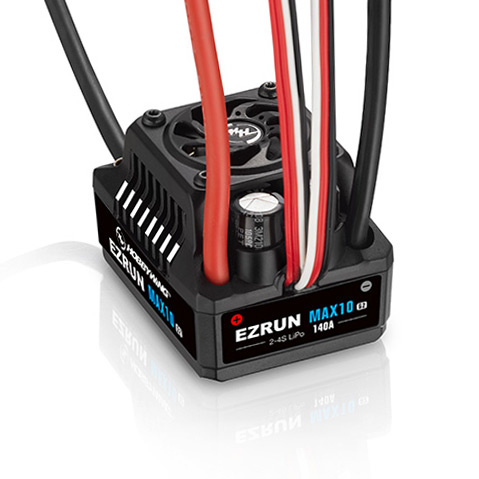

Large built-in capacitor = Double explosion proof
Compared to the previous generation of the Max10 ESC, the total capacitance of the capacitors are increased by 74% and is overheat protected. Improved power delivery from the battery to the ESC to avoid it from overloading and causing the capacitors to explode.
Smart freewheeling technology, higher efficiency
The new smart freewheeling technology enables the Max10 G2 to have higher drive efficiency that the earlier generation, resulting in lower operation temperatures and a minimum temperature of approximately 25°C lower that the previous generation.
Data logging, convenient
After connecting the ESC with the OTA Bluetooth module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.
ESC IP67 protection, all-weather use
The IP-67 waterproof system guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The ESC also supports motor with ordinary sensored mode interface. Cables to be purchased separately.

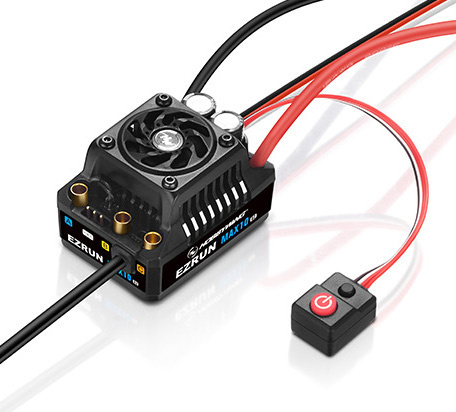

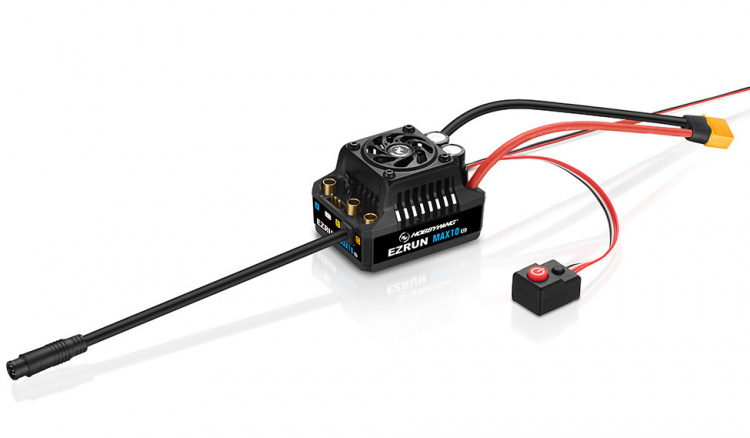

ESC Specs:
- Scale: 1/10
- Type: Brushless/Sensored
- Waterproof: Yes (IP67)
- Cont./Peak Load: 140/880A
- Input Voltage: 2-4S LiPo
- BEC: 6/7.4V @ 5A
- Input Wires: 12AWG
- Output Wires: 12AWG
- Input Connector: XT60
- Output Connector: 4mm Gold (female bullet)
- Fan Size: 30x30x10mm
- Size: 53x39.5x37.2mm
- Weight: 120g
- Firmware Upgrade: Supported
ESC Programming via:
- SET Button on ESC: No
- LED Program Box: Supported
- LCD Program Box (G2): Supported
- Programming Port: Separate
ESC Applications:
- 1/10 Vehicles: Short Course Tryucks, Stadium Trucks, & Monster Trucks
- KV Rating 3S LiPo: ≤4000kV 3665 size motor
- KV Rating 4S LiPo: ≤2600kV 4268 size motor

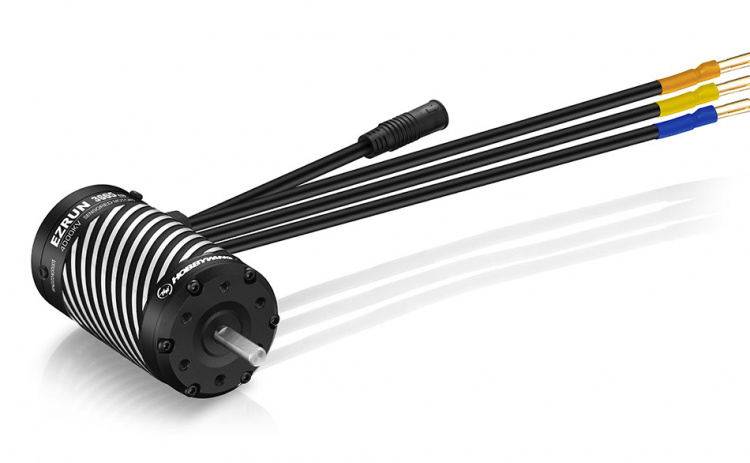

EZRUN 3665SD-3200KV G3 Sensored Motor
- The new generation adds performance.
- The evolution of a sensored motor, increases performance.

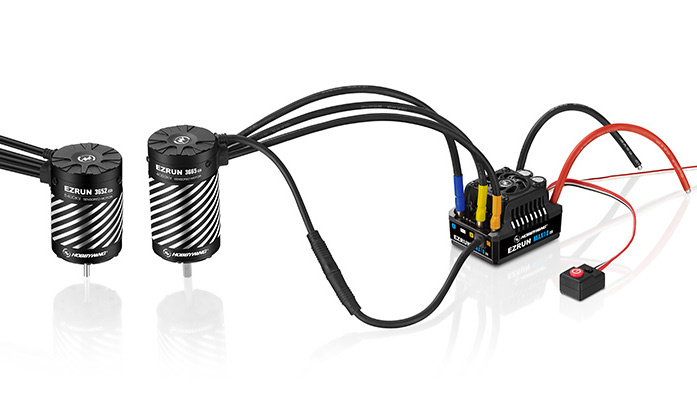

- The EzRun 3652/3665 SD G3 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve motor temperature protection and perfectly matches the EzRun MAX10 G2 ESC.
- Chip built in the motor, when matched with Hobbywing EZRUN MAX10 G2 esc, it not only has perfect compatibility, the ESC can automatically identify the motor and build a pure/full sensor mode power system, providing better manipulating performance and more delicate manipulating feel.
- Compared with the previous generation motor, the output power and efficiency are increased by more than 3%. Under the same load, the motor temperature is effectively reduced.
- The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
- The innovative new sensor interface and rubber cover bearing have better waterproof and dust-proof effect than the traditional sensor motor.
Powerful hardware configuration, efficiency is greatly improved
The high-precision Hall sensor components ensures that the rotor position output is always accurate and consistent, achieving excellent linearity and a great throttle control. The EzRun 3652/3665 G3 motor adopts a high precision bearing that is waterproof in the front end of the motor. The rear end of the motor uses precision iron cover with a smaller structure to improve the capacity, and at the same time, provides a higher bearing speed while keeping resistance low. The operation is smoother and more reliable.
Compared to the G2 motor:
- The overall efficiency is increased by 3%
- More effective while the maximum output power has increased by 5%
- The motor temperature is greatly reduced under the same load conditions
- The stable power and high output of the motor, makes throttle control for maneuvers (power wheelies, straight line power, and clearing
- jumps) much easier.
Design, quality materials, durable
All the materials used on the EZRUN 3652/3665 G3 motor (Motor casing, bearings, ultra-thin silicon steel sheets, high temperature-resistance copper wire, explosion-proof rotor, high-tolerance alloy shaft) are carefully selected and approved by our in-house engineers. Hobbywing is serious in providing users with an extraordinary performance for a long period of time.
The motor adopts a modular detachable structure design for easy disassembly and daily maintenance.
This helps to prolong the lifespan of the motor and maintaining the efficiency of the motor simple.
Applicable to All Weather & Track Conditions
The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit. Note, the bearings are not IP rated.
Motor Specs:
- Scale: 1/10
- Type: Sensored/Brushless
- Pole Count: 4
- KV Rating: 3200
- LiPo Cells: 2-3S
- No-load Current: ≤7.1A
- Diameter: 37mm
- Length: 65.8mm
- Shaft Diameter: 5mm
- Weight: 304g
- Front Bearing: D16xD5xT5mm (not IP rated)
- Rear Bearing: D11xD5xT5mm (not IP rated)
- Applications: 1/10; Short Course Truck, Stadium Truck, Monster Truck
