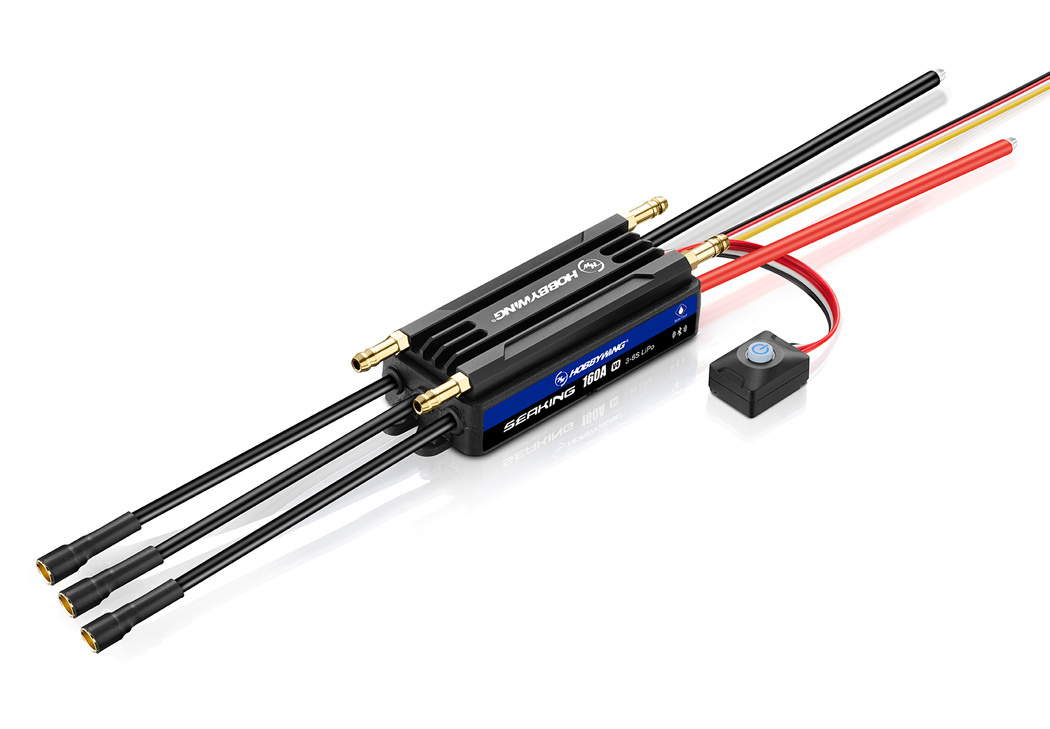

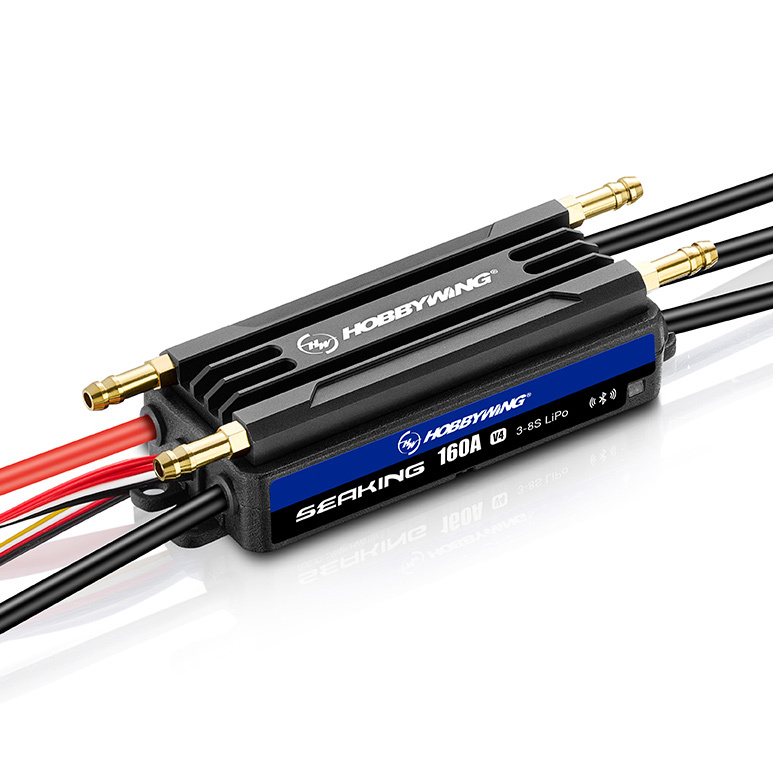

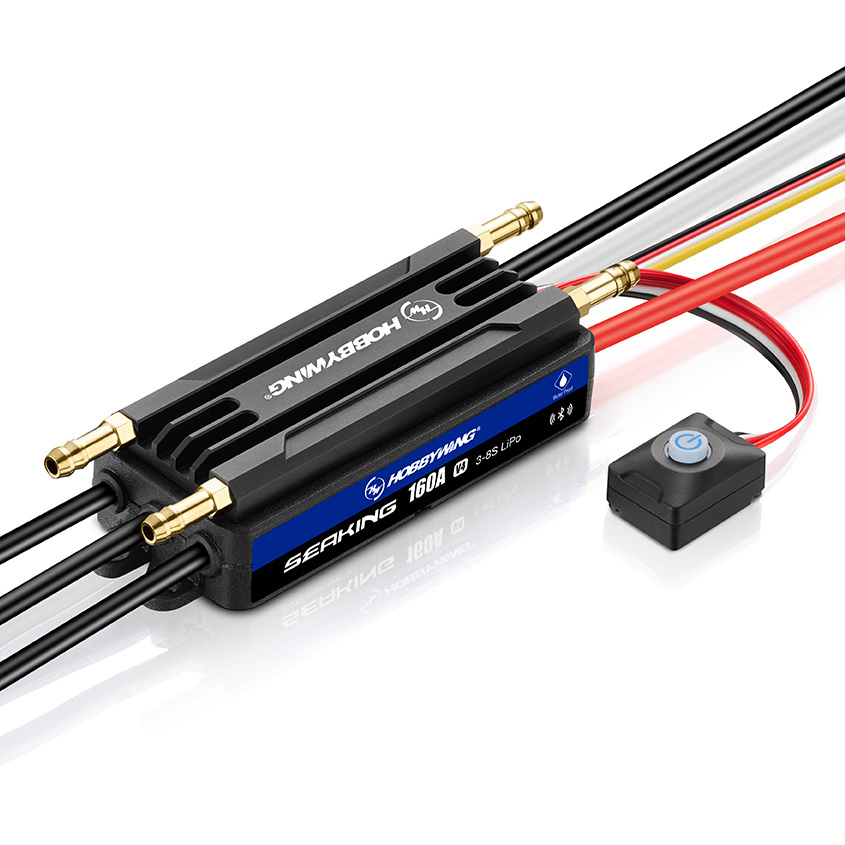

Hobbywing HW30206200 - Seaking 160A V4 3-8S Marine ESC
Built-in Bluetooth for Connecting the Mobile APP Directly
The ESC features a built-in Bluetooth module, allowing easy connection to a mobile app for:
- Parameter settings
- Data reading
- Firmware upgrades
- All without the need for additional devices, making it incredibly user-friendly.
Built-in Data Logging for Performance Monitoring
The ESC features a built-in Bluetooth module, allowing easy connection to a mobile app for parameter settings, data reading, and firmware upgrades, all without the need for additional devices, making it incredibly user-friendly.
IP67 Fully Waterproof Design
With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities. It can be used immediately without any additional waterproofing treatment.
- Splash protect
- Waterproof
- Dustproof
Super Built-in BEC
- Maximum continuous current: 8A
- Maximum instantaneous current: 25A
- The output voltages are switchable between: 6.0V / 7.4V / 8.4V
Dual-Channel Water Cooling for Lower Temperatures
- This ESC features a dual-channel water cooling system
- Providing enhanced heat dissipation
- Ensuring the ESC remains within a safe temperature range during use

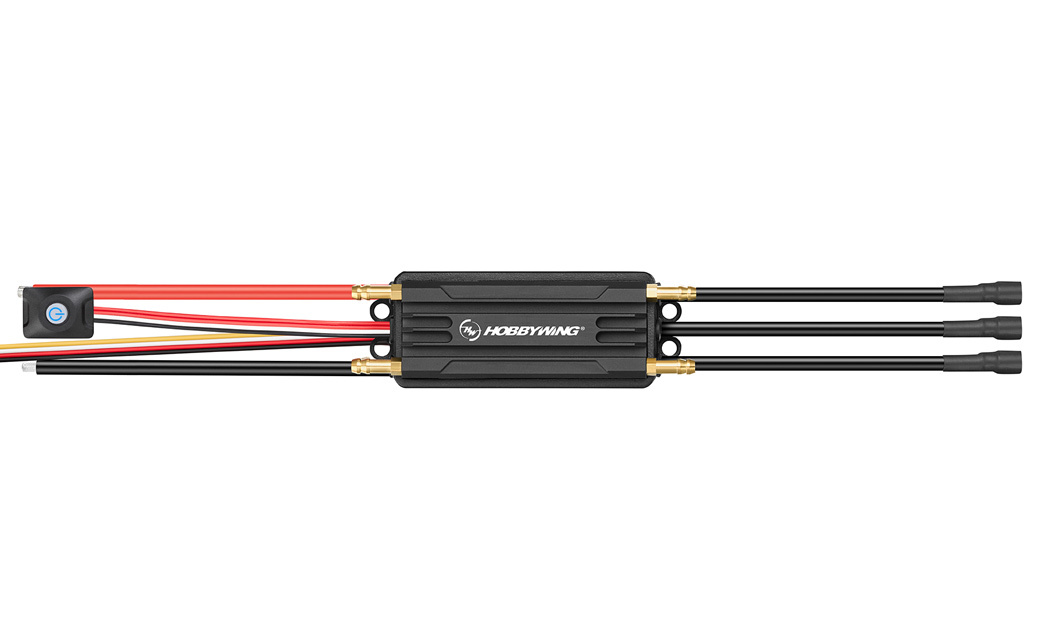

Sleek Design for Easier Installation
The SeaKing 160A V4 ESC features a sleek, elongated design that is 15% narrower (7mm slimmer) than its predecessor, the SEAKING 180A V3. This streamlined profile enhances installation convenience, particularly in boats with limited space, offering greater adaptability for professional and recreational applications.
Capacitor Overheating Protection
The capacitor overheating protection helps prevent damage to the ESC caused by capacitor failure due to overloading, safeguarding the unit against complete failure.
Freewheeling Function
When enabled the Freewheeling function:
- ESC temperature is cooler
- When the throttle is released the boat decelerates faster
- Cornering control and handling BETTER
AUX External Control Channel for Real-time Parameter Adjustment
By connecting the yellow signal wire to an unused receiver channel, you can adjust ESC parameters (like reverse thrust) in real-time using the remote control, adding convenience to parameter management.
Note:The actual function of the yellow wire corresponds to the AUX CH Function settings in the parameter table.
Optimized Programmable Parameter
With 11 programmable parameters, the ESC is designed to meet competitive racing needs, offering a wider and more detailed range of settings.
Specs:
- Brushless
- Sensorless
- Waterproof
- Cont./Peak Current: 60A/800A
- Input Voltage: 3-8s LiPo
- BEC Output: Switch mode 6V/7.4V/8.4V @8A
- Input Wires: 10AWG-160mm
- Output Wires: 12AWG-150mm
- Input Connectors: No
- Output Connectors: 6.5mm Gold female plug
- Firmware Upgrade: Supported
- Size: 91x41x25.5mm
- Weight: 220g (Including wire and output plug)
- Boat Applicable: ≤120CM
ESC Programing via:
- LED Program Box: Not Supported
- LCD G2 Program Box: Not Supported
- LCD PRO: Not Supported
- OTA Programmer: Not Supported
- Program Port: Built-in Bluetooth
Data Recording:
- Extreme value: Supported
- Real-time Data: Supported
- Historical data (Graph): Supported
