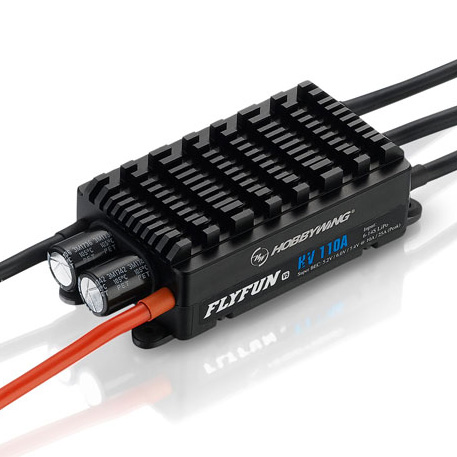

Hobbywing HW30201701 - FlyFun HV 110A OPTO V5 Airplane 6-14S ESC
DEO Technology / Active Freewheeling
The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:
- Rapider and smoother throttle response, better stability and flexibility during flight.
- Higher driving efficiency, longer flight time.
- Lower ESC temperature, more reliable operation.
Soft Start-ups & Reverse Brake
New soft start-up modes are applicable to regular propeller aircraft and EDF aircraft with different sizes. With Reverse Brake mode enabled when landing can effectively shorten the sliding distance of the aircraft to simulate the landing of a real aircraft (within a super short distance, the FLYFUN 130A/160A-HV-OPTO-V5 doesn’t have this function). Normal Brake Mode, Proportional Brake mode, and Brake Disabled mode are also available; the brake amount is adjustable in normal brake mode while in proportional brake mode, the brake force will be automatically allotted on the basis of the position of radio throttle stick.
Multiple Protections
Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.
- Start-up Protection
- Capacitor Thermal Protection
- ESC Thermal Protection
- Over-load Protection
- Throttle Signal Loss Protection
- Over-current Protection
- Abnormal Input Voltage Protection
New Design & Great performance
New design brings exquisite look and good heat-dissipating performance. Imported components, the high-performance 32-bit microprocessor, and the PCB (printed circuit board) with extremely low impedance adopted by the ESC guarantee great current endurance, excellent performance and high reliability. The ESC is available in high-voltage/regular version with different Amps.
FLYFUN 110A HV OPTO V5 SPECS:
- Cont./Peak Current: 110A/140A
- Input: 6-14S LiPo
- BEC Output: No
- Input Wires: 10AWG-150mm
- Output Wires: 10AWG-150mm
- Input Connectors: No
- Output Connectors: No
- Firmware Upgrade: Not Supported
- Size: 92.7x45.6x27mm
- Weight: 170g
ESC Programing via:
- Transmitter: Supported
- LED Program Card: Not Supported
- LED Program Box: Supported
- LCD Program Box: Not Supported
- WiFi Module: Not Supported
- OTA Programmer: Not Supported
- Program Port: Separate Program Wire
