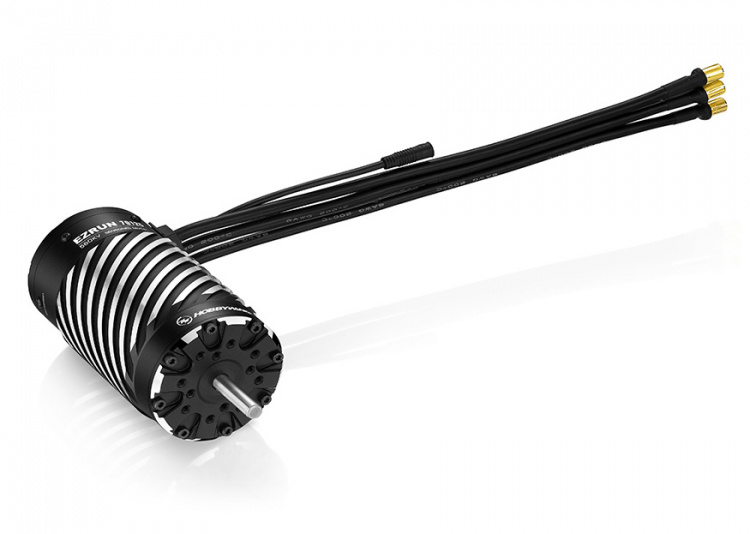

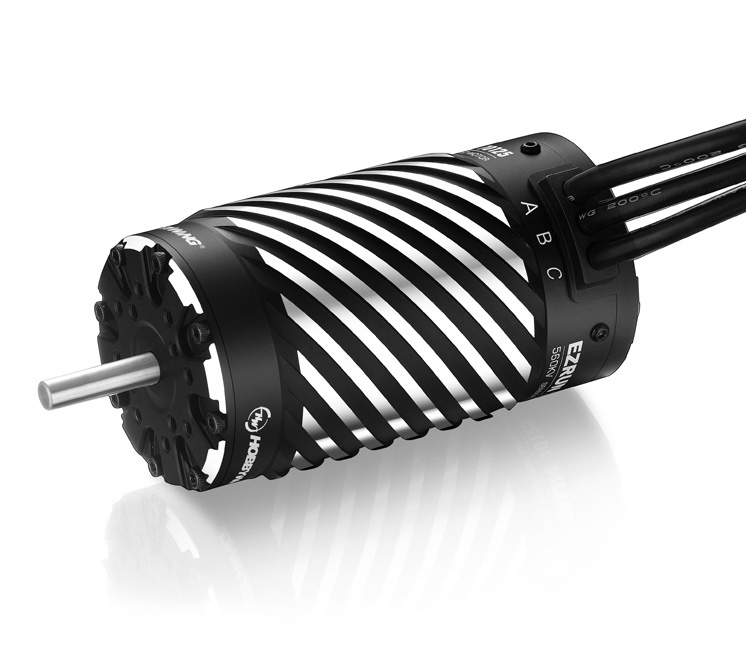

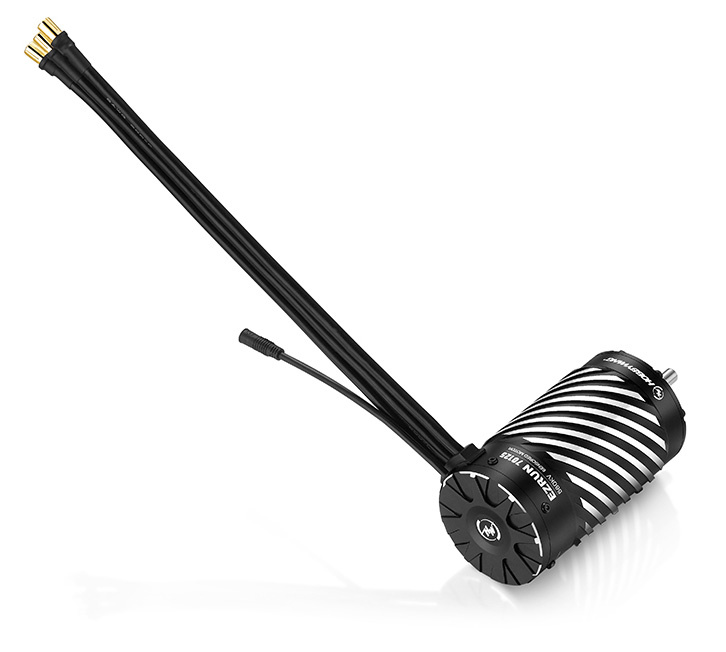

Hobbywing EzRun 70125SD 560kV Sensor 1/5 Motor
- Chip built in the motor, when matched with Hobbywing EZRUN MAX4 esc, it not only has perfect compatibility, the ESC can automatically identify the motor and build a pure/full sensor mode power system, providing better manipulating performance and more delicate manipulating feel.
- The rotor adopts four strong magnetic and high temperature resistant sintered Nd-Fe-B magnets, widens the magnetic tile, provides super torque, and makes the motor have strong explosive force and stable output power.
- The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
- High output efficiency, effectively reduce the motor temperature and output more power under the same load.
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
- The innovative new sensor interface and rubber cover bearing have better waterproof and dust-proof effect than the traditional sensor motor
Specs:
- Type: 1/5, Brushless, Sensored Car ESC
- Pole Count: 4
- KV Rating: 560KV
- LiPo Cells: 8-12S
- No-load Current: 3.6A
- Diameter: 70mm
- Length: 125mm
- Shaft Diameter: 8mm
- Weight: 1995g
- Front Bearing: D22xD8xT7mm
- Rear Bearing: D22xD8xT7mm
Applications:
- 1/5 Heavy-duty Off-road, Truck
