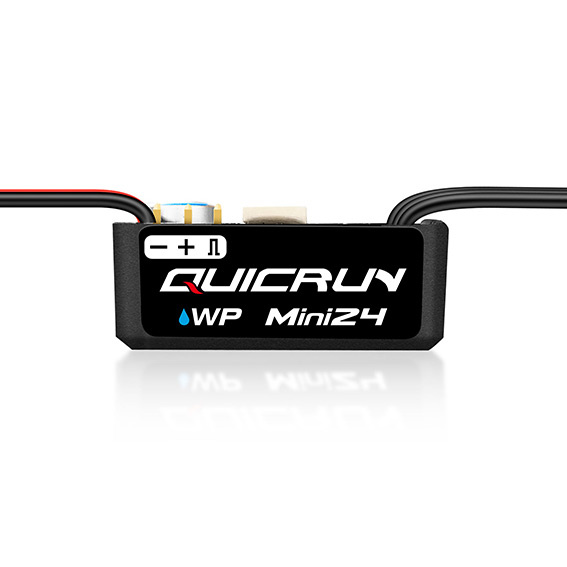

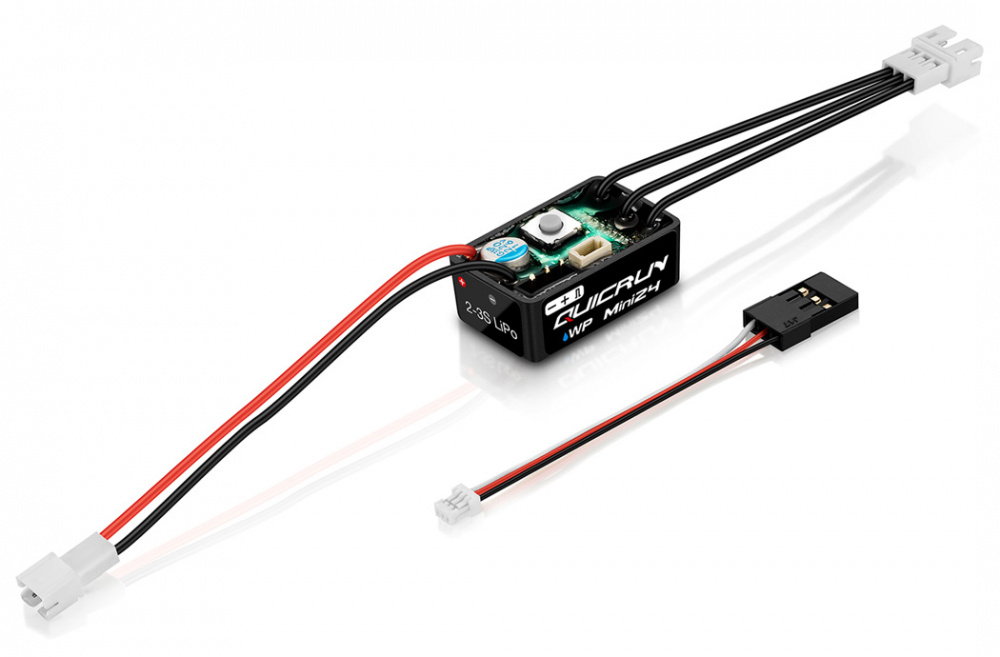

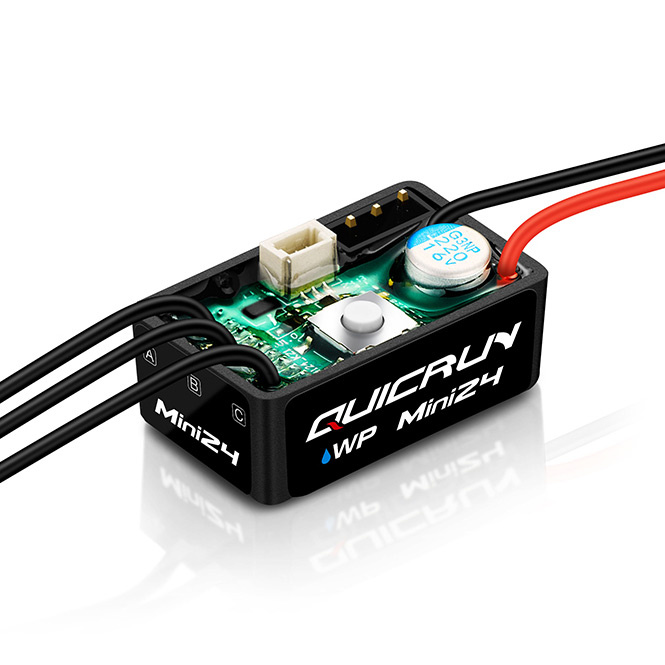

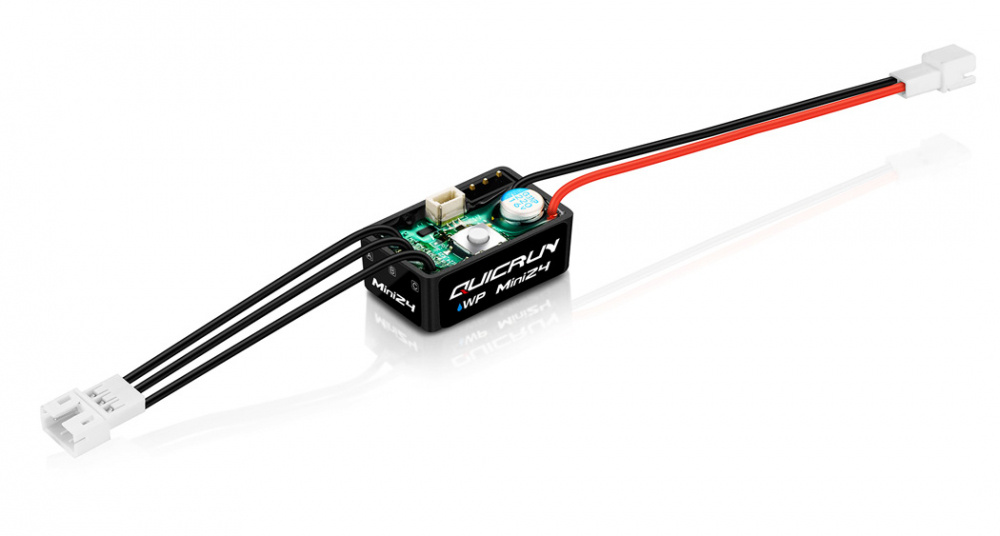

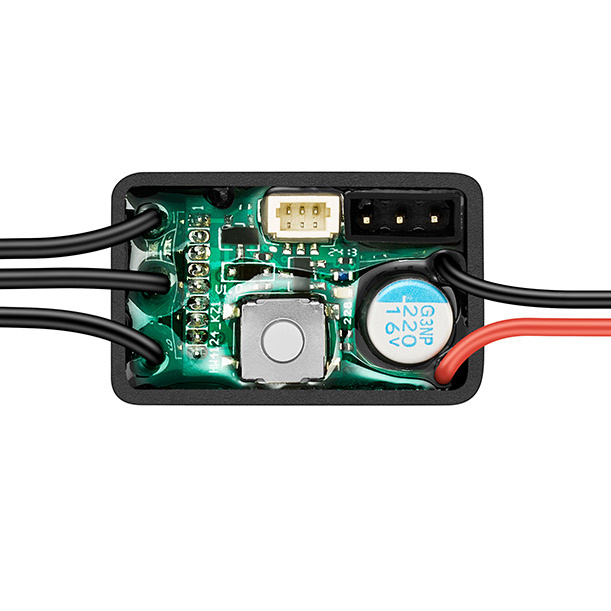

Hobbywing HW30109004 - QuicRun WP MINI24 Fartreglage 25A Borstlös 2-3S Crawler 1/24-1/16
The QuicRun WP mini24 ESC supports sensorless brushless motors and brushed motors, making it compatible with most motors on the market. Its fully waterproof design ensures reliable performance in all conditions.Features:
- Super internal switch-mode BEC with a switchable voltage of 6V/7.4V for use with high torque and high voltage servos.
- Separate programming port for easy connection of the LED program card or the LCD Pro program box to the ESC.
- Multiple protections, including motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail-safe (throttle signal loss protection).
- Allows real-time adjustment of drag brake force using the transmitter's AUX channel.
- Pair the QuicRun WP mini24 ESC with the QuicRun 1621SL Outer Motor to maximize performance and achieve optimal results.
QuicRun WP MINI24 Specs:
- Scale: 1/24, 1/18 & 1/16
- Brushed/Brushless: Brushless,Brushed
- Sensored/Sensorless: Sensorless
- Waterproof: Yes
- Cont./Peak Current: 25A/60A
- Input Voltage: 2-3S Lipo
- BEC BEC Output: 6V/7.4V adjustable, continuous current 2A (Switch mode)
- Wires & Connectors
- Input Wires: Black-22AWG-110MMmm*1 Red-22AWG-110MMmm*1
- Input Connectors: Black-22AWG-60MMmm*3
- Input Connectors: PH2.0-2PIN Female Connector
- Output Connecotors: PH2.0-3PIN Female Connector
- ESC Programing via SET Button on ESC: Not Supported
- Size: 28x17.8x13mm
- Weight: 13.5g（including wires&connectors）
- Applicable motors: QUICRUN Outer 1621, mainstream 1212, 1806 sensorless outrunner motors; 050, 130, 180 including other brushed motors.
