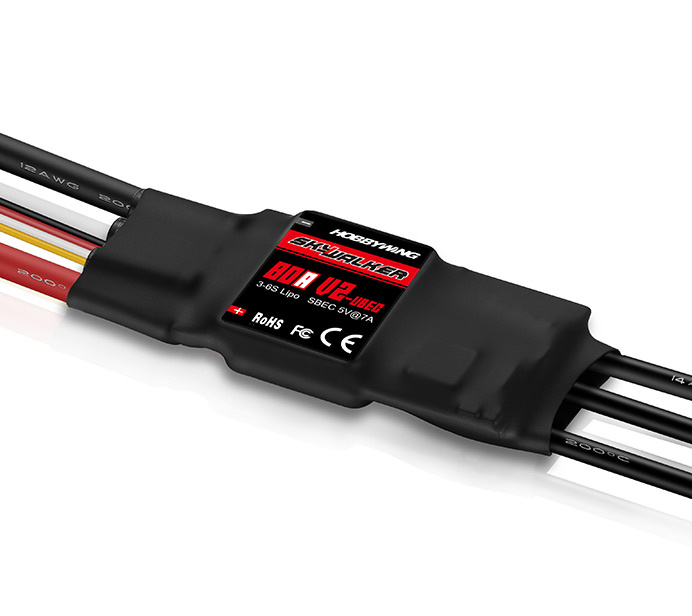

Hobbywing Skywalker 80A V2 UBEC Fartreglage Flygplan 3-6S

Hobbywing SkyWalker 80A V2 ESC

Features:

ESC which features a high performance 32-bit microprocessor (with a running frequency of up to 96MHz) is compatible with various brushless motors.
DEO (Driving Efficiency Optimization) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of the HOBBYWING LED program box.)
Normal/Reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft.
Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment.
Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service life of the ESC.

DEO Technology / Active Freewheeling

Flexibility During flight
Lower ESC temperatures
Longer flight time

The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages. Fast and smooth throttle response, better stability and flexibility during flight. Higher driving efficiency, longer flight times. Lower ESC temperature, more reliable operation.

Reverse Brake
With Reverse Brake and Linear Reverse Brakes mode enabled can effectively shorten the landing distance of the aircraft to simulate the landing of a real aircraft. Normal Brake Mode and Brake Disabled mode are also available; the brake amount is adjustable in normal brake mode.
(This is HOBBYWING's registered patented)

Search Mode
Search mode can help users find their aircraft by pulsing the motor to beep after the aircraft falls into a visually obstructed environment and is difficult to find. This mode can also be used to prompt the user to disconnect the battery of an ESC that has not been working for a set time to prevent the battery from running out of power and being damaged.

Specs:

Type: Brushless ESC for airplanes
Cont./Peak Current: 80A/100A
Input: 3-6S LiPo
BEC: Switch Mode: 5V/7A
Input Wires: 12AWG-150mm
Output Wires: 14AWG-100mm
Input Connector: No
Output Connectors: 4mm Gold Connectors (Female)
Size: 85x36x9mm
Weight: 79g
Firmware Upgrade: Not Supported

ESC Programing via:

Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Program Wire Firmware
