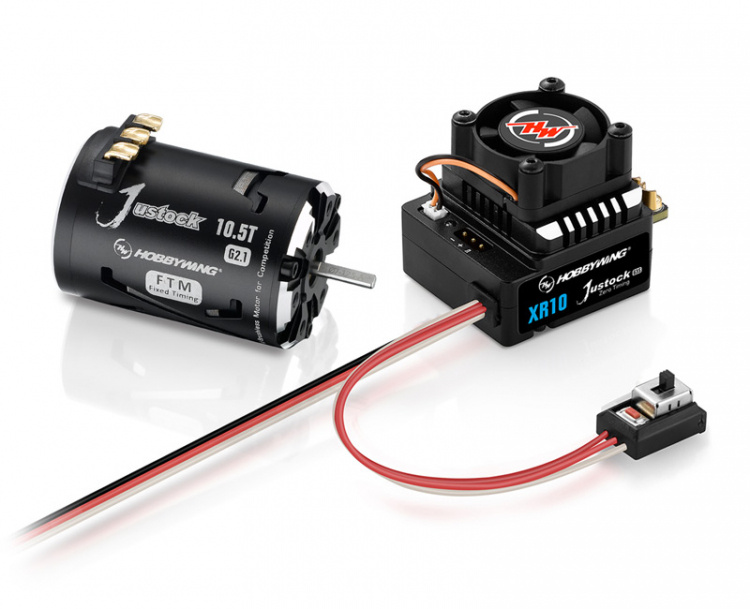

Hobbywing HW38020372 - XERUN XR10 Justock G3S ESC & 3650 17.5T G2.1 Motor Combo
The XR10 Justock G3S has precise control and powerful performance. It is suitable for 1/10 on-road and off-road zero-timing (blinky) competitions.Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.
Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.
Multi RPM limit, select as needed
Supports 79RPM Limits（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.
Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.
BEC
The ESC has a built-in BEC which can support a maximum output current of up to 4A. The output voltage at either 6 or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.
Built-in data logging function
The ESC has a built-in data recording function. making it easy to obtain the operating status.
The logged data includes:
- Minimum voltage
- Maximum ESC temperature
- Maximum current
- Maximum motor temperature
- Maximum RPM
Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions.
- Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

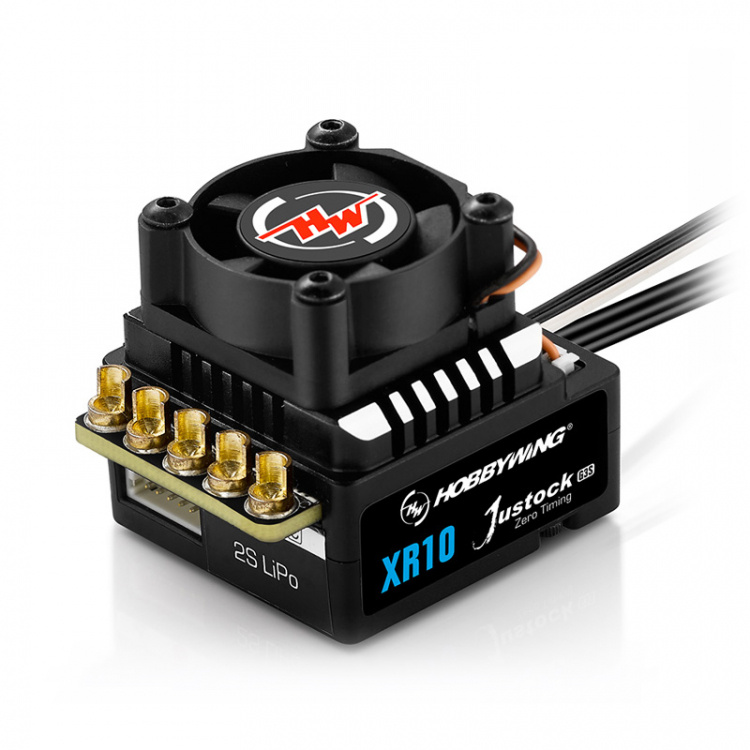

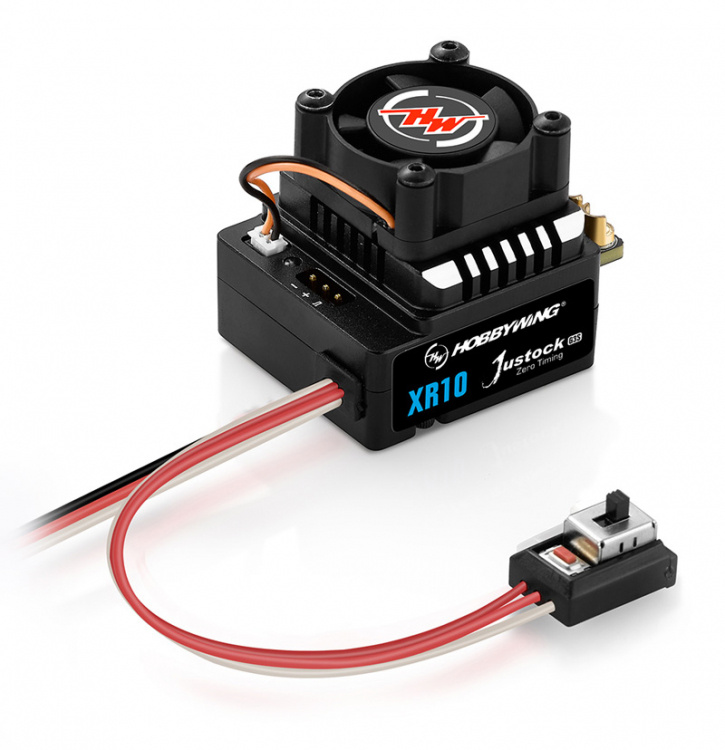

Specs:
- Type: Brushless, Sensored 1/10 ESC
- Cont./Peak Current: 60A/380A
- Input Voltage: 2S LiPo
- BEC Output: 6V/7.4V @ 4A
- Input Wires: 14AWG-200mm
- Output Wires: 14AWG-200mm
- Input Connectors: No
- Output Connectors: No
- Fan Size: 25x15x10mm
- Fan Output Wires: 5-7.4V
- Fan Input Connectors: BEC
- Firmware Upgrade: Supported
- Size: 40.9x33.9x32.1mm
- Weight: 75.4g
- Applications: Sensorless BL Motors / Sensored BL Motors
- Vehicles: 1/10 On-road and Off-road club competition and normal training
- KV Rating/T Count: ≥10.5T 3650 Motor
ESC Programing via:
- SET Button on ESC: Not Supported
- LED Program Box: Not Supported
- LCD G2 Program Box: Supported
- LCD Box Pro: Supported
- OTA Programmer: Supported
- Programming Port: Separate

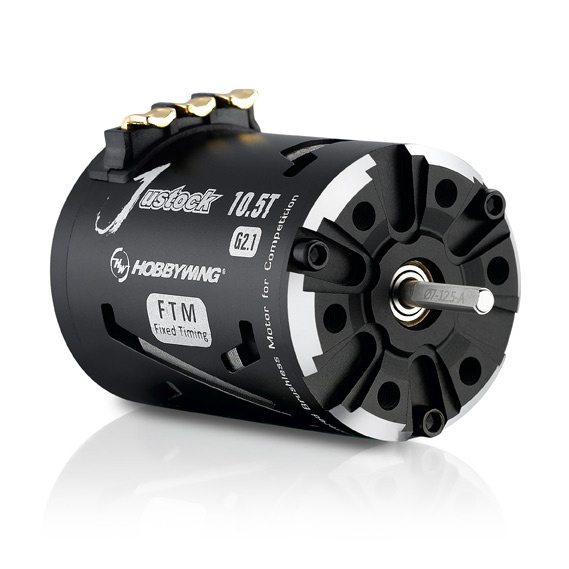

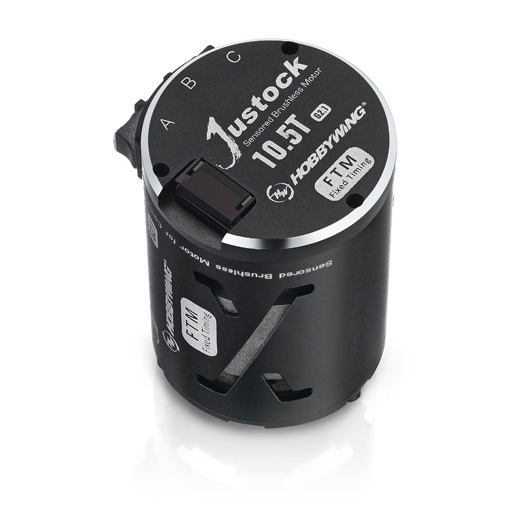

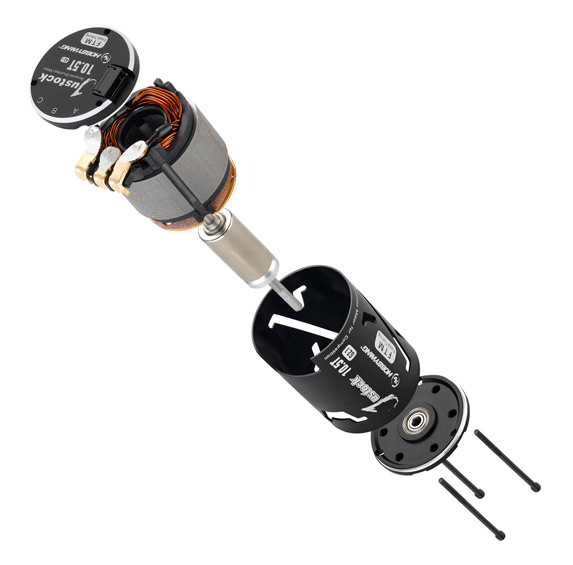

Motor Specs:
- Type: 1/10, Brushless Sensored 2-pole Stock
- KV Rating: 2450 (17.5T)
- LiPo Cells: 2-3S (2S only in this combo)
- No-load Current: 3.5A
- O.D.: 35.9mm
- Length: 52.5mm
- Shaft Diameter: 3.17mm
- Weight: 175g
- Front Bearing: OD9.525xID3.175xT3.967mm
- Rear Bearing: OD9.525xID3.175xT3.967mm
- Timing: Fixed
- Applications: STOCK/SPORT class (choose the motor as per competition rules) of 1/10 On-road (i.e. competition touring car or drift, F1, Mini car, and etc.) and Off-road (i.e. buggy, 2WD SCT & truck) racing, Normal Training, and Rock Crawlers (21.5T & 25.5T only).
