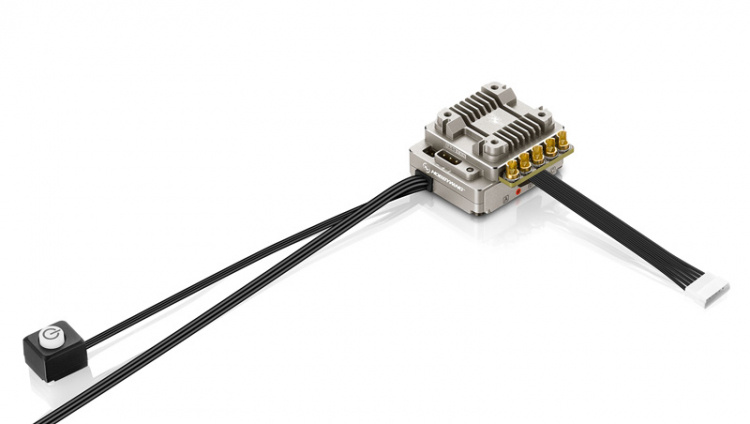

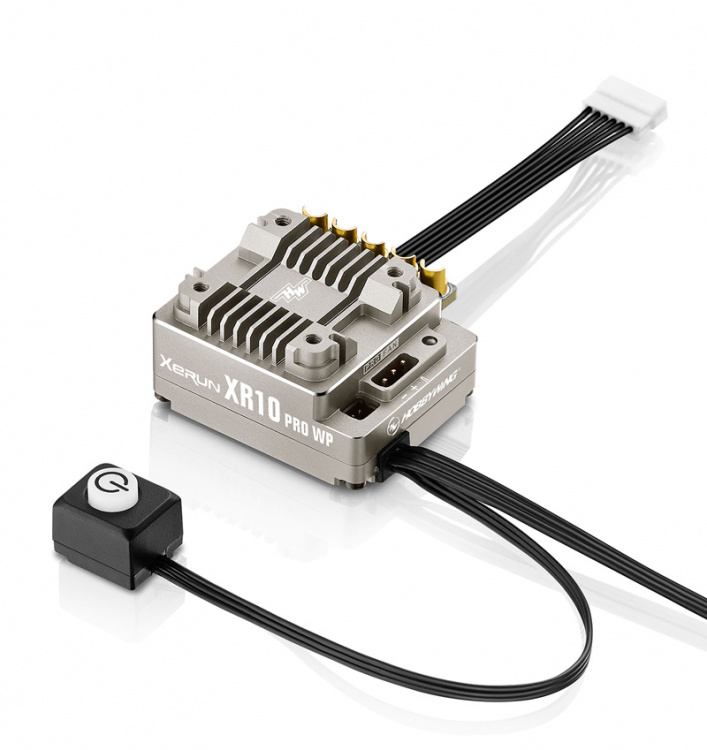

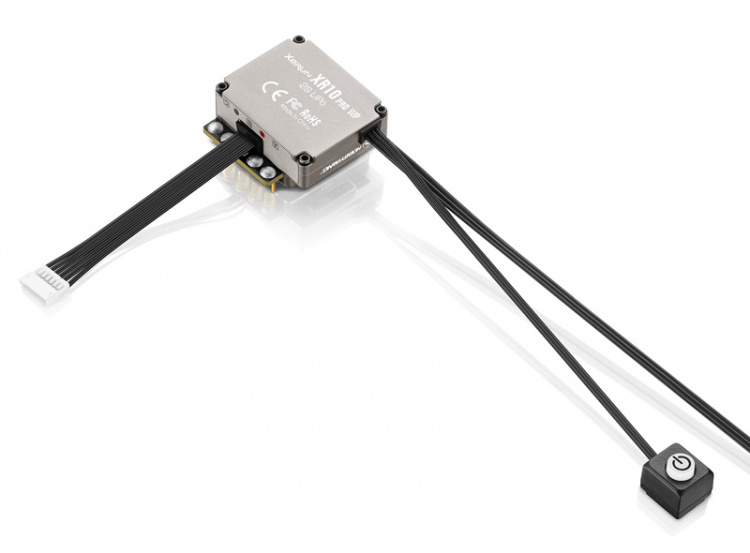

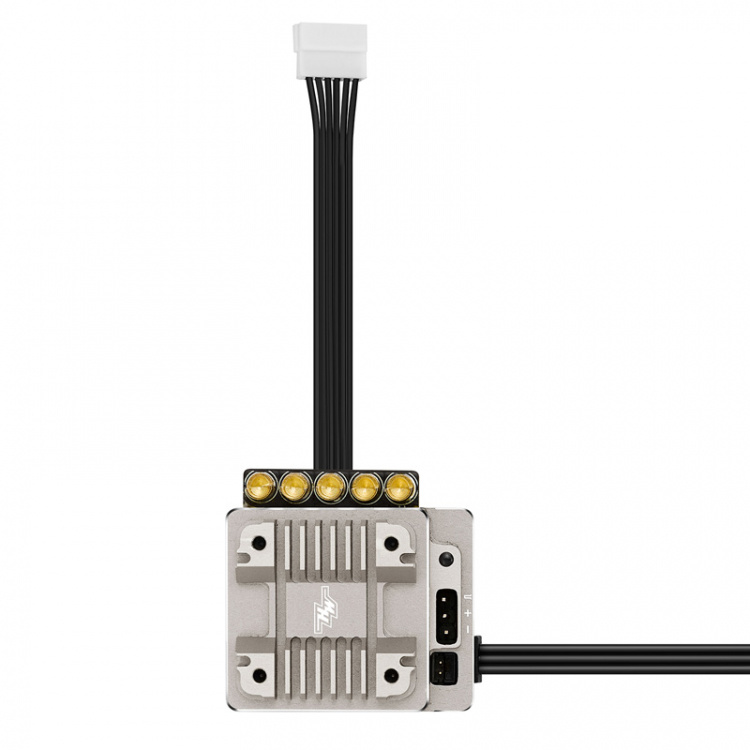

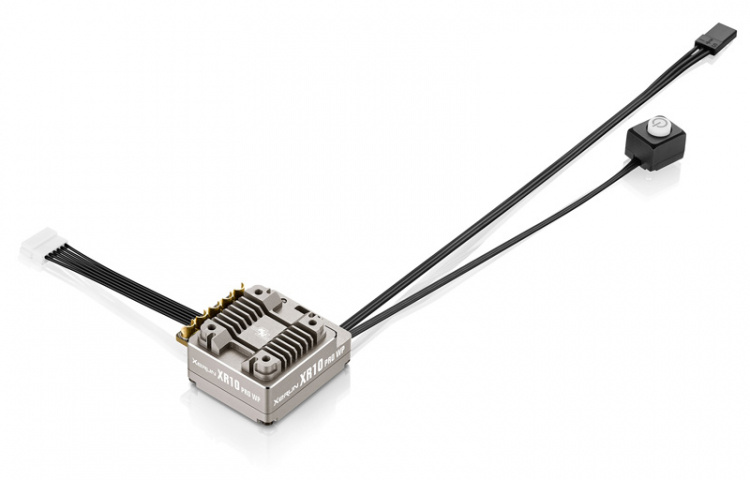

Hobbywing HW30112618 - XR10 Pro WP Racing ESC
- 9 select-to-use profiles applicable to all 1/10 RC car racing.
- Excellent waterproof and dustproof performance, fearless of various weather conditions.

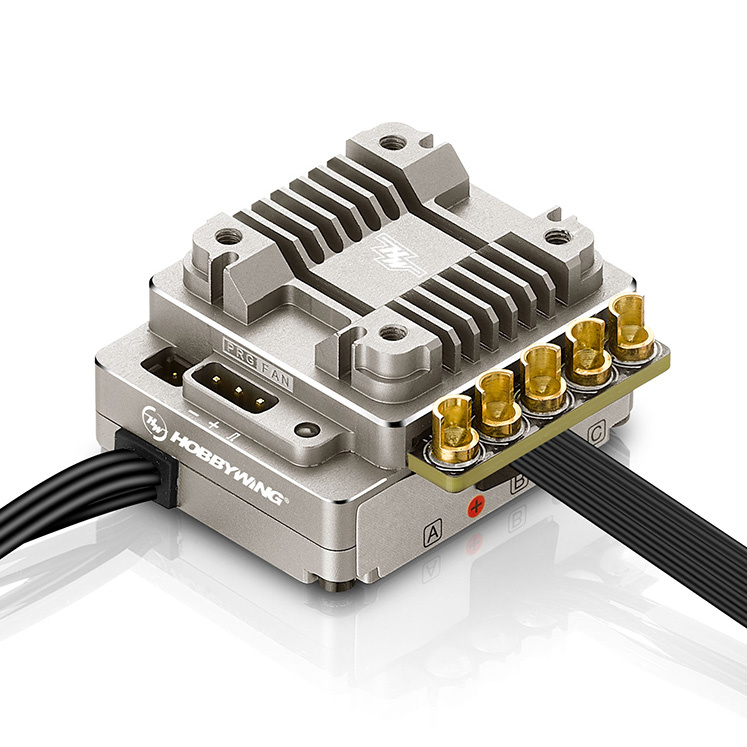

- Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or OTA Programmer to the ESC.
- Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
- Softening function (HOBBYWING-initiated) for milder or wilder driving control and better driving efficiency.
- Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail safe (throttle signal loss protection),reverse polarity protection (the external standard cappack will still be damaged if battery reversal occurs).
- Data logging for recording the maximum ESC/motor temperature, motor RPM, and others in real time.
- Firmware upgrade via Hobbywing multifunction LCD program box or OTA Programmer (item sold separately)
IP67 protection - All-weather operation
The new XR10 Pro-WP is able to easily handle conditions, from rain, dust, and sand with a proven waterproof and dust-proof design that is exceeds IP67 industrial standards.
Note: Do not submerge. Damage may occur when submerged.
Built-in reverse polarity protection circuit
The ESC has built in reverse voltage protection. This ensures the ESC will be protected from accidental cross connection of the battery.
- Note: The reverse polarity protection of the entire power system can be achieved only by using the non-polarity capacitor sold as an option. The standard capacitor of the ESC does not have this protection. Reverse connection of the battery will damage the capacitor, but the ESC should not be damaged. Replacement of the capacitor is needed immediately.
Smart Fan start & stop function
The fan does not run when the ESC temperature is low. The fan automatically turns on when the ESC temperature reaches the preset value. The smart fan start&stop function not only reduces noise, saves power, but also ensures that the ESC works in the optimal temperature range.
Equipped with powerful core processor
The 32-bit M4 processor greatly improves the data processing capabilities of the ESC. It not only allows the ESC to respond faster but is able to perform complexity and precise data calculations.
It lays the foundation for subsequent ESC function upgrades and optimization. Professional competition-grade hardware combined with powerful software makes it a weapon global competition.
Adjustable throttle curvature
New throttle curvature adjustments allows additional tuning of the throttle response. With +10 curve, to -10 curve settings, and custom Curve allow drivers more options to get the perfect throttle feel.
Real-time data acquisition easy analysis
When connected to the OTA module, and using the HW Link V2 App, bench top live data can be monitored. You are able to view, Throttle, Voltage, Temperatures, and RPM in real time. The ESC also supports additional datalogs when operated with the OTA installed. Data logs are saved to the OTA to be viewed after the run.
Use the OTA Module and your Phone/Tablet to Tune the ESC
The OTA module allows you to connect to your ESC using the HW Link V2 app. This allows ESC tuning and Firmware updates.
Built-in BEC supporting high-voltage servos
The ESC has a built in switch mode BEC rated up to 10 amps. BEC voltage is adjustable from 5-7.4 volts. (0.1v steps) The internal BEC is able to easily handle todays most power hungry servos.
Max Brake Tuning - 101%-150%
Active brake provides stronger brake force and ensures Stock/Spec class racing setups have enough stopping power. Developed for the ESC brakes to handle very tall spec racing gear ratios that are commonly used.
Wide range of applications
Based on the flagship XR10 Pro series platform, it has strong output capability and is suitable for various Modify and Stock competitions in 1/10 on-road and 1/10 off-road.
Specs:
- Sensored, Brushless, WP-IP67, Racing 1/10 2S ESC
- Cont./Peak Current: 160A/1200A
- Input Voltage: 2S LiPo
- BEC Output: Switch Mode 5V-7.4V @5A
- Input Wires: 13AWG-200mm
- Output Wires: 13AWG-200mm
- Input Connectors: No
- Output Connectors: No
- Fan Size: 25x25x10mm
- Fan Voltage Range: 5-7.4V
- Fan Powered by BEC
- Firmware Upgrade: Supported
- Size: 37.7x37.2x19.6mm
- Weight: 95.6g (w/Wires)
- Motors: Sensored brushless motors / Sensorless brushless motors
- Vehicles: 1/10th Touring car & Buggy racing, 1/10 Drift, F1, Rally
- KV Rating/T Count: Touring Car: ≥4.5T / Buggy: ≥5.5T
ESC Programing via:
- SET Button on ESC: Not Supported
- LED Program Box: Not Supported
- LCD G2 Program Box: Supported
- LCD PRO: Supported
- OTA Programmer: Supported
- Program Port: Separate Program Port
Data Recording:
- Extreme value: Supported
- Real-time Data: Supported
- Historical data (Graph): Supported
