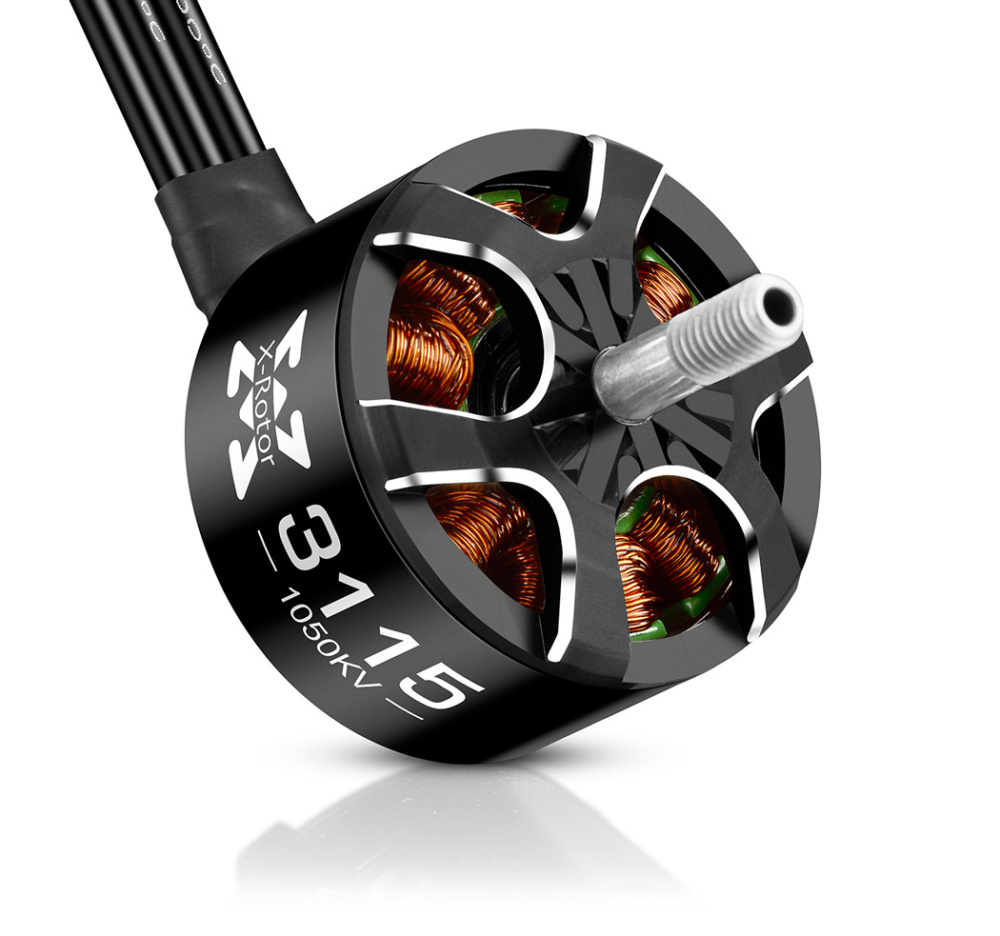

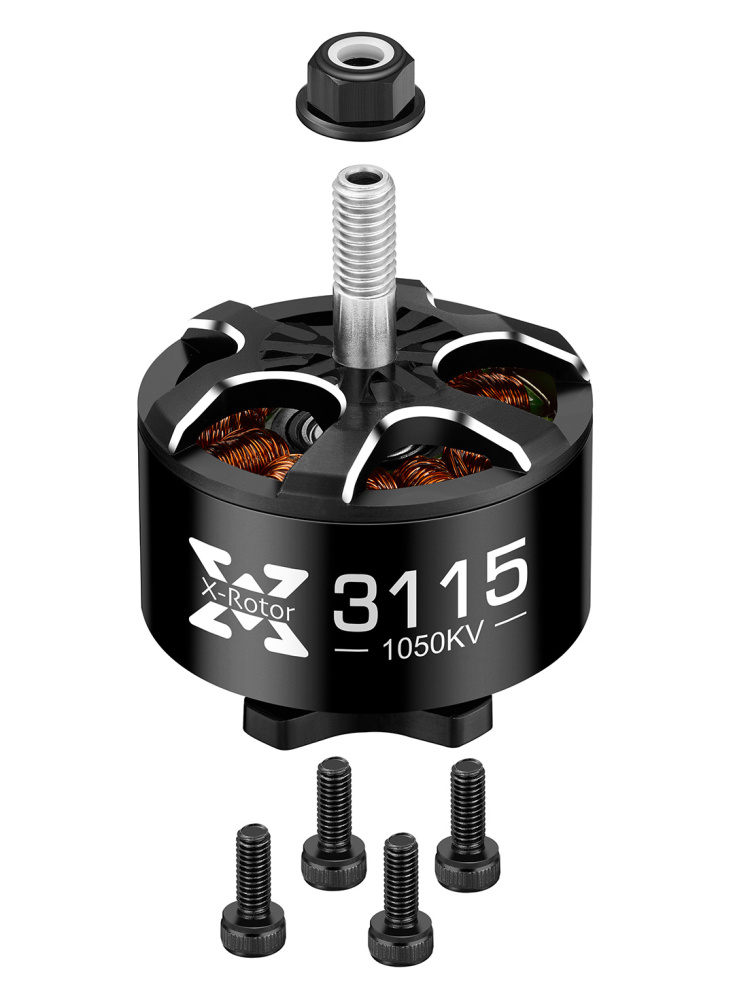

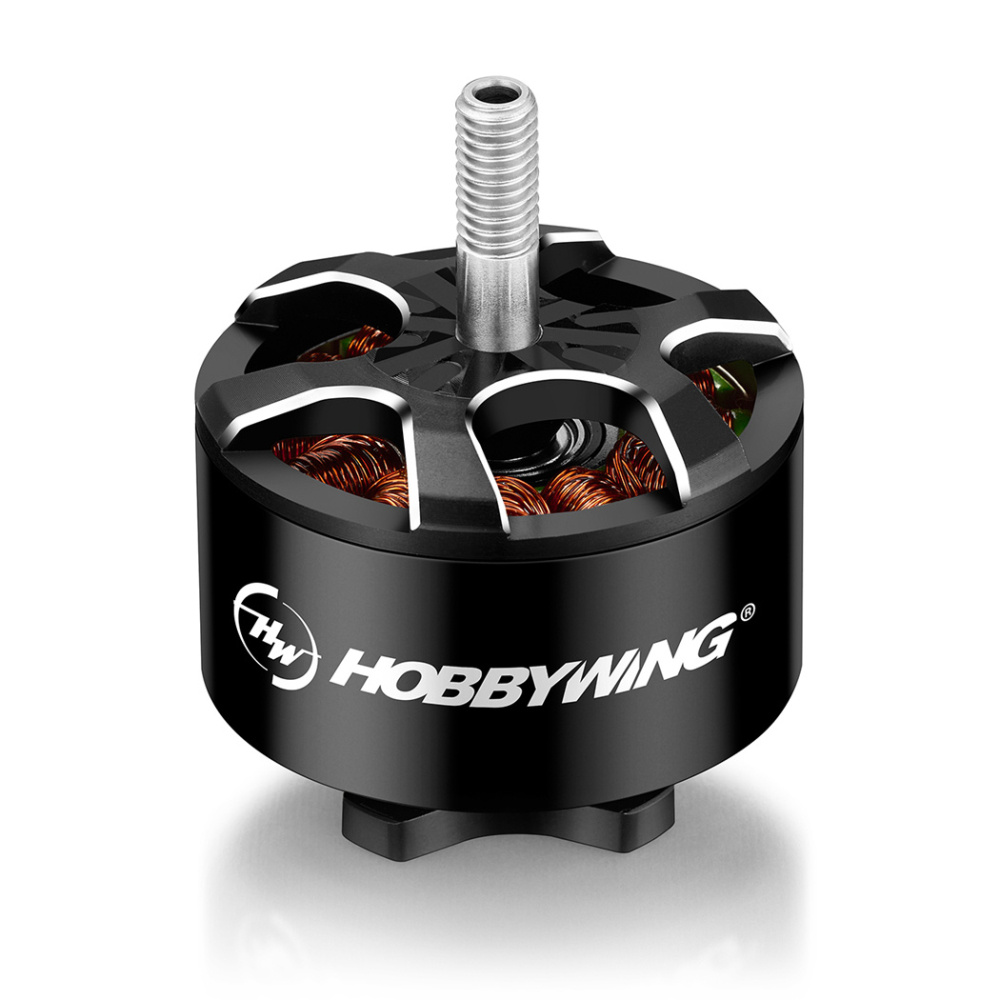

Hobbywing 30418008 - Xrotor FPV Motor 3115 1050kV 6S
New Tooth Groove Anti-slip Design
To achieve a safer and more reliable flight, the propeller mount has a new grooved design preventing the propeller from slipping.
Excellent Product Design, Industry-leading Materials:
- High-performance 0.2mm silicon steel sheets
- 200°C high-temperature resistant enameled wire
- Meet the needs of users pursuing extreme motor performance
- The multi-strand enameled wire winding design increases the slot full rate by approximately more than 5%
- The temperature is lower when compared with other competing brands on the market

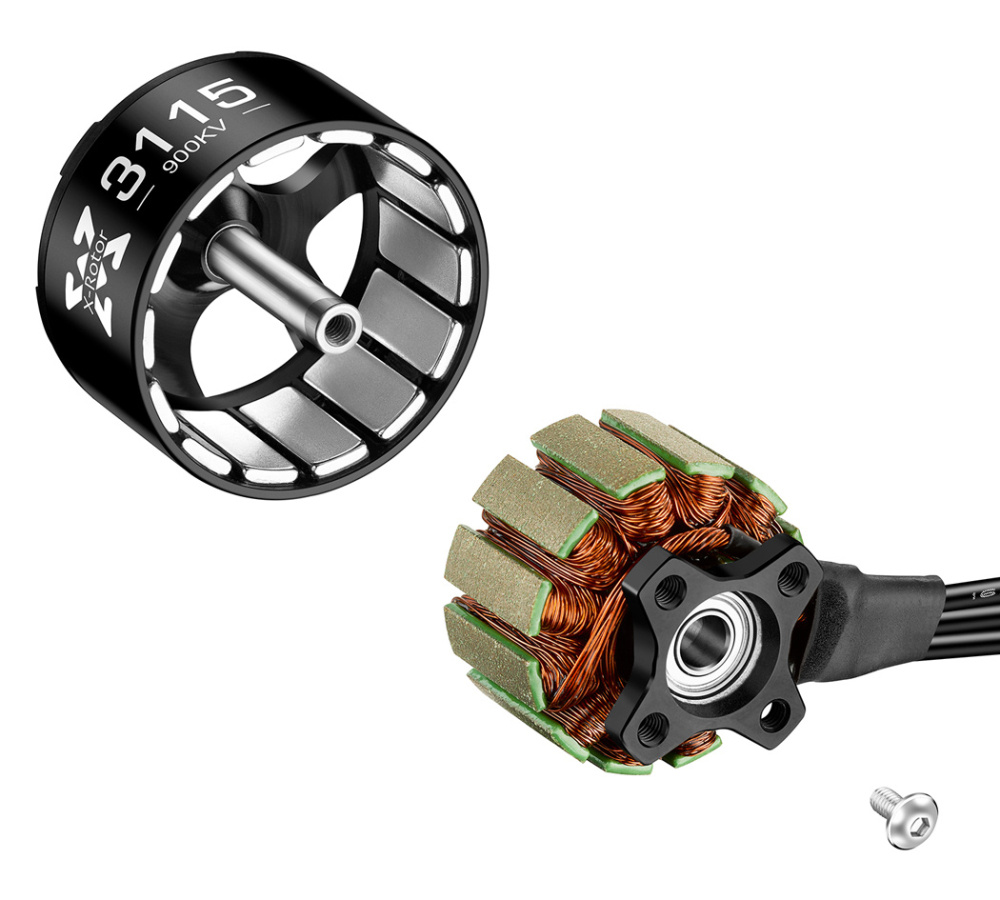

- Uses N52 strong magnetic tiles with an arc- shaped design to provide a stronger torque to the motor
Specs:
- KV Rating: 1050KV
- LiPo Cells: 4-6S
- No-Load Current: 2.8A/24V
- Maximum Continuous Current: 70A/30S
- Maximum Continuous Rating: 1675W/30S
- Maximum Thrust: 4420G
- Motor Weight: 126G
- Motor Size: 37.2x32mm
- Slot/Pole: 12N14P
- Wire Size: 16AWG
- Wire Length: 300mm
- Enamelled Wire Insulation Class: 200℃ High temperature Resistant, H Class insulation
- Internal Resistance: 31mΩ
- Shaft Diameter: D5+M5
- Shaft Length: 16mm
- Screw Diameter/Thread: Φ19mm-4xM3
- Recommended ESC: XRotor FPV G2 65A 4in1 ESC
- Propeller: 6S: HQ8x4.5x3, HQ9x4x3
