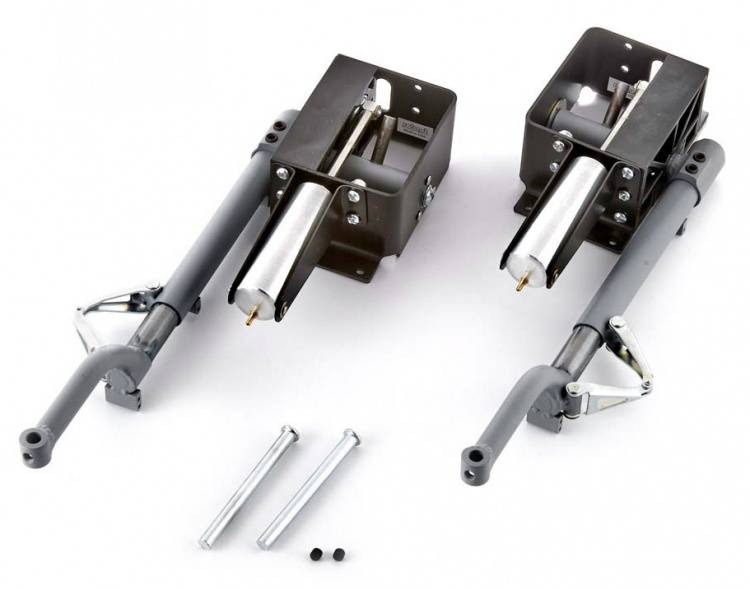

This is a pair of Robart Pneumatic Retracts for the Giant Scale Gold Edition Zero A6M from Top Flite, TOPA0712.
REQUIREMENTS
- 157VR Large Air Control Kit
- 169 Pressure Tubing 10'
- 160WC Fork Pneumatic Tail Wheel
SPECIFICATIONS
- Mounting Hole Centers (Lengthwise): 4" (102mm)
- Mounting Hole Centers (Widthwise): 1-13/16" (46mm)
- Strut Length/Top to Axle Hole Center: 10-1/8" (257mm)
- Strut Deployment Angle: 85°
- Axle Hole Diameter: 1/8"
- Length/Mounting Bracket to Cylinder Assembly: 6-1/4" (158mm)
- Length/Mounting Bracket to Bottom of Strut: 9-1/16" (230mm)
- Strut Center to Center of Mounting Bracket Hole: 2" (51mm)
