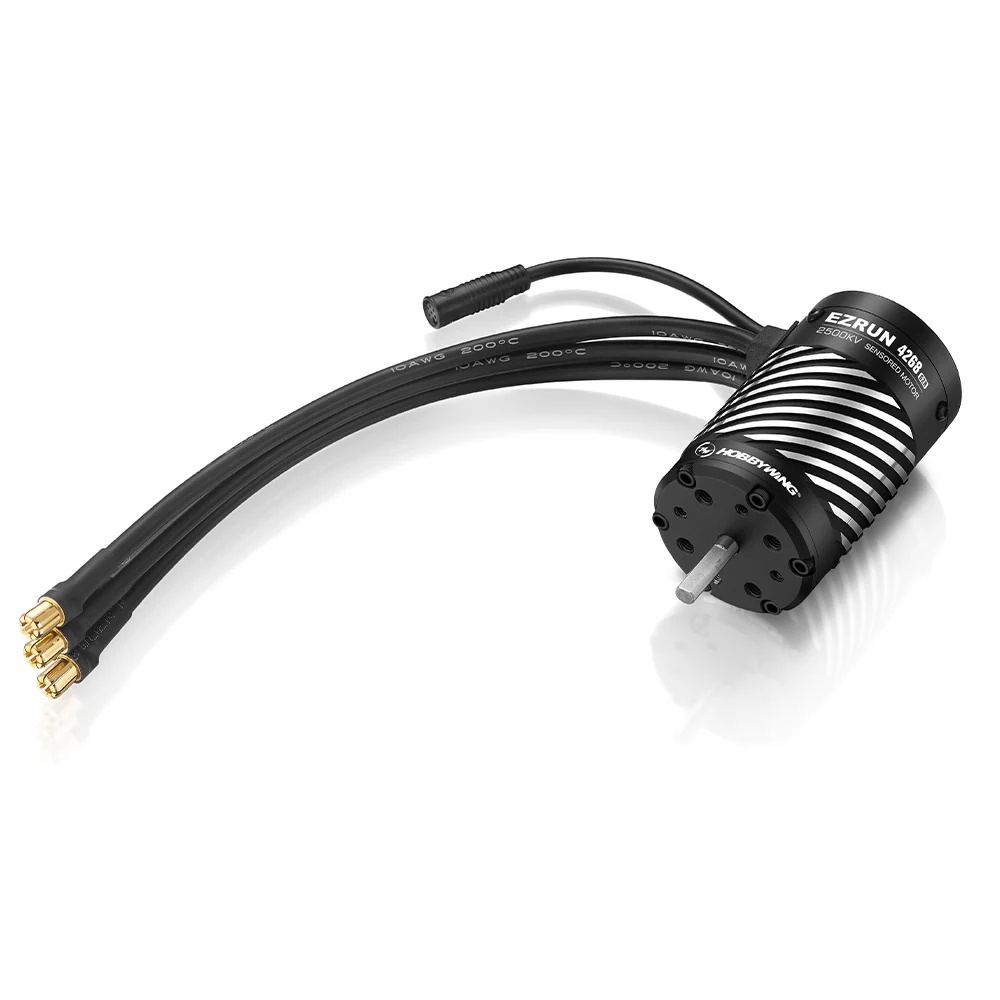

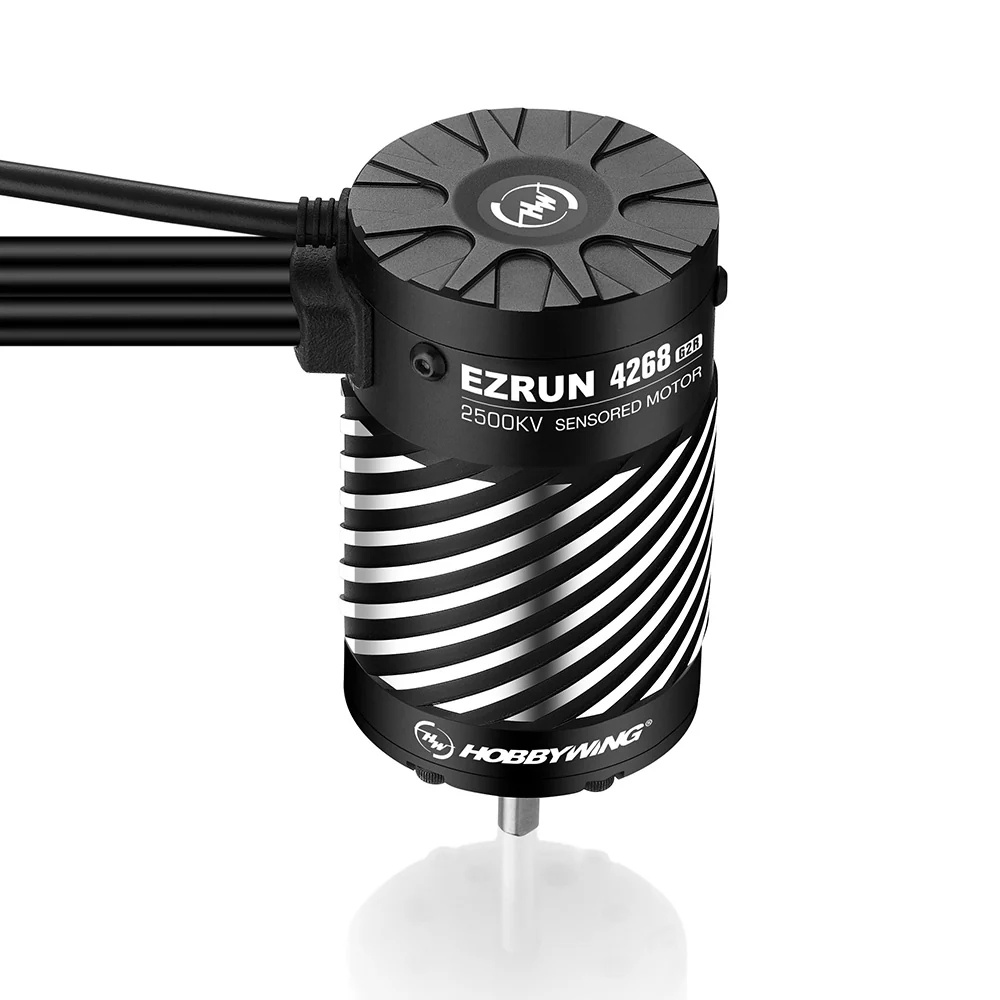

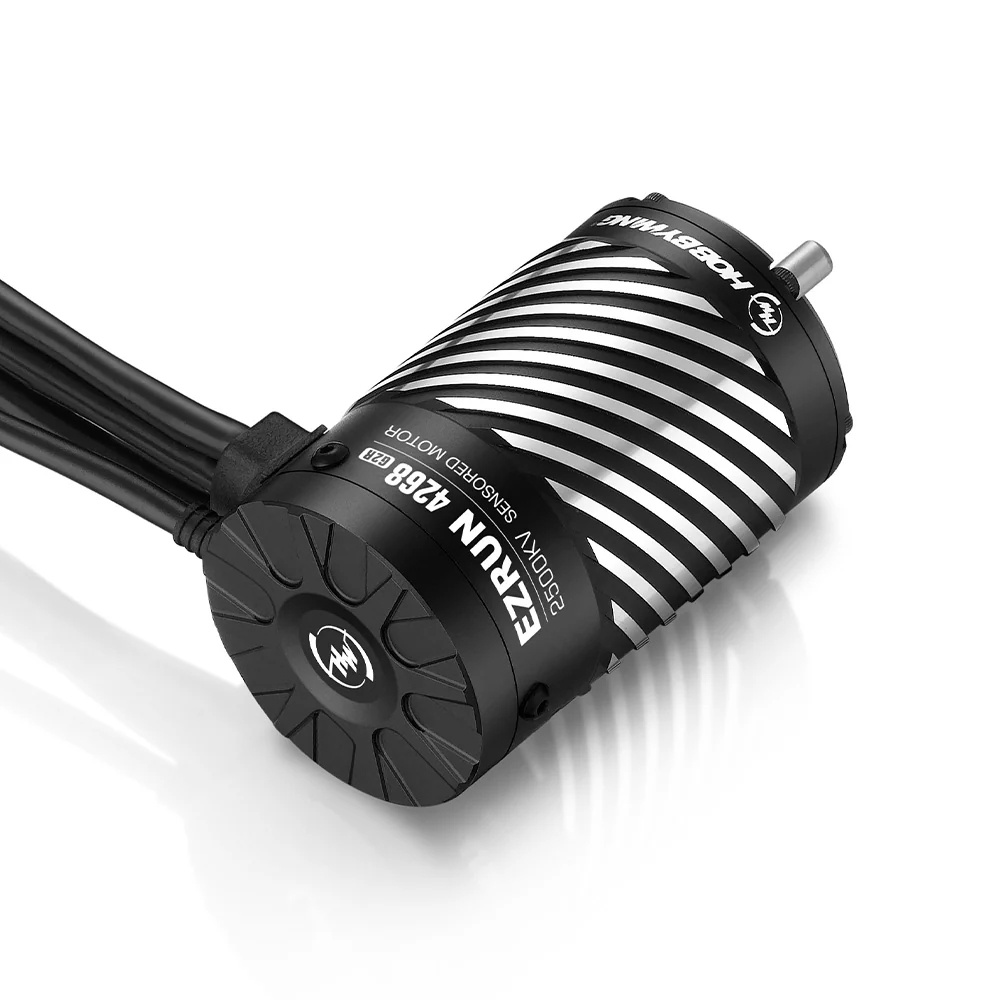

Hobbywing 30402140 - EzRun 4268SD 2500kV G2R Sensored 5mm 1/10-1/8
- EzRun MAX 4200 Series G2R Motors have excellent compatibility with the Hobbywing EZRUN MAX8 G2S ESC. The ESC can automatically recognize this motor, creating a fully sensored power system that offers improved control performance and a refined control feel, while also enabling motor overheat protection.
- The rotor features four high-strength, high-temperature-resistant sintered Nd-Fe-B magnets with widened magnetic tiles, delivering exceptional torque, explosive power, and stable output.
- An independent magnetic ring ensures that the Hall sensor consistently outputs a pure rotor position signal, effectively avoiding sensor signal interference and enabling stable operation in sensor mode.
- With high output efficiency, this motor reduces temperature and delivers more power under the same load.

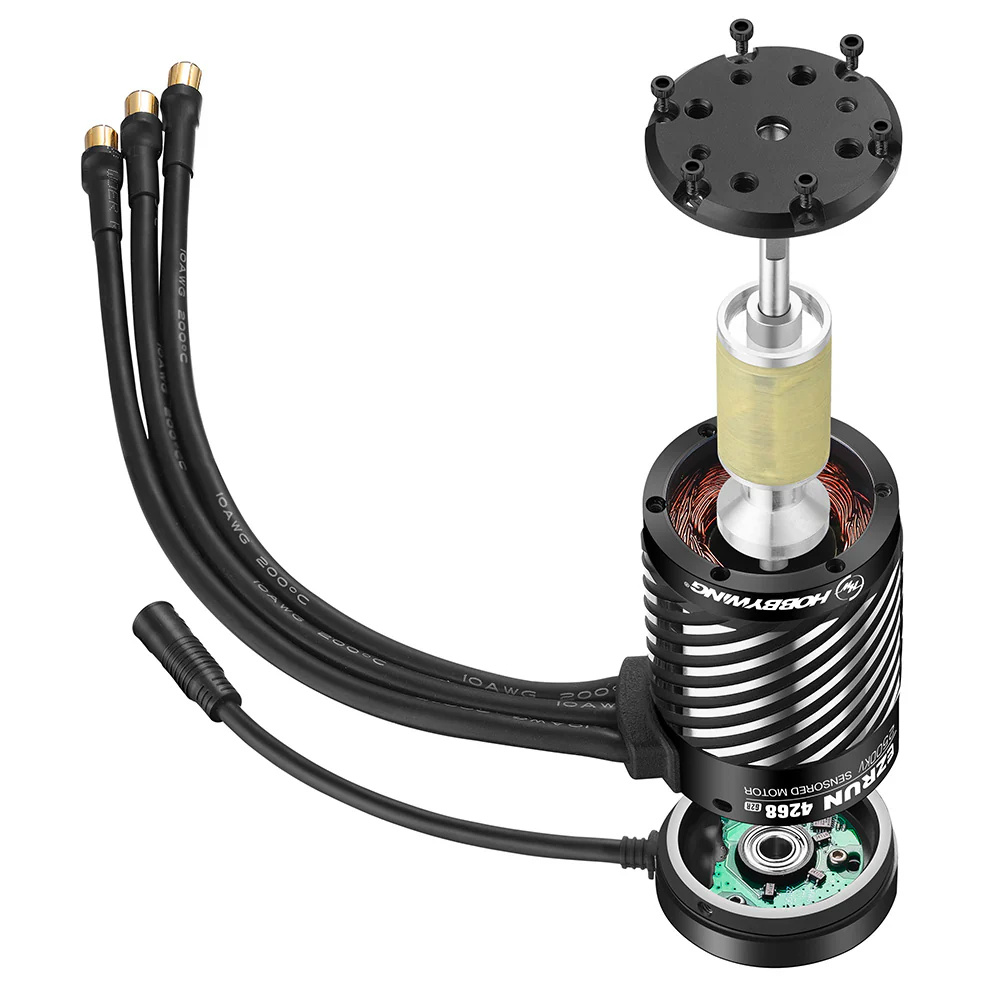

- Its CNC-machined aluminum housing, high-purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, and high-precision bearings enhance durability and smoothness.
- The innovative new sensor interface and rubber-covered bearings provide superior waterproofing and dustproofing compared to traditional sensored motors.
Specs:
- Scale: 1/8, 1/10
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Pole count: 4
- KV Rating: 2500KV
- LiPo Cells: 3-4S
- No-load Current (A): 5.0A
- O.D. : 42mm
- Length : 68mm
- Shaft diameter: 5mm
- Weight: 360 gram
- Front Bearing: D16xD5XT5
- Rear Bearing: D11xD5xT5
- ESC: EZRUN MAX8 G2S
- Vehicles 1/8 Buggy, 1/10 Heavy-Duty Monster Truck.
