Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.
Compact Design & SD/SL Dual Mode Supported
With the compact design, it’s applicable to various chassis. With the Dual (Sensored/Sensorless) Drive Mode, it’s compatible with different motors and brings racers two different control feel.
High Reliability & Durability

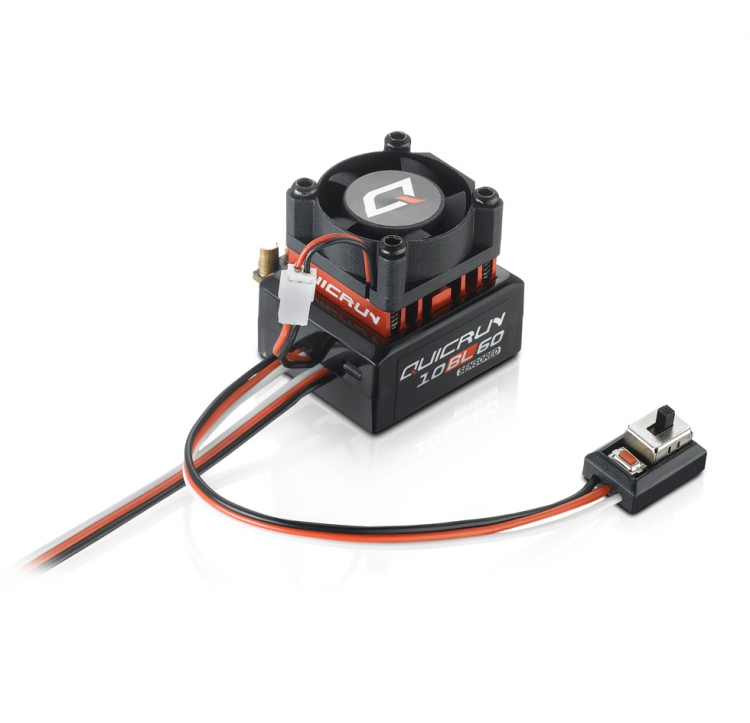

Reliable hardware combined with advanced software technology allows the QUICRUN 10BL60-SD to not only provide high power output but also overload protection of the ESC circuit.
Efficient Cooling System

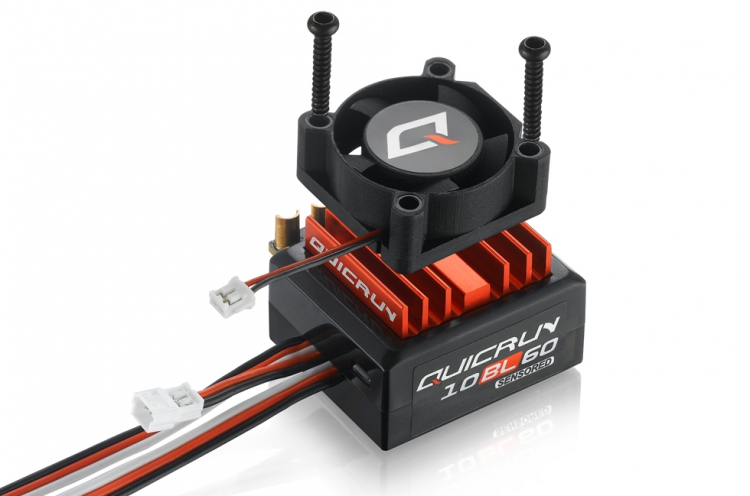

Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRUN 10BL60-SD, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with high-performance cooling fan can keep your ESC as cool as possible.
Single-button Programming & Factory Reset
The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.
Wide Applicability

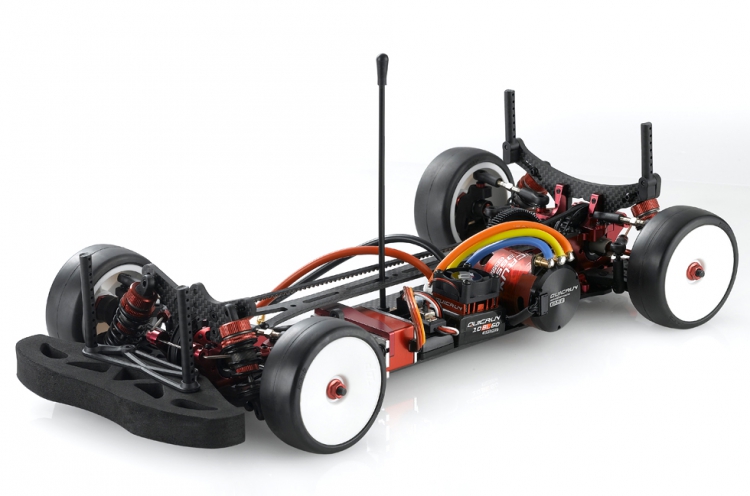

This ESC is designed for practice and daily training of1/10th, 1/12th scale touring cars, buggies, and F1.
Wires & Connectors

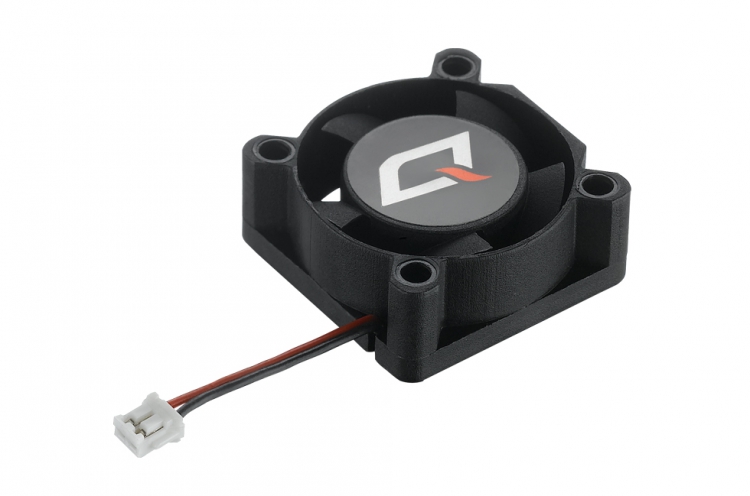

Fan
ESC Programing via
Firmware
Size & Weight
Applications
- 2S LiPo: 1/10th Touring Cars≥8.5T, 1/10th Buggies≥13.5T
- 3S LiPo: 1/10th Touring Cars≥13.5T, 1/10 Buggies≥17.5T
- (3650 Motors)
Sensored motor wiring
When using sensored brushless motor, please connect the “SENSOR” port of the ESC and the the “SENSOR” port of the motor with a sensor wire. For sensored brushless motor, the #A, #B, #C wires of the ESC MUST be connected with the motor wire #A, #B, #C respectively. Do not change the wires sequence optionally! (#A is Blue, #B is Yellow, #C is Orange.)
Sensorless motor wiring
When using sensorless brushless motor, the #A, #B, #C wires of the ESC can be connected with the motor wires freely (without any order). If the motor runs in the opposite direction, please swap any two wire connections. Please disconnect the battery from the ESC after running the car!
