RPM 80585 - Styrspindlar till Revo, T-Maxx & E-Maxx - Blå
Quick Notes:
- Replaces stock Traxxas #5334
- Includes massive oversized bearings!
- Fits all Revo, e-Revo & Slayer trucks (except the E-Revo 2.0)
- Fits all modern T-Maxx and E-Maxx trucks running stock 5451X axles
- Will not work with 120-LT Long Travel rockers – Traxxas #5356
- Matching rear Revo True-Track Kit available
- Matching rear T/E-Maxx True-Track Kit available
RPM axle carriers for the Traxxas Revo, Slayer, T-Maxx 2.5R & 3.3 and newer versions of the E-Maxx have been painstakingly redesigned to improve the durability, strength, and reliability of these much-abused parts. Check out this laundry list of features built into each set of RPM Revo carriers:
Axle Carriers:
- Stock replacement – no modifications are needed to bolt them in.
- Larger bearing bores accept RPM oversized bearings.
- Included in each kit are two 15mm bearings and two 21mm bearings.
- The wall thickness around the pillow-balls has been increased by 40% – eliminating split walls!
- More than 20% more material supports the pillow-balls, preventing them from pulling through.
- Redesigned reinforcing rib supporting the tie rod mount.
- Redesigned boot lock tabs making removal of the silicone boots easier.
- Press-fit bearings in the carrier means reduced movement of the axle in the carrier.
Oversized Bearings:
- Outer bearings are 6x15x5mm (stock is 6x12x4mm).
- Inner bearings are 12x21x5mm (stock is 12x18x4mm).
- Wider bearings create an additional 2mm of contact with the axle for smoother, longer running performance.
- 3mm. larger bearings have balls a full 33% larger than stock!
- The load ratings of RPM oversized bearings are double that of stock bearings and more than triple the fatigue rating of stock bearings as well!
Pillow-Ball Setscrews:
- Two-piece design uses aluminum and Delrin for the ultimate in holding power under extreme situations.
- Our aluminum setscrews reduce movement of the pillow-balls in the carrier.
- Our Delrin bushing caps have more than twice the contact area on the pillow-ball, keeping the pillow-balls locked in place at all times.

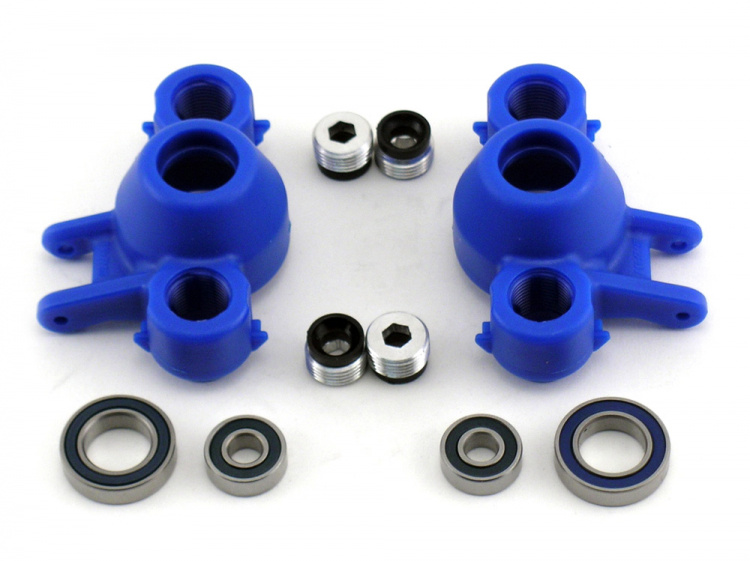

What’s Included: RPM Revo axle carriers are sold with 1 left and 1 right axle carrier, 2 outer 15mm bearings, 2 inner 21mm bearings, 4 aluminum setscrews, 4 Delrin bushing caps, and detailed instructions to help install them on your truck. TWO packages will be needed to complete one vehicle (unless used with the RPM True-Track Rear End Conversion, then one package is all that is needed).
Tech Notes: Due to increased material to support the pillow balls from pulling through the carrier, RPM Revo Axle Carriers will not work in conjunction with 120-LT Long Travel rockers (Traxxas #5356). RPM Axle Carriers will not work on the E-Revo 2.0.
