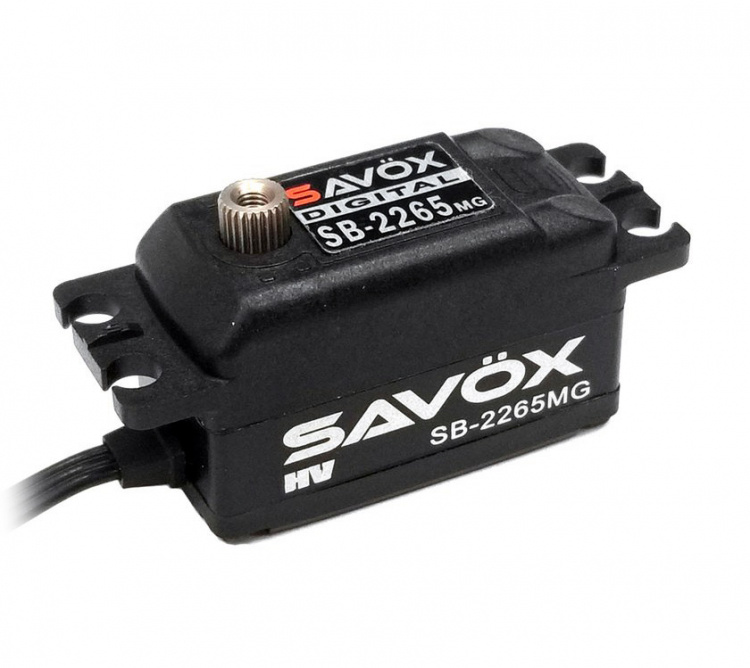

SAVÖX SB2265MG - Black Edition Lågprofil High Voltage Brushless Digitalt Servo
- Metal gear train ensures durability under harsh situations
- Ideal for 1/10 on road cars requiring a high speed servo
- Servo Type / Size: Low Profile
- Application: 1/10 Cars
- Motor Type: Brushless
- Gear Material: Steel
Specifications:
- Input Voltage: 6-8.4V
- Torque @ 7.4v - 12.0kg
- Speed @ 7.4v - 0.08 sec/60 deg

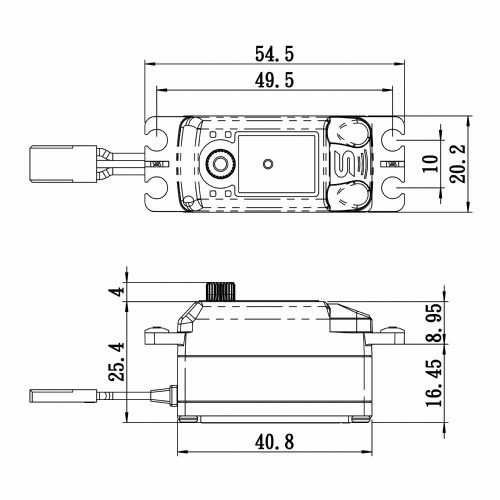

- Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
- Weight: 57g
- Operating Temperature: -10° - 50°C
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 3700mA @6.0 V, 4600mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
