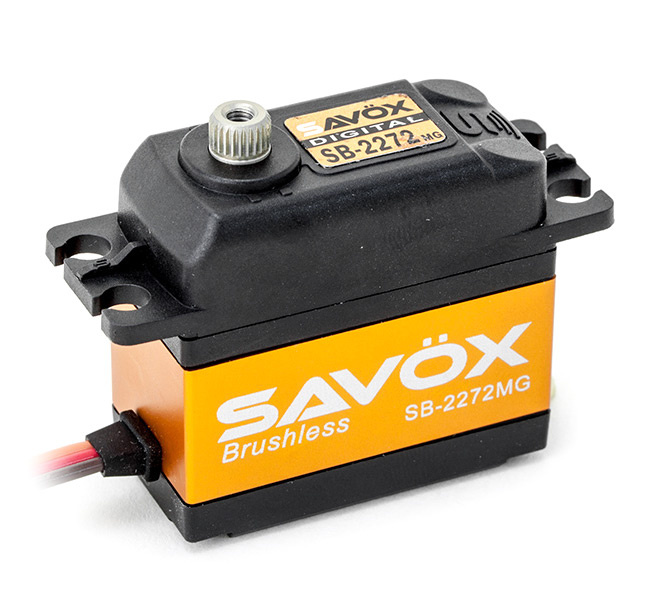

SAVÖX SB-2272MG - Snabbt & Starkt HV Brushless Servo med Metalldrev
The Savox SB-2272MG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.Features:
- High Voltage

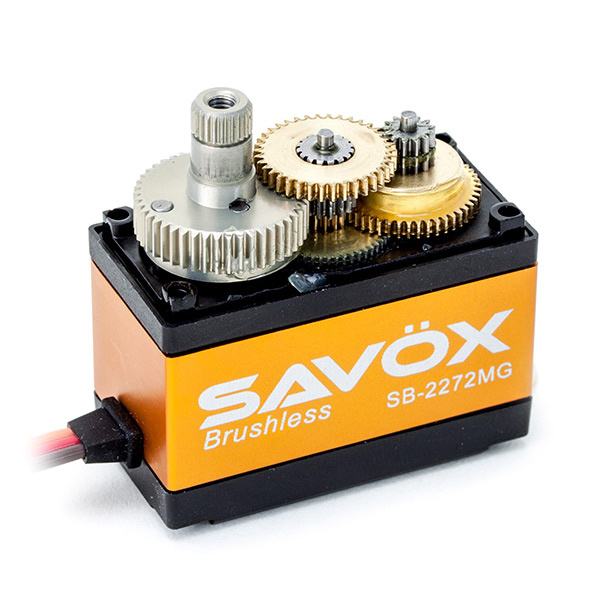

- Metal Gear train for extended life and durability
- Brushless motor for smooth operation and efficiency
- Ideal for helicopter use due to it's amazing speed
Specifications:
- Torque @ 6V: 5kg/cm
- Torque @ 7.4V: 7kg/cm
- Speed @ 6V: 0.045 sec/60 deg
- Speed @ 7.4V: 0.032 sec/60 deg

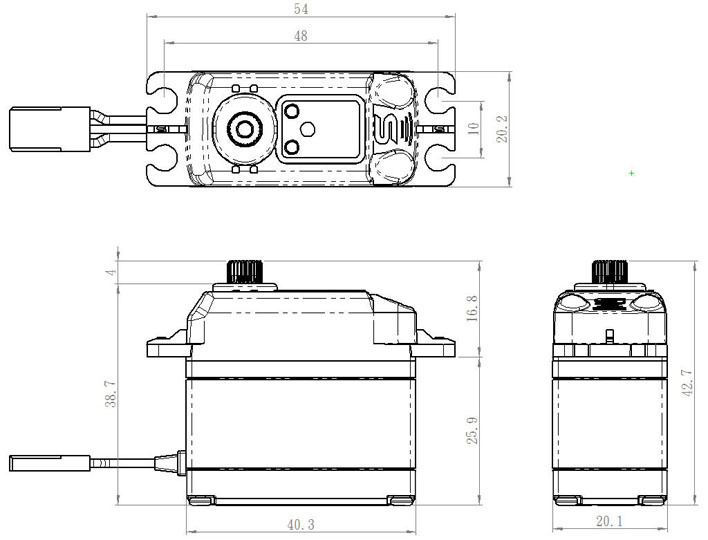

- Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
- Weight: 66g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
