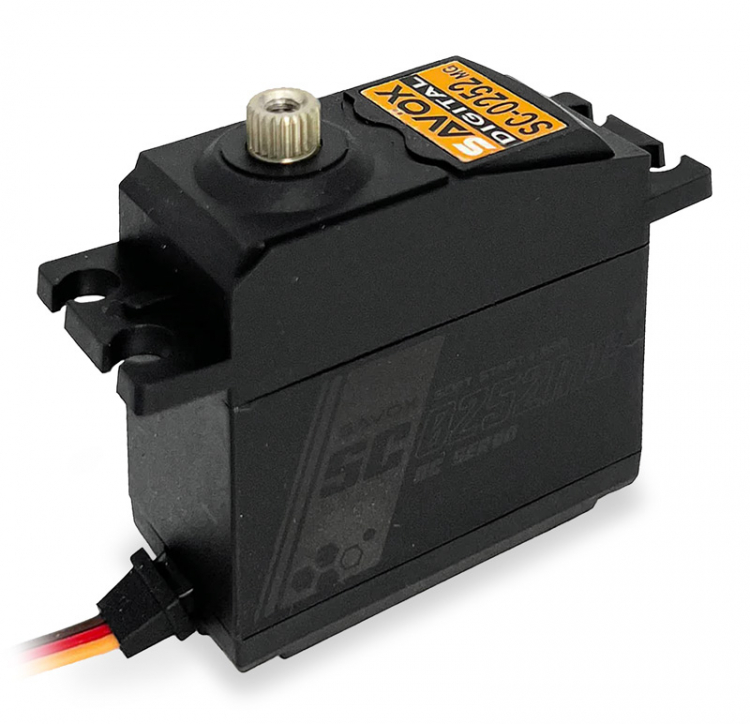

Savöx SC-0252MGPLUS - Standard Digital Servo with Soft Start 0.19s 10.5kg/cm @ 6.0V
The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.Features:
- Soft Start
- Sanwa SSR compatibility
- Metal gear train ensures durability under harsh situations
- Higher torque output than standard servos
- Ideal for 30-60 size aircraft, and some car applications
Specifications:
- Torque @ 4.8v: 7.2kg/cm
- Torque @ 6v: 10.5kg/cm
- Speed @ 4.8v: 0.23s/60deg
- Speed @ 6v: 0.19s/60deg

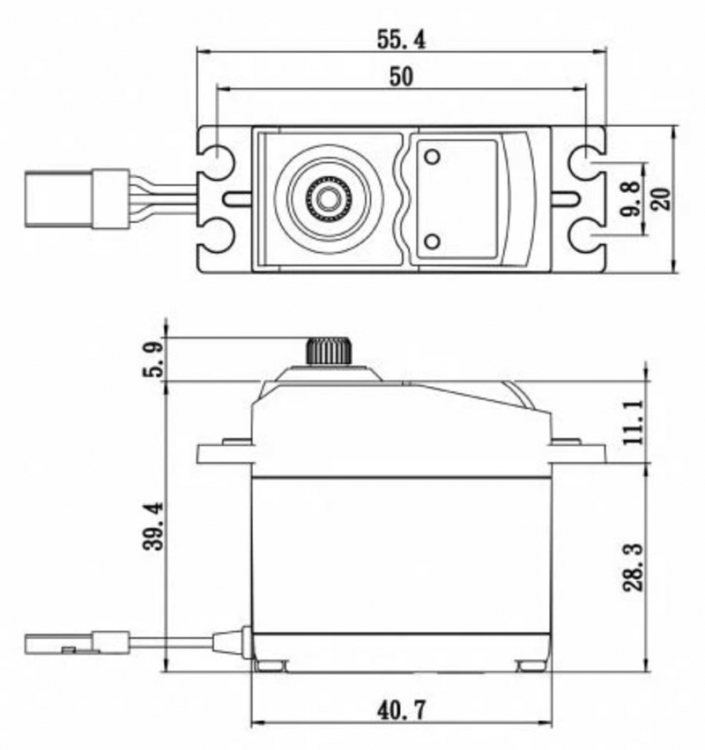

- Dimensions: L40.7 x W20 x H39.4mm
- Weight: 49g
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 300mA @4.8V, 330mA @6.0V
- Stall Current (at locked): 1400mA @4.8V, 1700mA @6.0V
- Idle Current: 6mA @4.8V, 6mA @6.0V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 120° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 164° (800 → 2200 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
