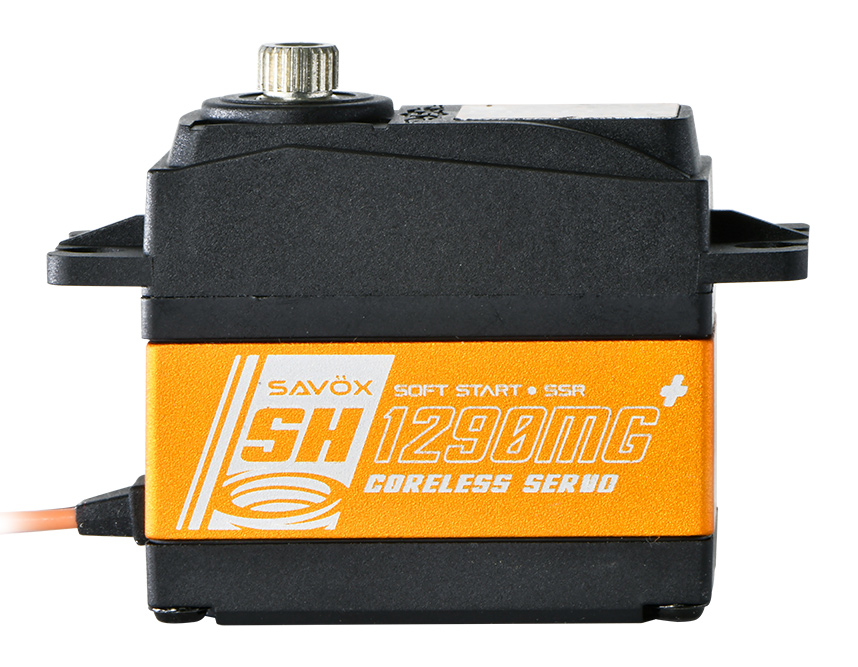

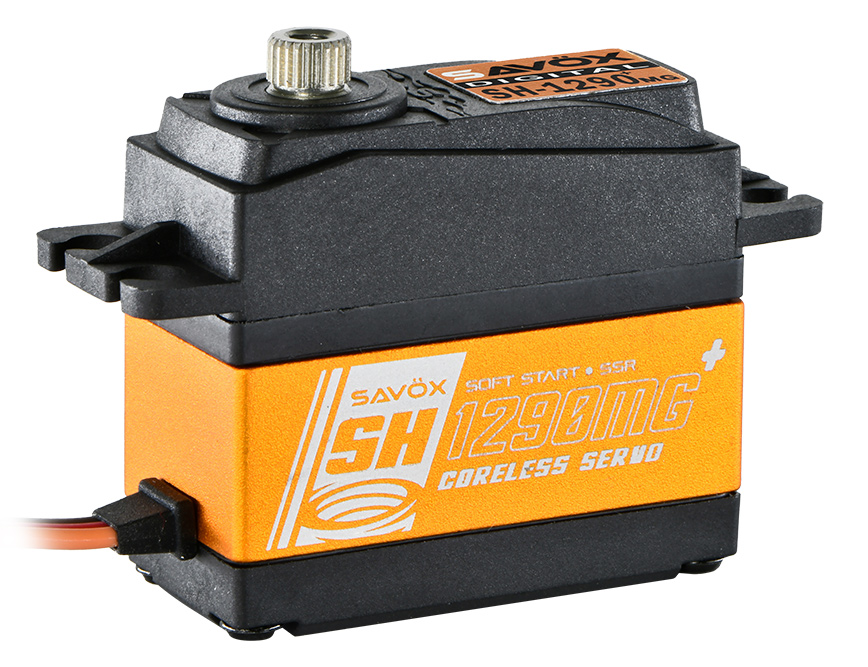

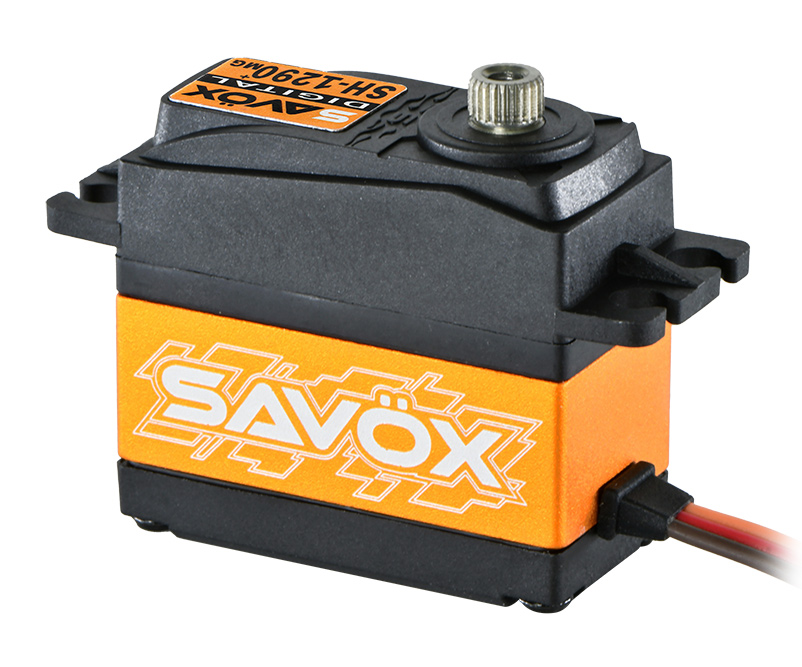

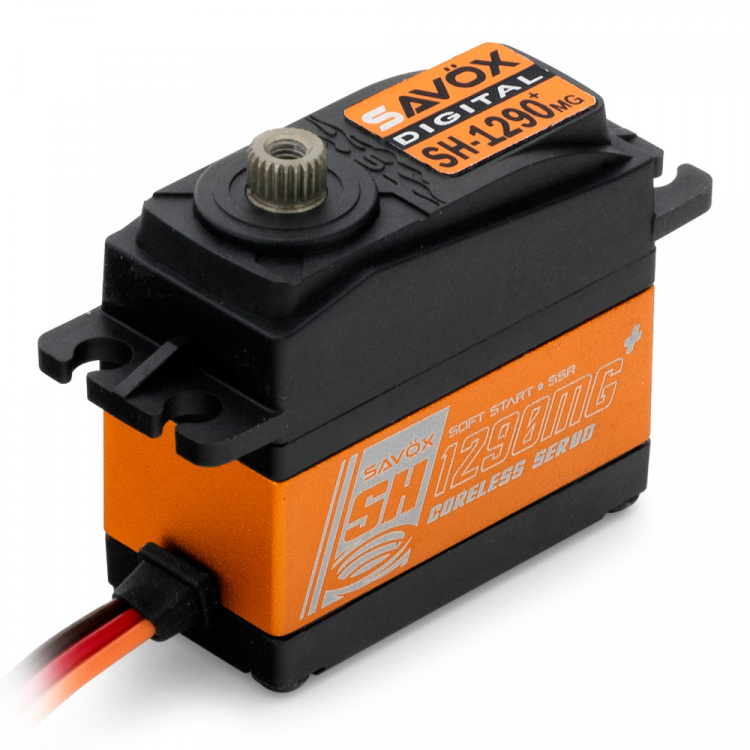

SAVÖX SH-1290MGPLUS - Metal-Geared Super-Fast Standard-Sized Servo
The Savox SH-1290MG Plus is a super-speed, metal-gear, digital servo that is extremely fast.Features:
- Soft Start
- SSR compatible
- Coreless motor

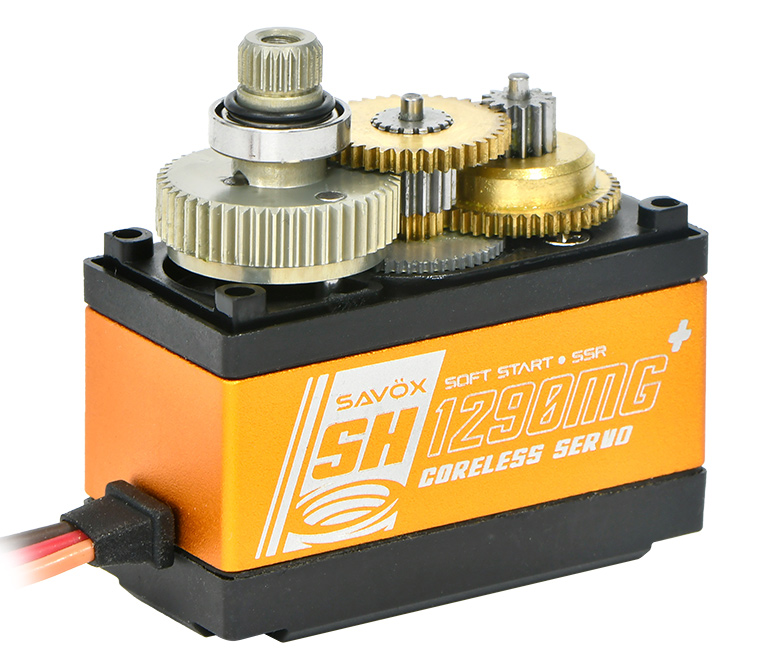

- Metal gear train ensures durability and longevity
- Extremely fast for quick response
- Aluminum middle case allows for cooler operating temperatures
- Ideal as a rudder servo on 500, 600, and 700 class helicopters
- Dual ball bearing support
Specifications:
- Torque @4.8V: 4kg/cm
- Torque @6V: 5kg/cm
- Speed @4.8V: 0.06 sec/60 deg
- Speed @6V: 0.05 sec/60 deg

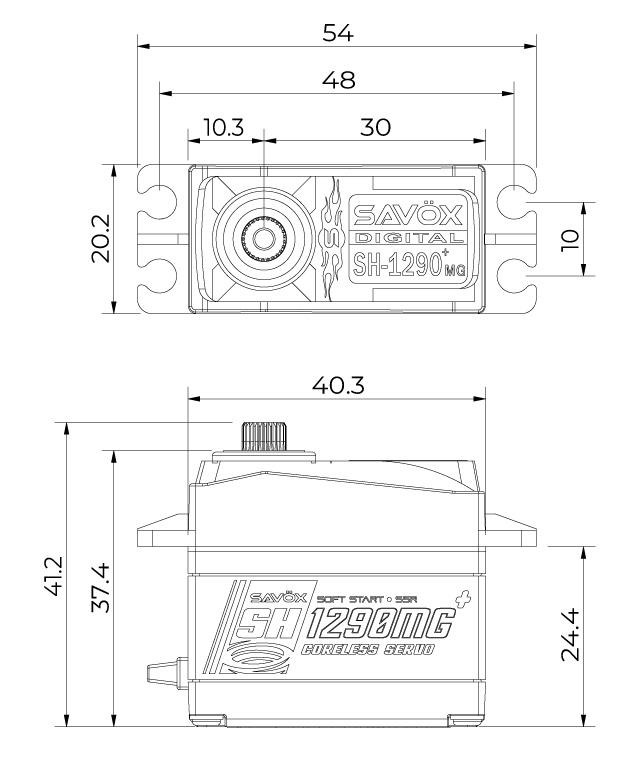

- Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
- Weight: 56.4g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 200mA @4.8V, 250mA @6.0V
- Stall Current (at locked): 2400mA @4.8V, 3000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 300 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1520 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 154° (800 → 2200 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
