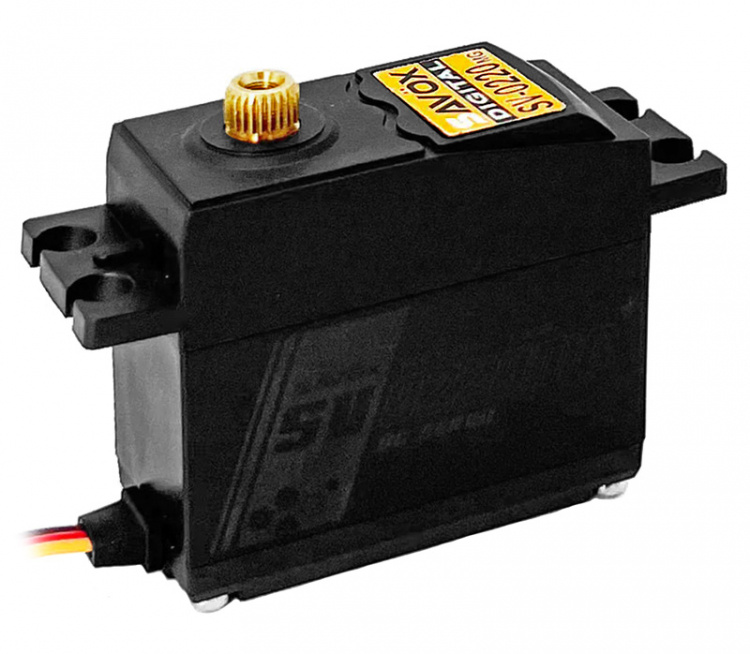

Savox SV0220MGPLUS - High Voltage Standard Digital Servo 0.13s 8kg/cm @ 7.4V
The Savox SV-0220MG PLUS is a budget-friendly, metal-geared, digital standard servo capable of operating on high voltage.Features:
- Soft Start
- Sanwa SSR compatible
- High Voltage
- Metal gear train ensures durability and longevity
Specifications:
- Torque @ 6V: 6.5kg/cm
- Torque @ 7.4V: 8kg/cm
- Speed @ 6V: 0.16s/60deg
- Speed @ 7.4V: 0.13s/60deg

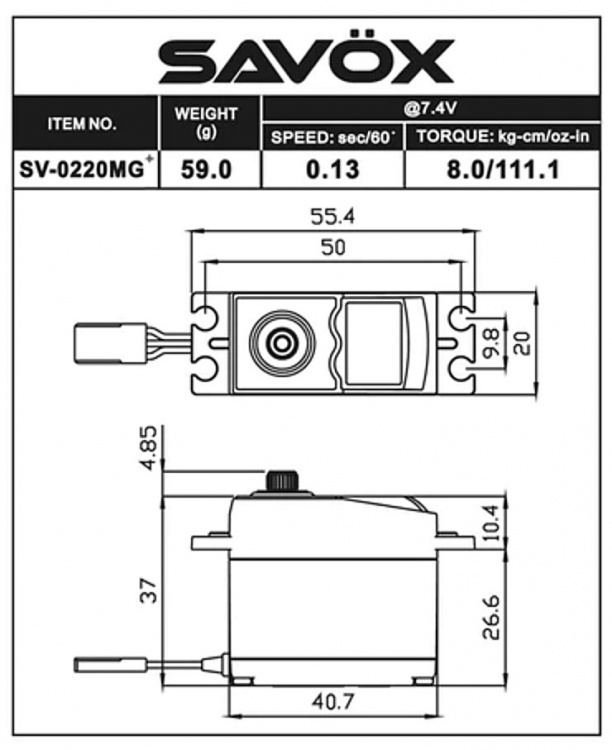

- Dimensions: L40.7 x W20 x H37mm
- Weight: 59g
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 100mA @6.0V, 120mA @7.4V
- Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 1BB
- Operating Travel: 120° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 164° (800 → 2200 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
