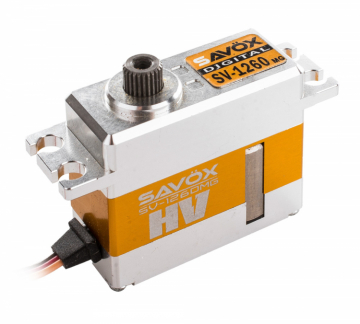

SAVÖX SV-1260MG - Super-Snabbt & Kraftfullt HV Miniservo med Metalldrev
The SV-1260MG is a mini-sized, digital, high voltage, metal-geared servo with an all aluminum case and metal gear set, making it one of the strongest and fastest mini servos available.Features:
- High Voltage
- Metal gear train provide durability against heavy use
- All aluminum case provides strength and cooler operating temperatures
Specifications:
- Torque @6V: 8kg/cm
- Torque @7.4V: 12kg/cm
- Speed @6V: 0.065 sec/60 deg
- Speed @7.4V: 0.055 sec/60 deg
- Dimensions L x W x H: 35.0 x 15.0 x 30.7mm
- Weight: 40g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 120mA @6.0V, 180mA @7.4V
- Stall Current (at locked): 4000mA @6.0 V, 4700mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 165° (800 → 2200 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
