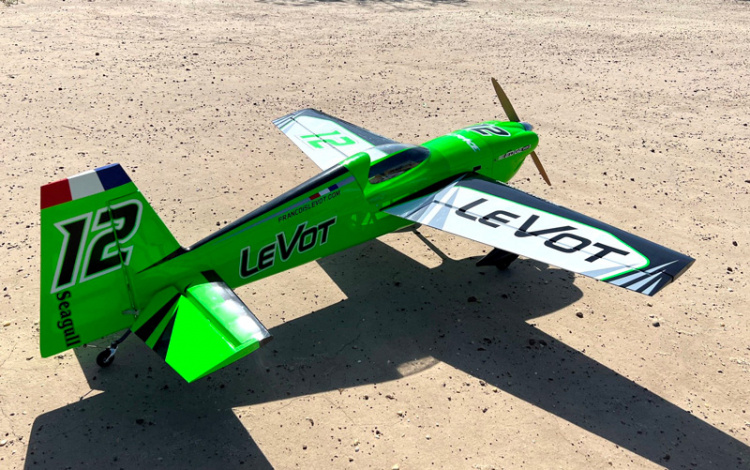

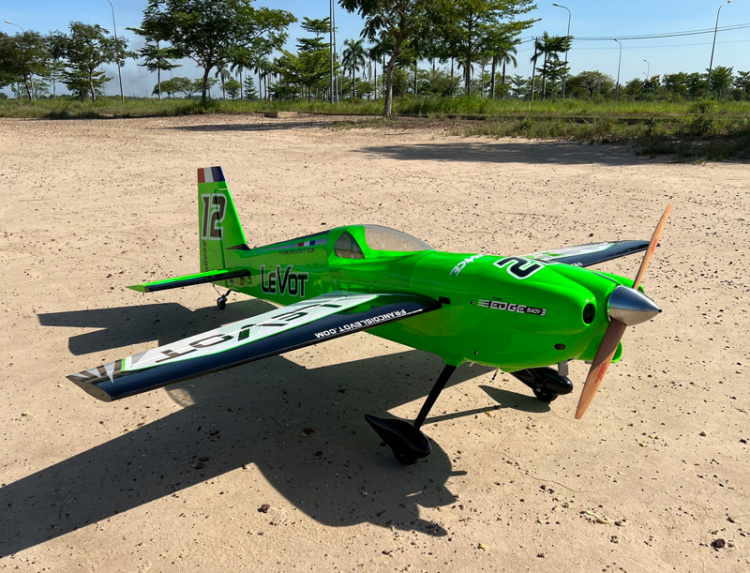

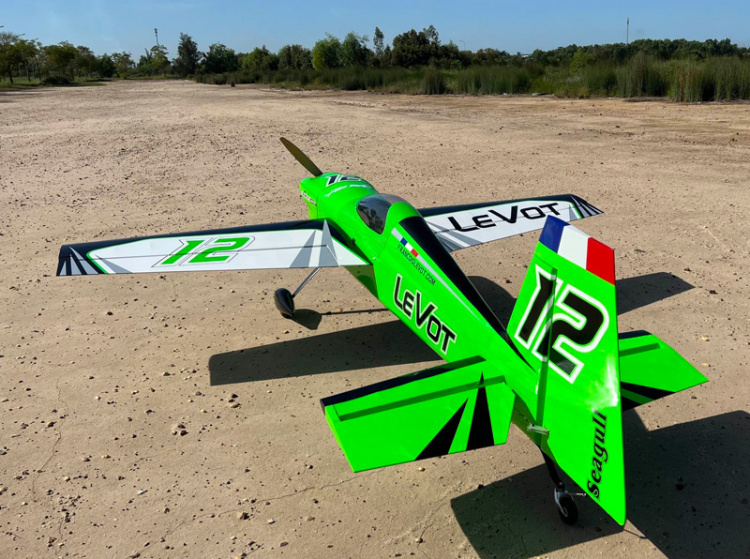

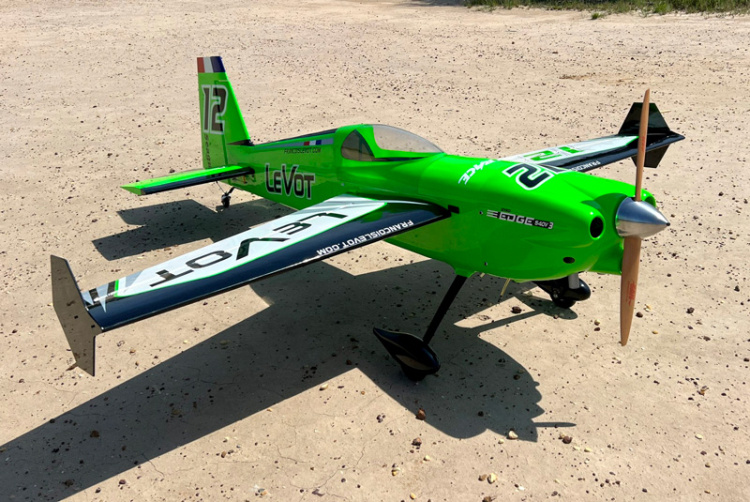

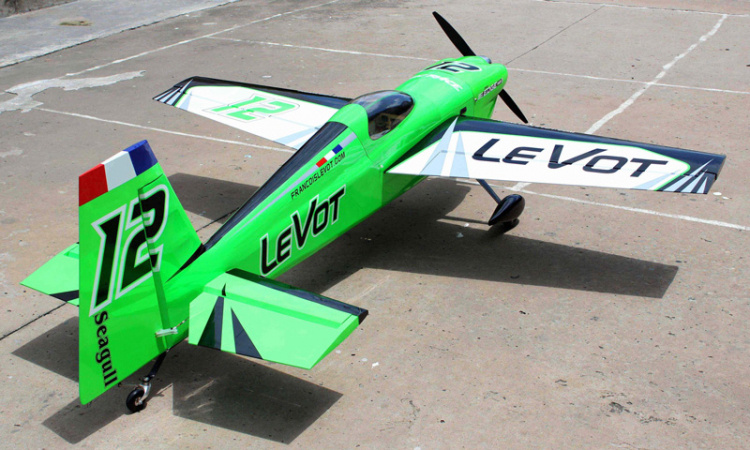

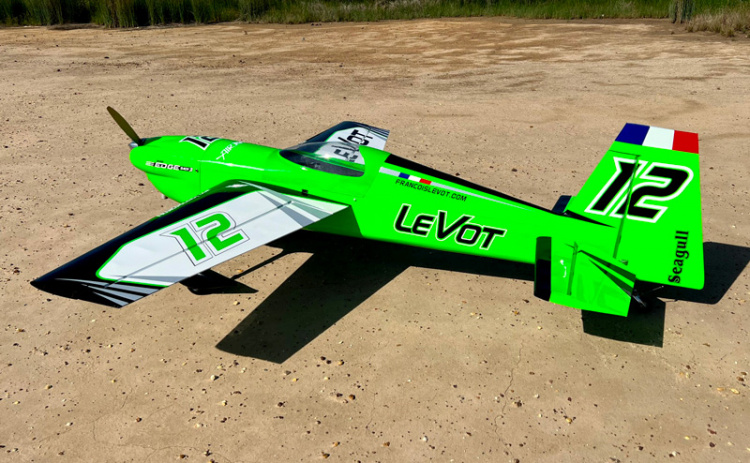

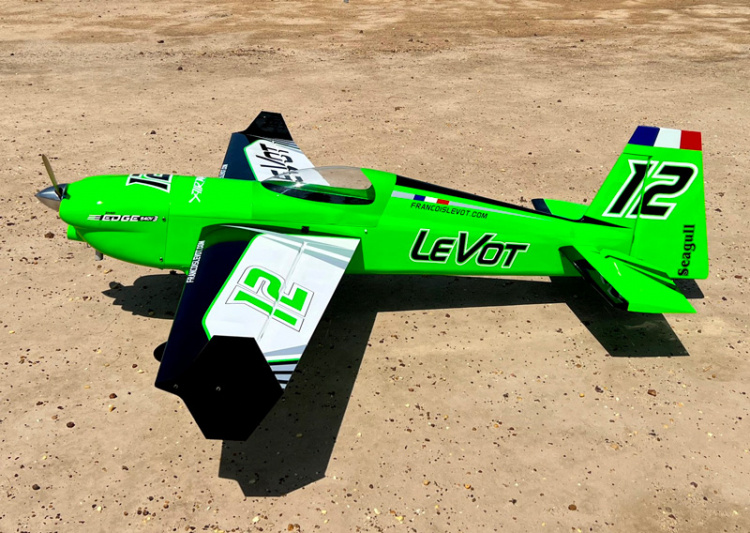

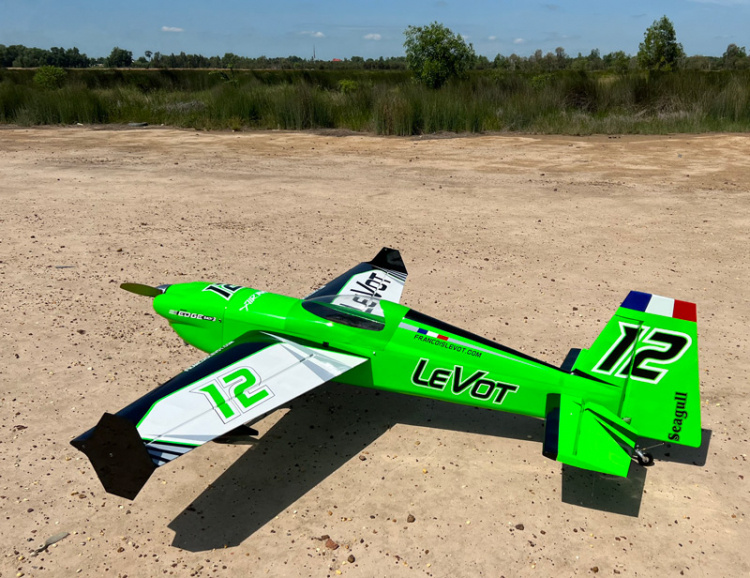

Seagull SEA363 - Zivko Edge 540 V3 3D - 231cm wingspan - 60-70cc Gas
The Zivko Edge 540 V3 - 2310mm wingspan 60-70cc was designed with the intermediate/advanced sport flyer in mind. It is a semi scale airplane which is easy to fly and quick to assemble. The airframe is conventionally built using balsa, plywood to make it stronger than the average ARTF, yet the design allows the airplane to be kept light. You will find that most of the work has been done for you already. The motor mount has been fitted and the hinges are pre-installed.Specifications:
- Wingspan: 2310mm
- Wing Area: 95.6sq/dm
- Fuselage length: 2365mm
- Weight: 8.8-9.2kg
- Engine Required: 60-70cc Gas
- Radio Required: 6 channels with 6 servos
Minimum servo specs:
Torque:
- 27.3 kg-cm @ 6.0V
- 33.7 kg-cm @ 7.4V
- 38.2 kg-cm @ 8.4V
- 0.14 sec/60° @ 6.0V
- 0.11 sec/60° @ 7.4V
- 0.10 sec/60° @ 8.4V
TOOLS & SUPPLIES NEEDED:
- Thin cyanoacrylate glue
- Medium cyanoacrylate glue
- 30 minute epoxy
- 5 minute epoxy
- Hand or electric drill
- Assorted drill bits
- Modelling knife
- Straight edge ruler
- 2mm ball driver
- Phillips head screwdriver
- 220 grit sandpaper
- 90° square or builder’s triangle
- Wire cutters
- Masking tape & T-pins
- Thread-lock
- Paper towels
