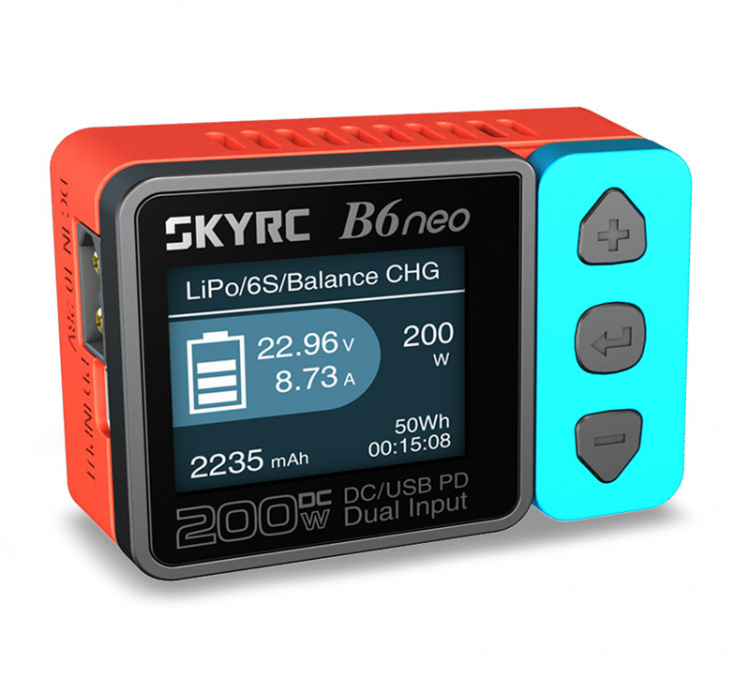

SkyRC 100198 - B6neo Ultra-Compact DC charger - Red/Blue
Charging should not be a chore!With the two-tone body design and playful color options, B6neo adds a touch of fun to your routine charging session. Stand out in the racing field with a pop of color and impress other players with your unique personality. Choose from bold and bright or classic and subdued color schemes that perfectly match your style. Make your RC charging shine with SkyRC B6neo!

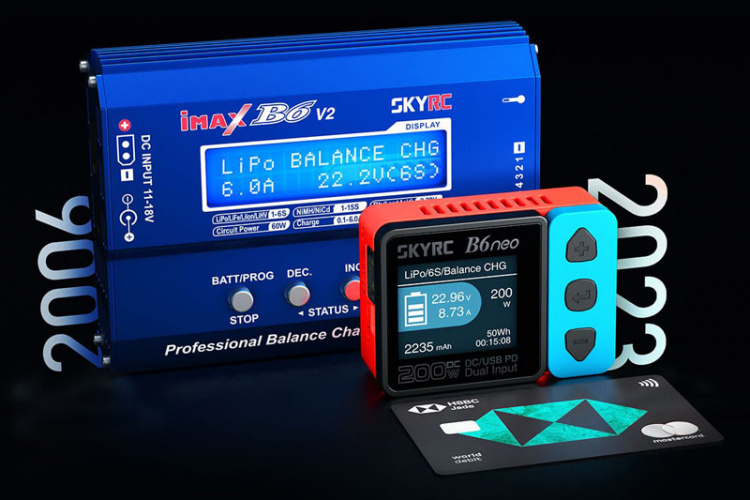

SkyRC's legendary iMax B6 charger was an iconic charger back in 2006, and now we are proud to introduce the next-generation B6neo. Almost 1/4 the size of its predecessor, smaller than credit card, B6neo still packs a powerful punch. Unlike the rugged aluminum case of the B6, the B6neo features stunning color schemes in sleek plastic cases. When powered by DC, the B6neo can charge up to an impressive 200W, while it can handle up to 80W with USB PD input. This is a significant improvement over the B6, which can only charge up to 50W on DC and does not support PD input - a feature that has become the de-facto must-have in the household. Once again, SkyRC has raised the bar for RC charging!

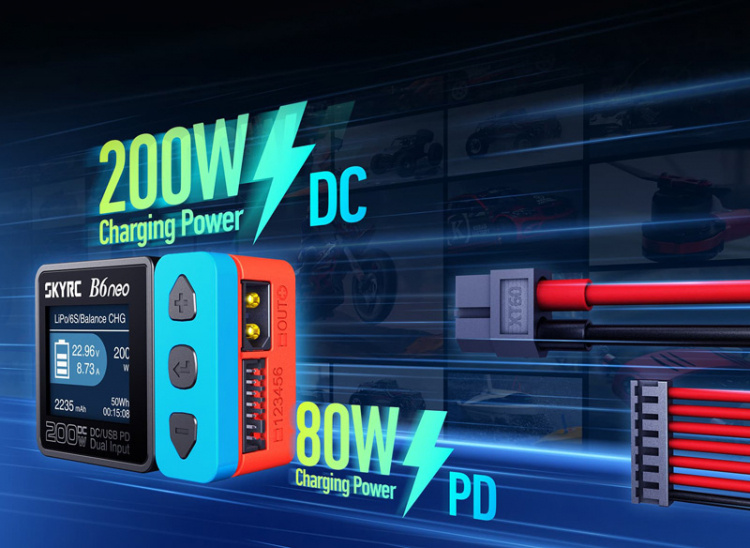

200W of Amazing Power
Don't let its small size deceive you - this charger packs a punch! When powered by DC, the tiny and shiny powerhouse delivers a remarkable charging power of up to 200W with a maximum current of 10A. Even when connected to the trendy type-C PD power, it effortlessly fills up to 80W. With its tiny footprint, the B6neo exceeds expectations in every way! Experience the ultimate combination of power and portability with the B6neo. What more could you ask for from such a compact powerhouse?
XT60 & Trendy PD input
SkyRC B6neo features an XT60 interface as its DC input and a de-facto trendy Type-C PD input interface, ensuring greater flexibility and convenience in charging your RC batteries.
Discharging Multiplied by Balance Port
The built-in balance port enables B6neo to discharge faster, allowing it to discharge at up to 24W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 10W.
Versatile 2-in-1: Check Batteries Easily
When the balance port is connected, B6neo is a versatile battery checker capable of measuring cell voltage and the balance state of LiPo, LiHV, LiFe, and LiIon battery. The overall voltage and individual cell's voltage will be displayed on the fly to help tell whether the battery is charged or discharged and whether it requires balancing. It will work as a safeguard for batteries, as, for example, LiPo battery is renowned for their high energy density and lightweight properties. Proper care and monitoring are crucial to ensure their safety and longevity.
Digital Power

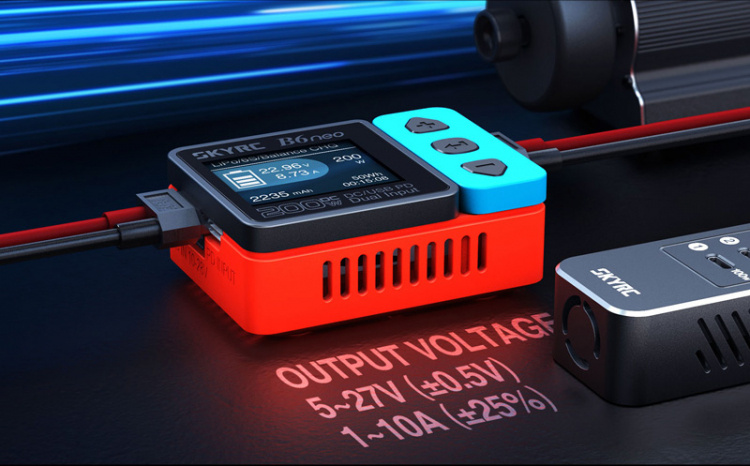

B6neo is not only professional in charging but also can act as a digital power supply. After clicks on the menu, B6neo is ready for your application, offering an optimal voltage of 5-27V with 0.1V increment, adjustable 1-10A current. Short circuit, Overload, and Reverse polarity protection are all included!
Efficiency Multiplied
The B6neo uses a proprietary rectifier circuit to efficiently convert DC into safe D/C power for battery charging. And its onboard MCU precisely controls the charging to minimize power loss to create an incredibly compact form factor.
ColorX: Easy to charge, Easy on the eyes.
Discover a new ColorX interface introduced by B6neo based on simple and textured visuals! The tailor-designed light cyan and green color scheme are for RC charging. It helps you focus on the setting. The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones! Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI. Life doesn't have to be boring, and neither does charging!
Charge in your language
ColorX is designed to be easily localized and comfortably engaged! The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
Upgradeable Firmware... Hassle-Free
Upgrade your charger effortlessly with the complimentary Charger Master App. Stay informed and receive instant prompts whenever a firmware update is available. Updating your charger is as simple as connecting it via the Type-C port. Enjoy a happier charger as each upgrade brings bug fixes and compatibility, improved stability, and enhanced performance.
Specs:
- Shell material: PC-ABS V0

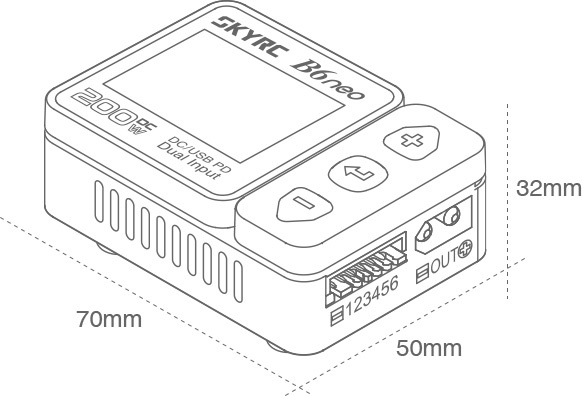

- Size: 70x50x32mm
- Weight: 82g
- Display Type: TN
- Size: 1.77 inch
- Panel Active Area: 28.03*35.04mm
- Resolution: 128xRGBx160 Pixel
- Number of Colors: 262K
- DC Input Voltage: 10-28.0V
- PD3.0/QC Input Voltage : 12v-20v
- Charger power DC: 200W
- Charger power PD: Max. 80W (20V, 5A)
- Discharge power: Max. 24W based on 6S(4.2V/S)
- LiPo/LiFe/LiIon/LiHV: 1-6cells
- NiMH/NiCd: 1-15cells
- Pb: 3S/6S
Charge current:
- LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-20.0A
Discharge current:
- LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
Balance current:
- LiPo/LiFe/LiIon/LiHV: Max. 500mA
Operation:
- LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
- NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
- Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge
