SKYRC eN20 NiMH/NiCd Charger is an economic, high quality 100-240V AC charger, designed for charging NiMH and NiCad batteries from 4-8 cells. The circuit power is 20W and max charge current can reach to 3A. There are three kinds of charge current 1A/2A/3A that can be selected. You could select the proper charge current according to battery capacity.
There is one LED indicating the charger status (ready to charge/charging/charge finish). The operation of the charger is also very simple. There is a toggle switch in the charger which can be used to select charge current. After you power on the charger, select the charge current, connect the battery and charger, the charger will start working.
Explanation of LED Status:
| CHARGE LED STATUS | CHARGE STATUS |
| LED Flashes Green | The Charger is Ready |
| LED Glows Red | Battery Charger in process |
| LED Glows Green | Battery charger is fully charged |
Specifications:
- AC Input Voltage: 100-240V, 50-60HZ
- Output Power: 20W
- Charging Current (Selected by Switch): 1A, 2A, 3A
- Battery Type (Selected by Switch): NiMH/NiCd
- Battery Cell Count: 4-8 cells
- 1 LED for Charging Status
- Dimension: 69.4 x 110.7 x 40.5 mm
- Weight: 175 g
Included:
- eN20 Charger
- 240VAC adapter with Euro connector

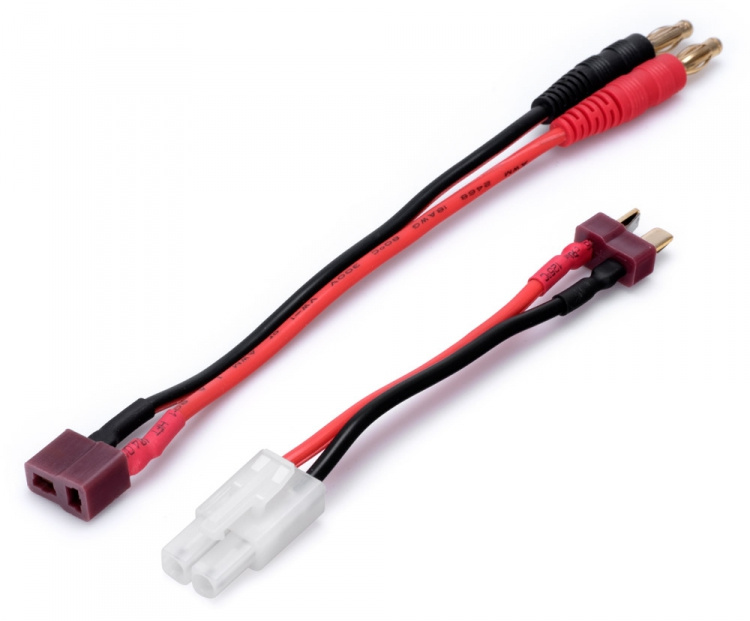

- Charging lead with Tamiya connector
