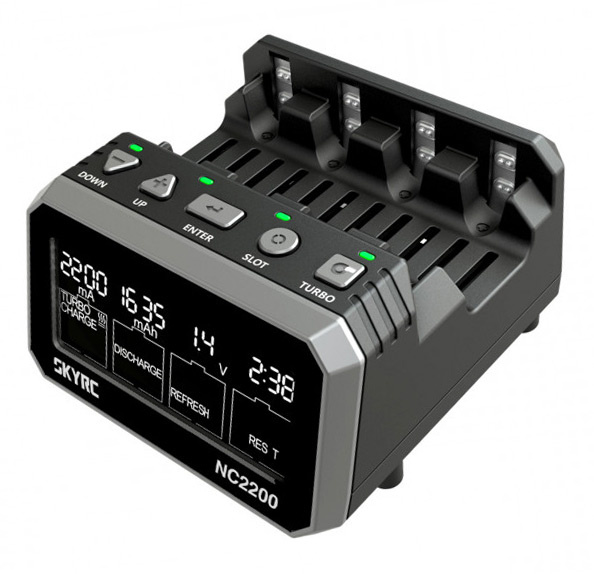

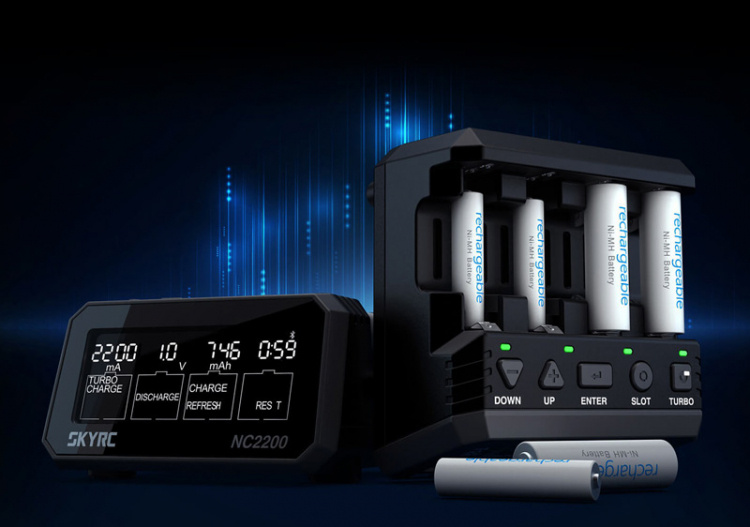

SKYRC NC2200 BATTERILADDARE NICAD/NIMH AA/AAA
This SkyRC NC2200 AA/AAA battery charger-analyzer charges up to 4 batteries at once, so you can quickly power your electronic devices. The visual charging status keeps you informed on when your batteries are ready for use. It can handle 1 to 4 AA and AAA NiMH/NiCD rechargeable batteries via four independent charging slots with its respective interface.With the wide-viewing VA screen, the charger displays Current, Capacity, Internal Resistance, Voltage, Elapsed Time, and working mode at a glance. Meanwhile, the charging graph and firmware upgrading can be accessible with the SkyCharger app if you connect the optional Bluetooth Dongle.
All In One:
- Turbo Charge
- Discharge
- Battery Matching
- Battery Rescue
- Battery IR Measuring
- 4 Independent Slots
- Stunning VA Screen
NC2200 on a Power Chip
The Cortex-M3 processor is specifically developed for high-performance, cost-effective platforms for various devices, including microcontrollers, automotive body systems, industrial control systems, and wireless networking and sensors.
Thanks to Cortex-M3 by ARM, NC2200 can complete real-time acquisition of battery voltage and current, and the charging process under intelligent control. It can automatically calculate the remaining charging time of the battery and adjust the parameters. System management circuit also has a protective function, which can prevent damage to the battery from overcharge and overtime.
5 Modes to Stay Charged & Healthy
NC2200 comes with five operation modes: Turbo(fast charge), Charge, Discharge, Refresh & Analyze and Break-in. With these five modes, you can charge, optimize your battery, and even you can rescue the battery from dying.
Charge:
- Charge the batteries att at programmable charge rate. Useful when the battery needs to be recharged without determining the capacity. Applicable for charging the batteries in a good performance and continuous use.
- Discharge the batteries at a programmable discharge rate.
- This mode is used to determine the battery’s performance based on the actual capacity it can hold. It’s applicable for batteries stored for more than two weeks and less that three months of for batteries that are not performing well.
- Applicable for new batteries and those stored for more that three months. The Break-On mode is to activate the battery with a small charge and discharge rate in a charge-discharge sequence. This process is also well-known as ”Battery Formatting” and is applicable for batteries that cannot be rescued by the ”Refresh & Analyze” mode.
- Fast charging with a larch current of 2.2A for batteries that are needed urgently. This mode assumes that the batteries is performing well. The charger will detect the battery resistance automatically under Turbo mode. If the battery resistance is more that 40mΩ, the value and LED red indicator will be blinking and the charger will stop working to protect the battery.
FlexiPulse: Overheating is Prevented
The internal resistance of the battery usually increases as it is used. When the battery is used for a long time, its internal resistance will increase. The internal resistance consumes part of the electric energy when charging and causes the battery to heat up simultaneously. SkyRC deploys an innovative FlexiPulse algorithm for internal resistance detection in this charger. Once a high internal resistance is detected, the charge current will automatically decrease to reduce the overall heating and protect the battery.

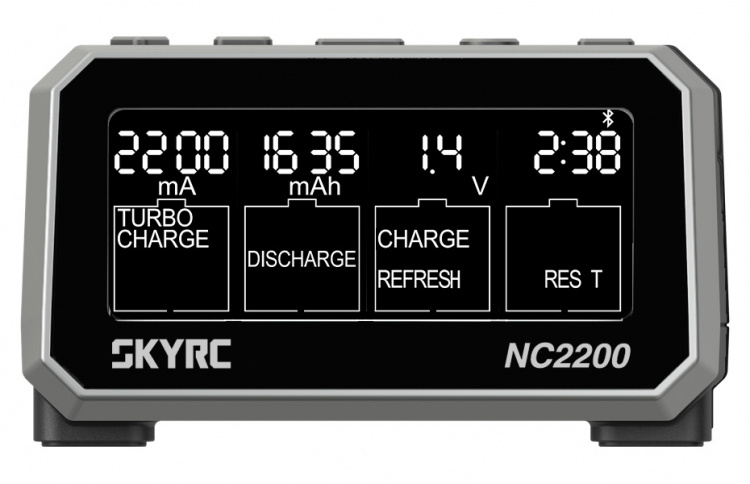

Stunning Display: Deep Blacks and Bright Whites
In high contrast black and white, current, capacity, internal resistance, voltage, elapsed time and working mode are displayed stunningly at a glance.
EZ-setup
NC2200 will start working automatically to the last remembered setting if the charger worked once and its power uninterrupted. When programming in 5 modes, you apply one slot's setting to all the rest slots, PRESS & HOLD the ENTER button for two seconds.
Match Well, Perform Better
Most electronic devices usually require two or more batteries to be used together. In this circumstance, the overall performance will be limited by the worst battery. In other words, the poorly performing battery will affect the operating time of the device. We can understand battery matching as group batteries with similar actual capacity. Grouping batteries by similar capacity will maximize the battery series' efficiency. You can group batteries easily in the Refresh mode!
Extend the battery's life with Formatting
The battery formatting refers to activating the battery with a small charge and discharge rate in a charge-discharge-charge sequence. With NC2200, battery formatting can be done in Break-in mode. In some circumstances, this process may need to be repeated two to three times.
Click or Scan to download App
- *Requires iOS 9.0 or above
- *Requires Android 8.0 or above
*Scan the QR code above to download the SkyCharger app

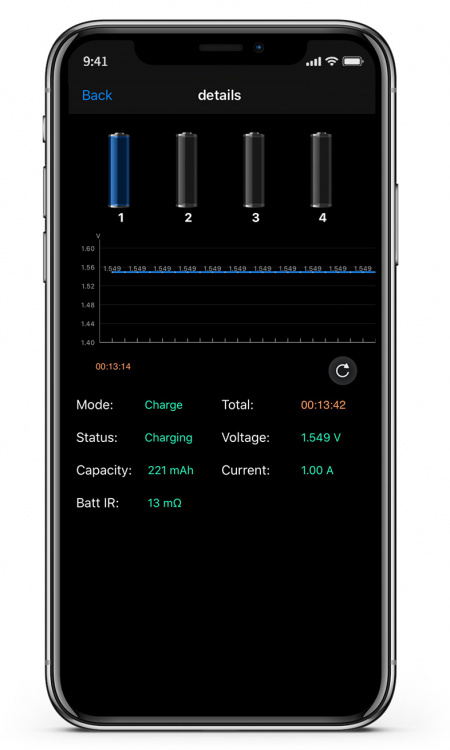

You can view NC2200 via your smartphone via the optional Bluetooth dongle. The free SkyCharger app gives you a more intuitive experience: all data is displayed at a graphic interface with a charging graph! With the recorded data on the app, you can easily analyze your battery's performance!
Specs:
- Dimension: 112.1x108x62mm
- Weight: 370g
- Battery Type: NiMH/NiCD
- Battery Size: AA/AAA
- Charge Rate: 0.2-2.2A w/ increments of 0.1A
- Discharge Rate: 0.1-1.0A w/ increments of 0.1A
- Discharge Termination Voltage: 0.9V
- Supported Capacity: 500-3200mAh
- Capacity Protection: 3200mAh
- Input Power: DC 12V/2.0A
- -△V: 5mV
