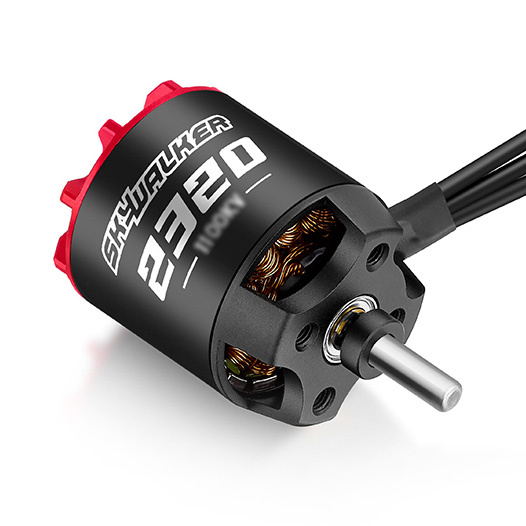

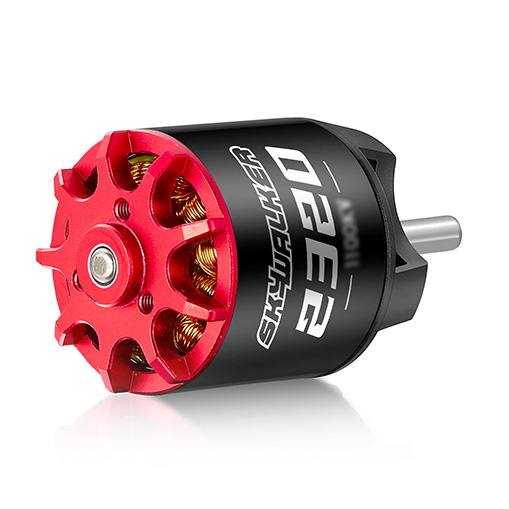

Hobbywing HW30415100 - SkyWalker 2320SL 860Kv Outrunner
High power & High performanceThe newly designed 2312, 2316, and 2320 fixed-wing motors have increased output power. The propeller mounting provides greater torque compared with competing motors of the same specification. The maximum output power is approximately 10% higher.
Excellent heat dissipation design
The large hollow design, combined with the self-dissipating structure of the top cover, enhances the cooling capacity and prolongs the lifespan of the motor.
Higher dynamic balance requirements
Adopts an excellent production and assembly dynamic balance technology with high-quality bearing and high-precision CNC machining, it provides an extremely low dynamic balance of the rotor to reduce motor vibration and provide smoother operation.
Multi-anti-loosening rotor design
After installing the copper pad and retainer spring on the core of the rotor shaft, the bushing and set screw help secure the rotor and improving the reliability of the motor.
Excellent materials
- Top branded JNEH1200 silicon steel sheet, 0.2mm thick material, provides lower iron loss.
- N48 strong magnetic arc magnetic steel design provides maximum torque output for the motor.
- 180°C high temperature resistant enameled wire, enhances the high temperature resistance of the stator coil.
- Silicone wire outlet, which is softer and easier to route than the traditional straight outlet silicone wire.
Included Accessories:
- Propeller Adapter Assembly
- Motor mounting plate
- Screws
Specs:
- Recommended Battery: 3-4S LiPo
- KV Rating: 860KV
- No-load Current: 1.5A/14.8V
- Winding Resistance: 48.4mΩ
- Number of slot poles: 12N14P
- Maximum continuous current: 36A/90s
- Maximum continuous power: 540W/90s
- Motor Size: D28.8xL38mm
- Motor Weight: 93g
- Shaft Diameter: 4mm
- Bearing model: 684ZZ（OD9xiD4xT4mm)
- Phase cable: 18AWG
- Cable length: 100mm
- Recommended ESC: Skywalker-V2 30-40A
- Recommended Propellers: 3S: 12x6E, 13x6.5E / 4S: 10x5E, 10x6E, 11x5.5E
- Clip mounting hole threads: D12mm-3xM2.5
- Base threads: D16mm-2xM3 / D19mm-2xM3
