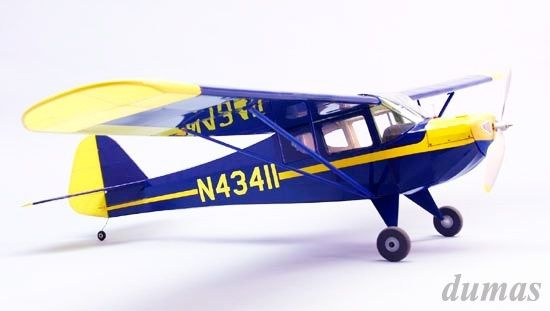

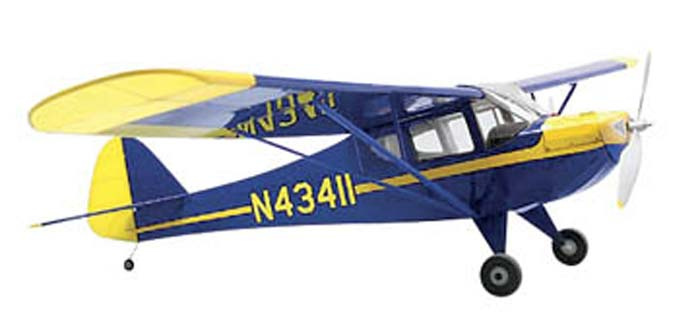

#1814 Taylorcraft - 1016 mm Wingspan
Here is a beautiful model of the Taylorcraft, designed by Pat Tritle. Designed to use stock off the shelf flying hardware for easy affordable flight.Kit features:
- Laser cut parts
- Hand-selected balsa
- Full size plans
- Step-by-step instructions
- Vacuum-molded parts
- Lightweight colored tissue
- Construction: Hand selected laser cut balsa
- Vacuum molded cowl
- Rudder and Elevator Control: Wire pushrod
- Servo Placement: Mounted in rails on fuselage
- Landing Gear: 1/16" diameter wire front, tail wire skid requires bending
INCLUDES
All balsa, lightweight colored (blue and yellow) tissue covering two 45 mm lightweight foam main wheels, tail wire skid, lightweight plastic tail wheel, CA hinges and all hardware to complete kit, instruction manual, two full-size plan sheets, acetate sheet for windows and vacuum molded cowl.
REQUIREMENTS
- GWS IPS (indoor power system) motor with "A" ratio gear drive
- 3 channel radio system (minimum)
- 2 micro servos
- 5A ESC w/BEC
- 2 cell 700mAh LiPo battery
- GWS 8x6 prop
- Building and field equipment
SPECIFICATIONS
- Length: 606 mm
- Wingspan: 1016 mm
- Wing Area: 17.57 sq dm
- Airfoil: Flat bottom
- Center of Gravity (CG): 48mm back from the leading edge of the wing
- Control Throws: Elevator, Up and Down: 19 mm / Rudder, Left and Right: 22 mm
