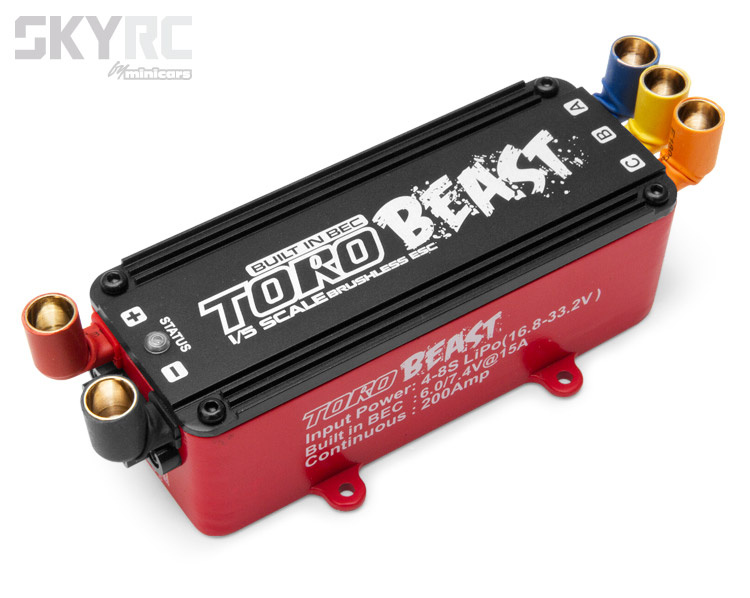

This New Toro Beast 200A Brushless ESC is an upgrade of TORO EX200A for 1/5 scale car. It is usable with 4S to 8S LiPo packs and comes with a 6 /7.4V@15A BEC system and can be widely programmed by Program box or SKYLINK USB interface.
This upgrade Toro Beast 200A has more advantages, one of main features is it is a BEC ESC,and the BEC is adjustable with 6V15A or 7.4V/15A. It also has new high performance heat dissipation power boards ,bearings and lowest resistance . It easily runs up to 10 horse power range applications with these advanced features.
Features:
- Built-in high power BEC. The Output voltage of built-in BEC is selectable between 6.0V and 7.4V and with 15A Maximum output current
- Support LiPo batteries up to 8S
- Data Logging: The controller can measure and record parameters such as your battery volts,amp draw, motor rpm, and controller temperature
- Red copper connector is used internally of the ESC. It can decrease the internal resistance at high current situation
- Heat transfer: The internal resistance can be reduced by laminated copper stack control technology so that the dynamic thermal equilibrium can be got

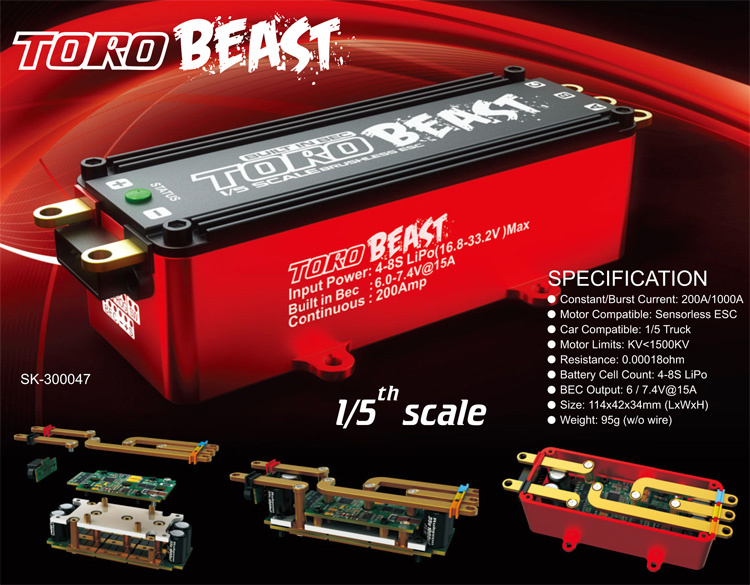

SPECIFICATIONS:
- Constant/Burst Current: 200A/1000A
- Motor Compatible: Sensorless ESC
- Car Compatible: 1/5 Truck
- Motor Limits: KV<1500KV
- Resistance: 0.00018ohm
- Battery Cell Count: 4-8S LiPo
- BEC Output: 6 / 7.4V@15A
- Size: L114 x W42 x H34 mm
