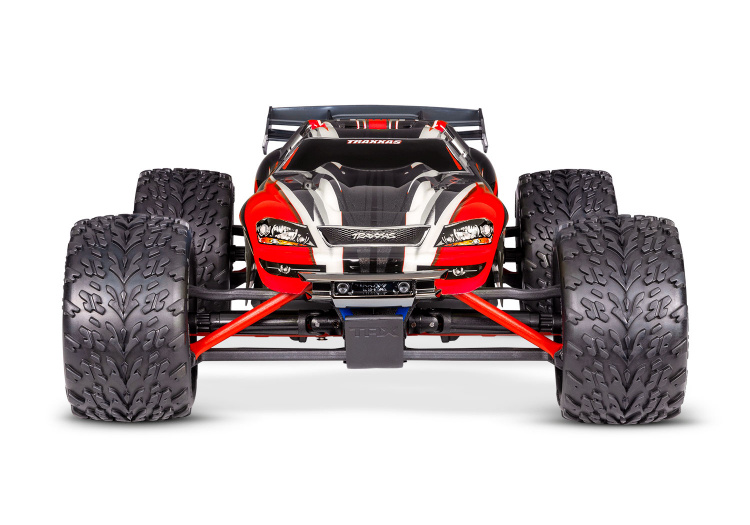

Traxxas 71054-8-RED - 1/16 E-Revo RÖD

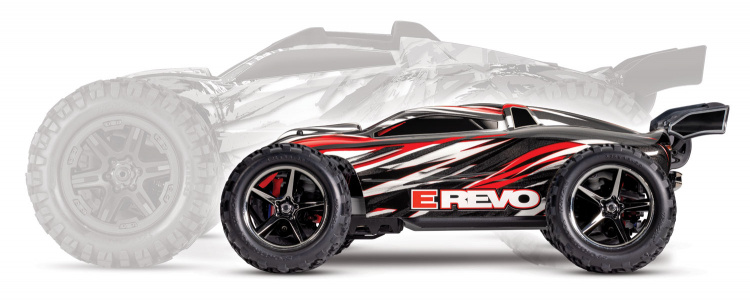

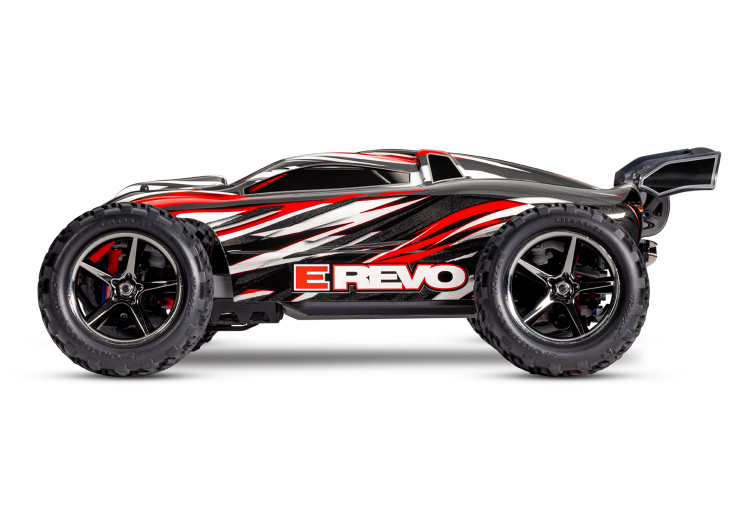

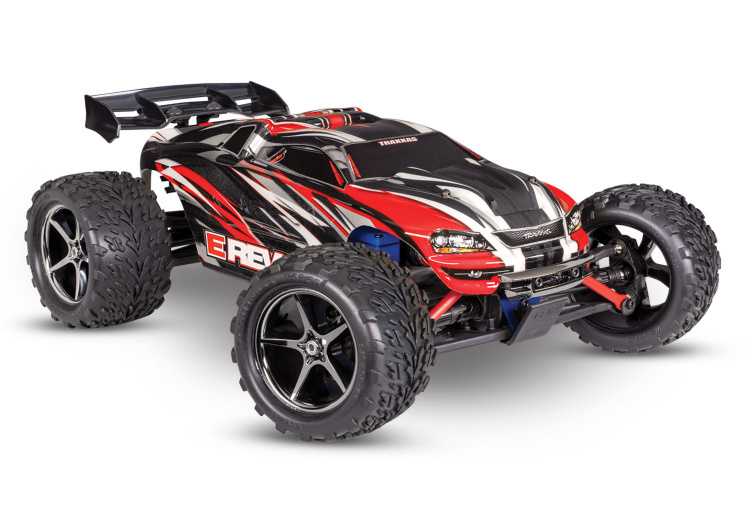

1/16 E-Revo® takes all the track-proven innovation of the full-size E-Revo VXL and scales it down to a convenient go-anywhere size. E-Revo's rocker-actuated suspension has been expertly adapted to 1/16 scale with its oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. E-Revo's monocoque chassis balances strength and weight to far surpass the standards of the "mini" category.FEATURES 1/16 E-REVO (71054-8):
- Ready-To-Race® with included 6-cell NiMH Power Cell battery with iD®
- 2-amp USB-C fast charger

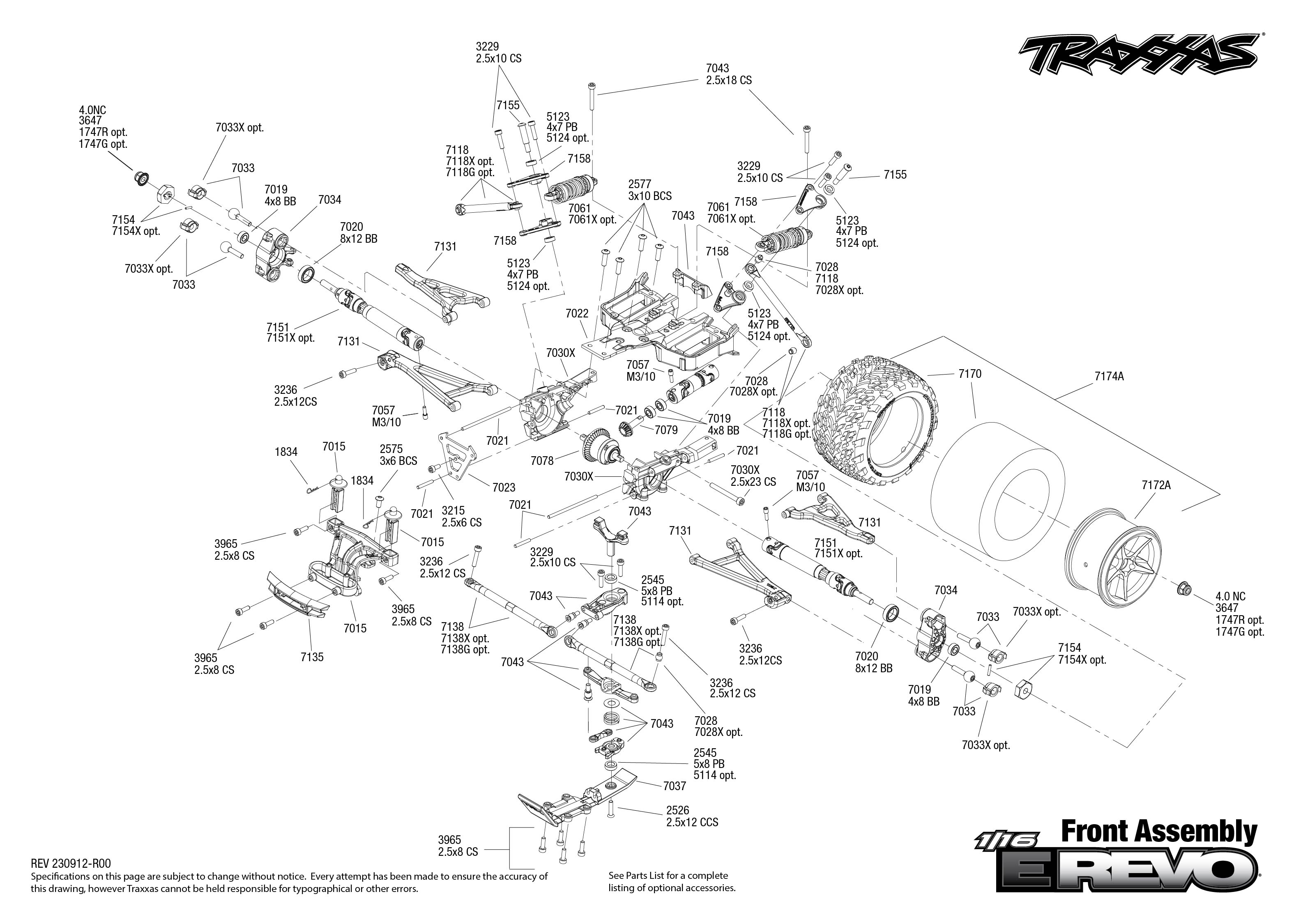

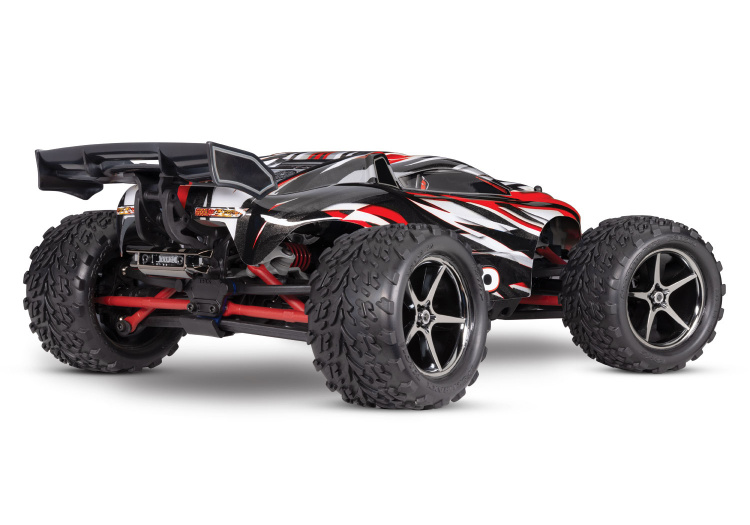

- Revo® suspension technology for superior handling and control
- Full-time 4WD
- Titan® 550 motor
- Waterproof electronics
- Torque-Control™ slipper clutch
- Sealed differentials
- Realistic all-terrain tires with foam inserts

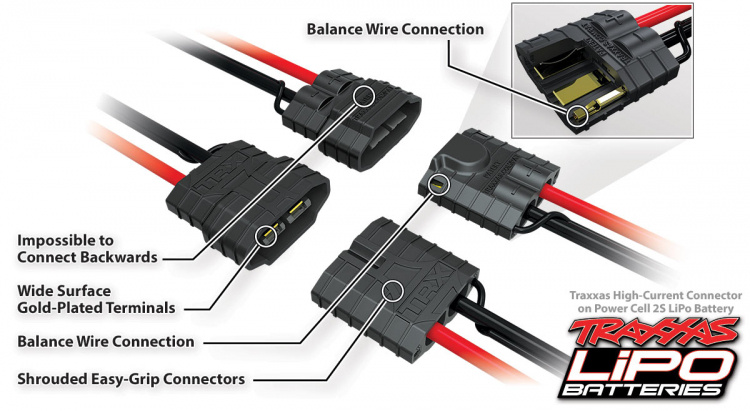

- Patented Traxxas High-Current Connector
- Metric hex hardware
- Rubber-sealed ball bearings

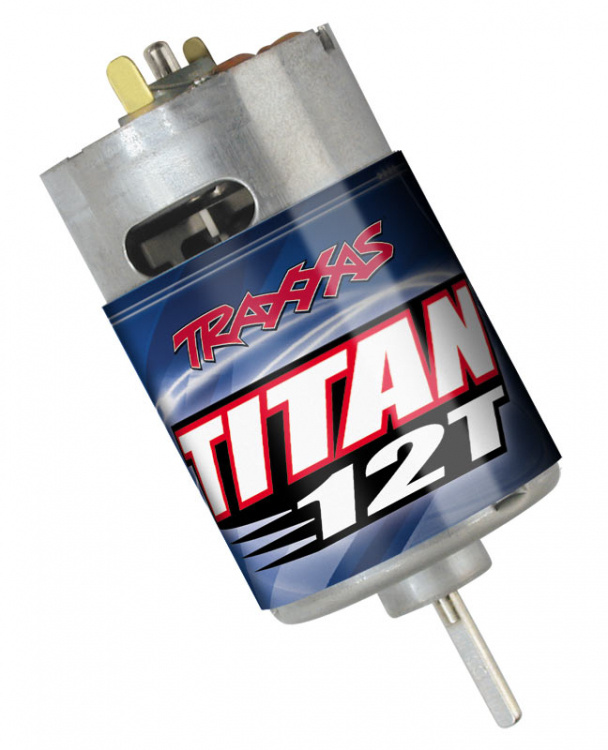

Modified Muscle

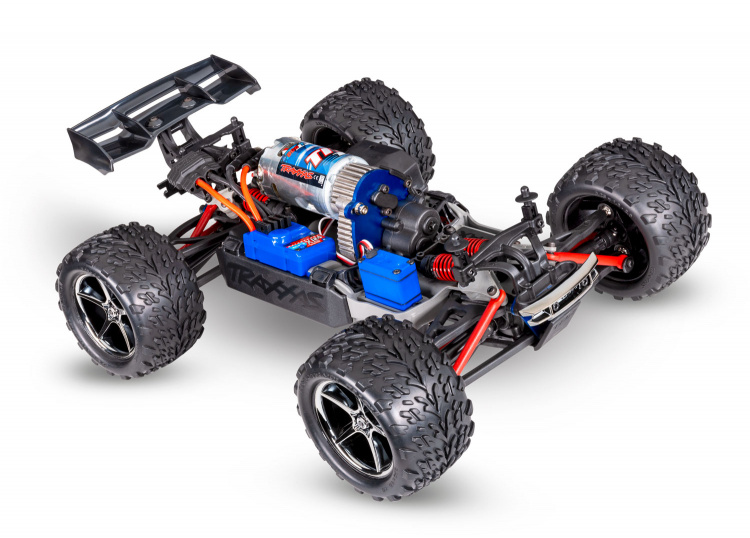

Leave it to Traxxas to put the huge torque of the Titan 550 motor into the 1/16 E-Revo for unstoppable climbing, roosting, and monster performance! The Titan modified motor delivers exciting power output with long-lasting performance. An integrated cooling fan pulls cool air through vent tunnels molded into the motor plate to keep temperatures down. A cooler running motor equates to faster speeds, longer runtime, and extended motor life. The XL-2.5™ electronic speed control comes standard with three drive profiles, low voltage detection, thermal shutdown protection, and gold-plated connectors.

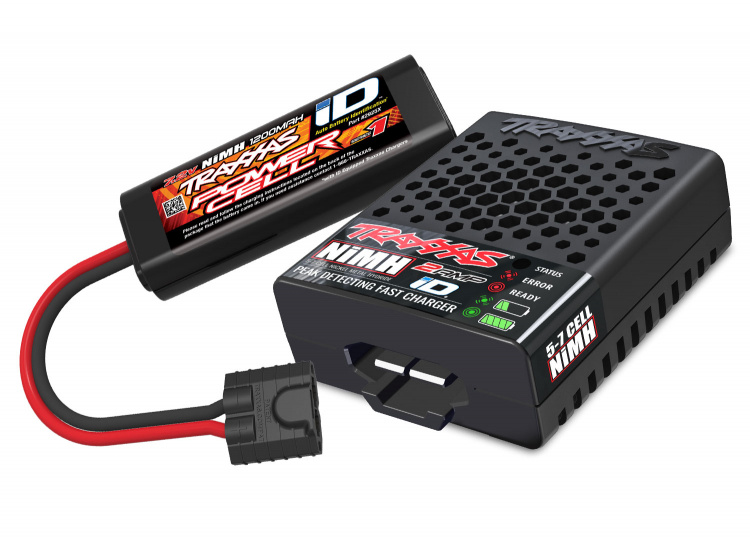

Battery and Charger Included!
1/16 E-Revo includes a powerful 7.2 volt 1200 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach its 30+ mph top speed. Fast 2-amp charging is available virtually anywhere thanks to the included USB-C battery charger with iD® technology. Power adapter and cable sold separately. For maximum charge rate use Traxxas 2912 45-watt power adapter and 2916 100-watt power cable. The Traxxas iD system is the easiest and safest way to charge your Traxxas batteries. The charger automatically recognizes the iD battery and optimizes the charge settings as soon as you plug it in. There’s no guesswork involved, just fast, reliable charging every time.
1/16 E-REVO (71054-8) SPECS:
- Length: 328 mm
- Width: 239 mm
- Weight: 1.24 kg
- Height (overall): 117 mm
- Wheelbase: 202 mm
- Wheel Diameter 2.0" (50.8 mm)
- Shock Length (front/rear): 48 mm / 48 mm
- Front/Rear Tires (glued): Talon™ 2.0"
- Front/Rear Wheels: 2.0" Gemini™ (black-chrome)
- Electronic Speed Control: Waterproof XL-2.5 ESC
- Motor (electric): Titan® 12T 550

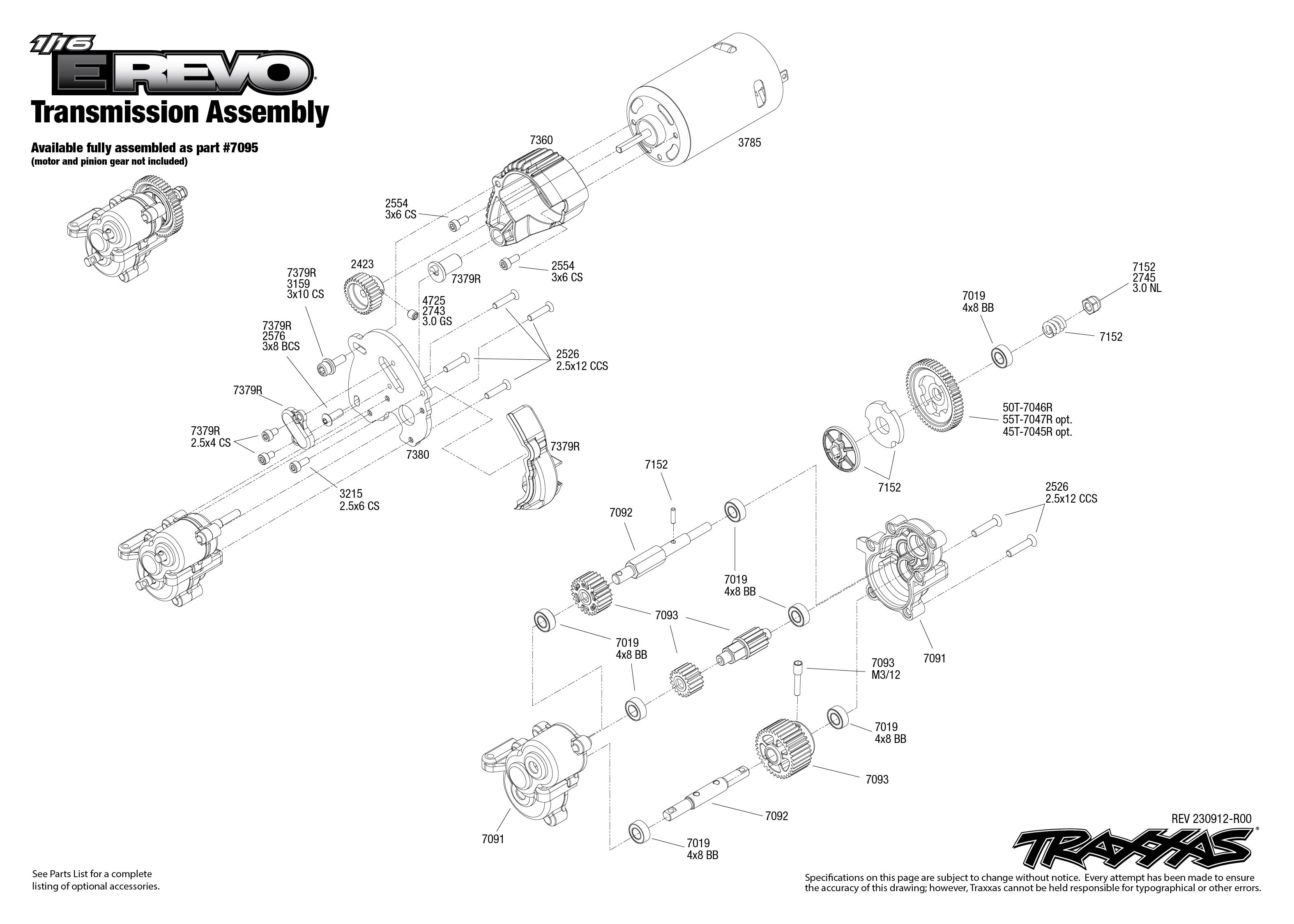

- Transmission: Heavy-Duty Single Speed
- Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
- Overall Drive Ratio: 15.75:1 (stock, out-of-box)
- Differential Type: Hardened Steel Bevel, Sealed
- Gear Pitch: 48-Pitch

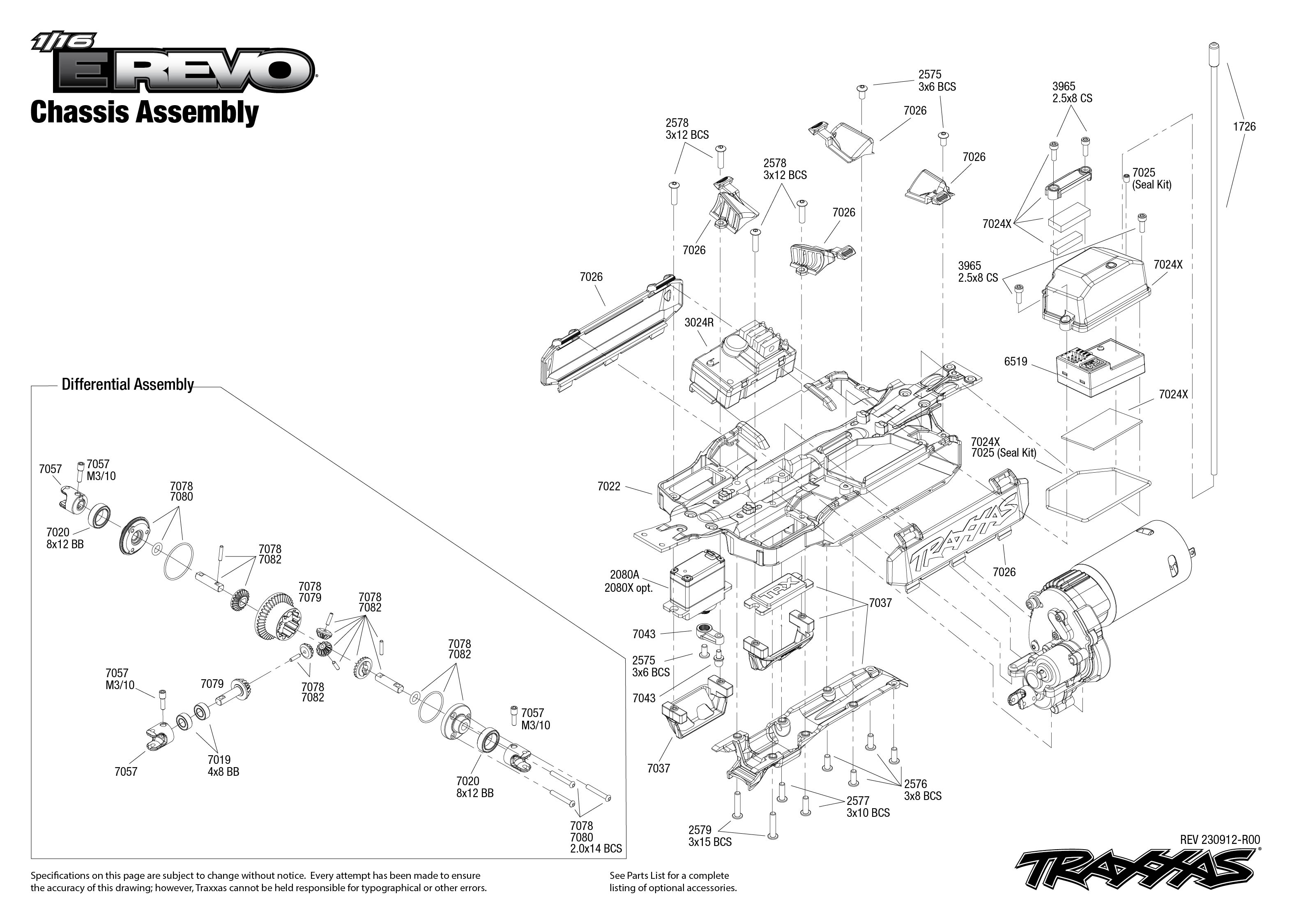

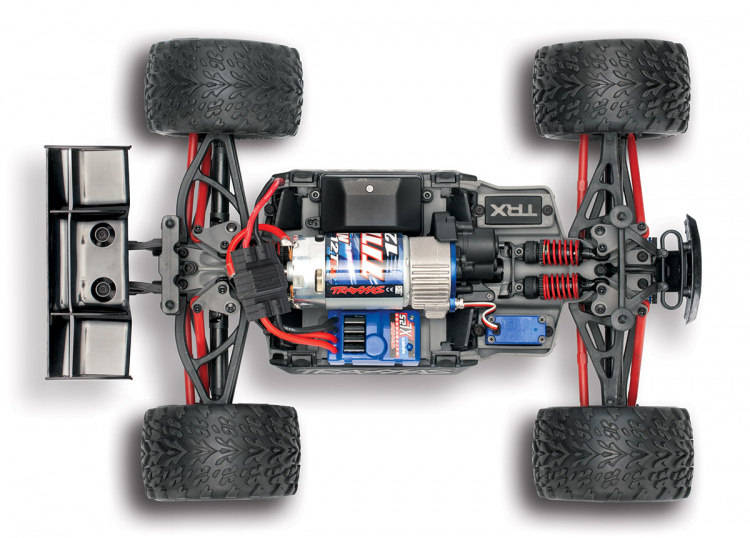

- Chassis Structure/Material: Molded Composite Nylon Monocoque
- Brake Type: Electronic
- Drive System: Shaft-Driven 4WD
- Steering: Bellcrank

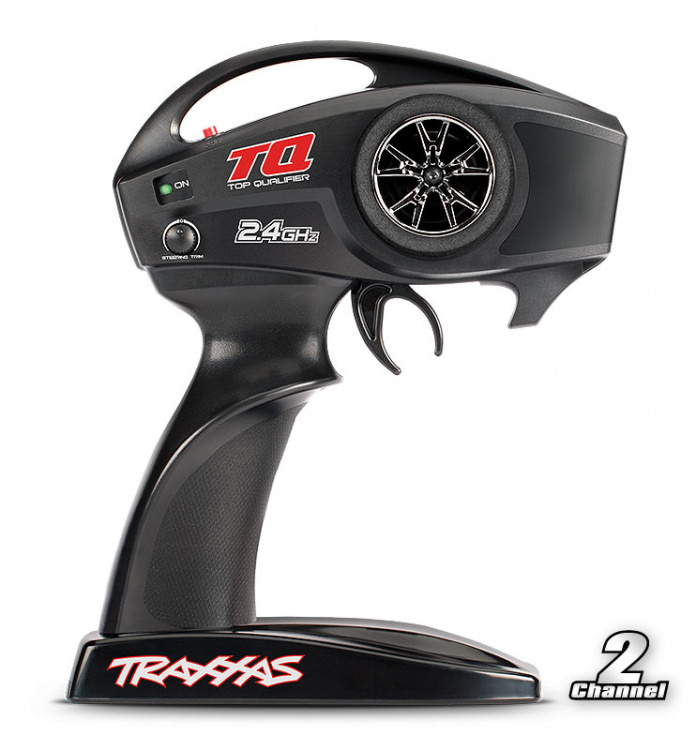

- Transmitter: TQ 2.4GHz Radio
- Receiver: 6519 3-Channel Micro
- Top Speed: 32+kph
- Svårighetsnivå: 1
- Battery Tray Dimensions: 89 x 35.5 x 20 mm
- Included Batteries: 6-cell Power Cell iD NiMH battery with 2-amp Peak Detecting DC Charger
- Required Batteries: 4 "AA" (transmitter)

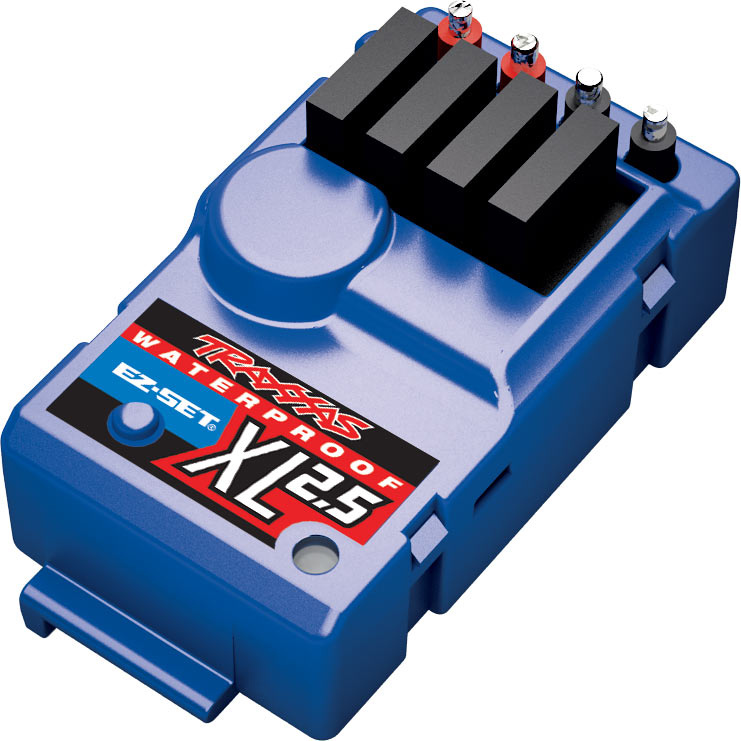

XL-2.5 WATERPROOF ESC SPECIFICATIONS:
- Input Voltage: 6-cell (7.2 V) NiMH, 2-cell (7.4 V) LiPo
- Case Size: 26.5 mm W x 46.5 mm D x 22 mm H
- Weight: 33 grams
- Motor Limit: 10-turns*
- On Resistance (@Trans): 0.008 Ohms
- Reverse Delay: None
- BEC Voltage: 6.0V DC
- Power Wire: 16 Gauge / 40 mm
- Input Harness Wire: 26 Gauge / 130 mm
- Motor Wires: 26 Gauge / 130 mm
- Transistor Type: MOSFET
- Low Voltage Detection: 2-Stage indicators, switchable (on and off)
- PWM Frequency: 2300 Hz
- Thermal Protection: Thermal shutdown
- Single-button setup: Yes, Traxxas EZ-Set®
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:** 50% FWD, 100% brakes, 50% REV
**Patented
