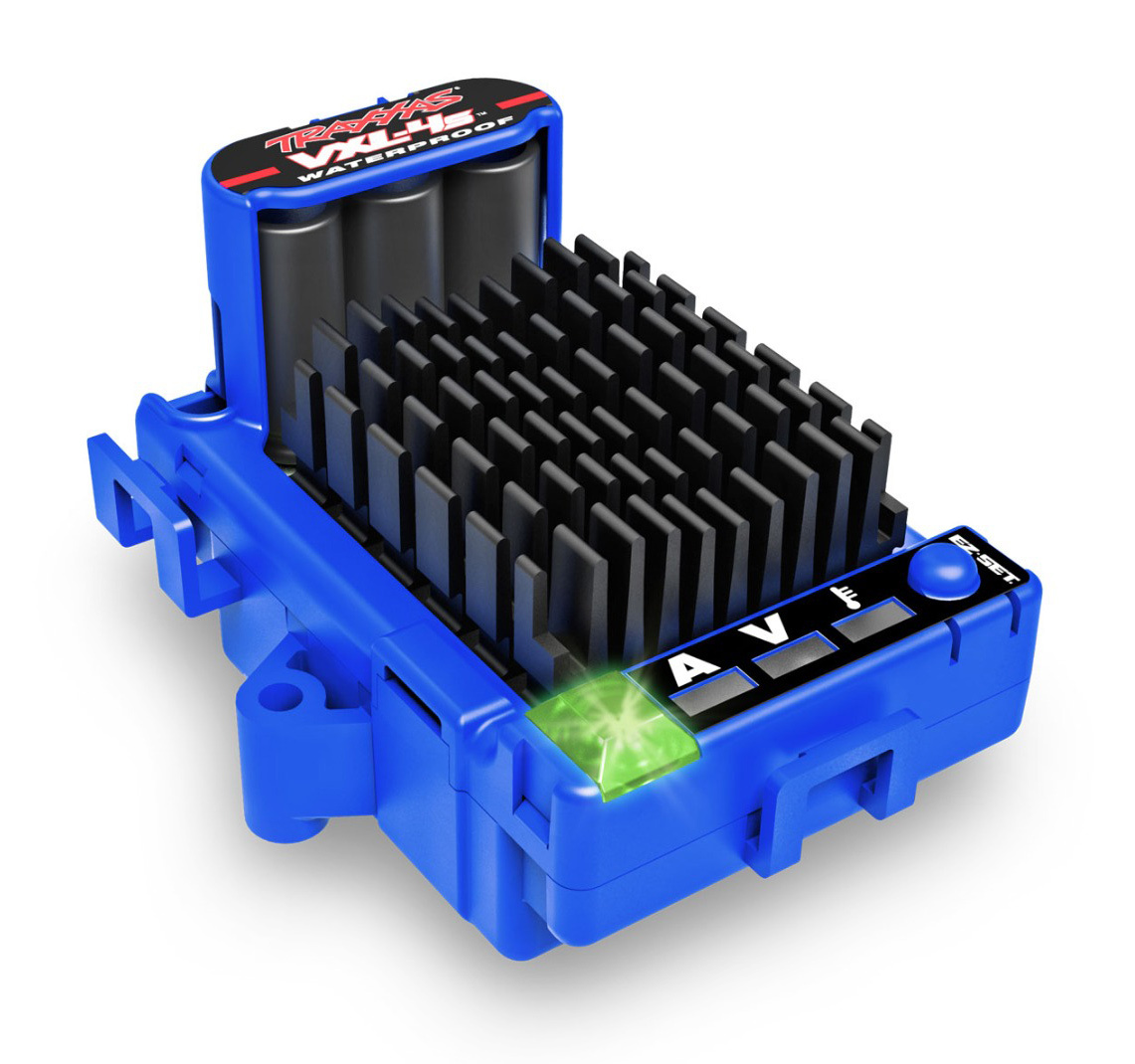

Traxxas 3445 - VXL-4s Velineon® 4s Brushless ESC
The Velineon® 4s brushless power system takes your RC experience to the extreme. New High-Resolution Linear Braking provides the most intuitive and precise braking ever offered by Traxxas. Outfitted with built-in telemetry and a selectable 6.0 or 7.4-volt BEC, the VXL-4s transforms 14.8 volts of LiPo power into staggering performance. An extra-large heat sink allows the ESC to run cooler for extended run times.VXL-4s Brushless ESC Features:
- VXL-4s Electronic Speed Control
- 2s–4s LiPo compatible
- Real-time telemetry via Traxxas Link™
- Selectable 7.4-volt high-voltage BEC
- High-Resolution Linear Braking
- More precise than conventional systems
- Superior brake modulation on the track
- Large heat sink accepts accessory cooling fan (3340)
- Three programmable drive profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse
- Traxxas EZ-Set® one-button setup
- Integrated protection circuits
- LED status lights

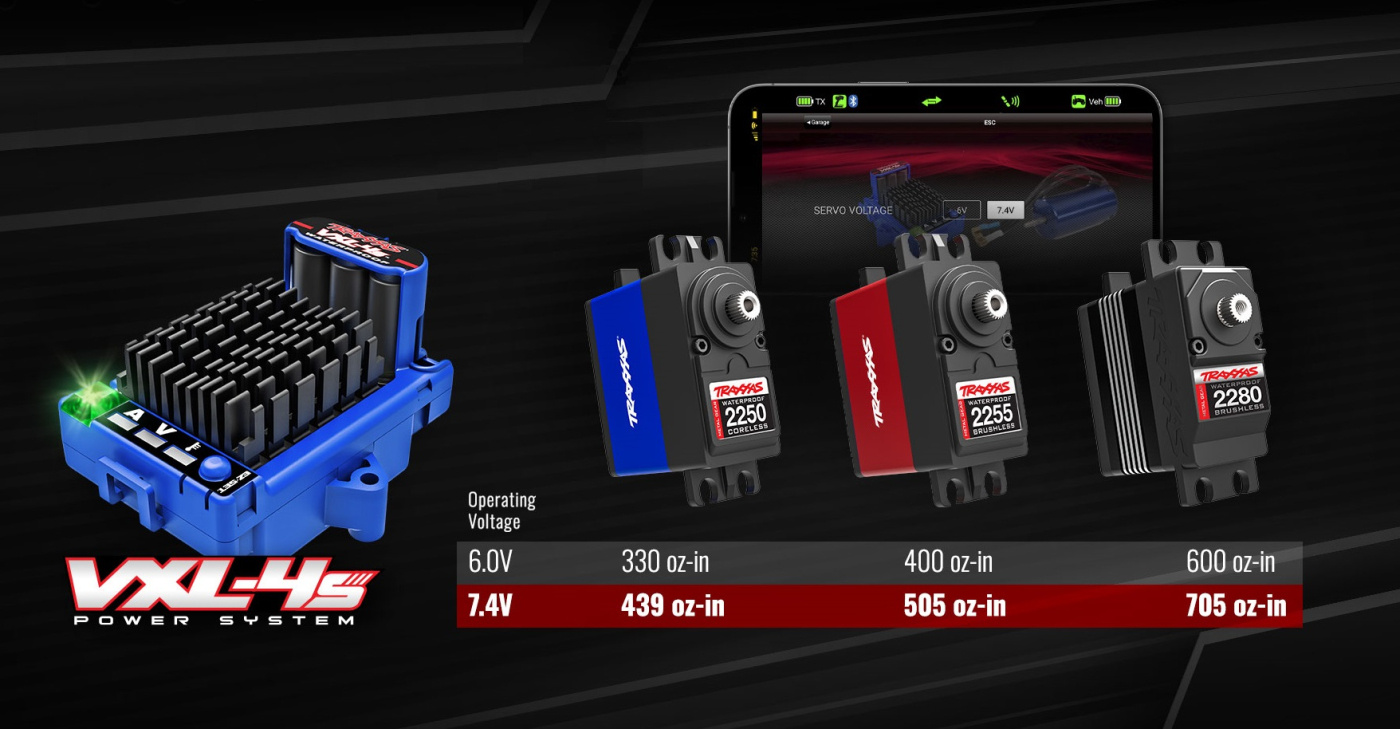

High-Voltage BEC
The Velineon VXL-4s features a high-voltage BEC with a 6.0 volt setting for standard servos and powerful 7.4 volt setting for high-performance servos like the Traxxas 2280, 2255, and 2250. Powerful brushless servos like the High-Torque 600 gain over 20% more torque at 7.4 volts with faster transit times. Selecting a voltage is quick and easy using the Traxxas Link app.

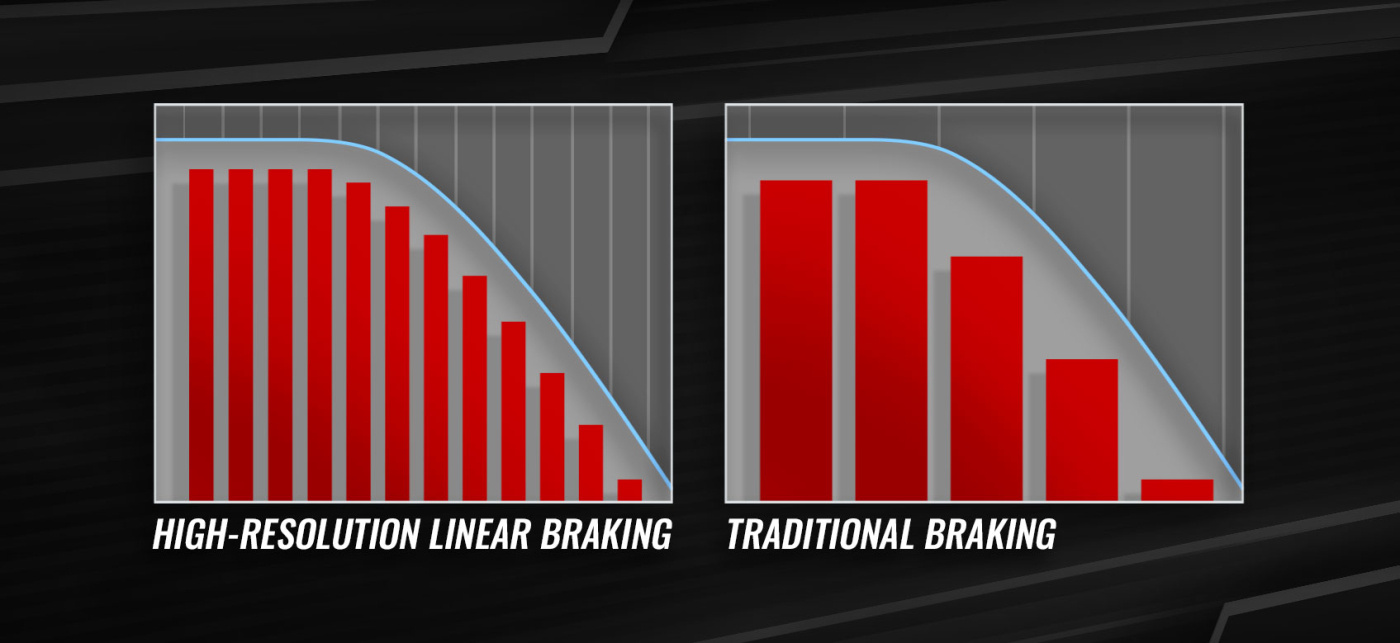

High-Resolution Linear Braking
Velineon VXL-4s High-Resolution Linear Braking is a patent-pending Traxxas innovation that delivers next-level smoothness and precision. The High-Resolution communication loop allows instant response to the driver’s input for powerful and intuitive linear braking feel. From feather touch speed correction to full-power late braking to overtake on the inside line of a corner, the driver stays fully connected and in control for a competitive edge on the track. The optional Traxxas Link app adds easy control over brake force to tune for different needs and conditions.
VXL-4s Waterproof ESC (3445) Specifications:
- Input Voltage: 2s-4s LiPo (7.4 V - 16.8 V)

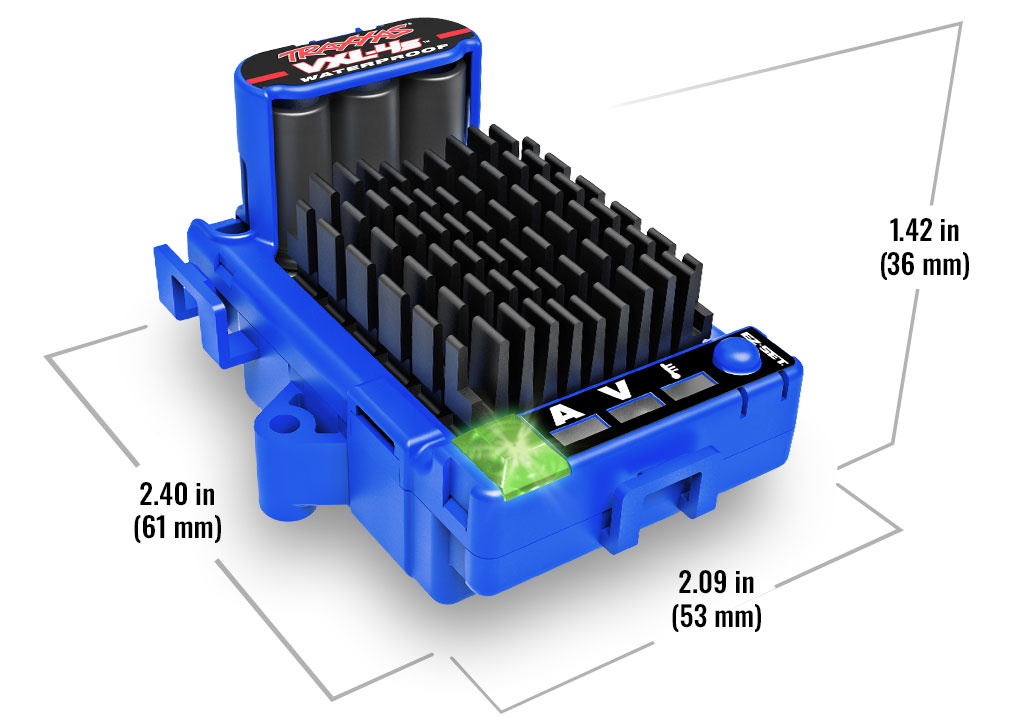

- Case Size: 61 x 53 x 36 mm
- Weight: 119 g
- BEC Voltage: Selectable 6.0 or 7.4 volts
- Motor Connectors: Traxxas 6.5 mm bullet connectors
- Battery Connectors: Traxxas High-Current Connectors
- Thermal Protection: Two-stage thermal shutdown
- Ports: RX input, auxiliary fan connector
Replacement part for these models:
- Jato® 4X4 VXL
