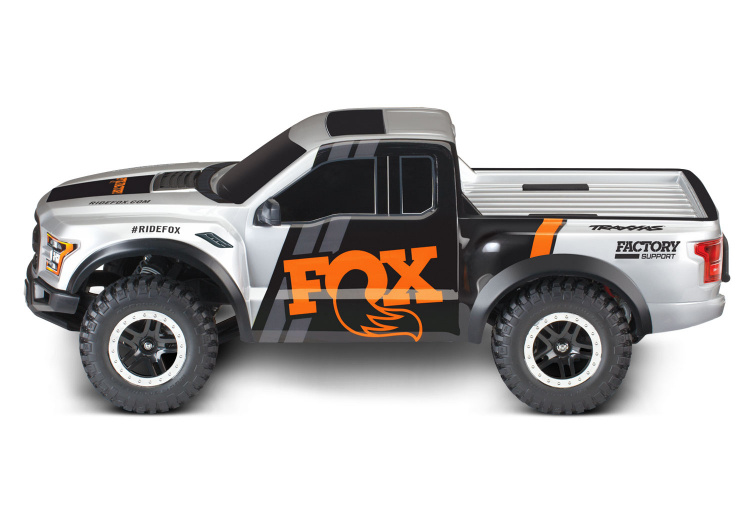

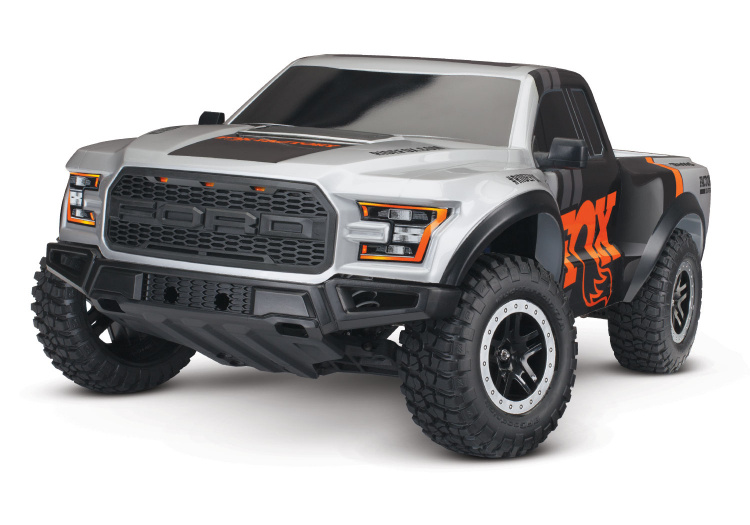

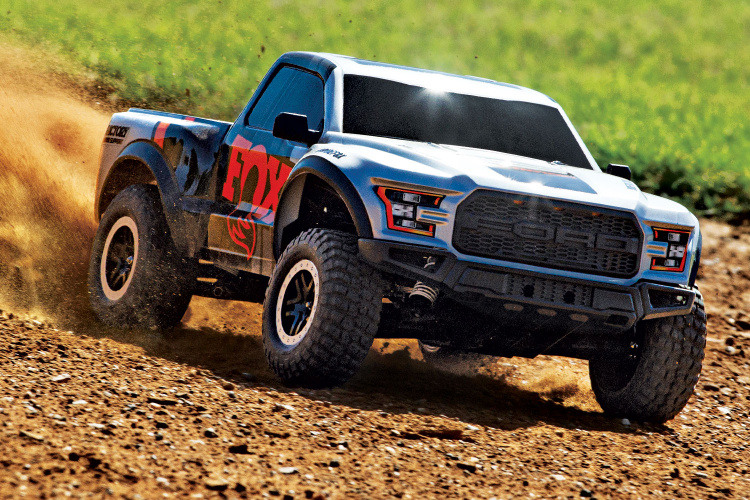

Traxxas 58094-8-FOX - Ford F-150 Raptor 2WD Clipless with NiMH battery & USB-C charger - Fox Graphics
All-Terrain Excitement

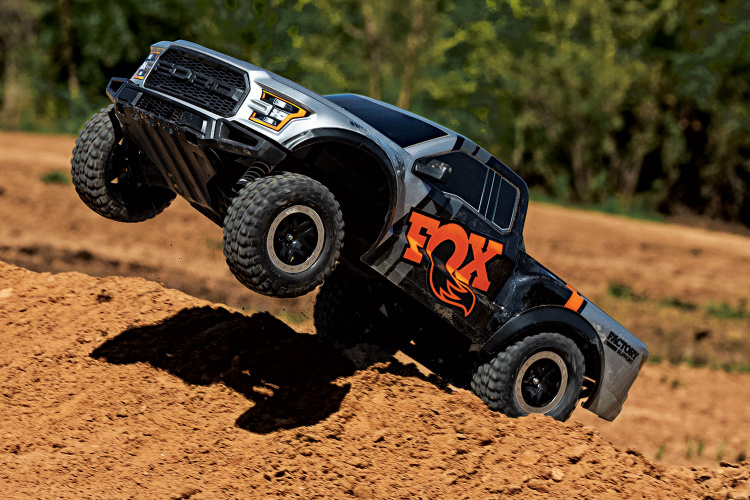

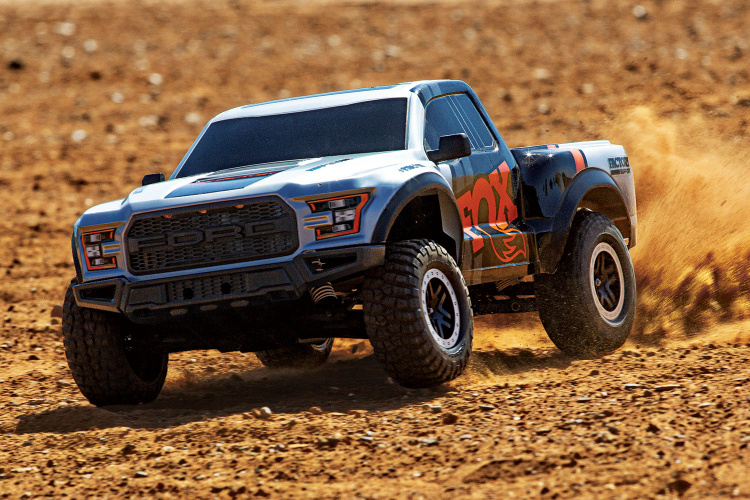

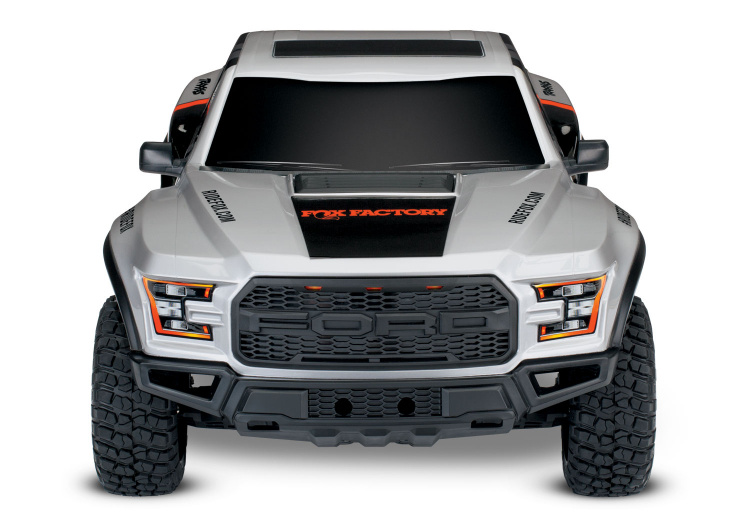

The Ford® Raptor® replica from Traxxas takes you off-road with a whole new level of scale realism. The sleek Raptor clipless body is fully detailed with an injection molded nylon composite grille and front bumper to truly capture the depth and detail of Ford’s original design. Integrated hood vents and side mirrors complete the look. The heavy-duty body is extra tough for all your off-roading adventures.

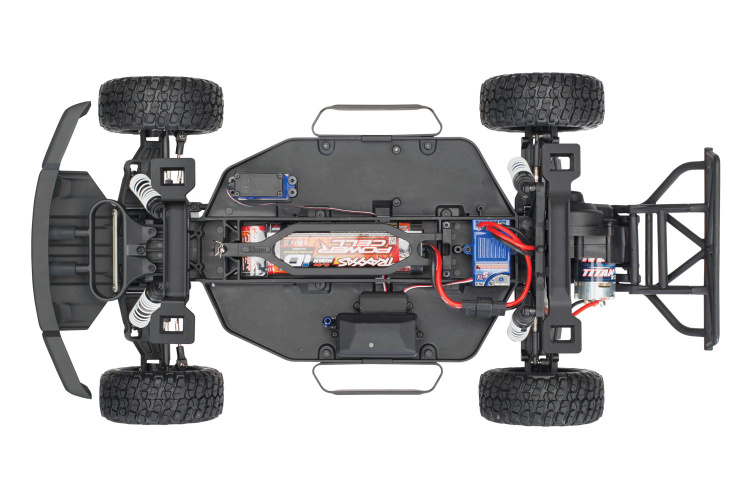

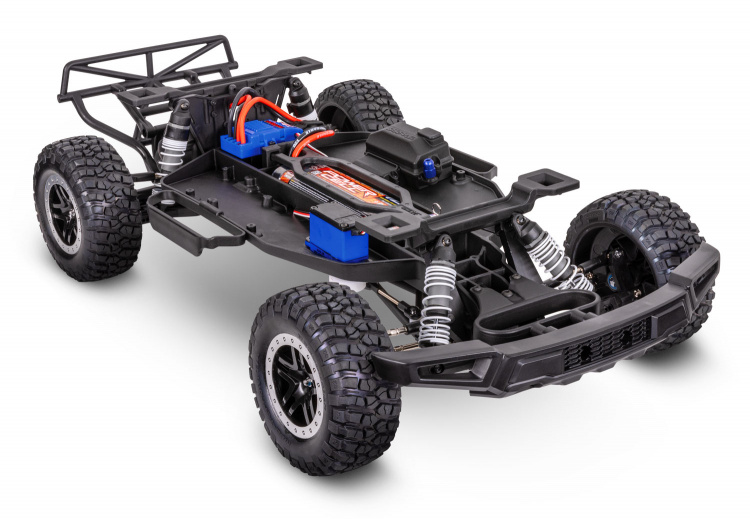

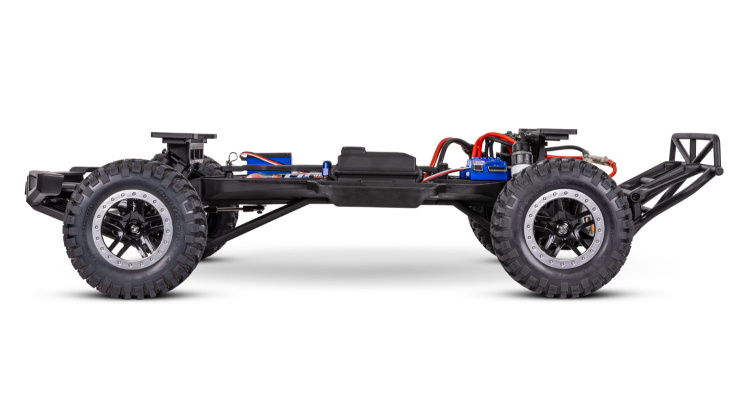

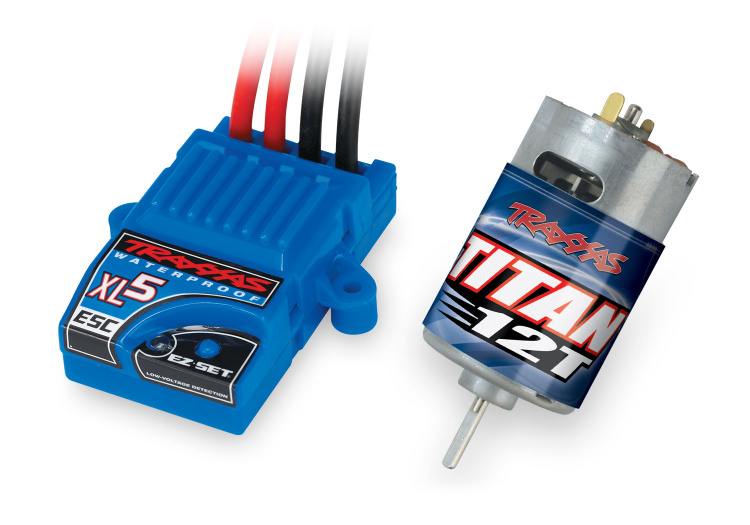

The Ford Raptor replica is wrapped around the proven performance and unmatched durability of the Traxxas Slash®. Torque flows from the powerful Titan® 12-turn brushed motor and XL-5 electronic speed control for instant response off-road. Full-ball bearings enhance precision control. The electronics are all fully waterproof so your fun never gets sidelined by a little water along the way.
FEATURES ON THE FORD F-150 RAPTOR REPLICA (58094-8):
- Officially-licensed Ford® F-150® Raptor® clipless body
- TQ™ 2.4 GHz radio system
- Titan® 12-turn 550 modified motor
- XL-5 waterproof electronic speed control
- Brushless-ready metal gear Magnum 272™ transmission
- Torque-Control™ slipper clutch
- Powder coated progressive rate white springs
- 100% Fully assembled and Ready-To-Race®
- 4-amp USB-C fast charger
- Traxxas 3000 mAh 8.4 V 7-cell NiMH battery with iD®

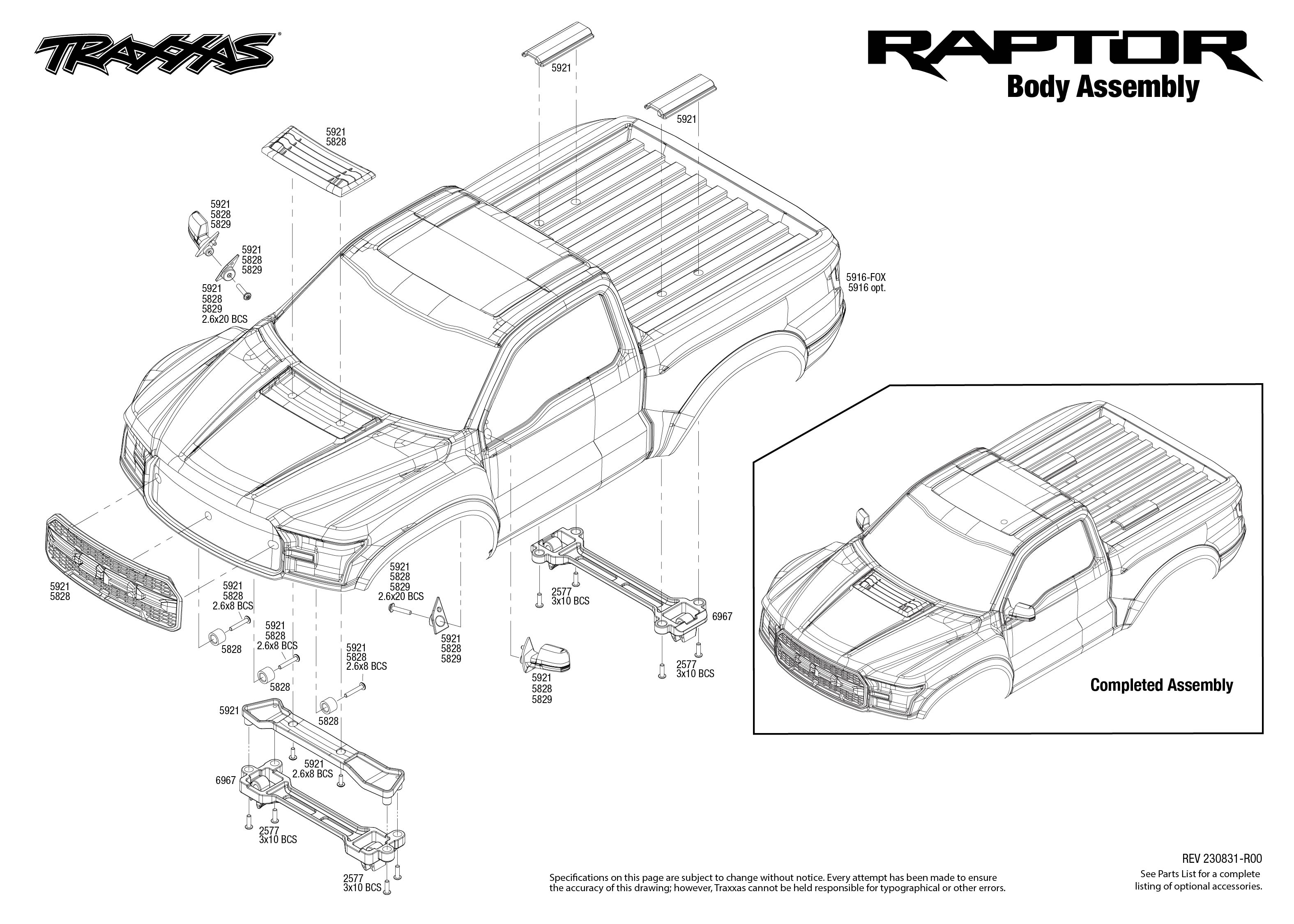

Clipless Body Mounting
Raptor’s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift up to access the chassis in just seconds.

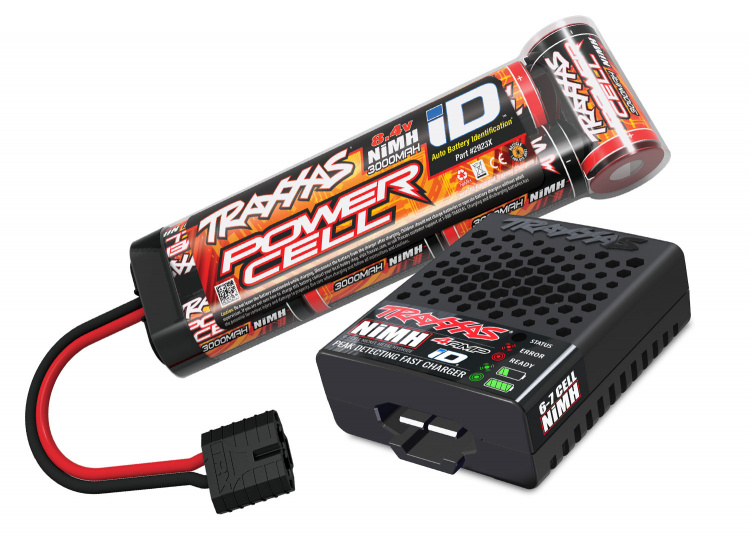

Battery and Charger Included!
Raptor includes a powerful 8.4 volt 3000 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach its 35+ mph top speed. Fast 4-amp charging is available virtually anywhere thanks to the included 45+ watt USB-C battery charger with iD® technology. Power adapter and cable sold separately. For maximum charge rate use Traxxas 2912 45-watt power adapter and 2916 100-watt power cable. The Traxxas iD system is the easiest and safest way to charge your Traxxas batteries. The charger automatically recognizes the iD battery and optimizes the charge settings as soon as you plug it in. There’s no guesswork involved, just fast, reliable charging every time.
FORD F-150 RAPTOR (58094-8) SPECS:
- Length: 568 mm
- Width: 296 mm
- Weight: 2.16 kg
- Height (overall): 214 mm
- Wheelbase: 335 mm
- Front Shock Length: Long
- Rear Shock Length: XXLong

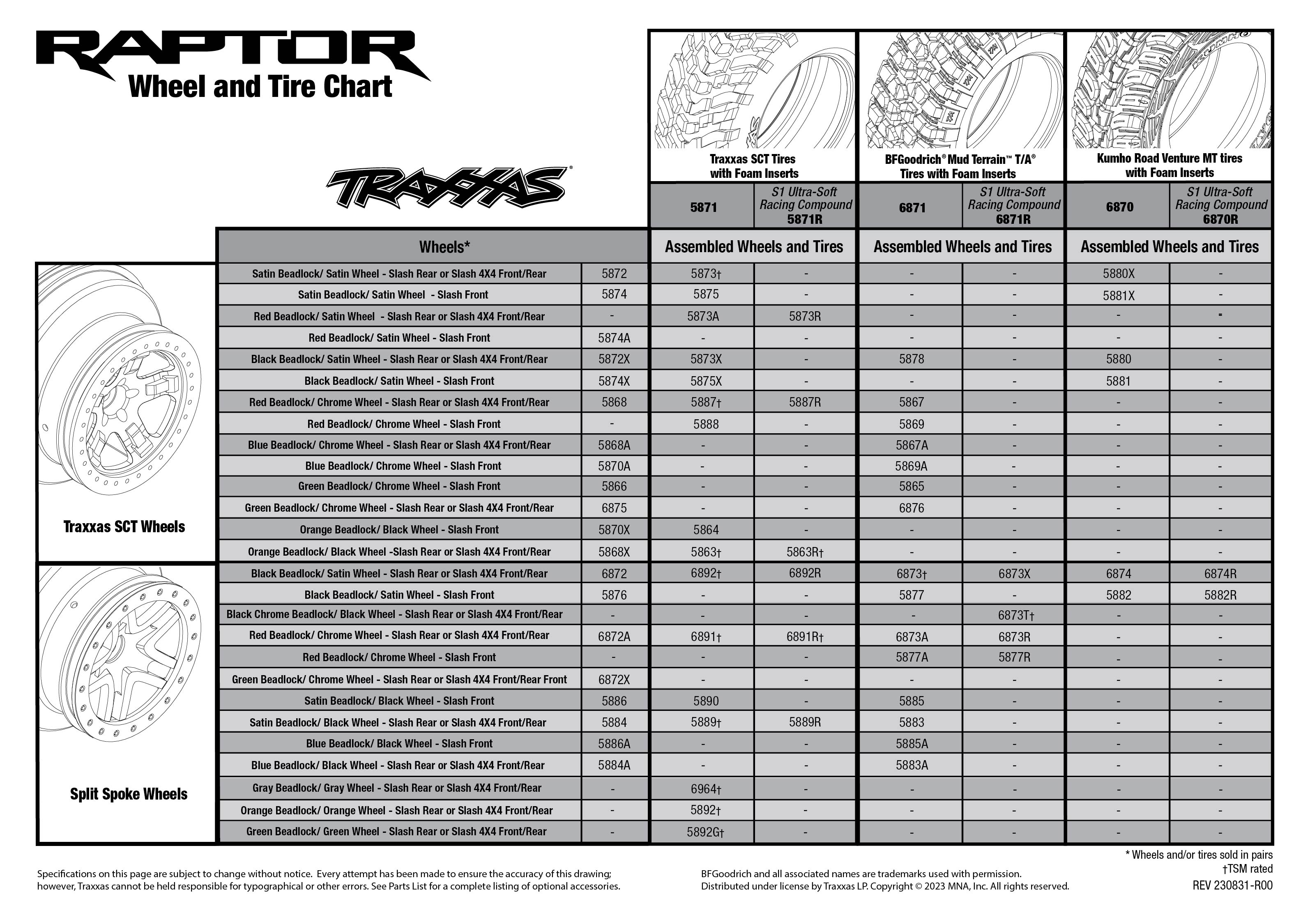

- Front Tires: Scale All-Terrain; 2.2"
- Rear Tires: Scale All-Terrain; 2.2"
- Front Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
- Rear Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
- Speed Control Type: Waterproof XL-5 ESC
- Motor (electric): Titan® 12T 550 (12-turn)
- Gear Ratio (internal): 2.72 (final drive: 12.58)
- Differential Type: Steel Composite Planetary
- Gear Pitch: 48-Pitch

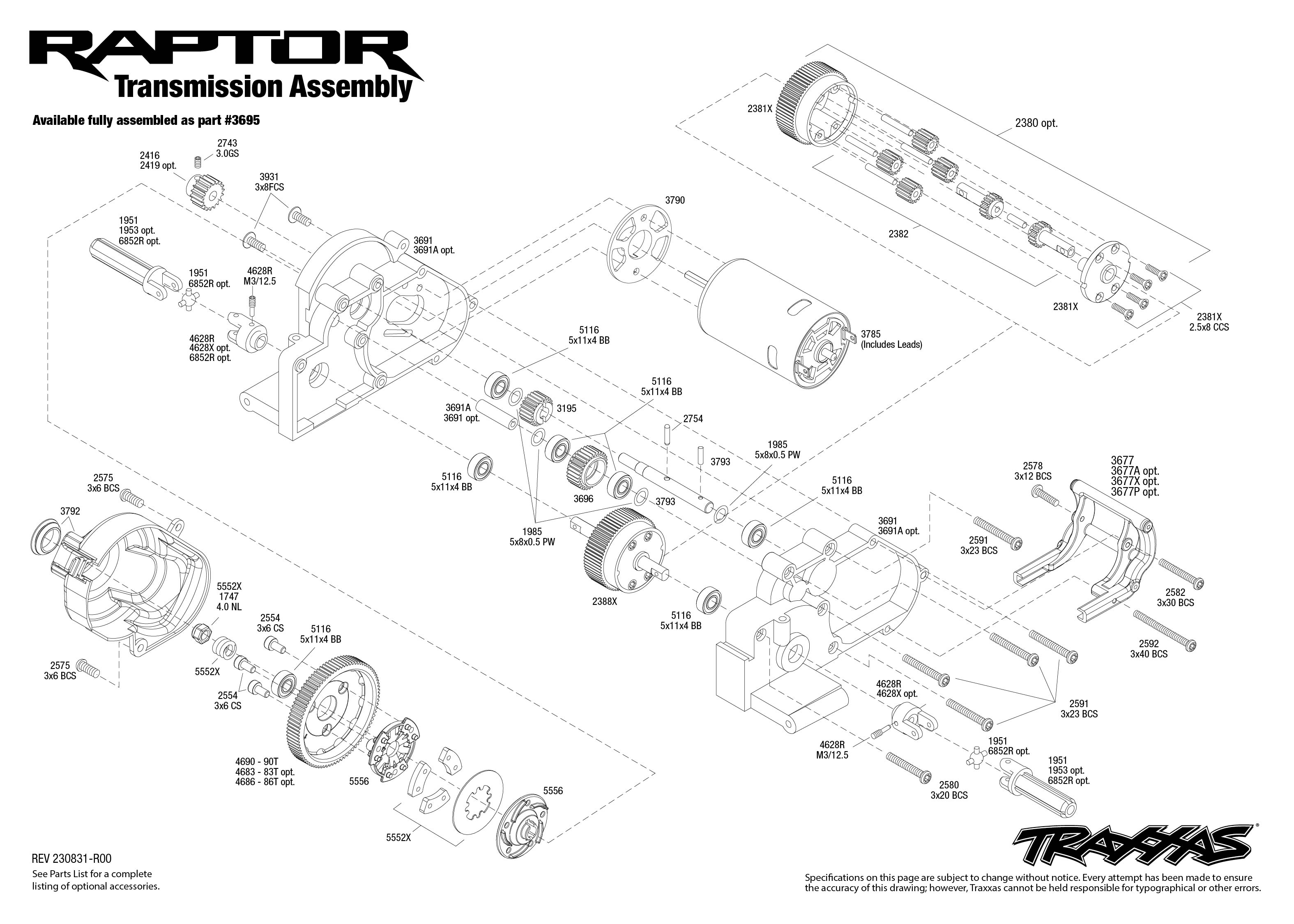

- Transmission: Metal Gear Magnum 272™
- Steering: Bellcrank

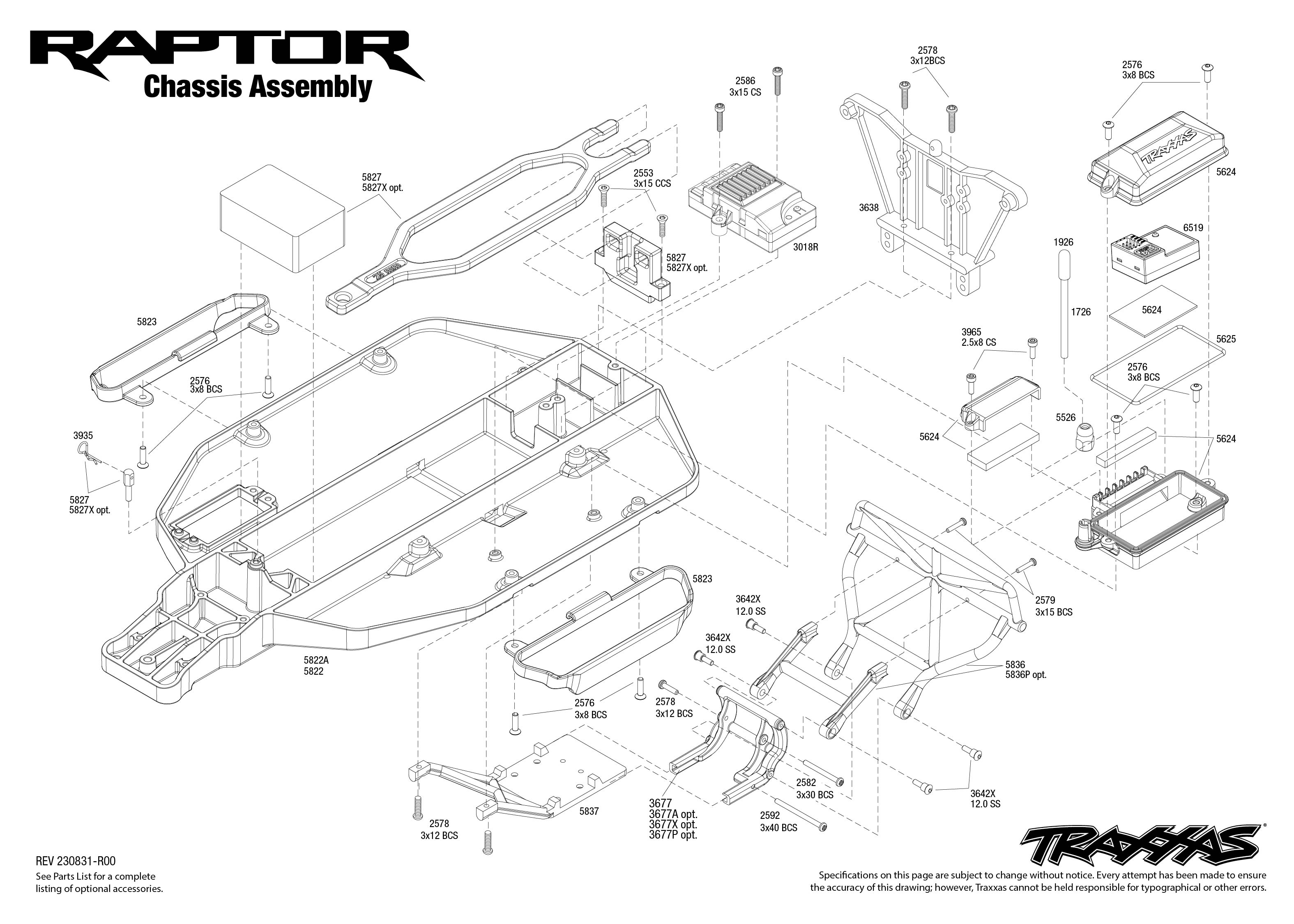

- Chassis Type: Modified Tub
- Chassis Material: Composite Nylon
- Center Ground Clearance: 89 mm
- Top Speed: 48+kph*
- Svårighetsnivå: 1
- Radio System: TQ™ 2.4GHz (2-channel)
- Included Charger: Traxxas 4-amp USB-C DC Peak Detecting Fast Charger
- Included Batteries: Traxxas Power Cell NiMH Battery with iD®
- Required Batteries: 4 "AA" (transmitter)
XL-5 (WATERPROOF) ESC SPECIFICATIONS
- Input voltage: 6-7 Cells (7.2 to 8.4 volts DC)
- Case Size: 31 x 55 x 15.5 mm
- Motor Limit: 15-turns** (540 Size) / 12-turns** (550 Size)
- On Resistance Forward: 0.007 Ohms
- On Resistance Reverse: 0.014 Ohms
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Power Wire: 14 Gauge / 5"
- Input Harness Wire: 26 Gauge / 9"
- PWM Frequency: 1600 Hz
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Single-button setup: Yes, Traxxas EZ-Set®
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
