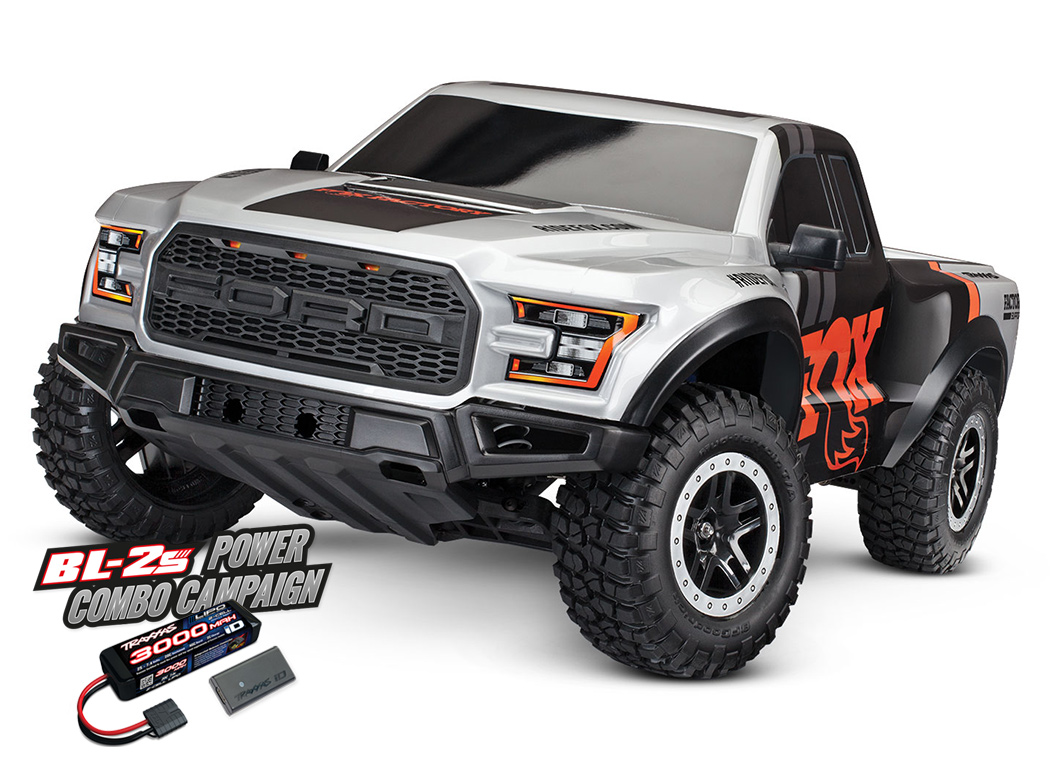

Traxxas 58394-4-FOX - Ford F150 Raptor Brushless BL-2s Extreme Heavy Duty Clipless
Ford F-150 Raptor Styling - Award-Winning Slash Performance

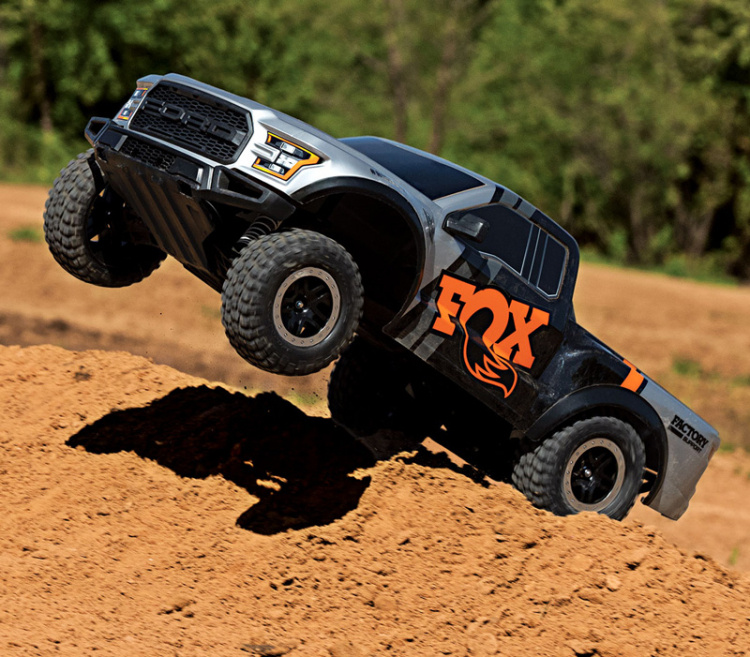

Based on the award-winning Slash®, the Traxxas Ford® F-150® Raptor® combines show-stopping looks with legendary Slash toughness. Now Raptor comes standard with the BL-2s™ brushless power system for a more responsive throttle, powerful acceleration, and all-day fun. Raptor comes fortified with Traxxas’ Extreme Heavy Duty components to take even the most brutal punishment in stride.

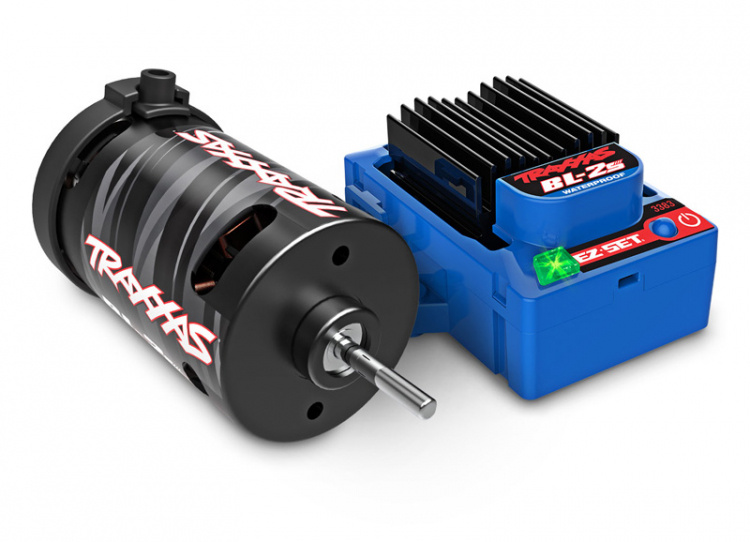

BL-2s Brushless Power System
Raptor’s waterproof BL-2s brushless power system ramps up the fun with more torque, faster acceleration, and less maintenance than comparable brushed power systems. The BL-2s is a model of efficiency and refinement, offering more power than before with the safety and convenience that only Traxxas can deliver.

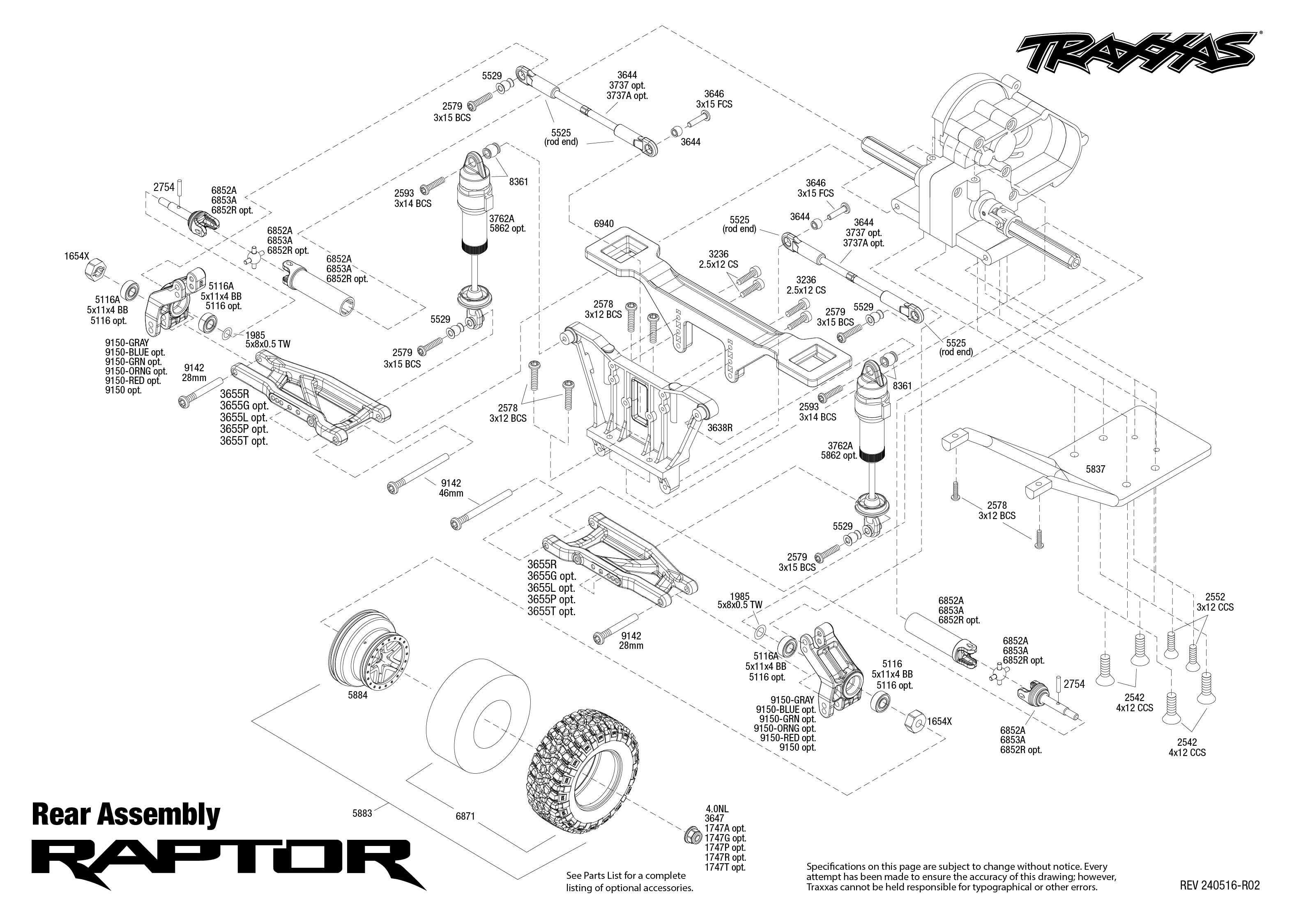

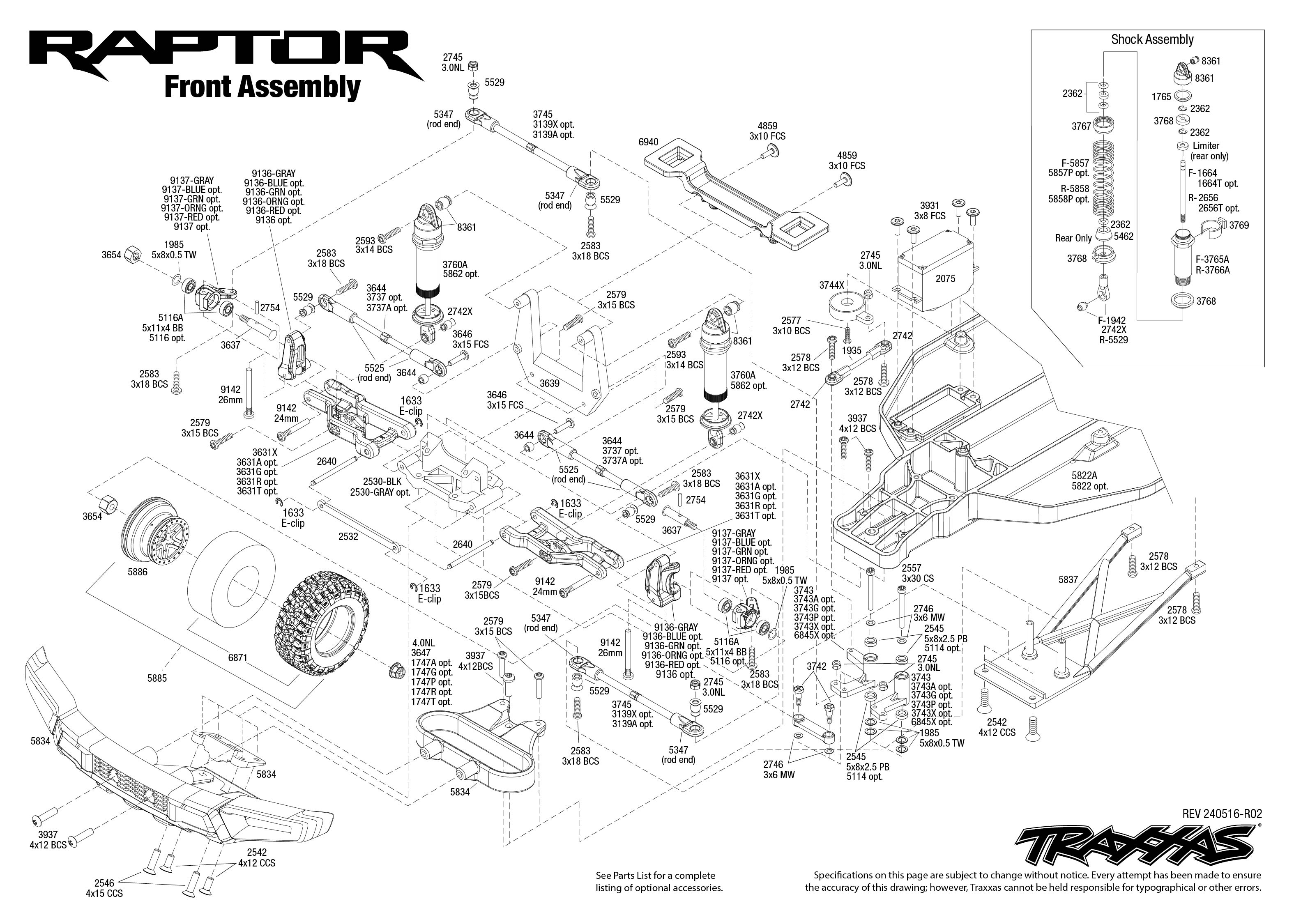

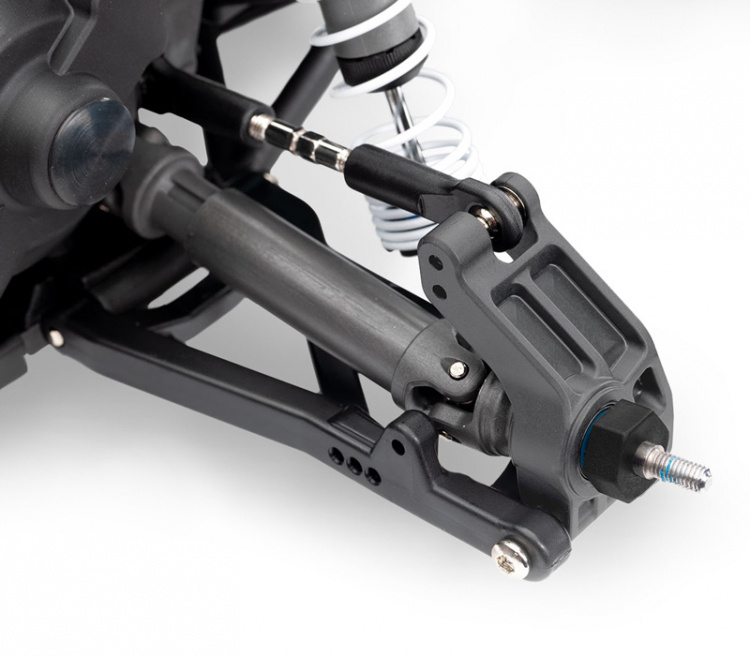

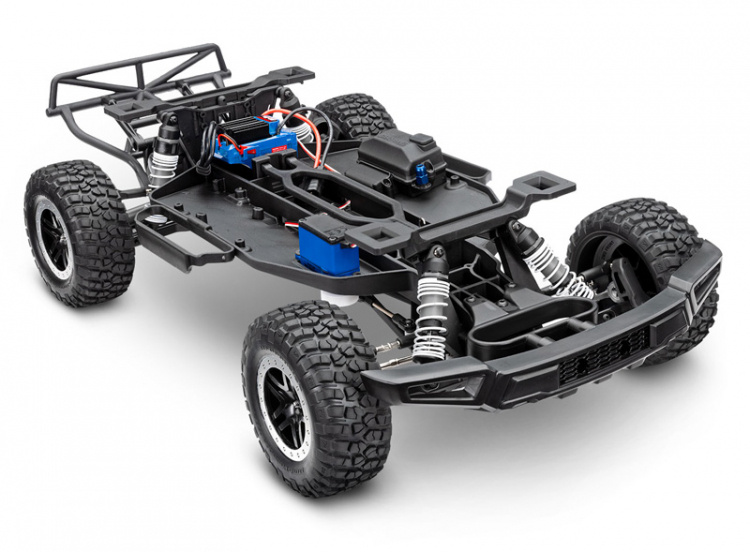

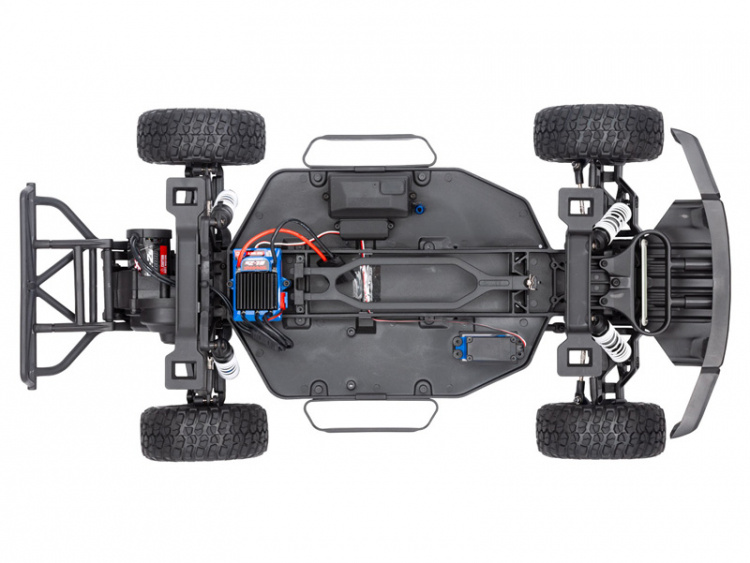

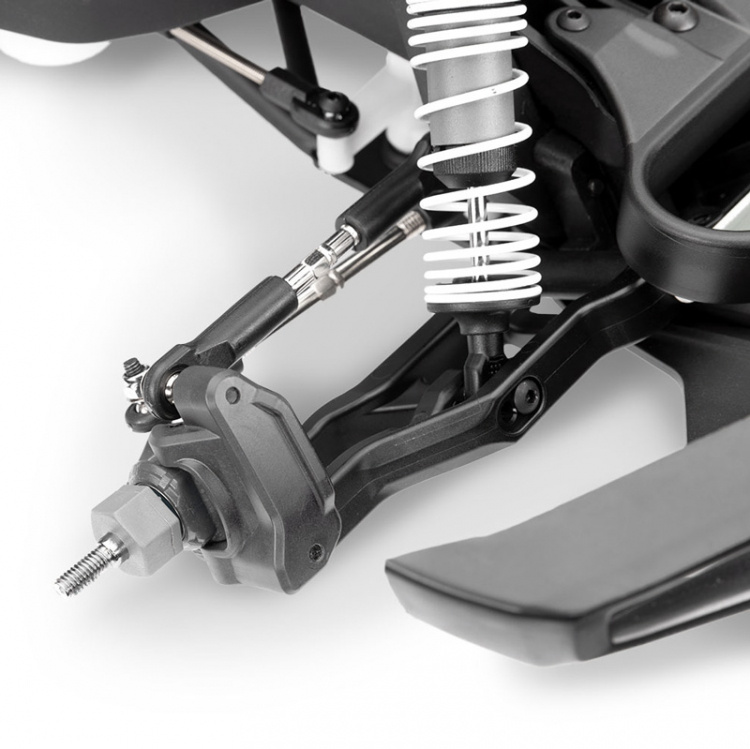

Extreme Heavy Duty Components
Extreme Heavy Duty components come factory-installed on Raptor for game-changing durability. Key drivetrain and suspension components are beefed-up with extra material for unbeatable strength. From HD suspension arms to upgraded driveshafts, Raptor sets a new standard for durability for your off-road adventures.

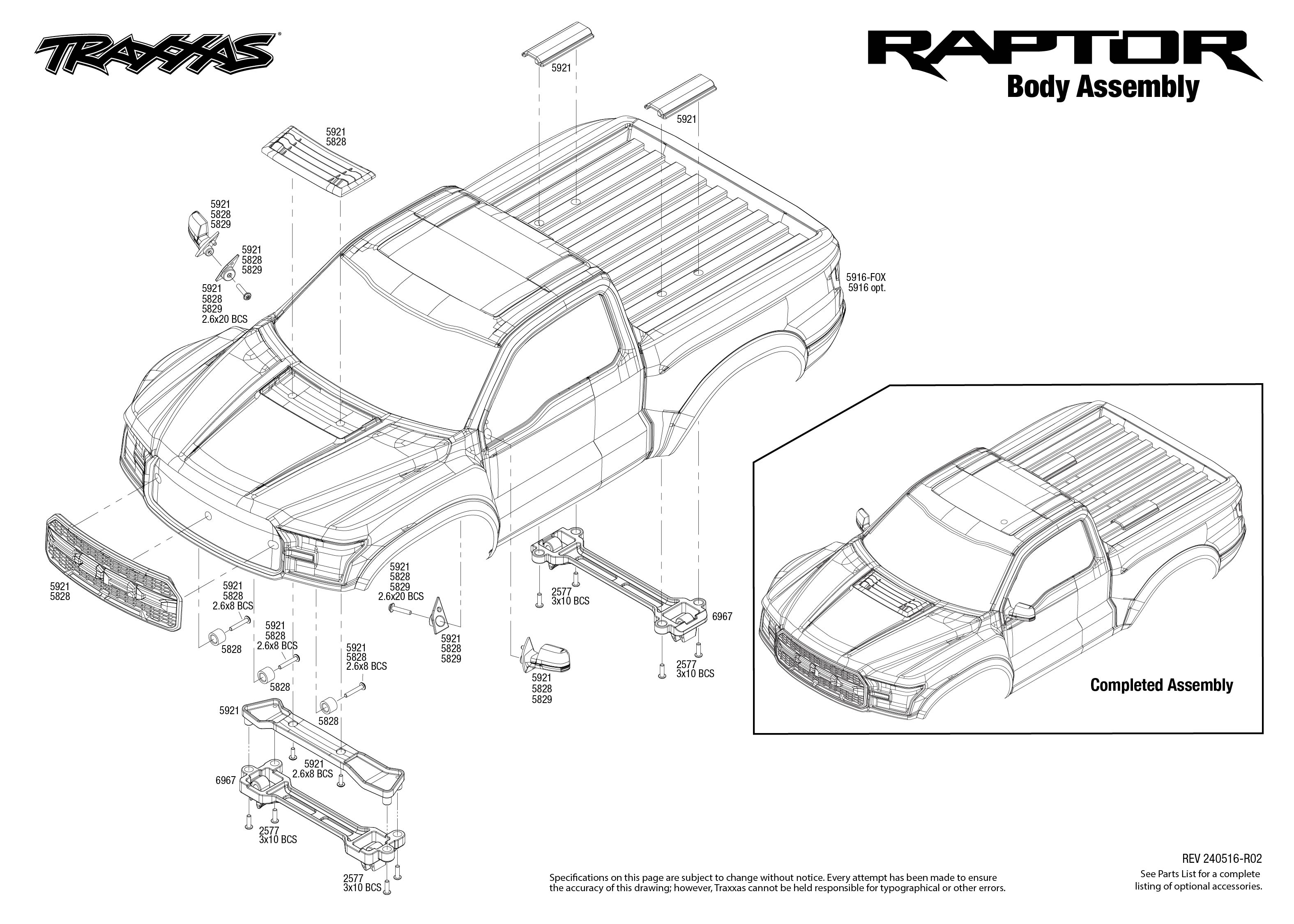

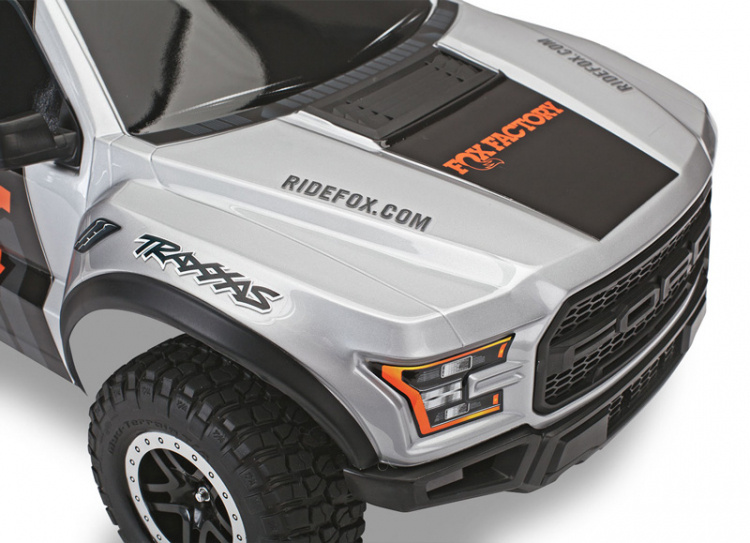

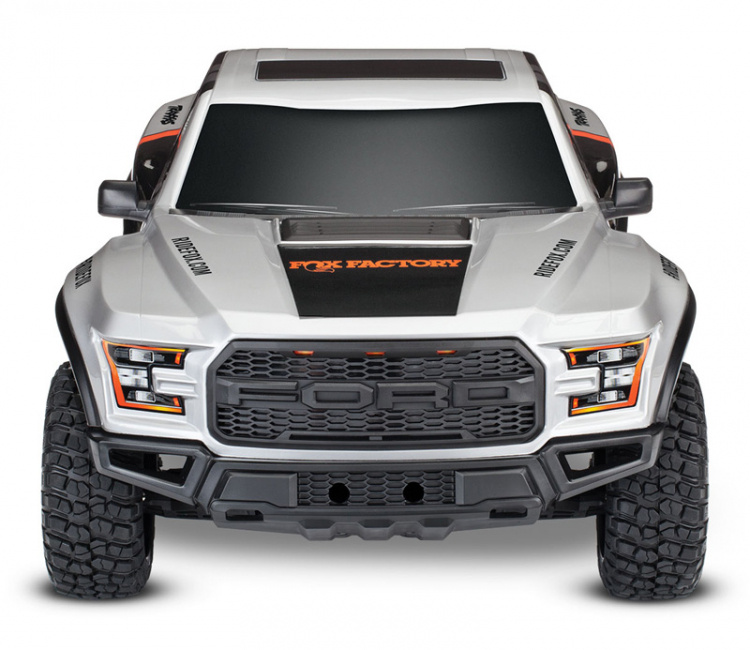

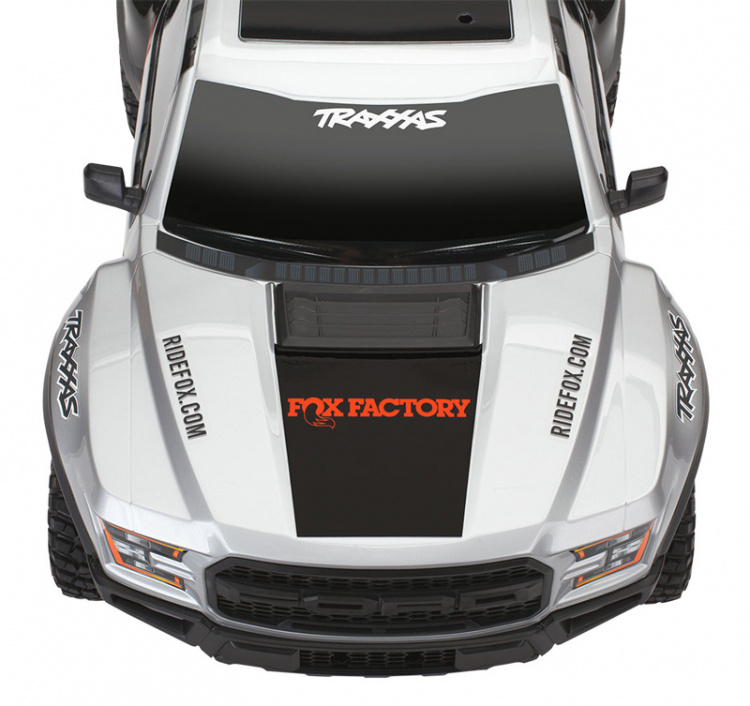

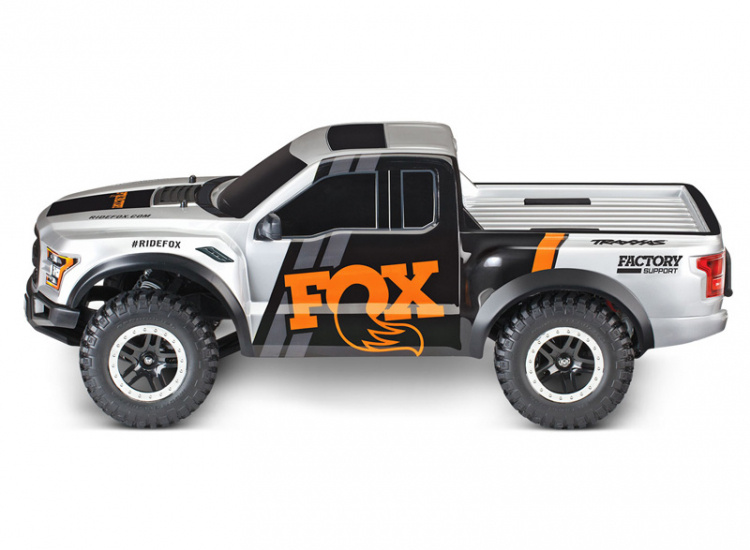

Clipless Ford F-150 Raptor Body
Raptor’s sleek clipless body comes fully detailed with an injection molded grille, front bumper, and body accessories to capture the full depth and detail of Ford’s original design. Raptor’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.
Truck Specs:
- Length: 568mm
- Width: 296mm
- Center Ground Clearance: 89mm
- Weight (no battery): 2.16kg
- Height (overall): 214mm
- Wheelbase: 335mm
- Shock Length (front): 88mm - Long
- Shock Length (rear): 101mm - XX-Long

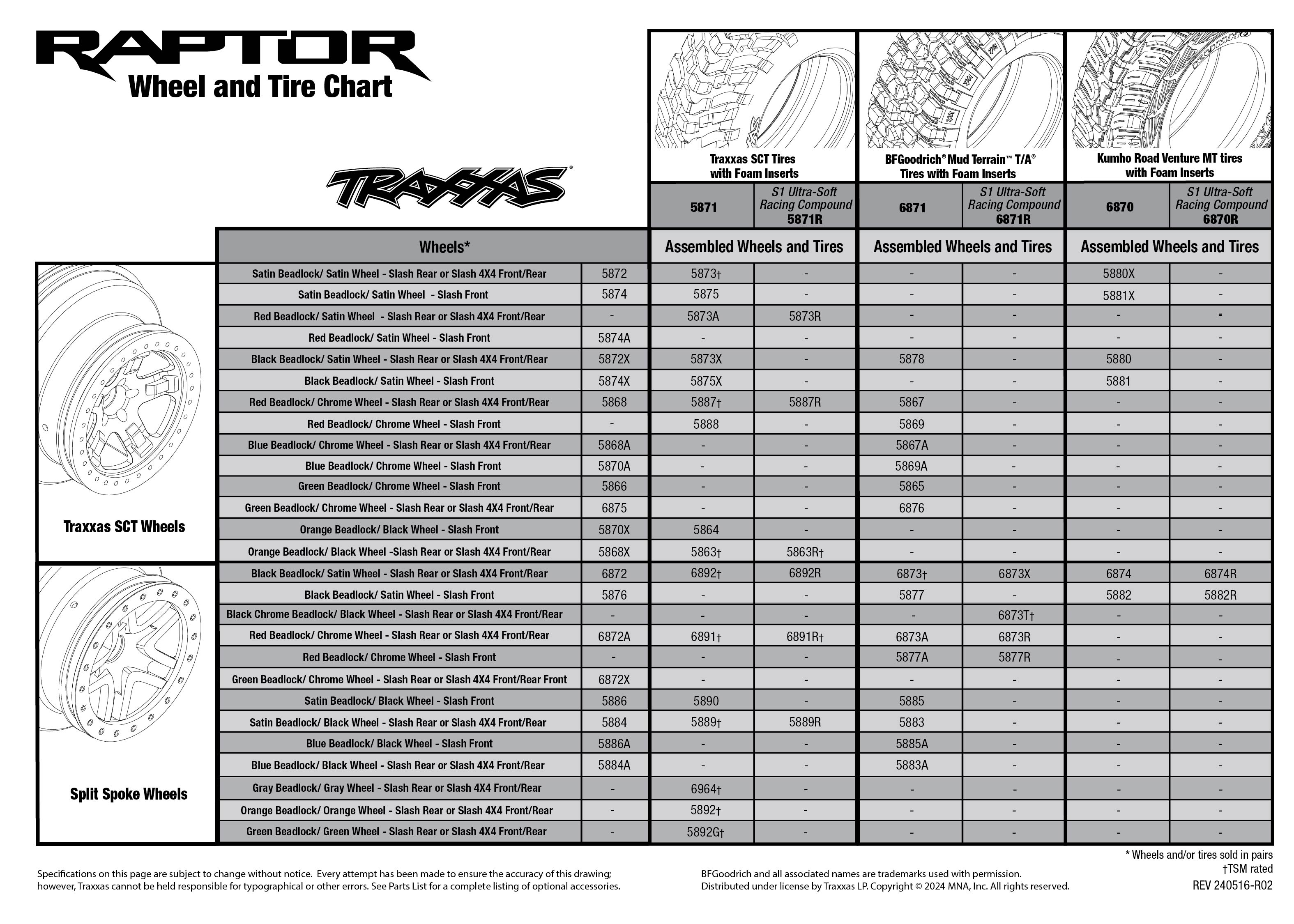

- Tires: Replica BFGoodrich® Mud Terrain T/A® Tires
- Tire Diameter: 109x43mm
- Wheels (front/rear): Split-Spoke SCT wheels
- Wheel Diameter: 2.2 inches (56 mm) (outer) / 3.0 inches (76 mm) (inner)
- Speed Control: BL-2s™ electronic speed control
- Motor (electric): BL-2s™ 3300 kV sensorless brushless

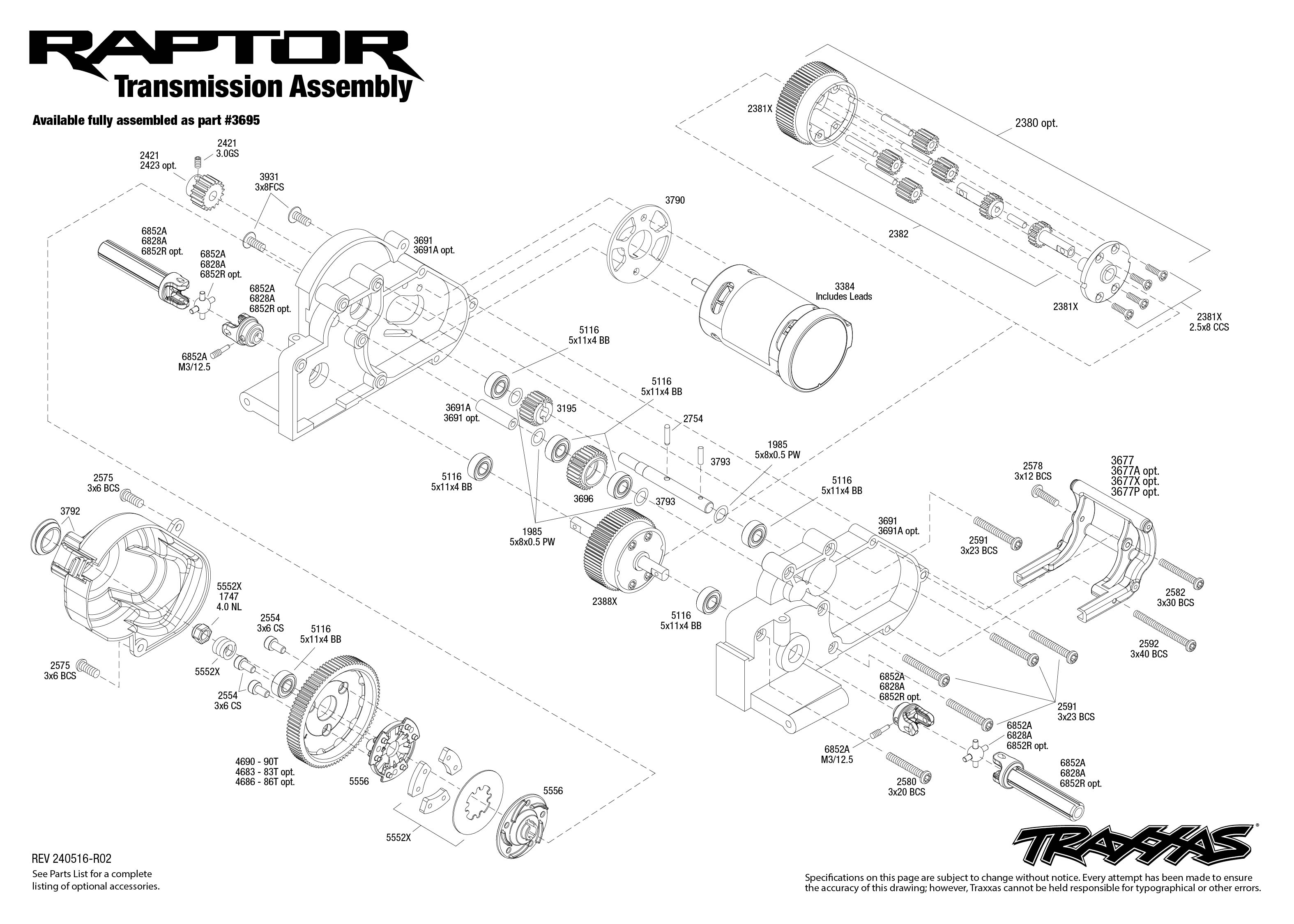

- Overall Drive Ratio: 12.58:1
- Differential Type: Planetary
- Gear Pitch: 48

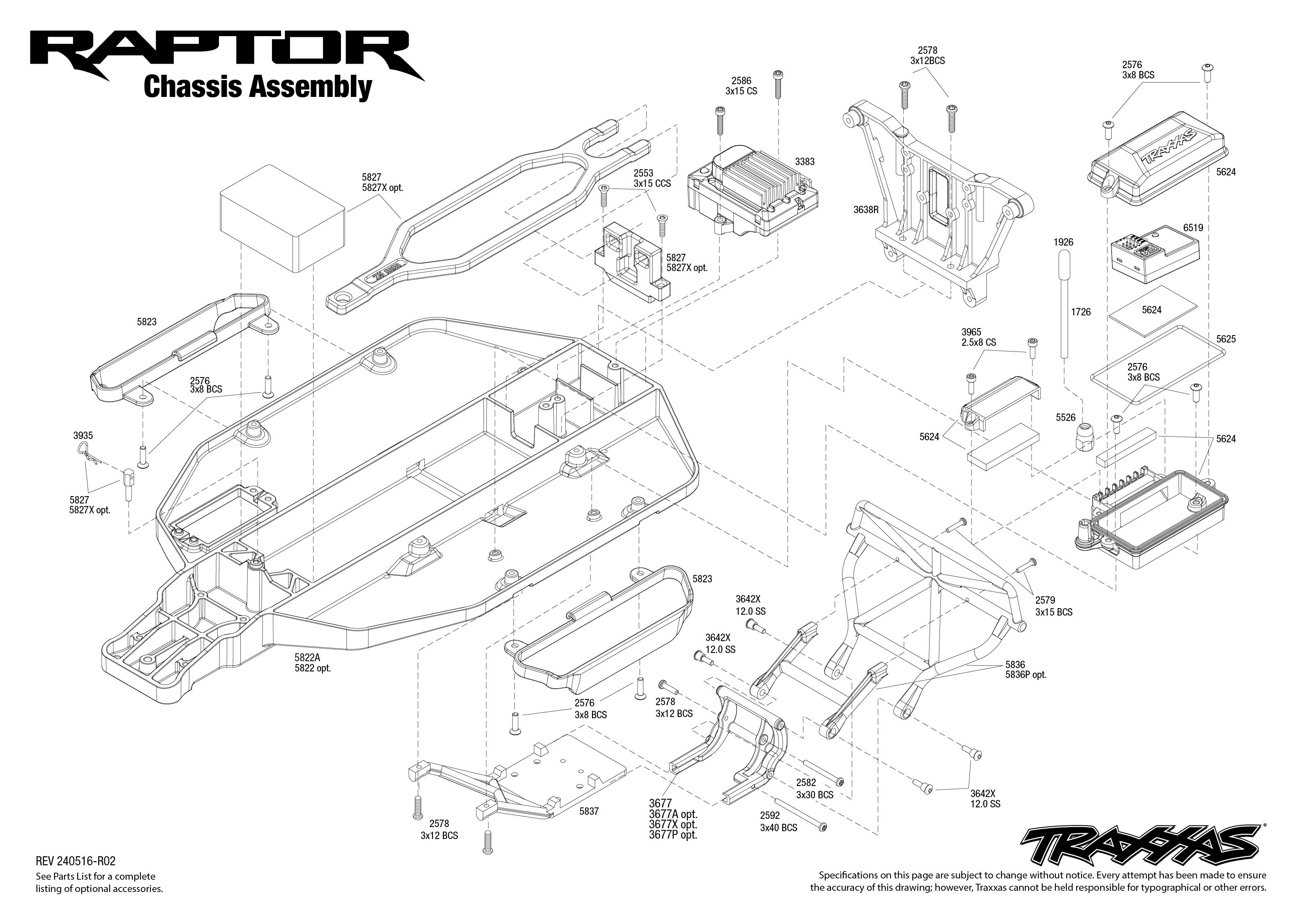

- Chassis Structure/Material: Composite tub
- Drive System: 2WD
- Steering: Dual-bellcrank with integrated servo saver
- Radio System: TQ™ 2.4 GHz (2-channel)
- Servo: Waterproof digital 2075 servo (125 oz-in torque)
- Svårighetsnivå: 1
- Battery Compartment (L/W/H): 165x50x23/25mm
Motor Specs:
- Type: BL-2s 3300 kV sensorless brushless motor
- Length: 80mm
- Diameter: 36mm
- Connector Type: Traxxas Quick Connect Motor Plug
ESC Specs:
- Input Voltage (cells): 6-7 Cells NiMH / 2s LiPo
- BEC Voltage: 6.0 volts
- Reverse Delay: Yes, with lockout
- Thermal Protection: Two-stage thermal shutdown
- Ports: Auxiliary fan
What’s In The Box:
- Ford F-150 Raptor BL-2s ESC and 3300 kV motor
- Quick Start Guide
- TQ™ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Battery: The Raptor requires a single NiMH or 2s LiPo battery
- Charger: Traxxas EZ-Peak charger (2970) is recommended for easy and fast charging performance
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
