Traxxas 82016-4 - TRX-4 Omonterad Crawler Chassibyggsats

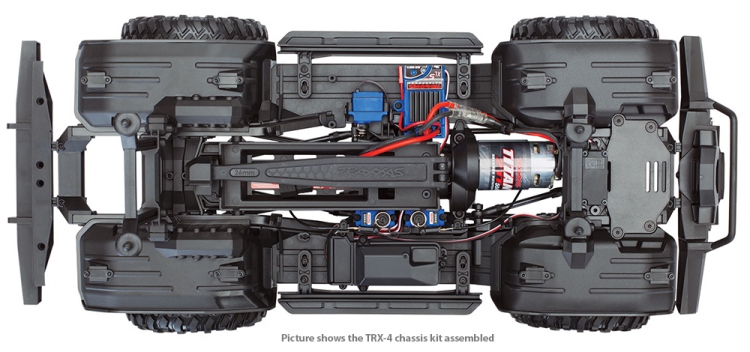

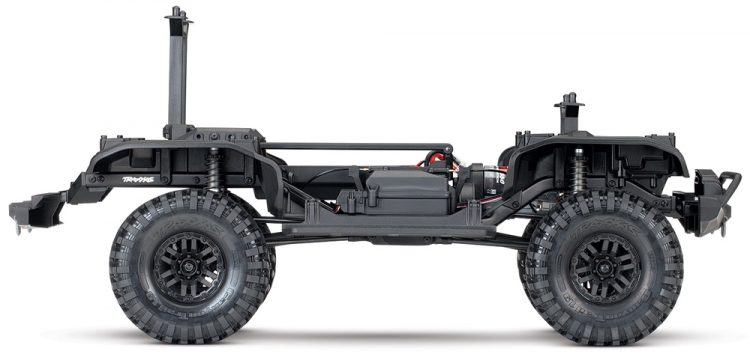

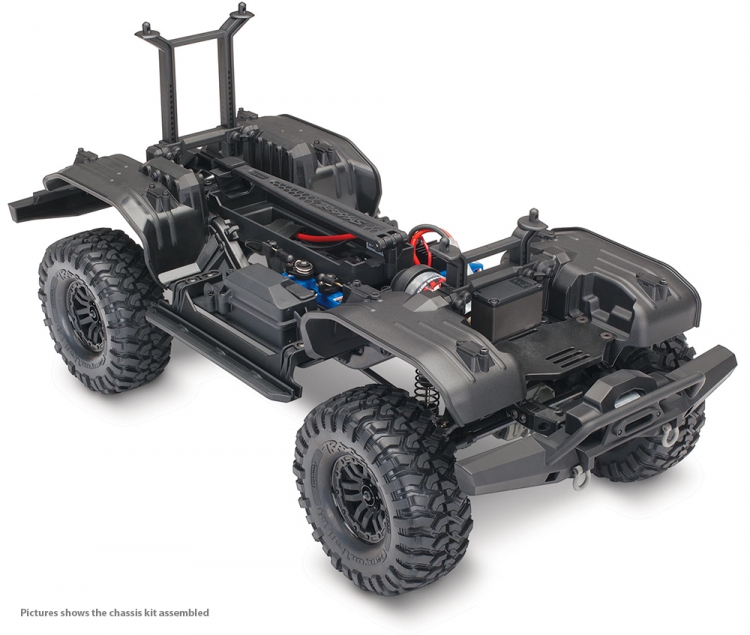

The TRX-4 Chassis kit arrives ready to be assemble with a full-color instruction guide, a TQi 4-channel 2.4GHz radio system and complete waterproof electronics including servos, XL-5 HV ESC and a reverse rotation Titan 21T brushed motor. Important parts like the shocks and suspension links come pre-assembled to make the build easy and fun. Choose your own prefered body, battery and charger (sold separately) to complete your custom TRX-4 ride.
TRX-4 Chassi Byggsats Specifikationer:
- Length: 523 mm
- Front Track: 249 mm
- Rear Track: 249 mm
- Ground Clearance: 80 mm
- Weight: 2.91 kg
- Height: 266 mm
- Wheelbase: 312 mm
- Front Shock Length: 90 mm
- Rear Shock Length: 90 mm
- Approach Angle: 63.82°
- Departure Angle: 43.22°
- Breakover Angle: 58.93°
- Front Wheels: 1.9 x 1.02" (49 x 26 mm)
- Rear Wheels: 1.9 x 1.02" (49 x 26 mm)
- Front Tires: 4.64 x 1.89" (118 x 48 mm)
- Rear Tires: 4.64 x 1.89" (118 x 48 mm)
- Wheel Hex: 12 mm
- Speed Control: XL-5™ HV
- Motor (electric): Titan® 21T Reverse Rotation

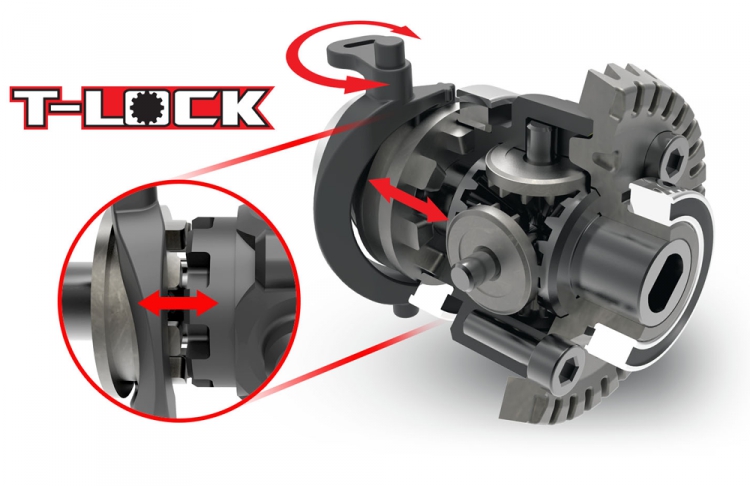

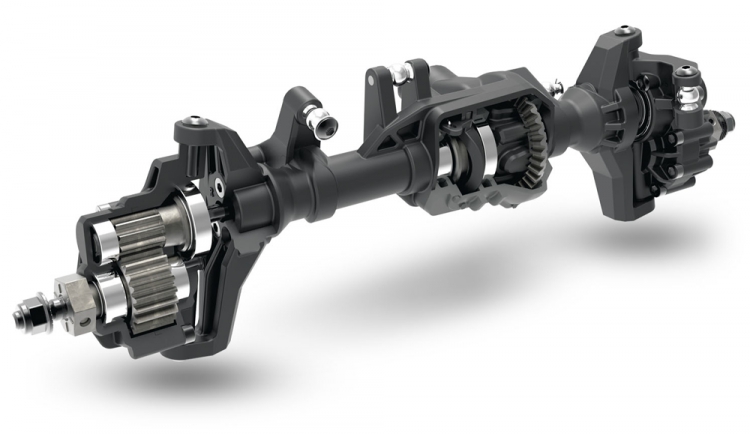

- Differential Type: 4 Gear, Remote Locking

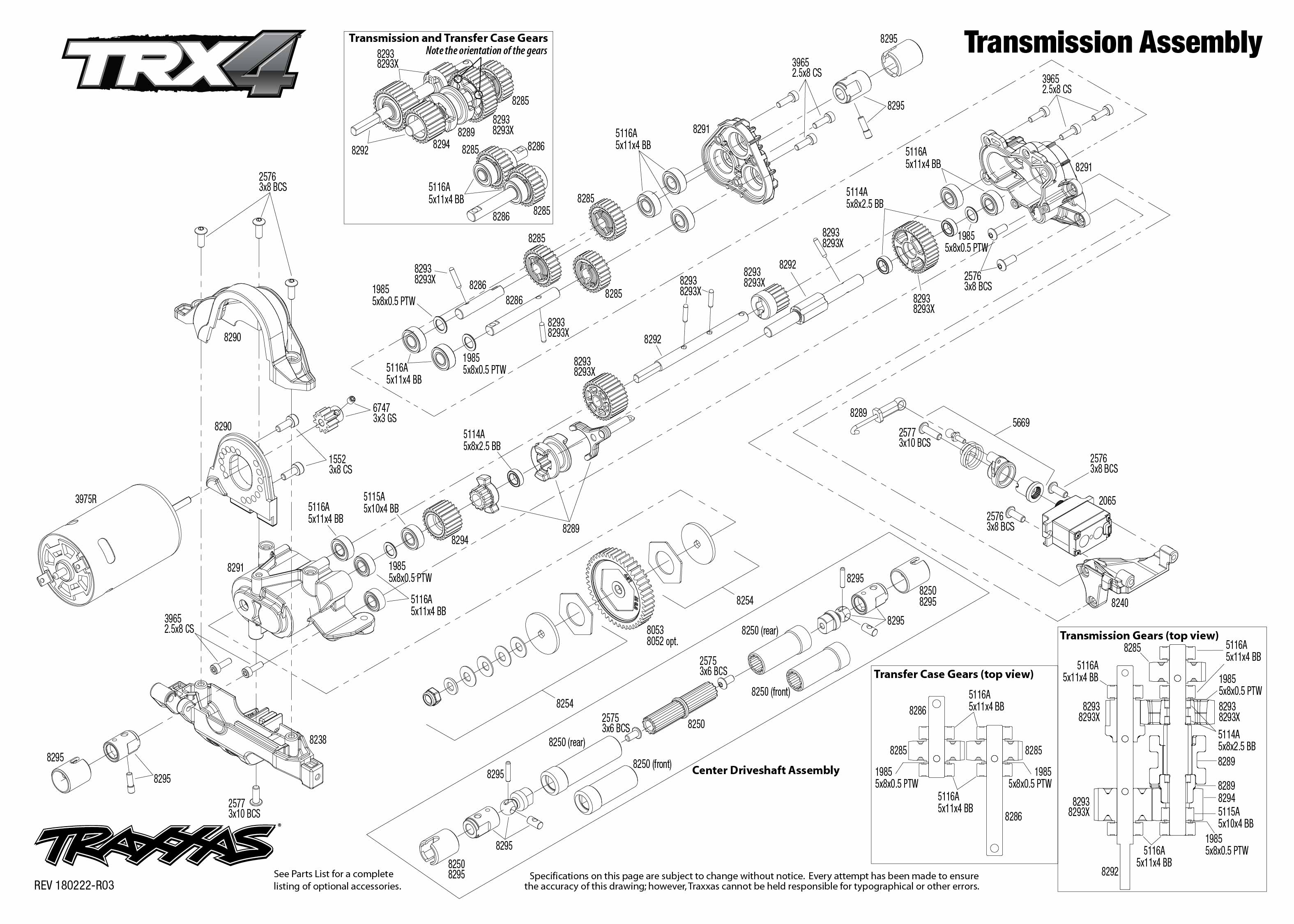

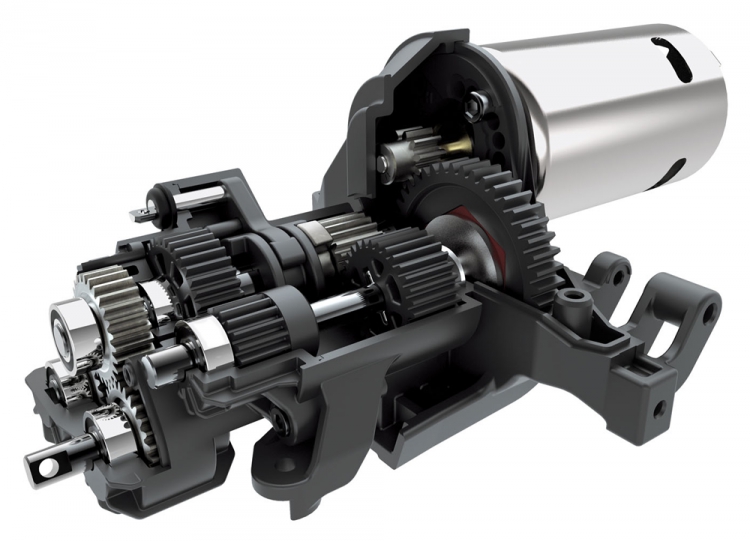

- Transmission: 2-speed Hi-Lo, Remote Shifting
- Gear Pitch: 32

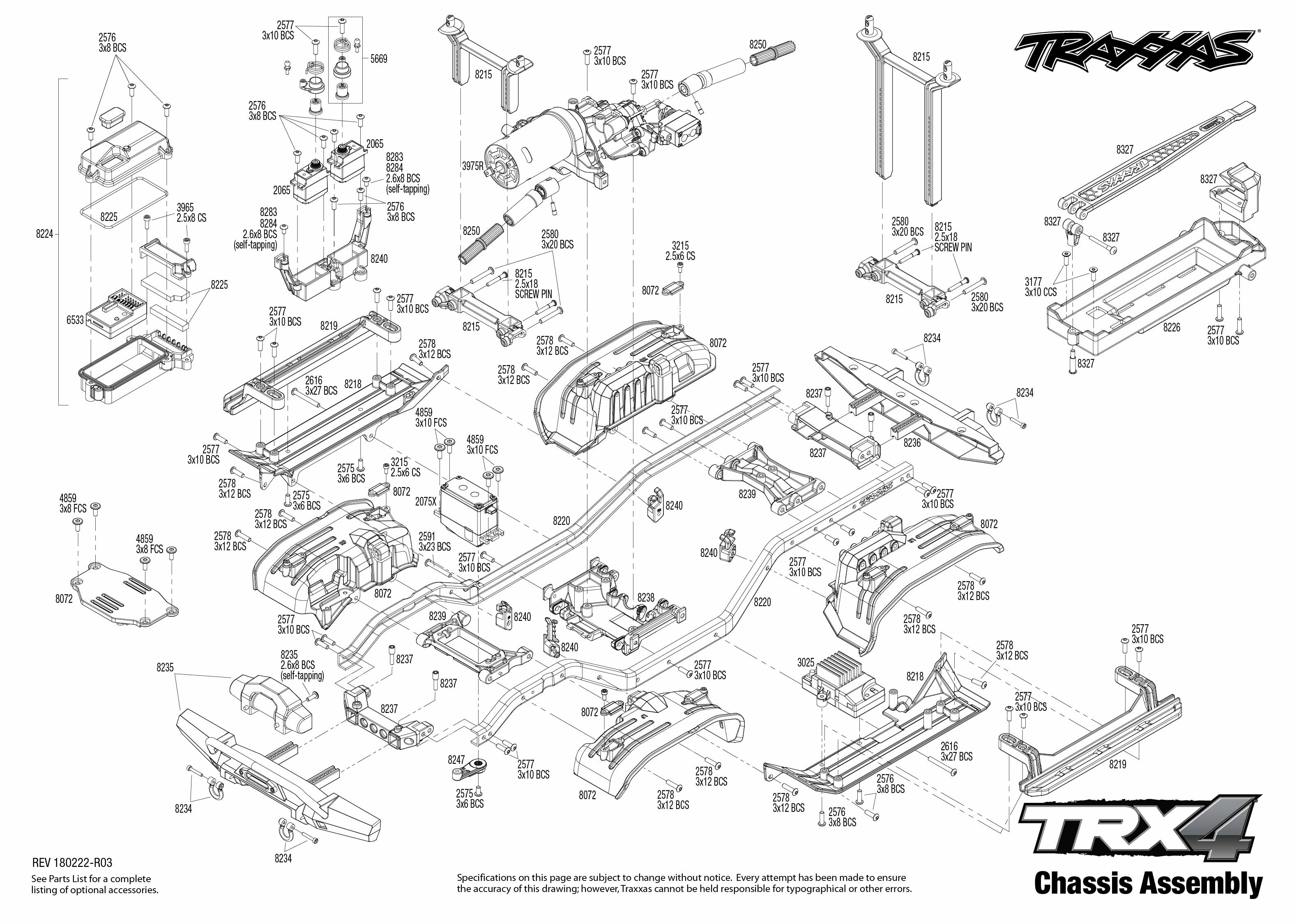

Chassis:
- Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft-Driven 4WD

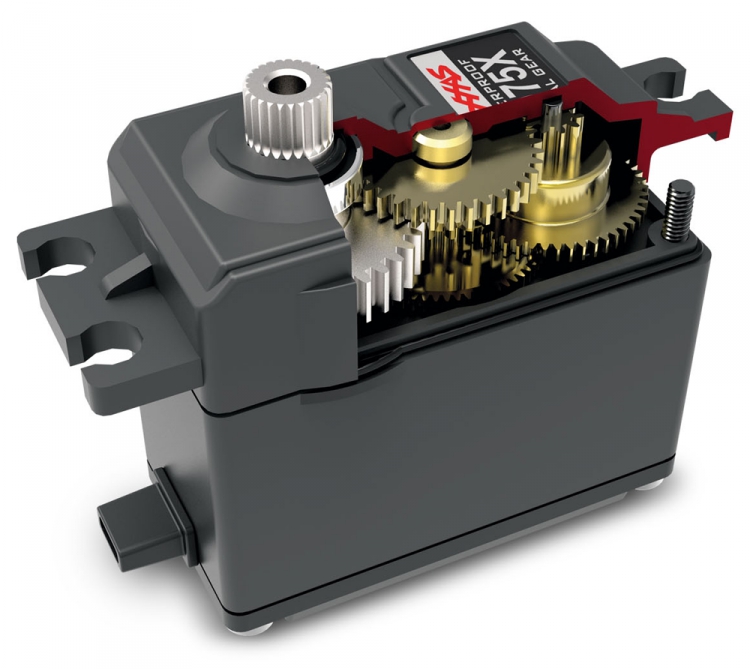

- Steering: Chassis Mounted 2075X Metal Gear Servo
- Radio System: TQi™ 2.4 GHz 4-Channel Transmitter with #6533 Receiver
- Skill Level: 2
- Battery Tray: L158.75 x W47 x H23/26 mm

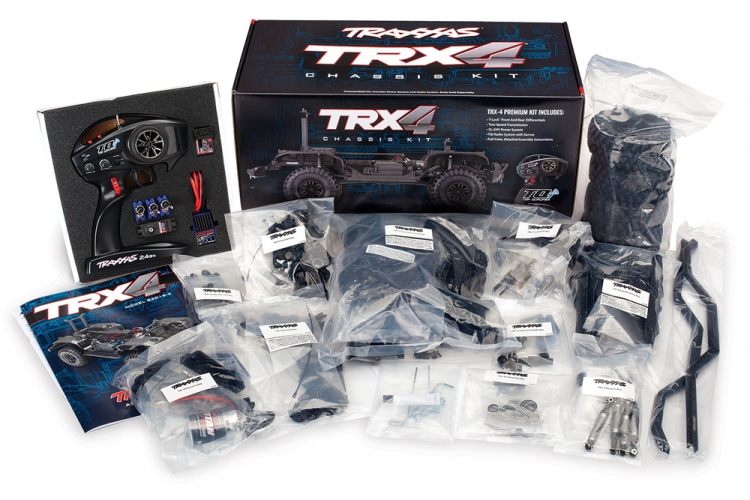

- Unassembled TRX-4 Chassis Kit

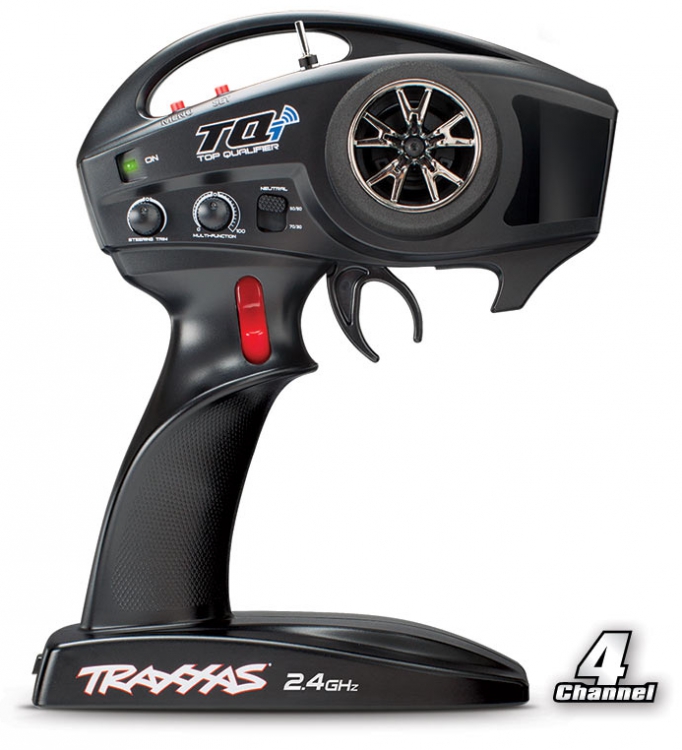

- TQi™ 2.4GHz 4-channel radio system with 4 servos

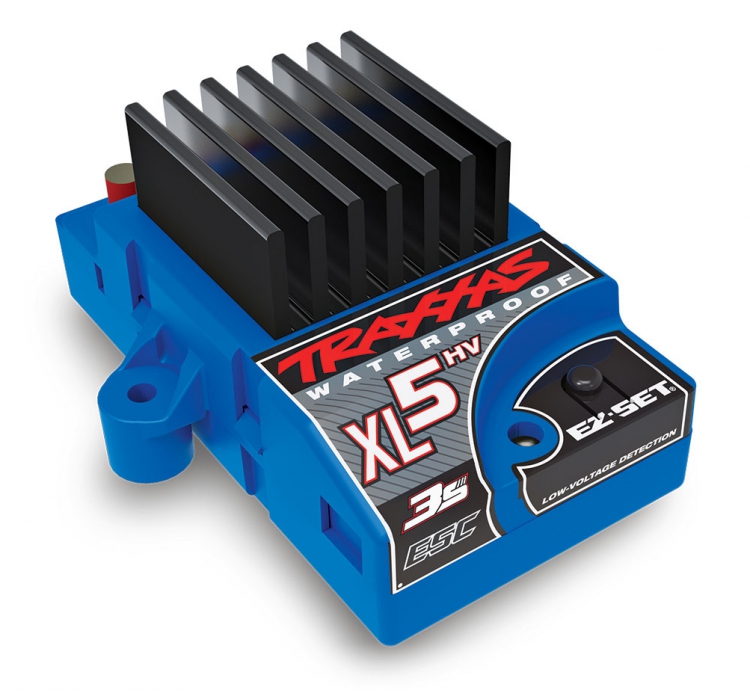

- XL-5 HV waterproof ESC

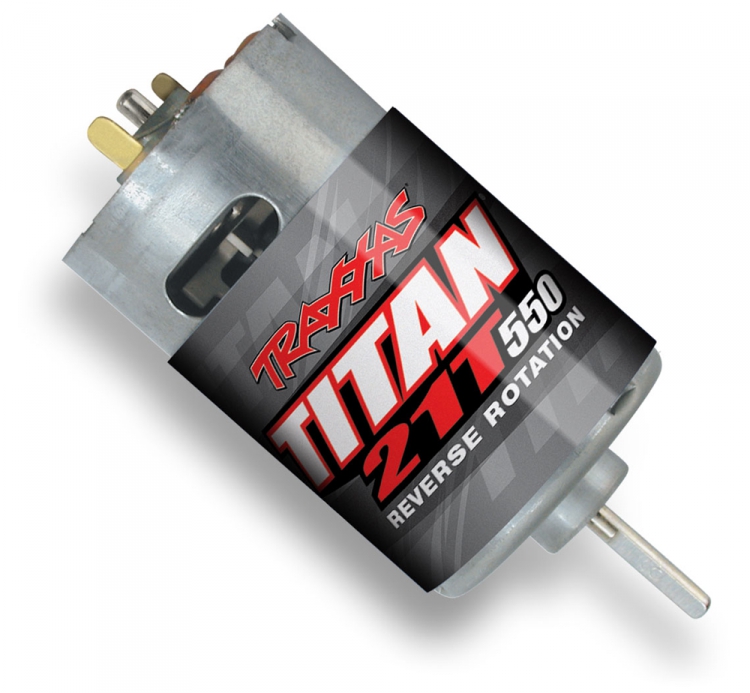

- Titan® 21T 550 motor

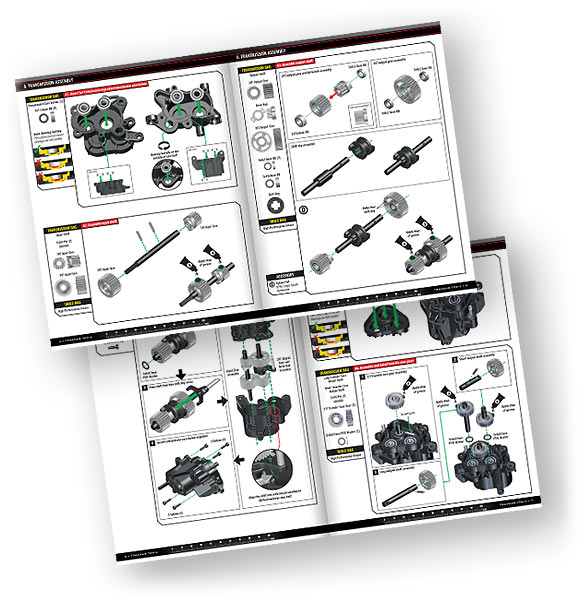

- Full-color step-by-step assembly manual
WHAT YOU'LL NEED
- TRX-4 compatible body
- 4 AA alkaline batteries
- Battery with Traxxas High-Current Connector: 6 or 7 cell NiMH battery pack / 2s or 3s LiPo battery pack
- Battery charger
- Metric hex drivers: 1.5, 2.0 & 2.5 mm
- Basic hand tools: screwdrivers, needle nose pliers
- Traxxas Ultra-Premium Tire Glue (part #6468) or CA glue
- Safety glasses
