Traxxas 88086-84 - TRX-6 Ultimate RC Hauler med Fabriskmonterad Winch
One look at the new TRX-6® Ultimate RC Hauler and you’ll know this truck means business. Based on the hugely capable TRX-6 platform, the RC Hauler is the biggest and baddest rig in the TRX lineup. The tough looks are backed up with even tougher performance. The rear bed features adjustable wheel chocks and tie-down bands to haul and display 4-Tec® models with style. A highly detailed LED lighting system and black-over-black chrome body accessories give the Hauler a tough, menacing look. The Ultimate RC Hauler is built Traxxas Tough™ with portal axles, high/low transmission, and T-Lock™ remote locking differentials. When you’re ready for big-scale RC fun, nothing comes close to the Traxxas Ultimate RC Hauler.Features:

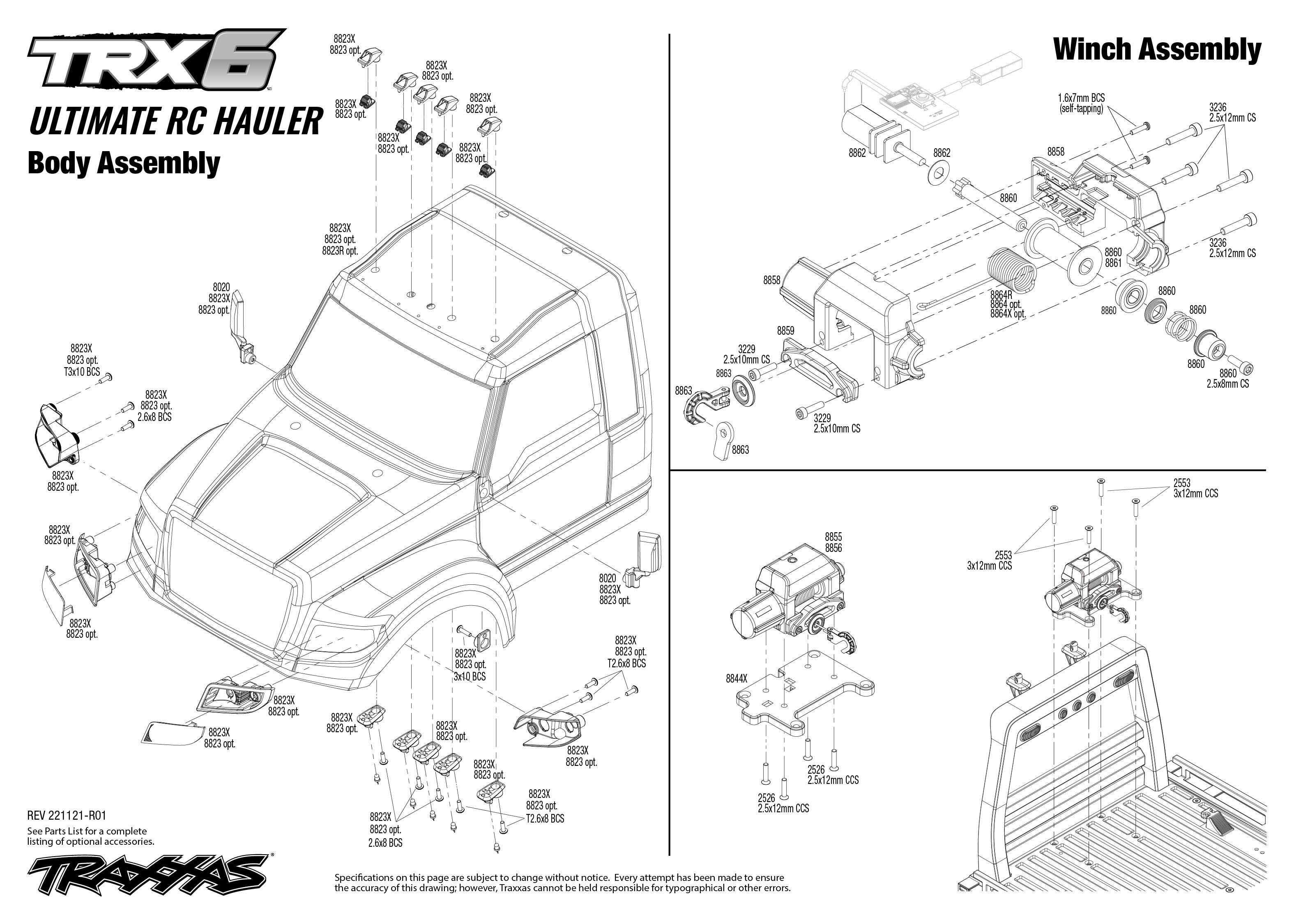

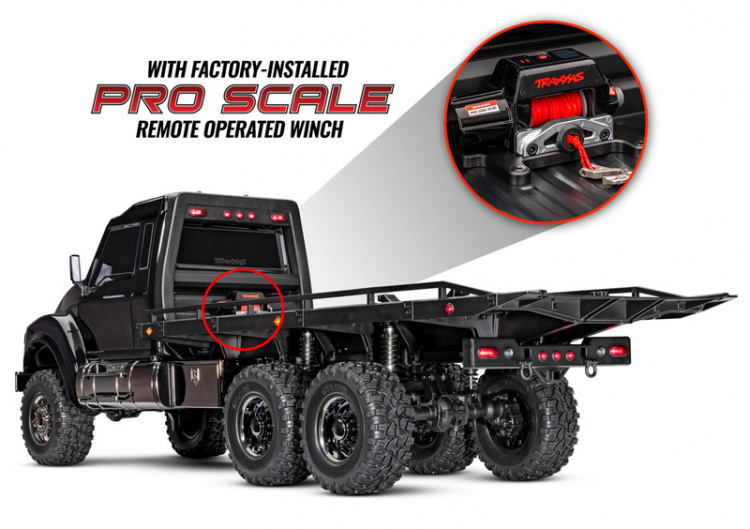

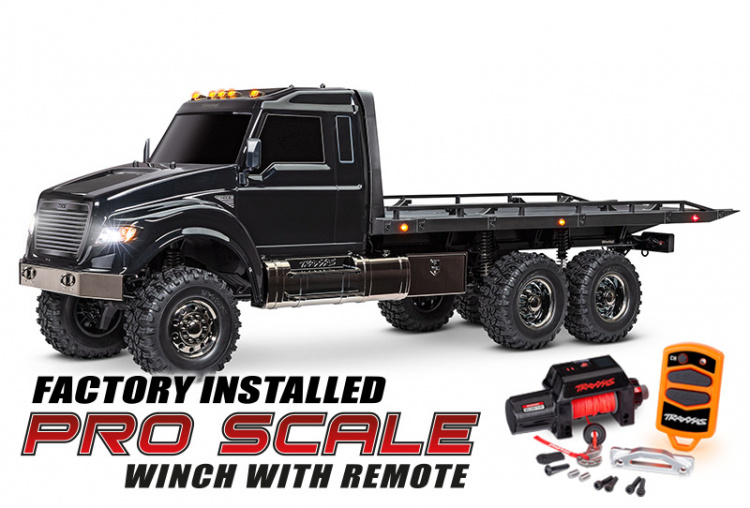

- Factory Installed Winch!
- The flatbed fits any of Traxxas 4-TEC cars
- TQi 4-channel Radio System with Cruise Control
- Metal Geared High-Torque Steering Servo
- 3S Power System
- Factory Installed LED's (25)
- T-Lock™ Remote Locking Differentials
- High/Low Range Transmission

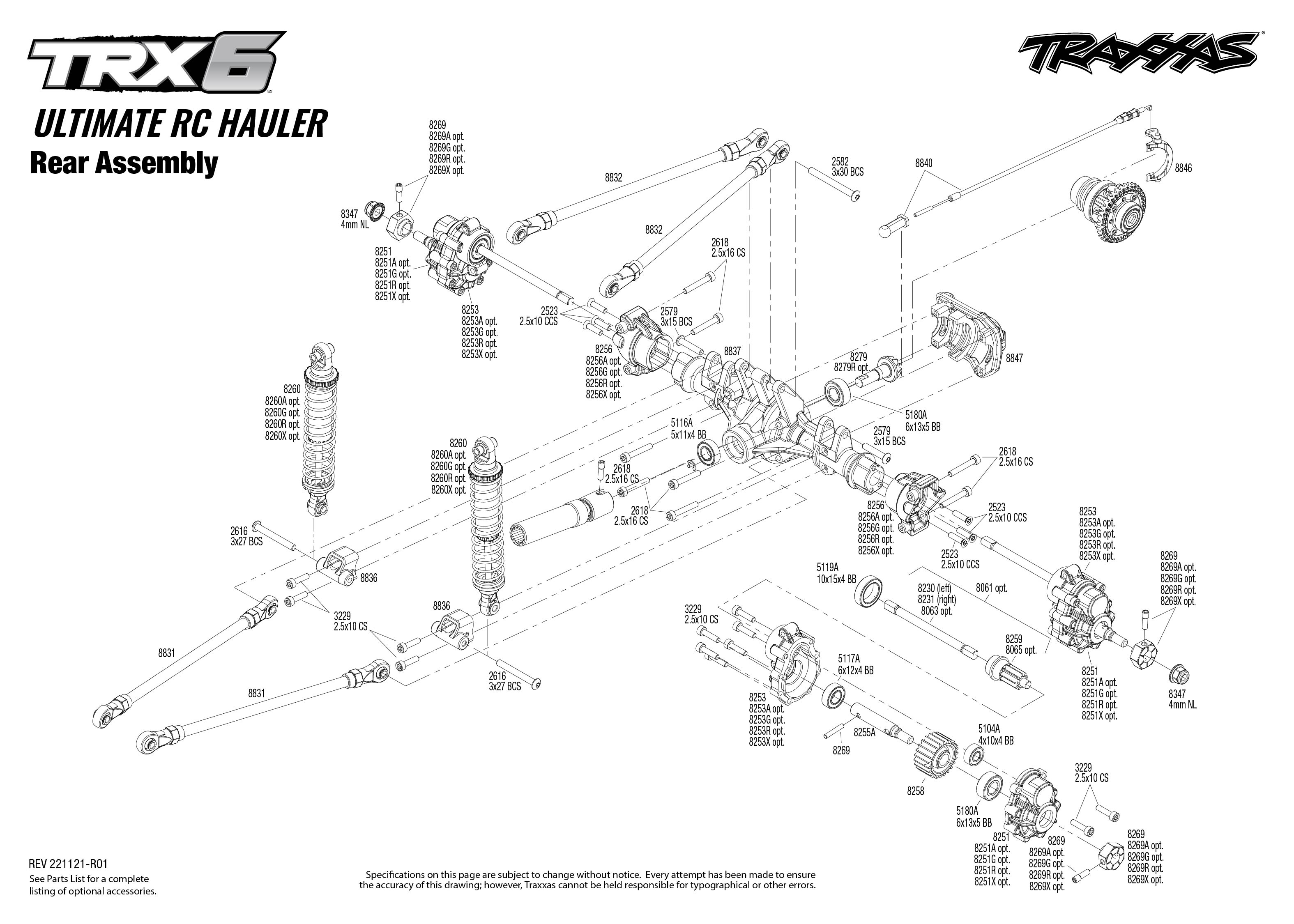

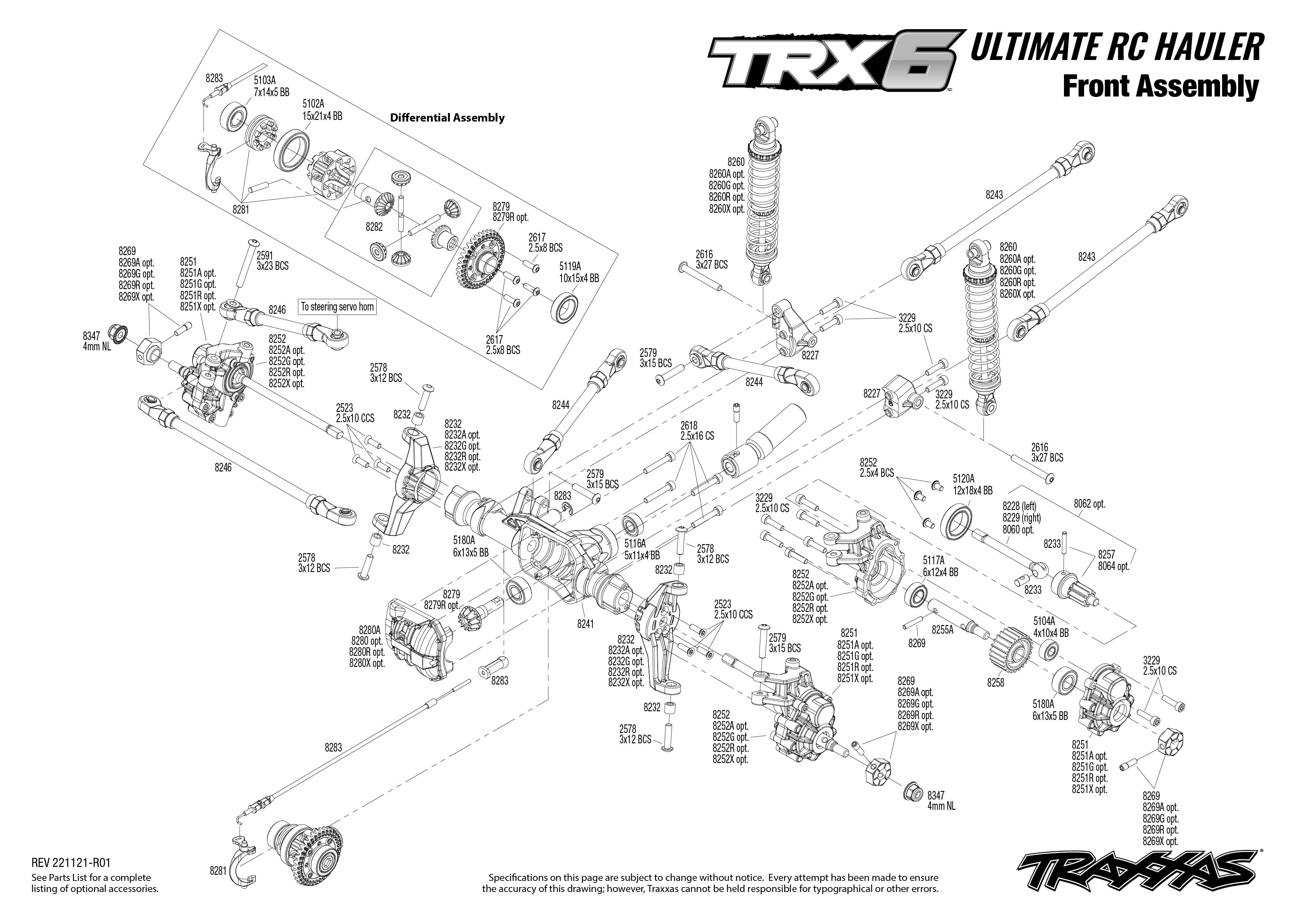

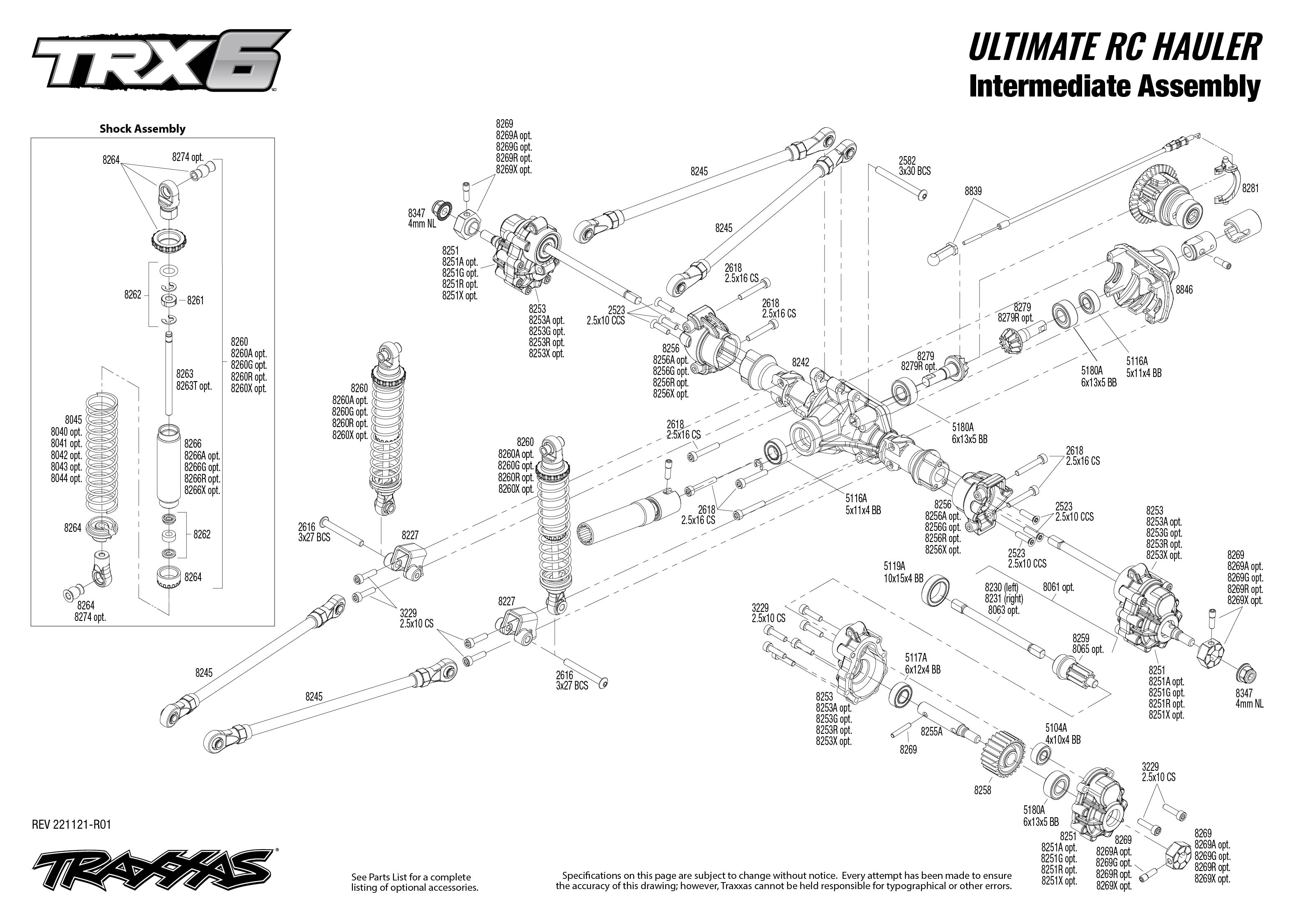

- Portal Axles
- 2.2" Wheels (Black-Chromed)
Built to Haul

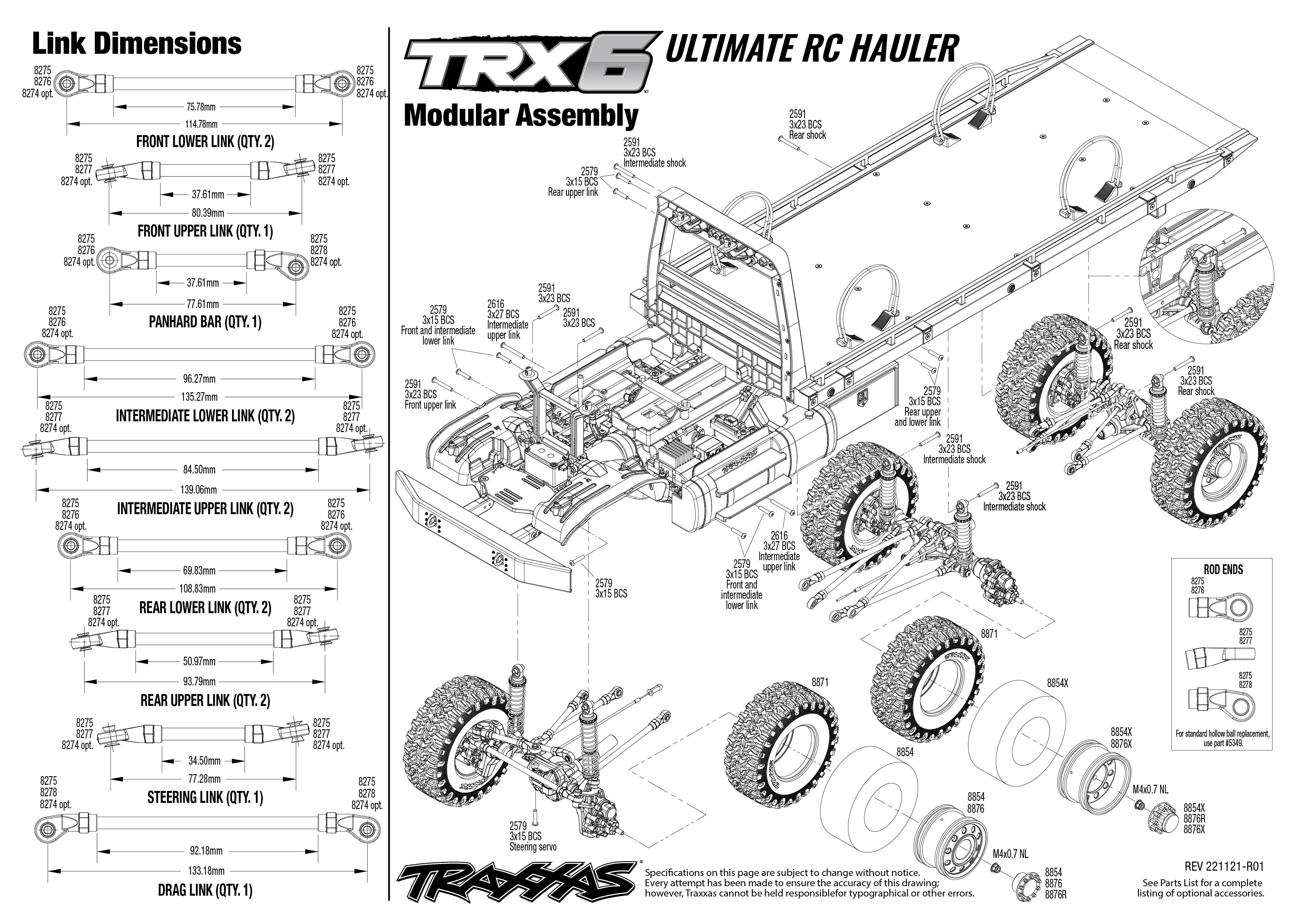

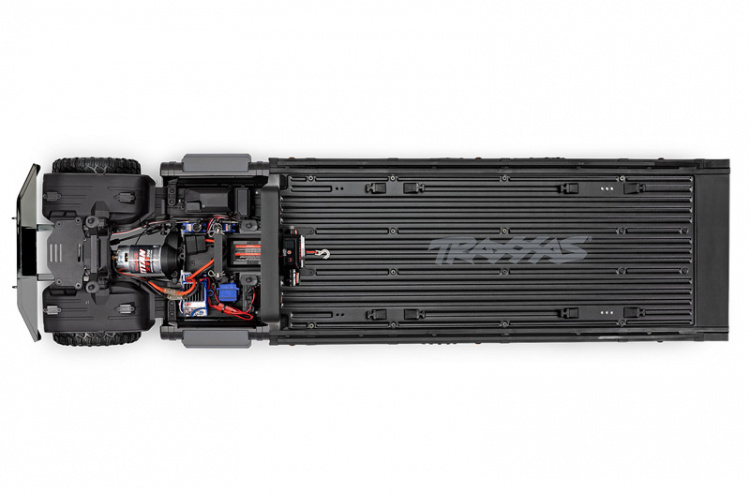

The Ultimate RC Hauler is the largest TRX-6® model with an extra long 23.7" (603mm) wheelbase and oversize bed to haul your 4-Tec models in style. The highly detailed truck features deep gloss black paint over molded black chrome body accessories for an intimidating look to match its big rig attitude.
Detailed Bed and Lights

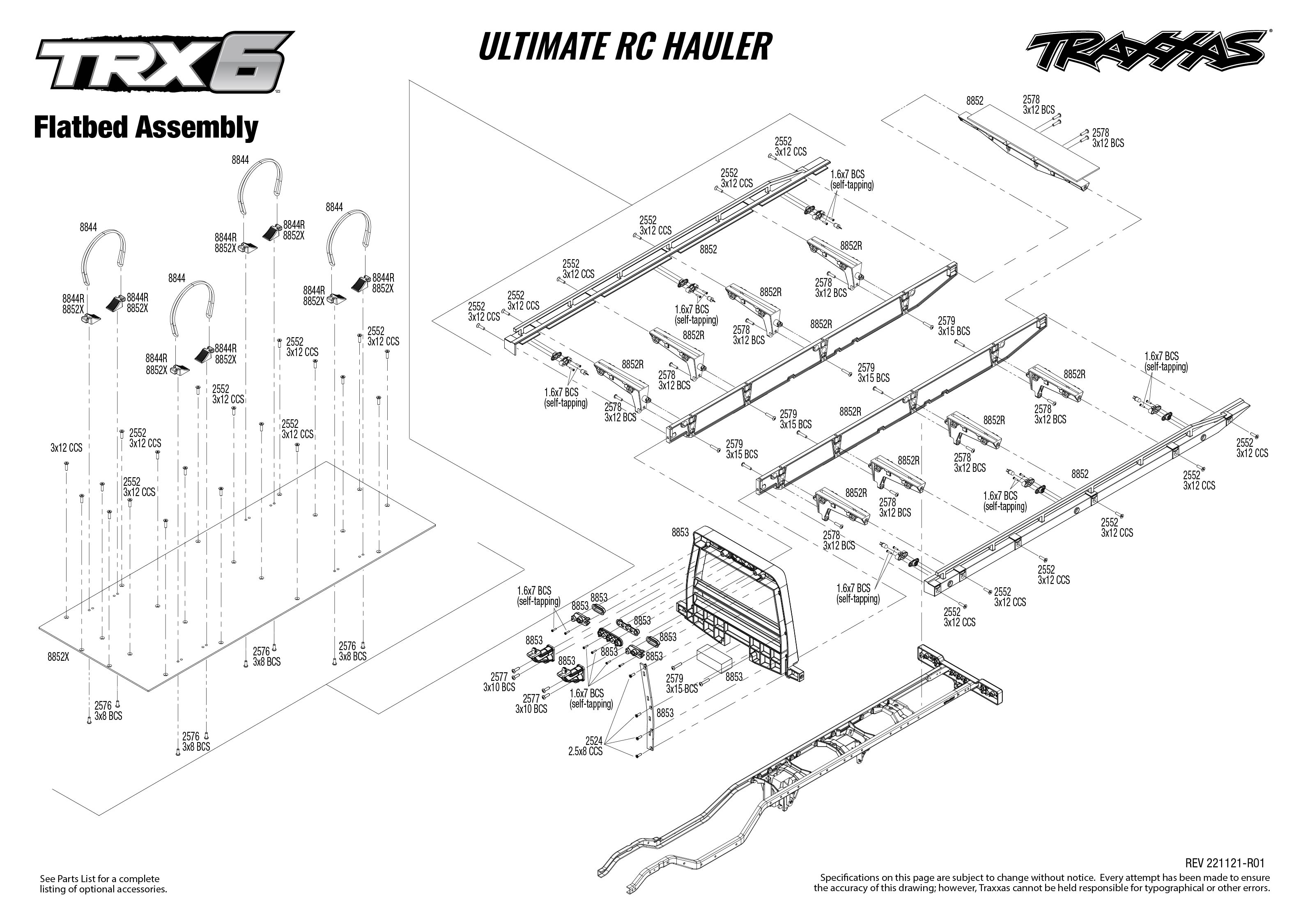

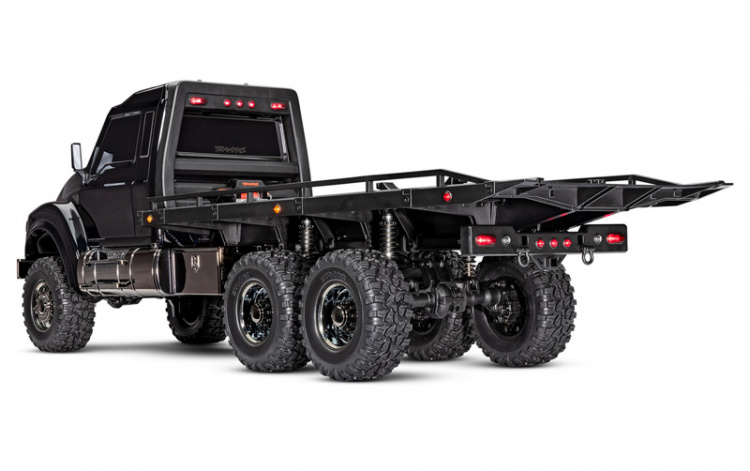

Adjustable wheel chocks with tie-down bands on the Ultimate Hauler’s tow bed accommodate any 4-Tec 2.0 or 3.0 model and keep precious cargo secure. A powerful and true-to-scale LED lighting system with 25 individual lights makes twilight adventures a reality.
TRX-6 Capability
Built on the supremely capable TRX-6 platform, the Ultimate RC Hauler uses six drive wheels to get into the action with trail-conquering grip of three remote-locking T-Lock™ differentials to get back out. A remote-shifting high/low range transmission amplifies the motor’s torque down low to move heavy loads while still providing ample cruising speed when unloaded.
What’s In The Box:

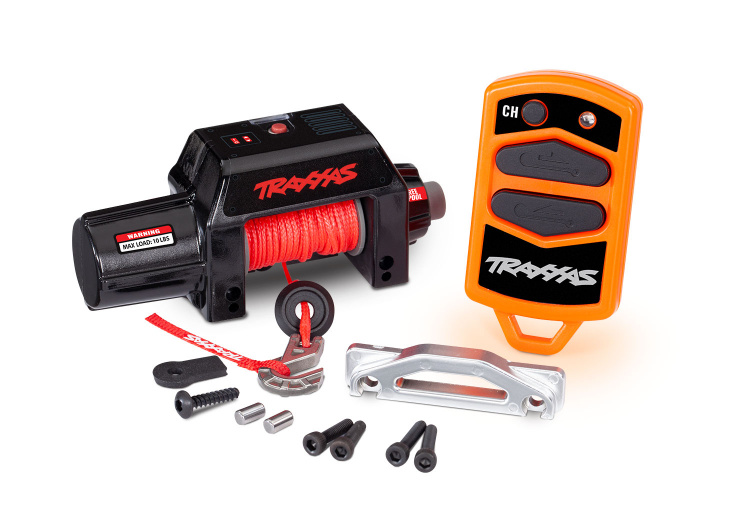

- TRX-6, Ready-To-Drive® model with factory installed winch set
- XL-5 HV waterproof electronic speed control
- Titan® 21T reverse rotation motor
- TQi™ 2.4GHz radio system with cruise control
- Accessory bed winch mount
- High quality maintenance tools
Vehicle Specs:
- Length (overall): 953 mm
- Length (chassis): 863 mm
- Front Track: 245 mm
- Rear Track: 249 mm
- Ground Clearance: 80 mm
- Weight: 4.83 kg
- Height (overall): 303 mm
- Wheelbase (front & intermediate axle): 471 mm
- Wheelbase (front & rear most axle): 603 mm
- Approach Angle: 60°
- Departure Angle: 55°
- Breakover Angle: 57°
- Front & Rear Shock Length: 90 mm
- Battery Tray: L158.75 x W47 x H23/26 mm
- Front & Rear Wheels: 2.2 x 1.02” (56 x 26 mm)
- Front & Rear Tires: 118 x 48 mm
- Hex Size: 12 mm
- Speed Control: XL-5 HV
- Motor (electric): Titan® 21T Reverse Rotation

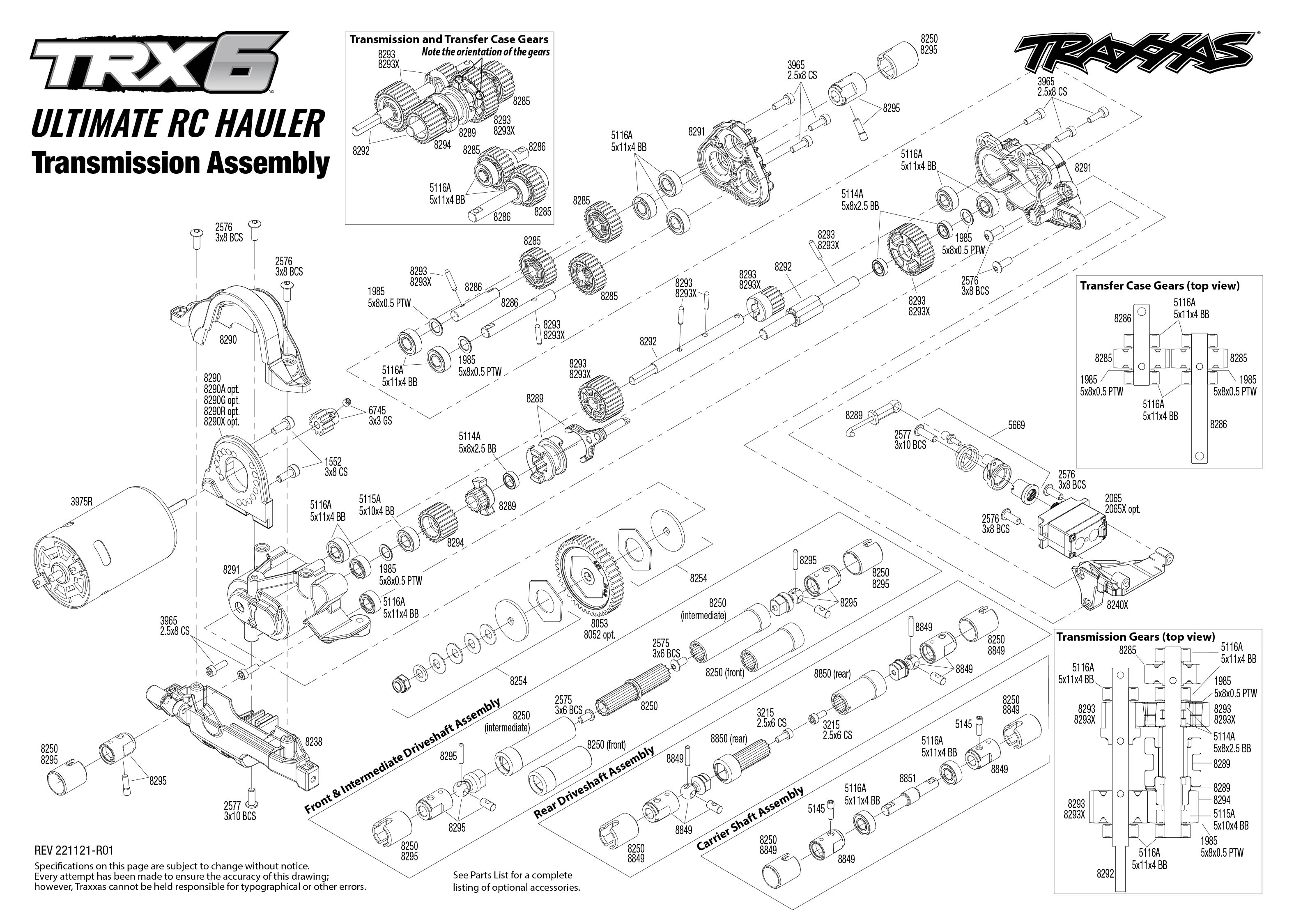

- Transmission: 2-speed High/Low, Remote Shifting
- Gear Pitch: 32P
- Differential Type: 4 Gear, Remote Locking

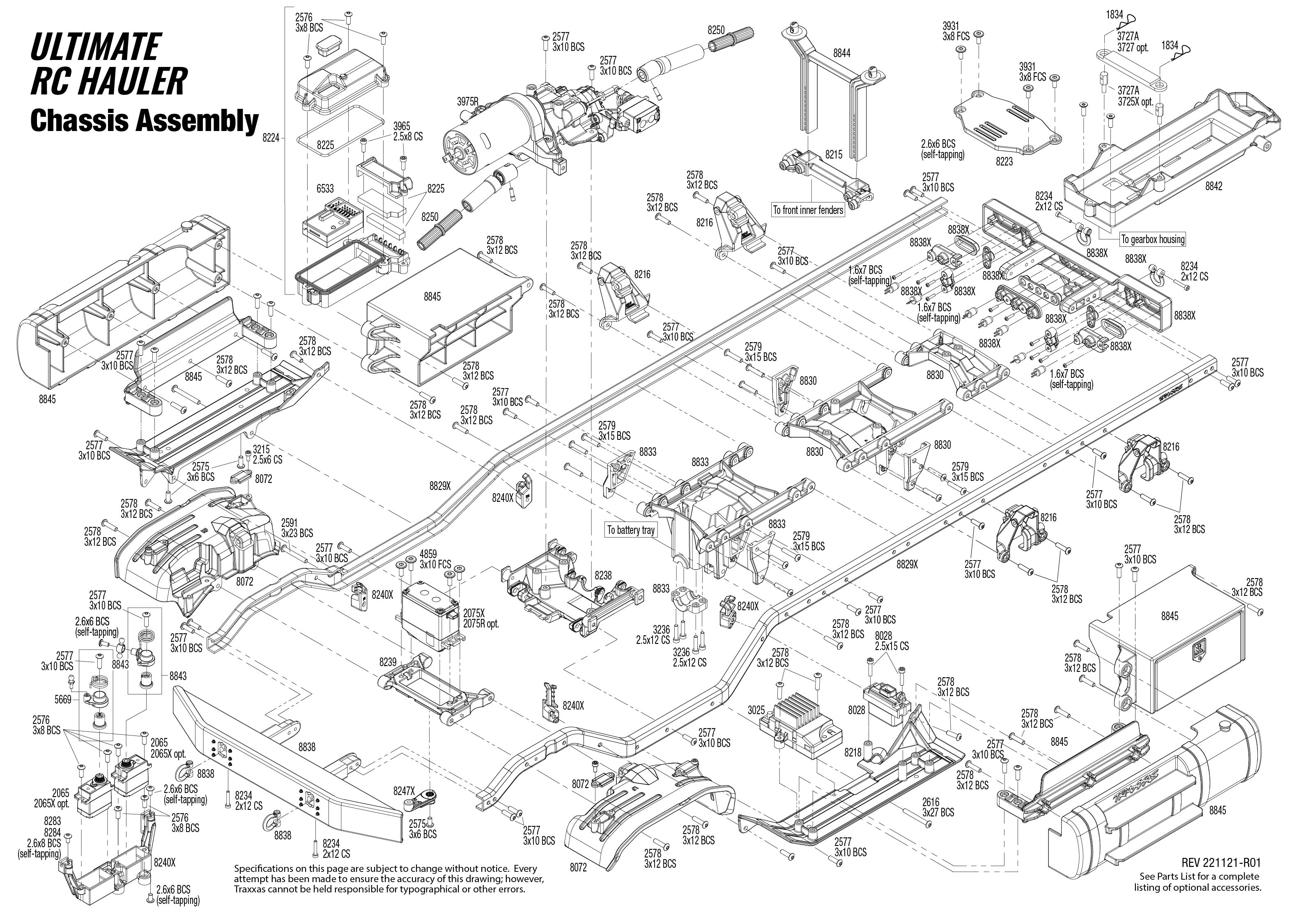

- Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft-Driven 6WD
- Steering: Chassis Mounted Servo
- Servo: 2075X Metal Gear
- Transmitter: TQi™ 2.4GHz 4-Channel Transmitter
- Receiver: 6533
- Skill Level: 1
Motor specs:
- Type: High-torque brushed motor
- Size: 550
- Weight: 390g
- Length: 78mm overall length, 57mm can length, 38.9mm diameter)
- Turns: 21T reverse rotation
- Voltage: 16.8V
ESC specs:
- Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
- Motor Limit: 21-turns (550 size)
- Peak Current - Forward: 100A
- Peak Current - Reverse: 100A
- Braking Current: 60A
- Continuous Current: 18A
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Power Wire: 14 Gauge
- Input Harness Wire: 26 Gauge
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal Shutdown
- Single-button setup: Yes, Traxxas EZ-Set®
Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
- Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
- Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
What You’ll Need:
- Batteries: TRX-6 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
- Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
