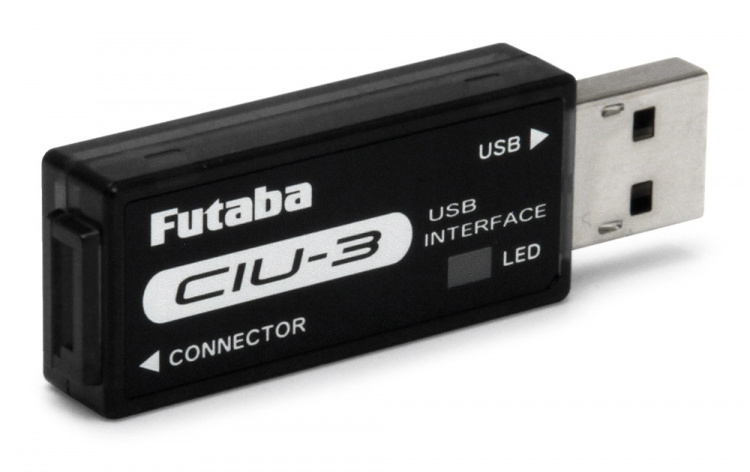

Futaba CIU3
The CIU-3 is a USB interface for communications between Link-supported devices (such as a S.BUS servo , Gyro and ESC) and Windows computer.The CIU-3 is an updated version of the CIU-2 in that it does not need any additional Windows driver software to be installed.
Specs:
- Interface: USB Rev2.0 compliant
- USB connector: USB Series A connector
- Operating voltage: 5.0V ±0.2V (USB bus power)
- Current drain (At connection, idle): 5.8 ±1.7mA
- Operating environment: Temperature -10 ～ +45℃
- Dimensions: 18.2 x 56.5 x 9.0 mm
- Weight: 7.5 g
- Applicable OS: WindowsVista/7/8/8.1/10
