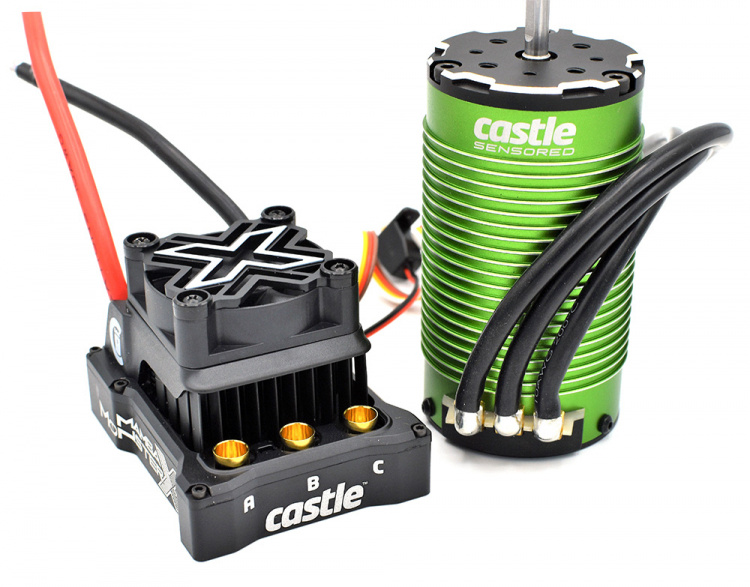

Castle MAMBA MONSTER X 8S, 1717-1650KV Sensormotor Combo

Castle Mamba Monster-X-8S Fartreglage & 1717-1650Kv Sensormotor Combo

MORE POWER - COOLER TEMPS - LONGER RUNS
Take your 1/6 scale build or upgrade to the next level with Castle’s legendary brushless power.

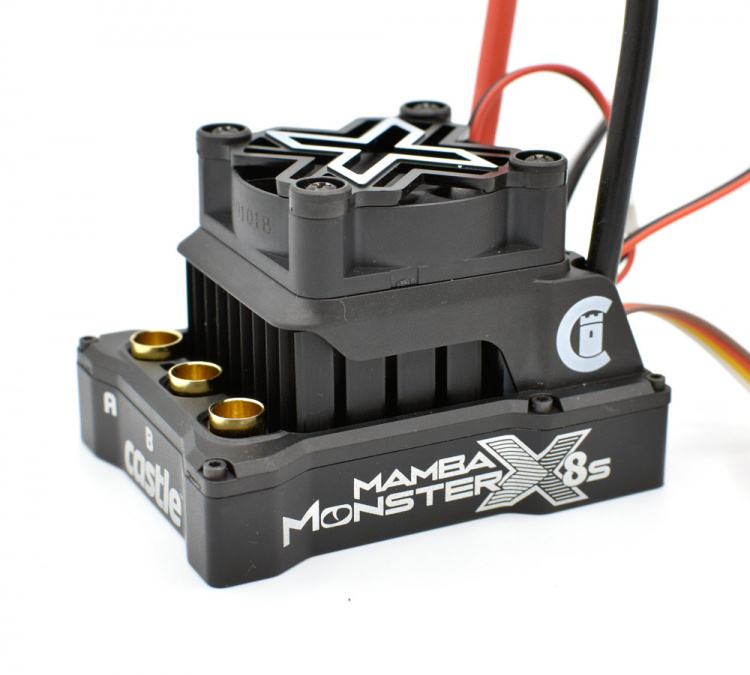

ESC Specs:

Applications: 1/6 Scale vehicles weighing up to 11kg (see motor specs for this combo!)
Input Voltage Range: MIN: 2S LiPo, MAX: 8S LiPo 33.6V
Running Modes: Sensored, Sensorless and SmartSense™ when paired with a Castle 4-POLE 12-SLOT Sensored Motor.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Yes, factory equipped (40mm), fully removable** (see Product Use Statements below)
Size (LxWxH): 69.5x54.1x47mm
Weight (with wires): 163gr

Connectors type:

6.5mm female bullets for motor connection
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.

Operating environment:

Programmability:

Fully programmable Castle feature set using Castle Link USB adapter(coupon for free link included in package) and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).

Telemetry Link Capable:

Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.

Product Use Statements:

Recommended battery capacity for 1:6th scale vehicles is 5000mah. We recommend using 50C continuous discharge or higher LiPo batteries.
Surge ratings should never be used to determine a pack’s suitability for a brushless application.
We recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
Applying voltages higher than 33.6V will cause irreparable damage to ESC; DO NOT RUN HV CELLS (above 4.2v/cell) WHEN RUNNING AT MAX CELL COUNT (8s). This will exceed the 33.6v rating and will damage the ESC and not be covered by the warranty.
Although Mamba Monster X 8S is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Motor Specs:

Applications:

Ideal for vehicles up to 20lbs running 6s – 8s LiPo. Examples include Losi LST2-E; Arrma™: Limitless™, Typhon™ 6s, Infraction™, Talion™ 6s;
Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™

Tech Notes:

This motor includes 10AWG wire and 6.5mm connectors for use specifically this ESC/Motor combo.
Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
