Futaba CGY770R+GPB-1 - Equipped with new system [UR mode]! Receiver, built-in governor, 3-axis gyro for helicopters + Programming Box

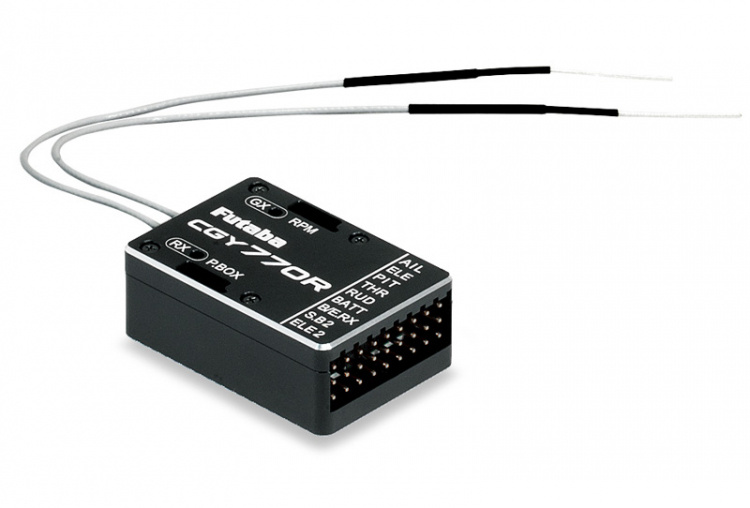

CGY770R is a 3-axis gyro for helicopters that is equipped with a new system [UR mode] and has a receiver and governor integrated with a wireless tuning function.System that integrates receiver, 3-axis gyro function, and governor function.
- The CGY770R replaces the CGY760R.
Features:
- Includes GPB-1 Programming Box
- Gyro can also be operated independently
- Gyro and governor both use the fastest control method
- Small, low profile, lightweight

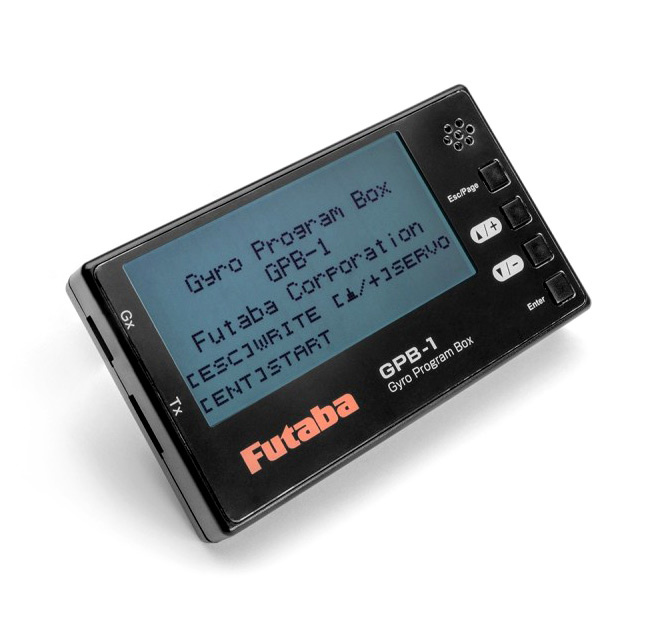

- Can be set using GPB-1 (gyro program box) *When using GPB-1 with CGY770R, it is necessary to update to Ver.5.0 or later.
- S.BUS2 system compatible
- Receiver/gyro/governor integrated
- Equipped with Dual Rx Link system
- Equipped with sensor response adjustment function
- Addition of wireless setting items
- Gyro adjustment menu P, I, and D gains can be adjusted on one screen

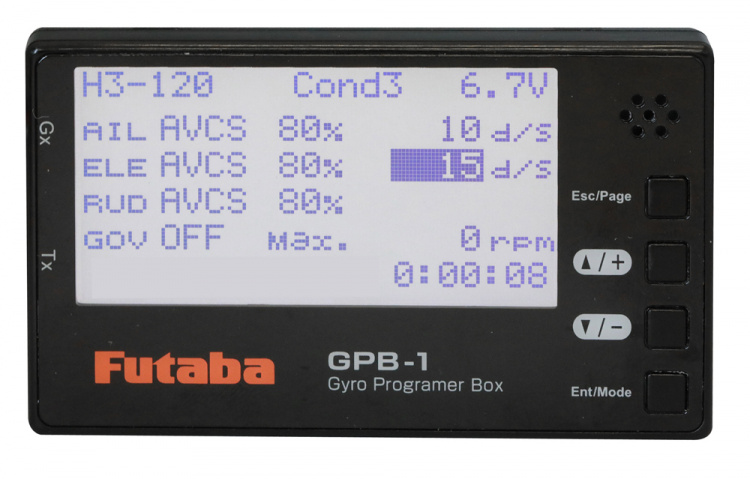

- *GPB-1 setting screen
- Compatible with new system UR (Ultra Response) mode
- In combination with a servo compatible with helicopter UR mode, faster response can be obtained.
- Also, servo update of HPS-HC701 and HPS-HT700 is required. Compatible with Ver.2.0 or later.
Setting items are divided into basic and expert menus
- Basic settings can be made in the basic menu
- Detailed settings can be made in the expert menu
What is UR mode?
- UR mode is a system installed in the high-end car transmitter [T10PX].
- This is Futaba's fastest system, recognized by many top drivers.
- You can experience the proven fastest system, UR mode, in a helicopter.
- *UR servos for cars cannot be used.
Specs:
- 3-axis gyro for helicopters with integrated receiver and governor
- Control method: Digital advance control
- Angular velocity detection method: Vibration gyro sensor
- Angle range: ±1,000°/sec
- Rotation speed detection method: Engine rotation direct detection by magnetic sensor
- Control resolution: 0.1 Hz (± 6 rpm: engine rotation speed)
- Rotation speed stability accuracy: within ± 1%
- Control rotation speed range: 700 to 4,000 rpm (rotor rotation speed)
- Antenna: Diversity method
- Rated power supply voltage range: DC 3.7 V to 7.4 V *(Usable voltage range: 3.5 V to 8.4 V)
- Current consumption: 85 mA (when receiving, no servo, no RPM sensor)
- Operating temperature range: -10 to +45℃
- Operating humidity range: 10 to 90%RH (no condensation)
- Dimensions: 39.2x27.0x15.0mm
- Weight: 22.3g
- FASSTest-2.4 GHz (18 CH/12 CH mode)
- T-FHSS-Air-2.4 GHz method, S.BUS2 input/output + output for conventional system (CH1-6)
