Futaba T26SZ - 26ch-2.4GHzFASSTest radio with R7214SB Receiver
The long-awaited successor to the best-selling model “T18SZ”, the new T26SZ is now official!The new T26SZ is positioned in between the highly desirable high-end T32MZ-WC series that is loved by many competitors and the mid-range T16IZ-Super. For pilots who fly anything and everything, demand unquestioned reliability and seek a future-proof radio that offers the highest level of programming sophistication, Futaba’s T26SZ will be impossible to ignore. With its user-friendly interface, twin screens, silky-smooth hall effect non-contact gimbals, near like-for-like T32MZ feature set, elegant styling and latest FASSTest 26ch protocol, the T26SZ is highly likely to tick every box on your extensive wish list. It is a masterpiece that is comparable to the high-end class, and can be said to be the result of Futaba's many years of accumulated know-how and solid results.
S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.
MAIN LCD COLOR DISPLAY
HVGA 4.3" full color backlit LCD transflective (indoor / outdoor visible) touch screen.
SECONDARY LCD DISPLAY
A high quality reflective LCD for easy recognition of telemetry information.
SD CARD PORT
Update software, store model data and upload picture files using the microSD port.
HIGH CAPACITY LI-PO
2100mAh offers a comfortable operating duration and real peace of mind.
INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.
MULTIPROP CHANNEL EXPANSION
Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.
FEELS GOOD
Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralizing spring adjustment.
SWITCH REPLACEMENT
Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.
Features:
- The T26SZ transmitter is changable to either Mode-1 or Mode-2 in the software. See the manual for more info.
- FASSTest26, FASSTest18, FASSTest12, S-FHSS & T-FHSS protocols
- 26 channels (24+2)
- Full color 4.3 inch touch screen
- 3.0" LCD sub display
- High quality finish
- Model image display
- Smooth non-contact stick potentiometer
- Shoulder switch upgrade / replacement
- Four rear sliders (paired)
- Vibration alert
- Voice function
- Telemetry system
- Four stick modes (1-4)
- MicroSD card software update
- High capacity LiPo
- USB-C charging
- Earphone jack
- Calendar clock
- S.BUS I/F enabled
- Wireless trainer system
- ±240 step sub trim
- Sub trim balance
- DLPH-2 settings
- Receiver mode-setting port
- Gyro setting for CGY755 / 760R / 770R / GYA553
- 8 flight conditions
- 30 pre-programmed mixers
- 10 free programmable mixers
- Retract and door sequencer
- 13 fixed-wing types
- 3 fixed-wing tail types
- 2 fixed-wing rudder types
- 8 helicopter swash types
- Supports 14 telemetry sensor types
- GPS enabled
Key Programming Features (for full list see manual):
- Model name (15 characters)
- Sub trim
- Sub trim balance
- Servo reverse
- Fail-safe
- Exponential
- Throttle cut
- End point / ATV (30 - 140%)
- Servo speed
- Trainer function
- Servo monitor
- Trim setting (step, rate, mode)
- Data editor (for S.Bus equipment)
- 10 programmable mixers
- 30 pre-programmed mixers
- Aileron differential
- Air brake
- Flap trim
- Flap setting
- Butterfly
- Camber mix
- Camber flap-elevator
- Elevator to camber
- Aileron to camber flap
- Aileron to rudder
- V tail
- Ailvator
- Winglet
- Aileron to brake flap
- Snap roll
- Servo monitor
- Twin timers
- Stick alarm
- Battery fail-safe
- Gyro sense
- Multi engine
- Motor mix
- Condition name
- AFR (dual rate)
- AFR (curve mode)
- AFR curve point number (17 points)
- Logic switch (condition switch only)
- Acceleration mixing
- Pitch curve / pitch trim
- Throttle curve / throttle hover trim
- Pitch to needle mix
- Revolution mix
- Swash ring
- Idle down
- Throttle limiter
- Swash setting
- Swash AFR
- System timer
- Function setting
- Governor
Telemetry functions:
- Temperature
- RPM (magnetic & optic)
- Altitude
- GPS
- Voltage
- Receiver battery
- Current
- Data logging
What's in the Box:

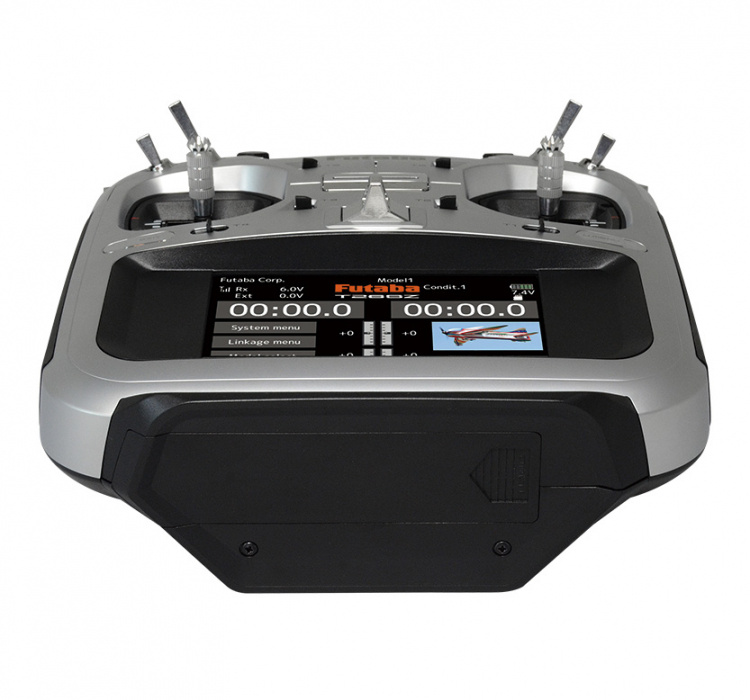

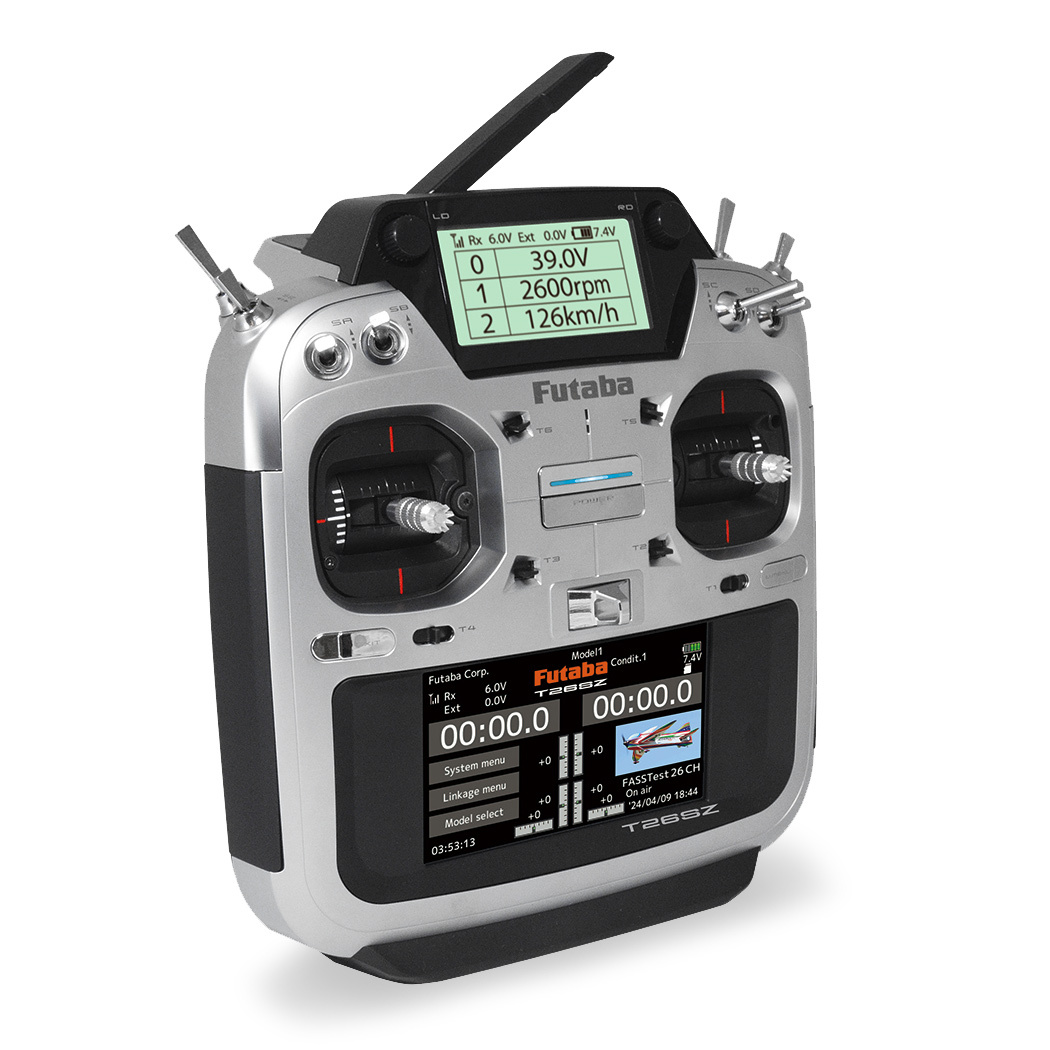

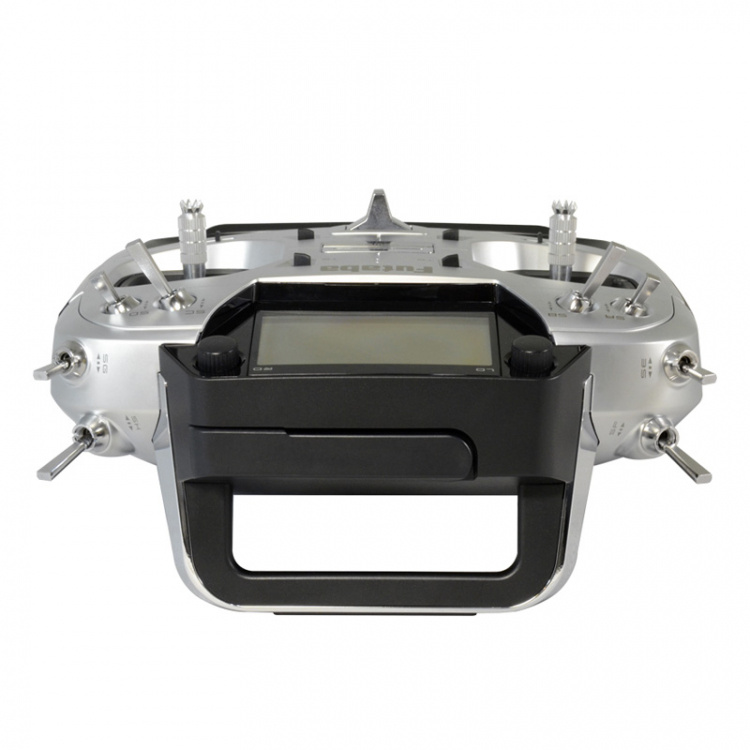

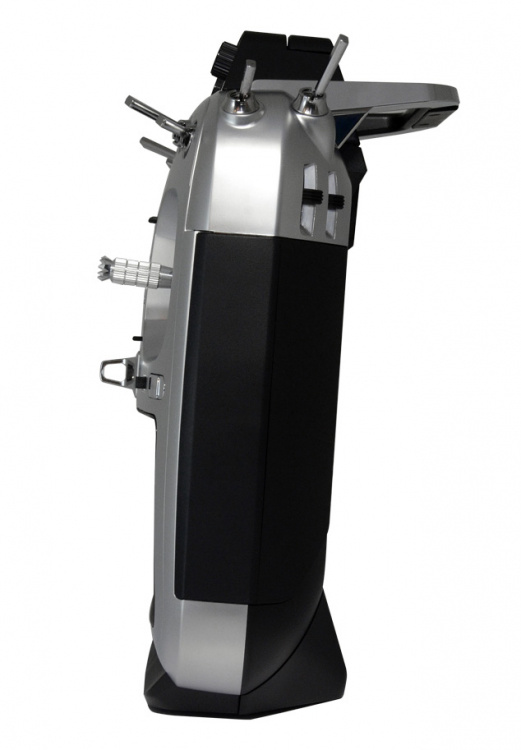

- T26SZ 26-channel transmitter

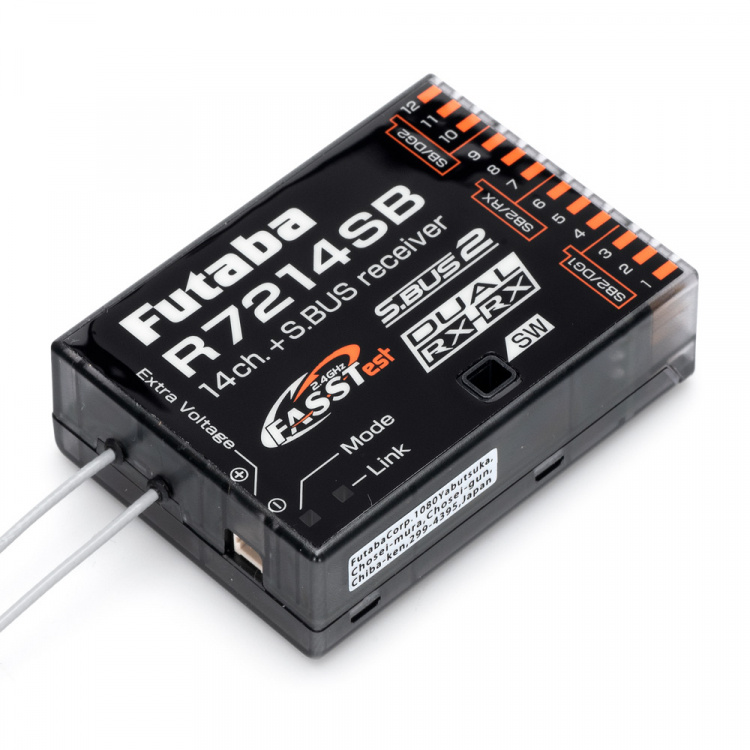

- R7214SB receiver
- 7.4V 2000mAh Li-Ion Tx battery pack
- USB-C charge lead
- Neck strap
- Tool set
- Short manual (full pdf manual as download)
