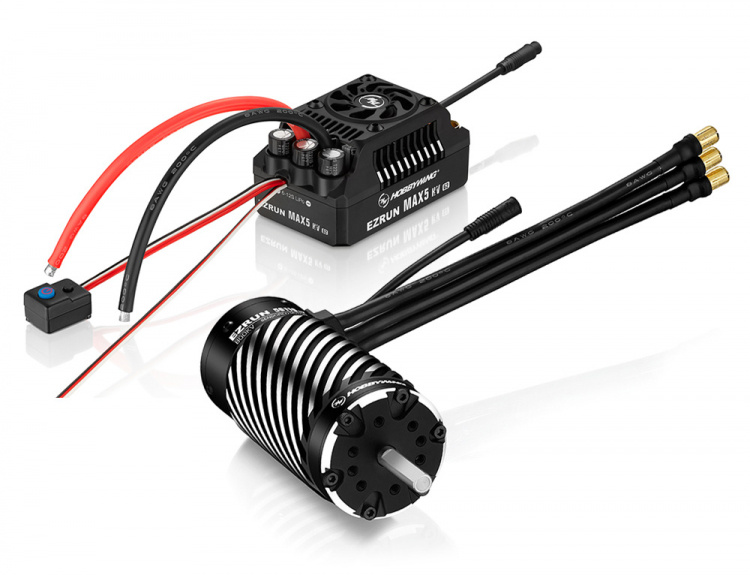

Hobbywing ExRun MAX5 HV G2 LiPo Sensored Brushless ESC & 56118SD G2 1100KV Motor Combo - 6-8S LiPo
12S HV ESC, enhanced performanceThe Max5 HV G2 ESC is designed to work in full-sensored mode at all times when it is paired with HOBBYWING EZRUN 56118 G2. The ESC supports up to 12s LiPo with a maximum output current of up to 250A. The strong explosive, stable output power, together with an excellent low-speed linearity, ensures the ESC meets various application requirements such as; violent start-up, straight-line high-speed, flying slopes, low-speed walking, etc.
Intelligent freewheeling technology - Strong drive & Low temperatures
The innovative intelligent freewheeling technology effectively reduces heat generation and enables the ESC to have higher driving efficiency. With the addition of super-high power design, operating temperature is drastically lowered (approximately 30 degrees) to improve overall stability and reliability of the ESC.
Note: Under heavy load conditions, the temperature of MAX5 HV G2 is only slightly higher than that of MAX4 HV.
High protection level, all-weather operation
The IP-67 waterproof rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.
Capacitor upgrade - More secure protection
Compared with the previous generation (MAX5 ESC), the total capacity of the capacitor has increased by 45% (1260uF). The super large capacity ensures that 5th scale models do not need external capacitors. In addition, the built-in capacitor thermal protection function of the ESC is always in safe operating state.
Powerful BEC
The ESC has a built-in super BEC with a maximum output current of up to 25A. The output voltages are switchable between 6V/7.4V/8.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.
Built-in anti-spark design - Multi-directional protection
The ESC has a built-in anti-spark circuit to protect the battery plug from damaging upon using a higher voltage battery(6-12S), and avoids any injuries.
Perfect combination with EZRUN 56118 SD G2 motor
Achieve the perfect compatibility when used together with EzRun 56118 SD G2 motors. Avoid damaging the motor from overheating with the software protection function.
Note: Non-Hobbywing EzRun 56118 SD G2 motors cannot realize motor overheat protection
Record and store data in real time to keep track of the running status
Connect the ESC to the OTA Bluetooth module, and through the mobile phone APP, you are able to view real-time data and operating status such as; throttle, voltage, current, temperature, speed, etc.
Note: Due to the Bluetooth transmission distance, the effective distance is only about 5m!
New sensor wire interface - Upgraded waterproof protection
The new sensor wire interface enhances the ESC protection level and solves waterproof problems faced by traditional interfaces.
Please Note: This ESC supports sensored motors with common interfaces. Sensor wire needs to be purchased separately!
ESC Specs:
- Type: 1/5, Brushless, Sensored, WP ESC
- Cont./Peak Current: 250A/1600A
- Input Voltage: 6-12S LiPo
- BEC Output: 6V/7.4V/8.4V adjustable, continuous current 8A (Switch-mode)
- Input Wires: 8AWG-200mm
- Input Connectors: No
- Input Connectors: 8.0mm Bullet Connectors (Female)
- Firmware Upgrade: Supported
- Size: 94.5x59.4x50.9mm
- Weight: 428.5g (Included input wires)
- Motors: 56118 size motors
- Vehicles: 1/5 Truck & Buggy. Examples: Losi DBXL-E, Losi 5T Electrified, ARRMA Kraton 8S & ARRMA Outcast
ESC Programing via:
- SET Button on ESC: Not Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- OTA Programmer: Supported
- Program Port: Independent programming port
Sensored mode - Enhanced performance
The motor is strong, explosive, and has a stable output power with an excellent linearity at low speed to allow the vehicle to easily realize various maneuvers. The control is easy when there power is limitless be it violent start-up, straight-line high-speed, flying slopes, etc.
The perfect match for EzRun MAX5 HV G2 ESC
The motor achieves perfect compatibility when used together with the EzRun MAX5 HV G2 ESC. The ESC/Motor combination is sensored and provides a smooth and precise control experience to the users. It is equipped with overheat thermal protection function to avoid overheating the motor.
High protection level - All-weather operation
IP67 Rating provides excellent waterproof and dustproof performance, and can easily cope with various weather conditions and harsh environments.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak it for a long time to avoid damaging the product.
New sensor wire interface - Upgraded waterproof protection
The new sensor wire interface enhances the motor protection level and solves waterproof problems faced by traditional interfaces.
Detachable modular design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for daily cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.
Motor Specs:
- Type: 1/5, Brushless, Sensored Motor
- Poles: 4
- KV Rating: 1100KV
- LiPo Cells: 6-8S LiPo
- No-load Current: 8A
- O.D.: 56mm
- Length: 119.2mm
- Shaft Diameter: 8mm
- Connectors: 8mm Male
- Weight: 1287g
- Front Bearing: OD22 x ID8 x T7mm
- Rear Bearing: OD19 x ID8 x T6mm
- ESC: EZRUN MAX5 HV G2
- Vehicles: 1/5 Buggy & Truck. Examples: Losi DBXL-E & Losi 5T Electrified
