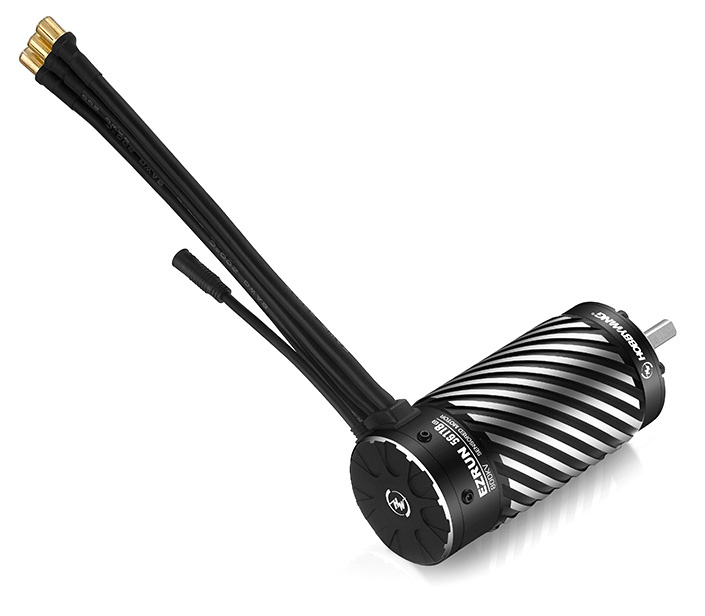

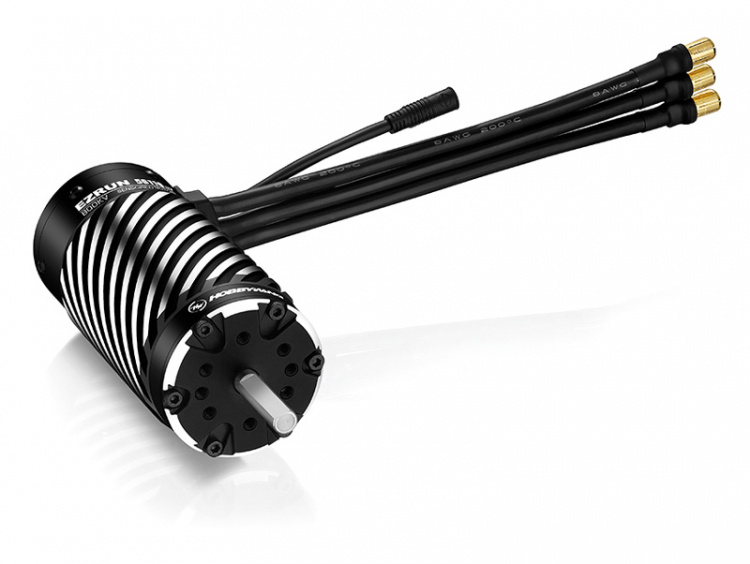

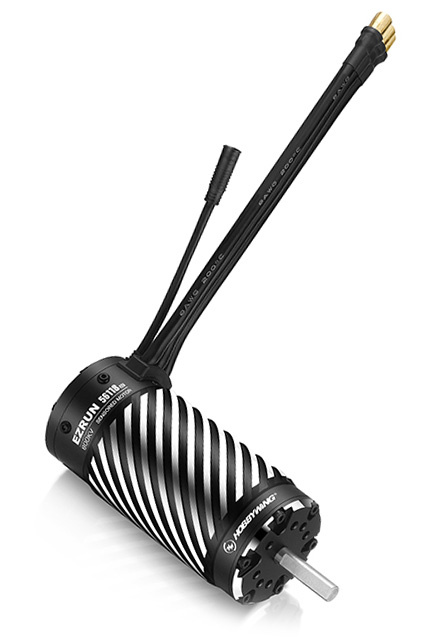

Hobbywing 30402901 - EzRun 56118SD G2 800kV Sensor Brushless HV Motor
Sensored mode - Enhanced performanceThe motor is strong, explosive, and has a stable output power with an excellent linearity at low speed to allow the vehicle to easily realize various maneuvers. The control is easy when there power is limitless be it violent start-up, straight-line high-speed, flying slopes, etc.
The perfect match for EzRun MAX5 HV G2 ESC
The motor achieves perfect compatibility when used together with the EzRun MAX5 HV G2 ESC. The ESC/Motor combination is sensored and provides a smooth and precise control experience to the users. It is equipped with overheat thermal protection function to avoid overheating the motor.
High protection level - All-weather operation
IP67 Rating provides excellent waterproof and dustproof performance, and can easily cope with various weather conditions and harsh environments.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak it for a long time to avoid damaging the product.
New sensor wire interface - Upgraded waterproof protection
The new sensor wire interface enhances the motor protection level and solves waterproof problems faced by traditional interfaces.
Detachable modular design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for daily cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.
Specs:
- Type: 1/5, Brushless, Sensored Motor
- Poles: 4
- KV Rating: 800KV
- LiPo Cells: 8-12S LiPo
- No-load Current: 6.9A
- O.D.: 56mm
- Length: 119.2mm
- Shaft Diameter: 8mm
- Connectors: 8mm Male
- Weight: 1277g
- Front Bearing: OD22 x ID8 x T7mm
- Rear Bearing: OD19 x ID8 x T6mm
- ESC: EZRUN MAX5 HV G2
- Vehicles: 1/5 Buggy & Truck. Examples: Losi DBXL-E & Losi 5T Electrified
