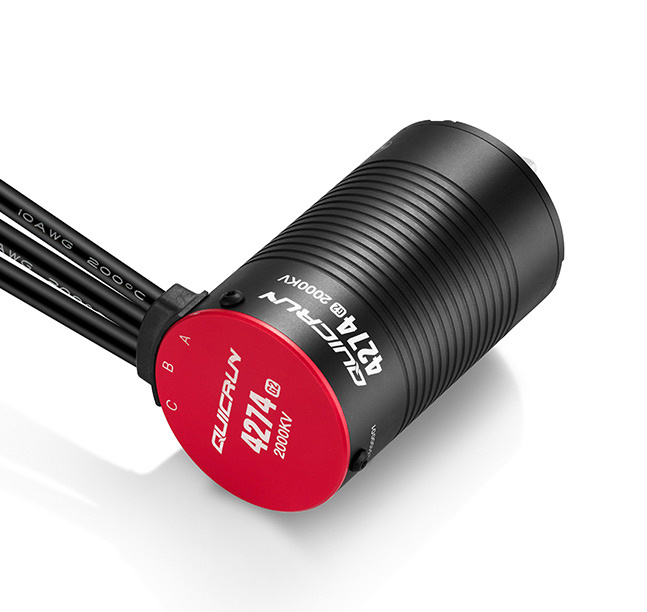

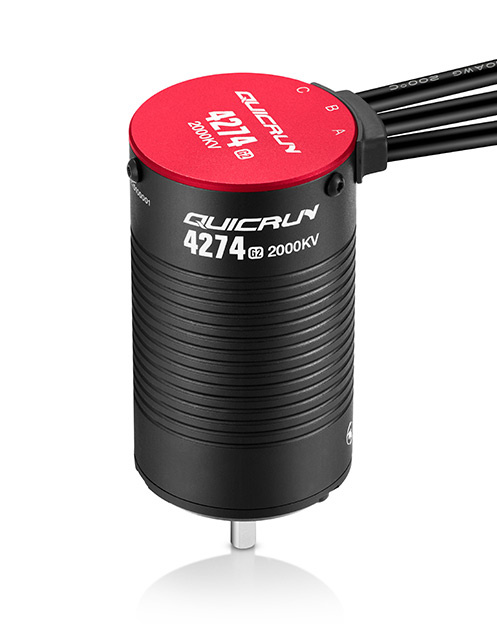

Hobbywing QuicRun 4274SL 2000kV G2 Brushless Sensorless Motor
Perfectly compatible with QuicRun WP 8BL150 G2The motor perfectly paired with the WP 8BL150 G2 ESC. It is equipped with a standard 6.5mm male connector (low IR) to support plug and play on the system.
Increased efficiency and reduced temperature rise
The motor has ultra-high efficiency, resulting in extremely low temperature buildup. Compared with motors of the same specifications and under the same test conditions.
Asymmetrical bearing design, increases reliability and efficiency
The front end of the motor uses a precise large bearing structure to improve load-carrying performance; the rear end uses a precise small bearing structure with lower resistance; Having asymmetrical bearings increases reliability and efficiency.
Silicone outlet - Easier wiring
The motor uses 10AWG silicone wire. Compared with straight out high-hardness enameled wire, the new wiring is simple and is aesthetically pleasing.
Solid materials, quality assurance
At Hobbywing, we take pride in our manufacturing process and the high-quality materials we use to build a motor. that offer exceptional durability, maximum performance and consistency.
Note: The highest support is 55000RPM
Good linearity and low loss
The rotor is precisely balanced to reduce motor vibration and energy loss. It also further ensures good linearity of the overall powerband.

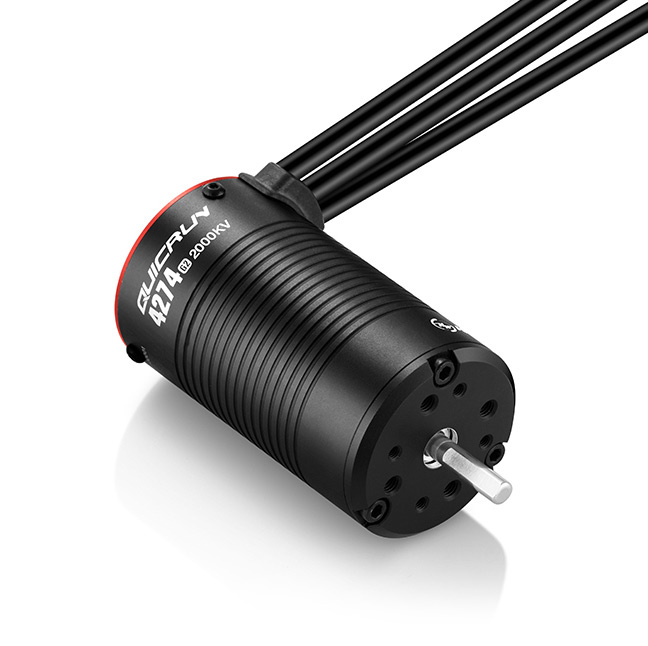

Blind hole thread design, highly compatible
The front end of the motor adopts a blind hole thread design to prevent the motor from being damaged due to long mounting screws; it also takes into account of M3 or M4 screw installation, which is compatible with various installation requirements.

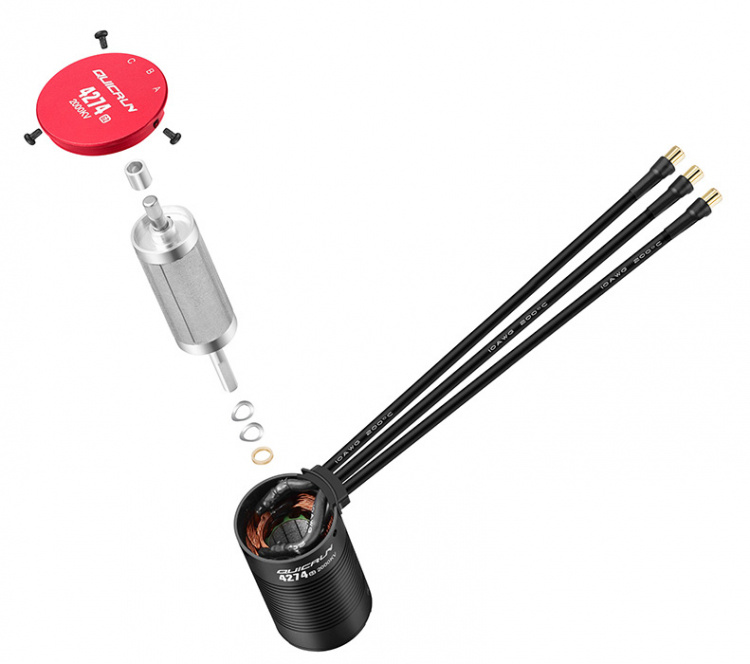

Modular design, easy to disassemble and maintain
The motor adopts a modular structure design. It makes daily cleaning and maintenance convenient, effectively prolonging the life-span of the motor and maintaining the working efficiency of the motor.
Specs:
- Type: 1/8, brushless, sensorless ESC
- Pole Count: 4
- KV Rating: 2000
- LiPo Cells: 3-6S
- No-load Current(A): 5.9A
- O.D.: 42mm
- Length: 74.9mm
- Shaft Diameter: 5mm
- Connectors: 6.5mm Male
- Wire: 10AWG-200MM
- Weight: 477g
- Front Bearing: D16xD5xT5mm
- Rear Bearing: D13xD5xT4mm
- ESC: QUICRUN WP 8BL150 G2
