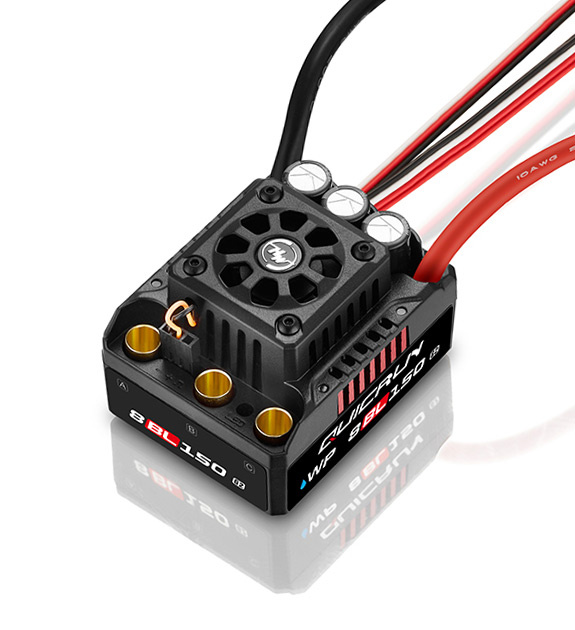

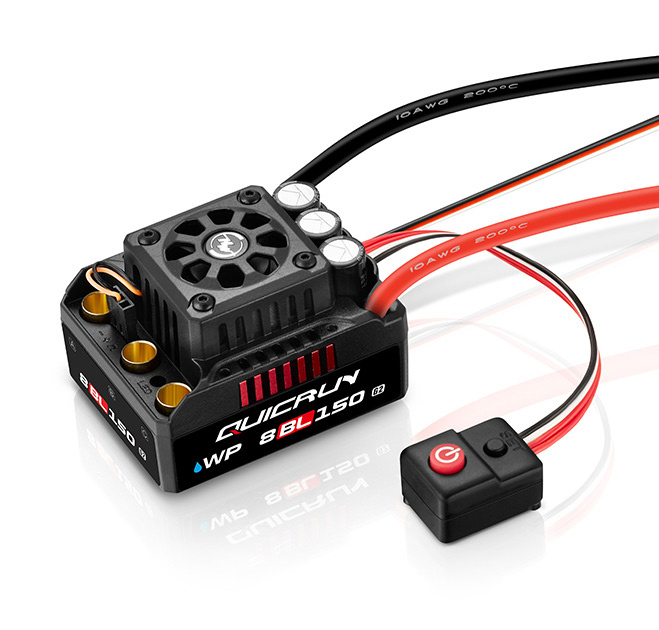

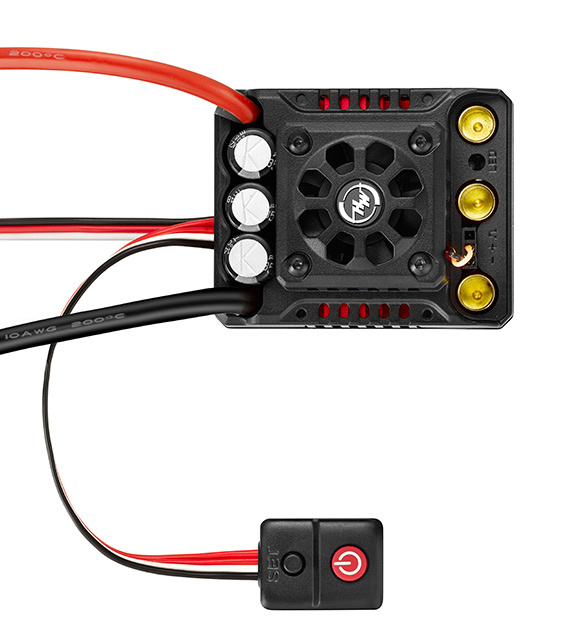

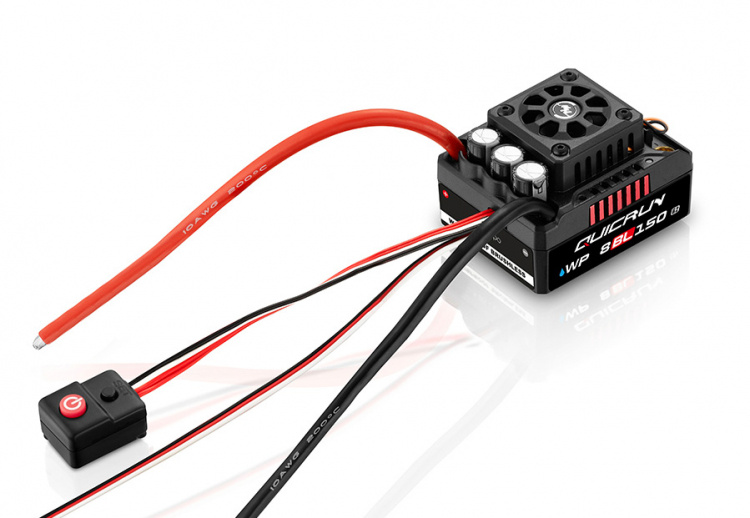

Hobbywing QuicRun WP 8BL150 G2 3-6S ESC
Features:
- Excellent waterproof and dustproof performance, it is easy to deal with various climatic conditions and harsh environment.
- Smart freewheeling technology makes the esc have higher driving efficiency and lower operating temperature, and the stability and reliability of the esc are further improved.
- Built-in powerful switch mode BEC, and support 6V/7.4V adjustable, easy to drive various powerful and high-voltage steering servo.
- Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
- It has an independent programming port. When connecting the program card, it is not necessary to pull the throttle cable out of the receiver, which is more convenient to use.
Innovative intelligent freewheeling technology, high efficiency and low temperature rise
The innovative intelligent freewheeling technology enables the ESC to have higher driving efficiency and lower operating temperature. The stability and reliability of the ESC is improved.
Upgraded BEC
The BEC has been upgraded from the previous generation from 6V/3A to 6V/7.4V and is fully-adjustable. It is equipped with a continuous current of 6A, and up to a maximum current of 12A. It supports most high-voltage servos on the market.
Exceptional protection and operation
Equipped with excellent waterproofing and dustproofing performance to cope with various climatic conditions and harsh environments. The protection level of the ESC reaches IP67.
- Note: The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use, but it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.
Efficient cooling system
The internal power board of the ESC is covered with a patented copper heat conduction bus bar to help facilitate the rapid conduction of internal heat to the radiator. Additionally, a fan is added to dissipate heat. These constitute to a highly reliable cooling system to ensure that the ESC is always in a safe operating temperature.
Durable electronic switch
The upgraded electronic power switch solves the corrosion and impact damage that occurs frequently in traditional mechanical switches in dusty and humid environments. Accidental shutdowns are no longer an issue.
Capacitor overheating protection function
Capacitor overheating protection feature can effectively prevent exploding customers due to overload usage. This helps to eliminate damages to the ESC.
Super large built-in capacitor
The built-in capacitor capacity of the ESC is as high as 2040 uF, and eliminates the need for external capacitors.
Specs:
- Type: Brushless, sensorless, IP67 ESC
- Cont./Peak Current: 150A/950A
- Input Voltage: 3-6S LiPo
- BEC Output: Switch Mode 6V/7.4V @ 6A
- Input Wires: 10AWG-150MM
- Output Connectors: 6.5mm Gold (female)
- Input Connector: No
- Size: 60x48x40.4mm
- Weight: 169.5g
- Firmware Upgrade: Not Supported
- Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
- Vehicles: 1/8 Trucks & Monster Trucks
- KV Rating/T Count: With 4S Lipo: KV ≤ 3000 - With 6S Lipo: KV ≤ 2400 4274 size motor
ESC Programing via:
- SET Button on ESC: Not Supported
- LED Program Box: Supported
- LCD G2 Program Box: Supported
- OTA Programmer: Not Supported
- Program Port: Separate Programing Port
