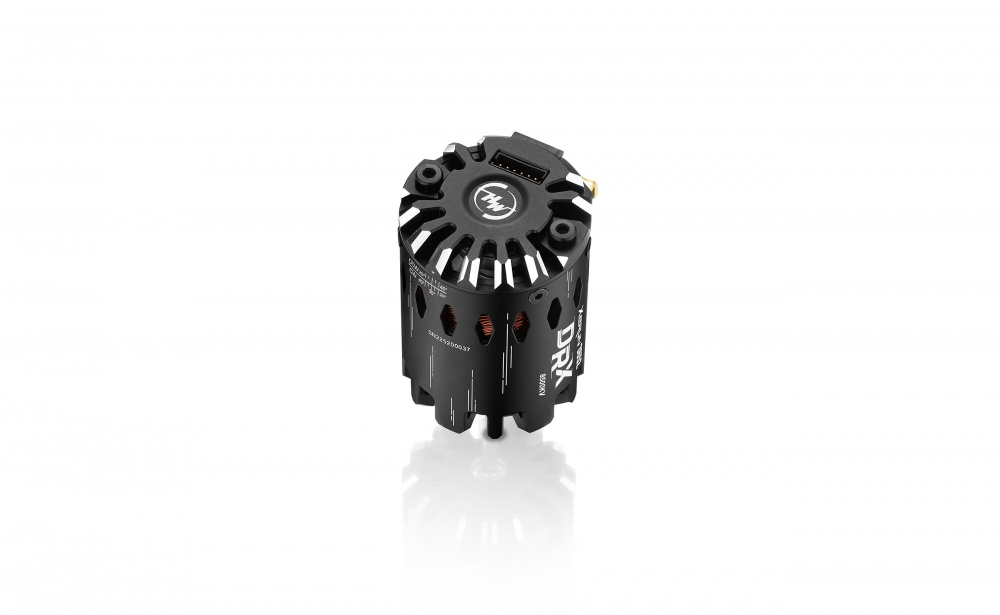

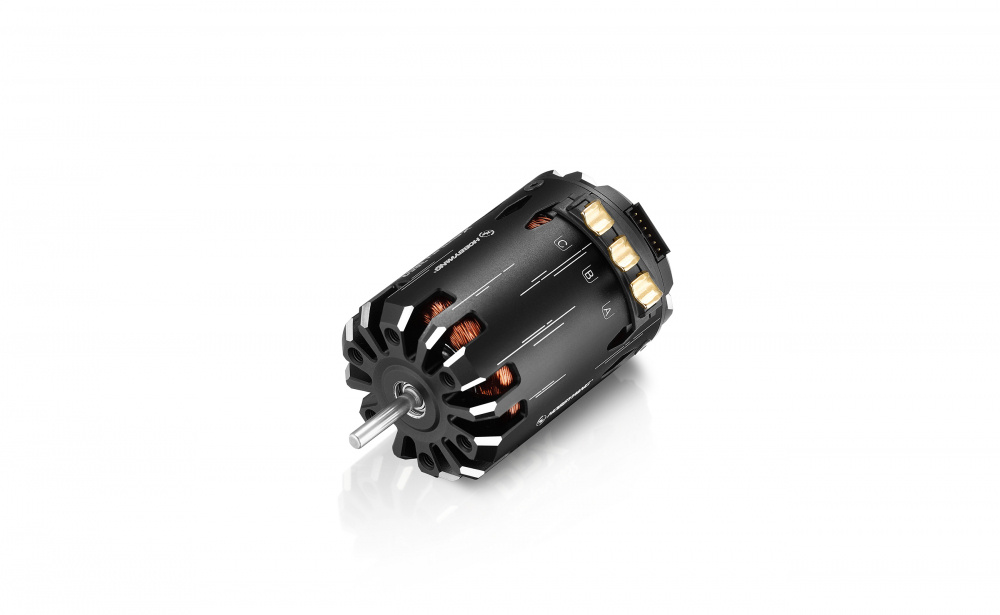

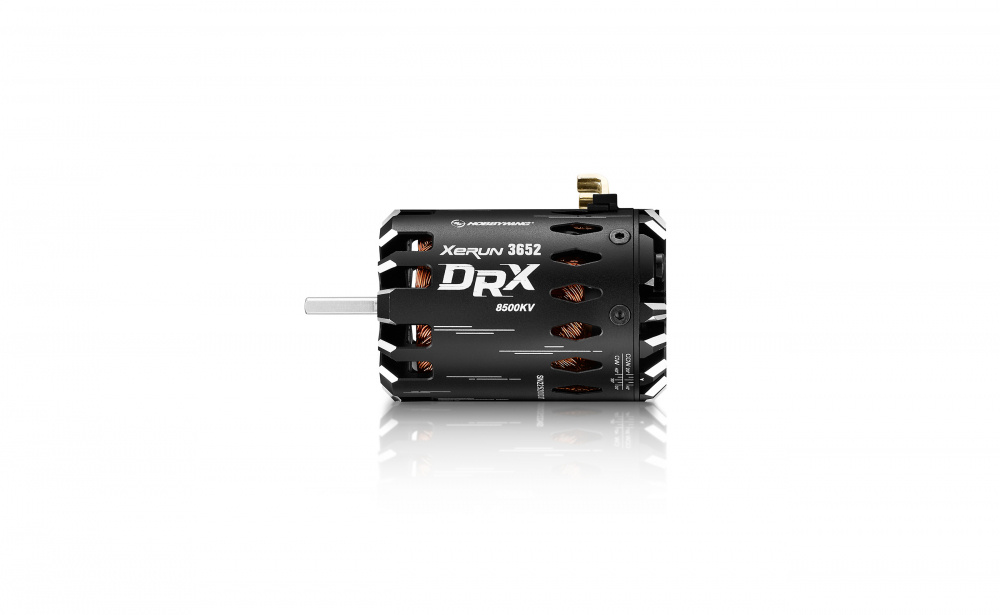

HW30401062 - Motor XeRun DRX 3652SD 9500kV Drag Racing
- Ultra high rpm, super power, specially designed for Drag Racing.
- The motor case and end cover are of big opening structure, providing the best heat dissipation effect for the motor.
- Dual sensor interface design to meet various wiring/layout requirements.
- Widened and thickened copper bar design provides guarantee for large current application.
- The rotor adopts steel sleeve explosion-proof design, which withstand ultra-high rpm running conditions.
Type
- Scale: 1/10
- Brushed/Brushless: BL
- Sensored/Sensorless: SD
- Pole Count: 4
Relevant Parameters
- KV Rating: 9500KV
- LiPo Cells: 2S LIPO
- No-load Current(A): 8.6A
Size & Weight
- O.D.(mm): 36
- Length (mm): 53
- Shaft Diameter (mm): 3.175
- Weight (g): 187g
- Front Bearing: D9xD4xT4
- Rear Bearing: D8xD3xT4
Other Parameters
- Vehicles: 1/10 Drag Racing
