HW30112621 - XeRun XR10 Pro-DR (Drag Racing) Fartreglage
The ultimate weapon in Drag racing
The XeRun XR10 PRO DR features a high-performance 32-bit M4 microprocessor. The core of the software is optimized and based on the world championship winning XeRun XR10 PRO G2S to provide the best control and performance for Drag Racing.
The response time is reduced when the throttle acceleration is set to the maximum at 30. (Compared to the XeRun XR10 PRO G2S ESC)
Note: The response time is affected by the characteristics of the motor and is subject to actual measurement!
9900uF Super Capacitor
The ESC comes standard with a 9900uF ultra-large capacitor. The capacitance is increased by nearly 9 times to ensure that the ESC voltage remains stable during extreme power output. (Compared with the standard capacitor of the XERUN XR10 PRO G2S)

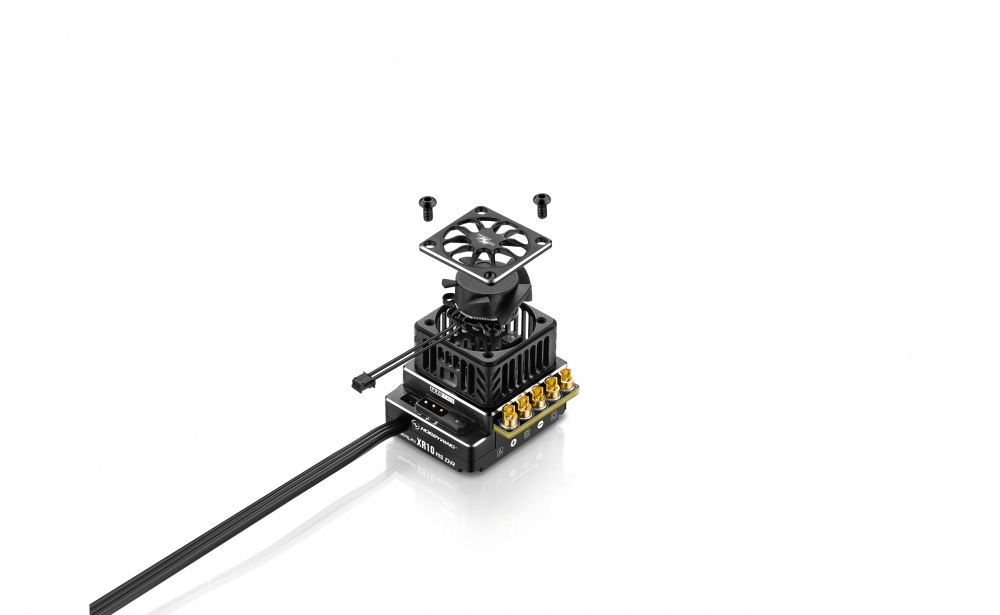

Frameless fan, efficient heat dissipation
A frameless fan with patented technology is adopted to dissipate a large amount of air through the sides of the fan. In addition, the internal power board is covered with a copper heat-conducting busbar to generate internal heat transfer to the integrated casing radiator. The heat dissipation system ensures that the ESC is always reliable and in good heat dissipation condition at all times.
External Bluetooth OTA makes wireless operation more convenient
A wireless connection can be established between the mobile phone and the ESC. It is easy and convenient to use the mobile app to make adjustment on the parameters, data reading, and firmware upgrades.
Real-time storage of data, easy to grasp the power status
Connect the ESC to the OTA Bluetooth module. By using the mobile phone APP, you are able to view real-time data and operating status such as throttle,
voltage, temperature, speed, etc. It can also view historical data (graphs) after operation to easily obtain the operating status of the ESC and motor.
Note: Due to the Bluetooth transmission distance, the effective distance is only about 5m!
Specs:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: No
- Cont./Peak Current: 200A/1200A
- Input Voltage: 2S Lipo
- BEC BEC Output: Switch Mode 5V-7.4V @5A
- Input Wires: 10AWG
- Output Wires: 10AWG
- Input Connectors: No
- Output Connectors: No
- ESC Programing via SET Button on ESC: Not Supported
- LED Program Box: Not Supported
- LCD G2 Program Box: Supported
- LCD PRO: Supported
- OTA Programmer: Supported
- Program Port: Separate
- Extreme value: Supported
- Real-time Data: Supported
- Historical data (Graph): Supported
- Firmware Upgrade: Supported
- Size: 37.7x37.2x33.2mm
- Weight: 137g (Included wires&connectors)
Aplications:
- Motors: SD BL Motors
- Vehicles: 1/10th Drag Racing
- KV Rating/T Count: XERUN 3652/3662 DRX
