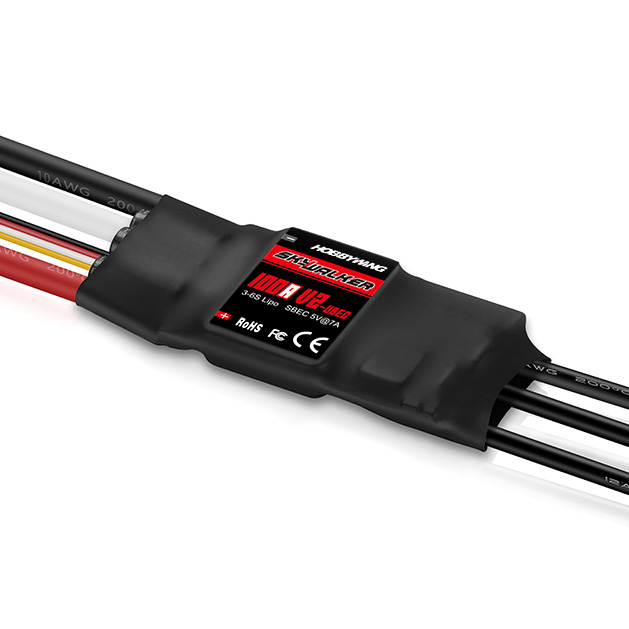

Hobbywing HW80060441 - Skywalker 100A V2 ESC
Features:
- Features a high performance 32-bit microprocessor (with a running frequency of up to 96MHz) is compatible with various brushless motors.
- DEO (Driving Efficiency Optimization) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
- Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of HOBBYWING LED program box.)
- Normal/Reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft.
- Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment.
- Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service life of the ESC.
32-bit ARM M0 processor
High-performance 32-bit ARM M0 processor running up to 96MHz，support maximum speed up to 300,000 RPM(2-pole motor). High quality, and reliability makes the SKYWALKER V2 series very cost effective.
DEO Technology / Active Freewheeling
The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages. Fast and smooth throttle response, better stability and flexibility during flight. Higher driving efficiency, longer flight times. Lower ESC temperature, more reliable operation.
- Flexibility During flight
- Lower ESC temperatures
- Longer flight time
Reverse Brake
With Reverse Brake and Linear Reverse Brakes mode enabled can effectively shorten the landing distance of the aircraft to simulate the landing of a real aircraft. Normal Brake Mode and Brake Disabled mode are also available; the brake amount is adjustable in normal brake mode.
(This is a HOBBYWING registered patent)
Search Mode
Search mode can help users find their aircraft by pulsing the motor to beep after the aircraft falls into a visually obstructed environment and is difficult to find. This mode can also be used to prompt the user to disconnect the battery of an ESC that has not been working for a set time to prevent the battery from running out of power and being damaged.
Multiple Protection
Multiple protection features include abnormal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the life of the ESC.
- Abnormal Input voltage
- Low voltage Cutoff
- ESC thermal
- Throttle Signal loss
Specs:
- Brushed/Brushless: Brushless
- High Voltage/Regular: Regular
- Cont./Peak Current: 100A/120A
- Input: 3-6S LiPo
- BEC Output: Switch Mode 5V 7A
- Input Wires: 10AWG 150mm
- Output Wires: 12AWG-100mm
- Input Connectors: No
- Output Connectors: 4mm Gold Bullets (Female)
- Firmware Upgradeable: Not supported
- Size: 85x36x9mm
- Weight: 92g
ESC Programing via:
- Transmitter: Supported
- LED Program Card: Not Supported
- LED Program Box: Supported
- LCD Program Box: Not Supported
- WiFi Module: Not Supported
- OTA Programmer: Not Supported
- Program Port: Program Wire Firmware
